Home V-coil VÖLKEL V-COIL wire thread insert free running type S, BSW thread
Categories
VÖLKEL V-COIL wire thread insert free running type S, BSW thread
V-coil

VÖLKEL V-COIL wire thread insert free running type S, BSW thread

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL V-COIL wire thread insert free running type S, BSW thread, 60 items BSW 1/8 x 40 – BSW 1" x 8.

SKU: 082xx
60 variants
€0.44 - €13.55
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL V-COIL wire thread insert free running type S, BSW thread, 60 items BSW 1/8 x 40 – BSW 1" x 8.

Specifications

  • Wire thread insert, free-running type S
  • Construction standard: DIN 8140
  • Thread profile: Whitworth BSW per BS 84
  • Insert length specified as multiple of nominal diameter D
  • Free-running design: bolt screws in and out easily
  • No clamping action on bolt thread flanks
  • Resulting internal thread tolerance class: Medium
  • Tang provided for installation, broken off afterwards
  • Function: repair of stripped, worn or oversized internal threads
  • Restores original nominal thread size, no bolt upsizing
  • Reinforces threads in aluminium, magnesium alloy, cast iron, plastic

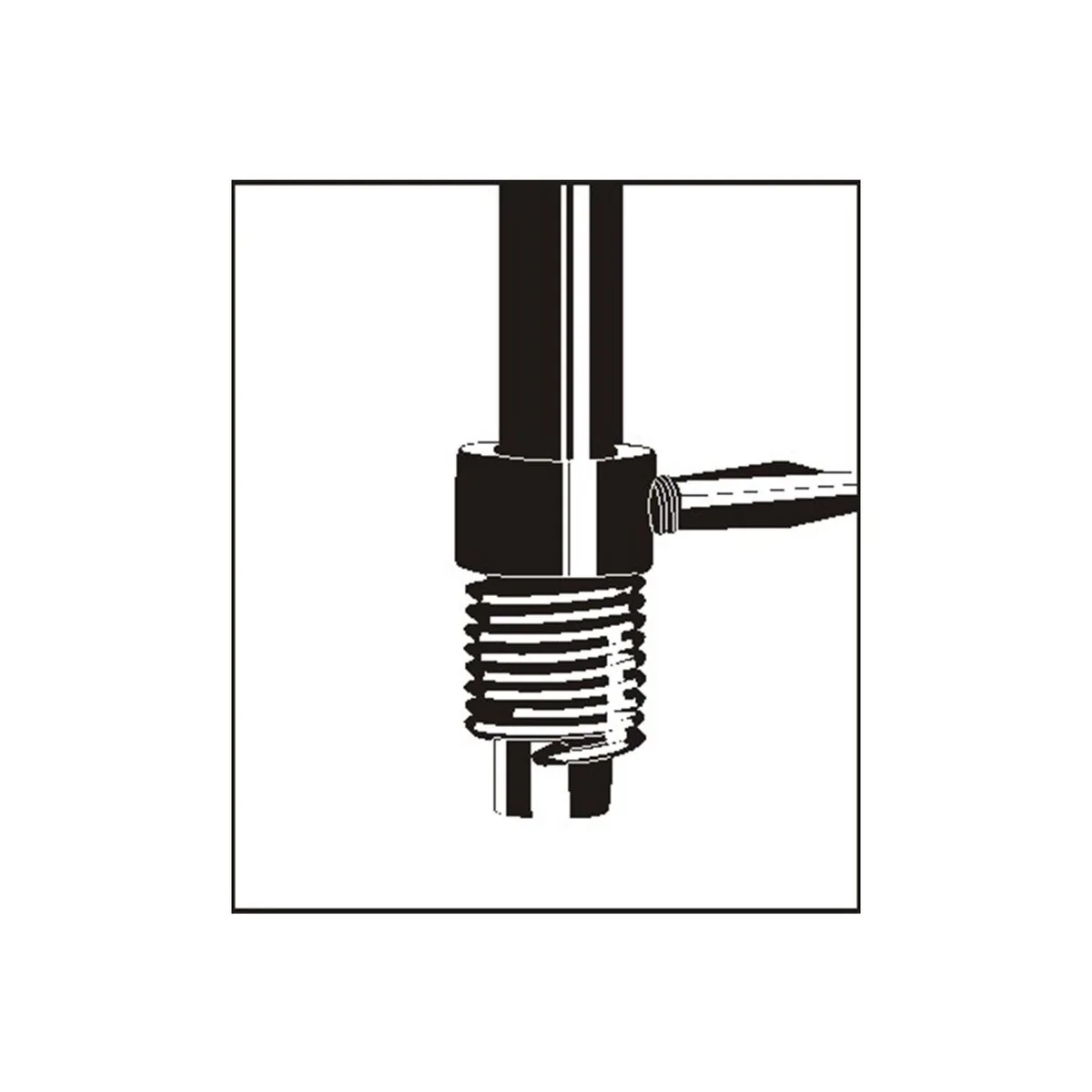

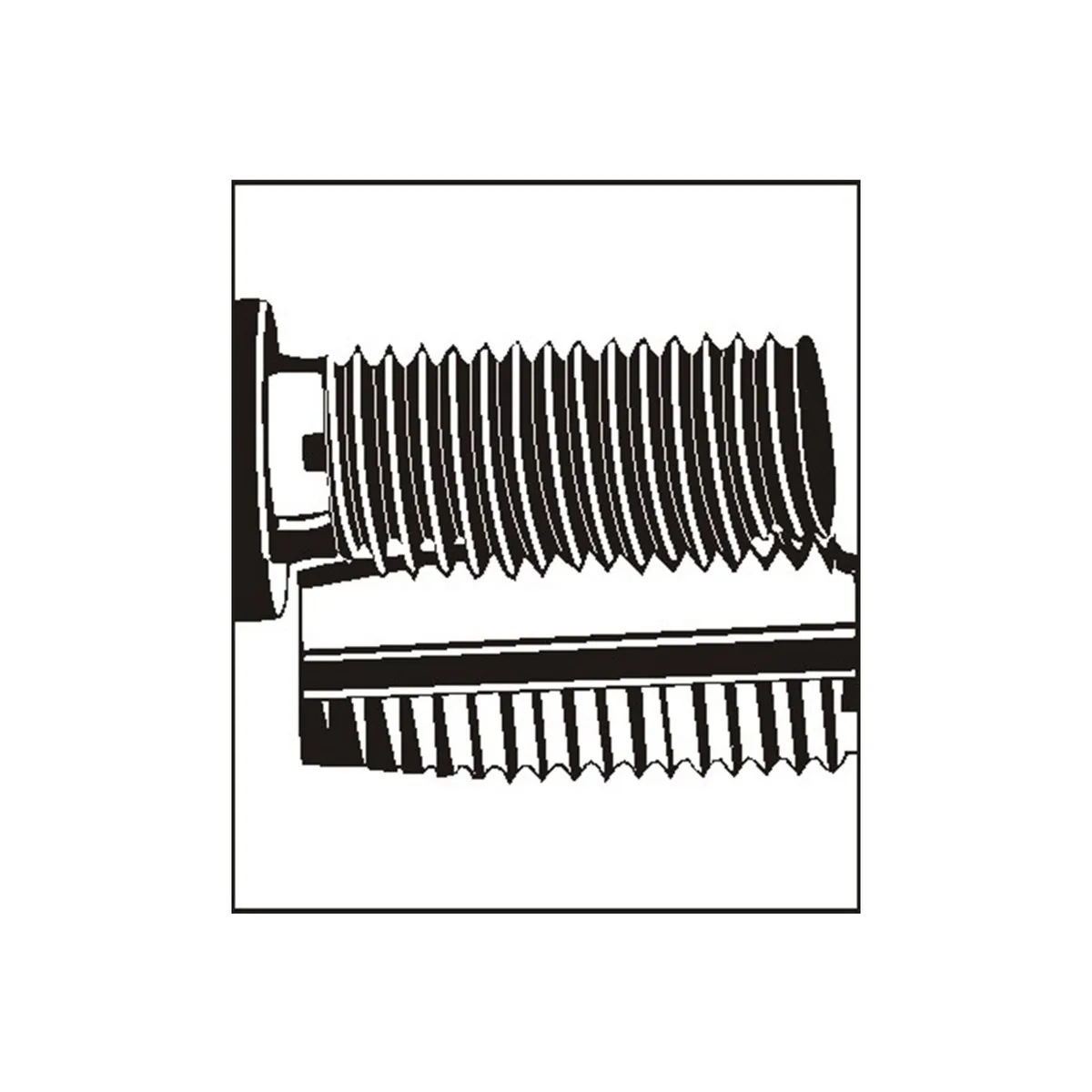

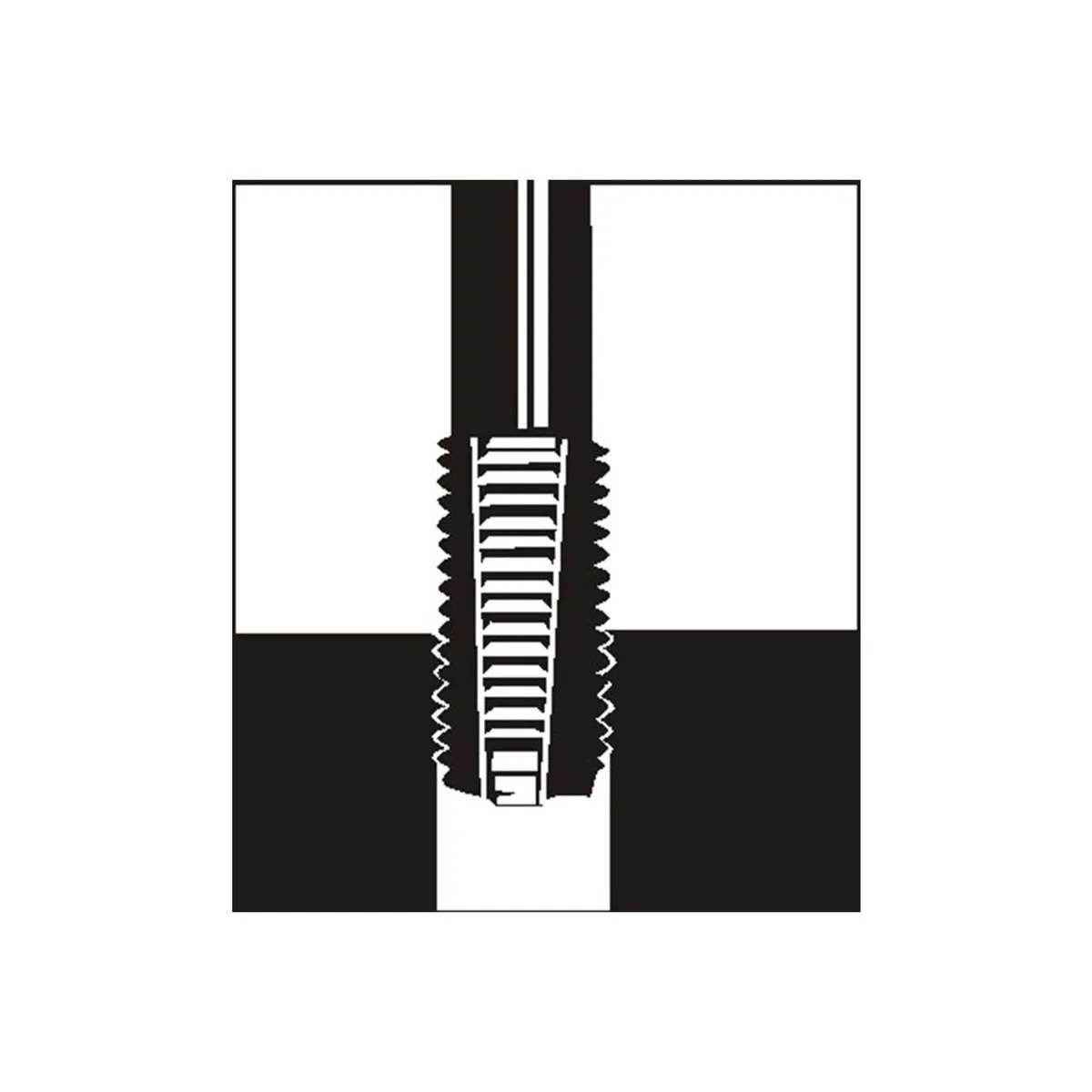

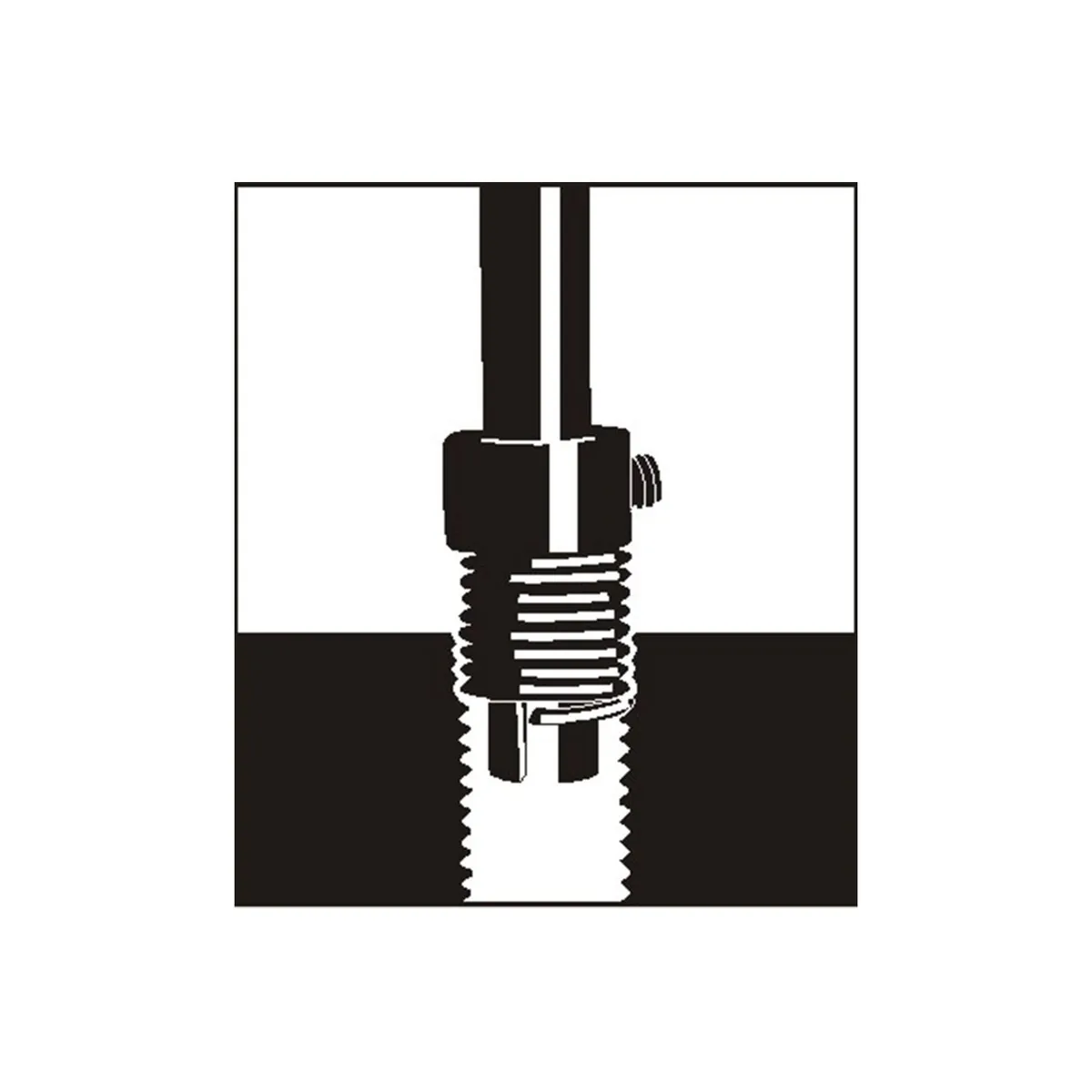

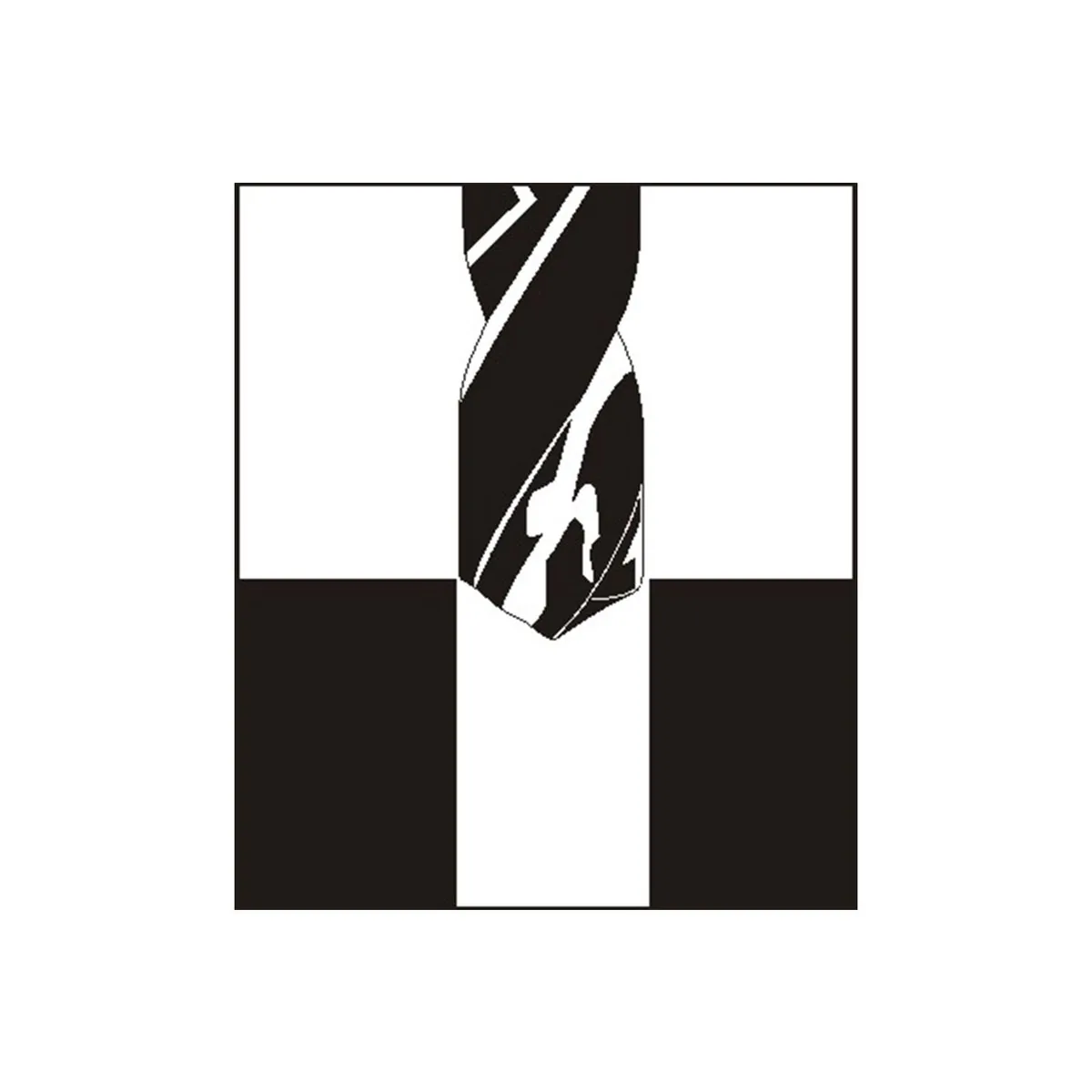

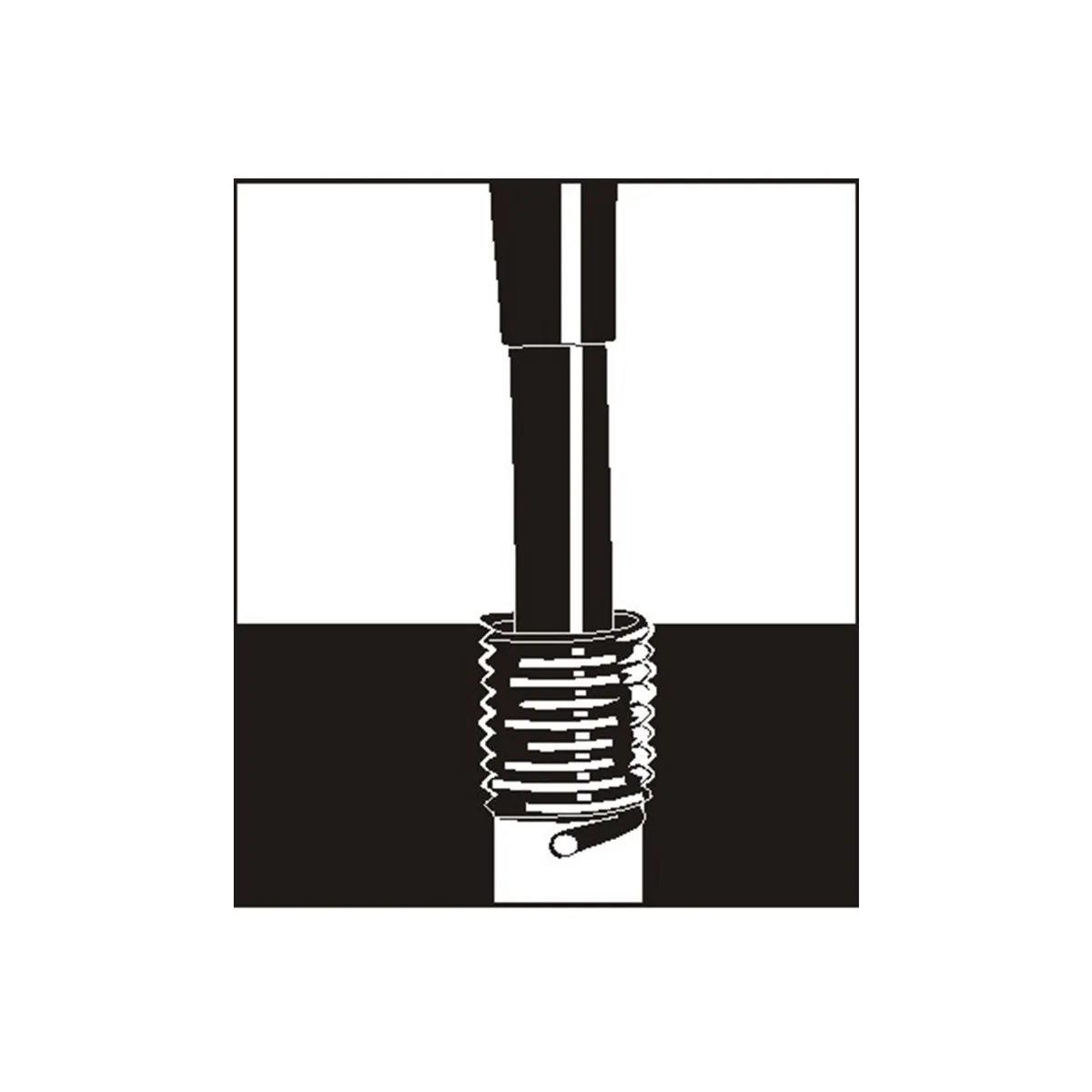

  • Installation: STI drill, STI tap, insertion tool
  • Applications: machine maintenance, engine repair, mould repair, aluminium housings
  • Each reference packed in boxes per size
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock DIN or ISO standard Length Material Packing standard Thread size Thread tolerance class Thread type
08241 €0.94 DIN 8140 1D Stainless steel Box of 100 pcs BSW 1/8 x 40 Medium ren Whitworth BSW
08341 €1.07 DIN 8140 1.5D Stainless steel Box of 100 pcs BSW 1/8 x 40 Medium ren Whitworth BSW
08441 €1.68 DIN 8140 2D Stainless steel Box of 100 pcs BSW 1/8 x 40 Medium ren Whitworth BSW
08541 €1.88 DIN 8140 2.5D Stainless steel Box of 100 pcs BSW 1/8 x 40 Medium ren Whitworth BSW
08641 €2.01 DIN 8140 3D Stainless steel Box of 100 pcs BSW 1/8 x 40 Medium ren Whitworth BSW
08242 €0.94 DIN 8140 1D Stainless steel Box of 100 pcs BSW 3/16 x 24 Medium ren Whitworth BSW
08342 €1.07 DIN 8140 1.5D Stainless steel Box of 100 pcs BSW 3/16 x 24 Medium ren Whitworth BSW
08442 €1.68 DIN 8140 2D Stainless steel Box of 100 pcs BSW 3/16 x 24 Medium ren Whitworth BSW
08542 €1.88 DIN 8140 2.5D Stainless steel Box of 100 pcs BSW 3/16 x 24 Medium ren Whitworth BSW
08642 €2.01 DIN 8140 3D Stainless steel Box of 100 pcs BSW 3/16 x 24 Medium ren Whitworth BSW
08243 €0.44 DIN 8140 1D Stainless steel Box of 100 pcs BSW 1/4 x 20 Medium ren Whitworth BSW
08343 €0.44 DIN 8140 1.5D Stainless steel Box of 100 pcs BSW 1/4 x 20 Medium ren Whitworth BSW
08443 €0.50 DIN 8140 2D Stainless steel Box of 100 pcs BSW 1/4 x 20 Medium ren Whitworth BSW
08543 €0.64 DIN 8140 2.5D Stainless steel Box of 100 pcs BSW 1/4 x 20 Medium ren Whitworth BSW
08643 €0.74 DIN 8140 3D Stainless steel Box of 100 pcs BSW 1/4 x 20 Medium ren Whitworth BSW
08244 €0.50 DIN 8140 1D Stainless steel Box of 100 pcs BSW 5/16 x 18 Medium ren Whitworth BSW
08344 €0.57 DIN 8140 1.5D Stainless steel Box of 100 pcs BSW 5/16 x 18 Medium ren Whitworth BSW
08444 €0.57 DIN 8140 2D Stainless steel Box of 100 pcs BSW 5/16 x 18 Medium ren Whitworth BSW
08544 €0.64 DIN 8140 2.5D Stainless steel Box of 100 pcs BSW 5/16 x 18 Medium ren Whitworth BSW
08644 €0.87 DIN 8140 3D Stainless steel Box of 100 pcs BSW 5/16 x 18 Medium ren Whitworth BSW
08245 €0.87 DIN 8140 1D Stainless steel Box of 100 pcs BSW 3/8 x 16 Medium ren Whitworth BSW
08345 €0.94 DIN 8140 1.5D Stainless steel Box of 100 pcs BSW 3/8 x 16 Medium ren Whitworth BSW
08445 €1.01 DIN 8140 2D Stainless steel Box of 100 pcs BSW 3/8 x 16 Medium ren Whitworth BSW
08545 €1.24 DIN 8140 2.5D Stainless steel Box of 100 pcs BSW 3/8 x 16 Medium ren Whitworth BSW
08645 €1.51 DIN 8140 3D Stainless steel Box of 100 pcs BSW 3/8 x 16 Medium ren Whitworth BSW
08246 €1.17 DIN 8140 1D Stainless steel Box of 100 pcs BSW 7/16 x 14 Medium ren Whitworth BSW
08346 €1.24 DIN 8140 1.5D Stainless steel Box of 100 pcs BSW 7/16 x 14 Medium ren Whitworth BSW
08446 €1.44 DIN 8140 2D Stainless steel Box of 100 pcs BSW 7/16 x 14 Medium ren Whitworth BSW
08546 €1.68 DIN 8140 2.5D Stainless steel Box of 100 pcs BSW 7/16 x 14 Medium ren Whitworth BSW
08646 €2.01 DIN 8140 3D Stainless steel Box of 100 pcs BSW 7/16 x 14 Medium ren Whitworth BSW
08247 €1.17 DIN 8140 1D Stainless steel Box of 100 pcs BSW 1/2 x 12 Medium ren Whitworth BSW
08347 €1.24 DIN 8140 1.5D Stainless steel Box of 100 pcs BSW 1/2 x 12 Medium ren Whitworth BSW
08447 €1.44 DIN 8140 2D Stainless steel Box of 100 pcs BSW 1/2 x 12 Medium ren Whitworth BSW
08547 €1.68 DIN 8140 2.5D Stainless steel Box of 100 pcs BSW 1/2 x 12 Medium ren Whitworth BSW
08647 €2.01 DIN 8140 3D Stainless steel Box of 100 pcs BSW 1/2 x 12 Medium ren Whitworth BSW
08248 €2.89 DIN 8140 1D Stainless steel Box of 50 pcs BSW 9/16 x 12 Medium ren Whitworth BSW
08348 €3.93 DIN 8140 1.5D Stainless steel Box of 50 pcs BSW 9/16 x 12 Medium ren Whitworth BSW
08448 €4.86 DIN 8140 2D Stainless steel Box of 50 pcs BSW 9/16 x 12 Medium ren Whitworth BSW
08548 €5.74 DIN 8140 2.5D Stainless steel Box of 50 pcs BSW 9/16 x 12 Medium ren Whitworth BSW
08648 €6.88 DIN 8140 3D Stainless steel Box of 50 pcs BSW 9/16 x 12 Medium ren Whitworth BSW
08249 €2.89 DIN 8140 1D Stainless steel Box of 50 pcs BSW 5/8 x 11 Medium ren Whitworth BSW
08349 €3.93 DIN 8140 1.5D Stainless steel Box of 50 pcs BSW 5/8 x 11 Medium ren Whitworth BSW
08449 €4.86 DIN 8140 2D Stainless steel Box of 50 pcs BSW 5/8 x 11 Medium ren Whitworth BSW
08549 €5.74 DIN 8140 2.5D Stainless steel Box of 50 pcs BSW 5/8 x 11 Medium ren Whitworth BSW
08649 €6.88 DIN 8140 3D Stainless steel Box of 50 pcs BSW 5/8 x 11 Medium ren Whitworth BSW
08251 €3.82 DIN 8140 1D Stainless steel Box of 25 pcs BSW 3/4 x 10 Medium ren Whitworth BSW
08351 €4.93 DIN 8140 1.5D Stainless steel Box of 25 pcs BSW 3/4 x 10 Medium ren Whitworth BSW
08451 €6.01 DIN 8140 2D Stainless steel Box of 25 pcs BSW 3/4 x 10 Medium ren Whitworth BSW
08551 €7.18 DIN 8140 2.5D Stainless steel Box of 25 pcs BSW 3/4 x 10 Medium ren Whitworth BSW
08651 €8.56 DIN 8140 3D Stainless steel Box of 25 pcs BSW 3/4 x 10 Medium ren Whitworth BSW
08253 €4.93 DIN 8140 1D Stainless steel Box of 10 pcs BSW 7/8 x 9 Medium ren Whitworth BSW
08353 €6.81 DIN 8140 1.5D Stainless steel Box of 10 pcs BSW 7/8 x 9 Medium ren Whitworth BSW
08453 €8.49 DIN 8140 2D Stainless steel Box of 10 pcs BSW 7/8 x 9 Medium ren Whitworth BSW
08553 €10.23 DIN 8140 2.5D Stainless steel Box of 10 pcs BSW 7/8 x 9 Medium ren Whitworth BSW
08653 €12.31 DIN 8140 3D Stainless steel Box of 10 pcs BSW 7/8 x 9 Medium ren Whitworth BSW
08255 €5.44 DIN 8140 1D Stainless steel Box of 10 pcs BSW 1" x 8 Medium ren Whitworth BSW
08355 €7.68 DIN 8140 1.5D Stainless steel Box of 10 pcs BSW 1" x 8 Medium ren Whitworth BSW
08455 €9.50 DIN 8140 2D Stainless steel Box of 10 pcs BSW 1" x 8 Medium ren Whitworth BSW
08555 €11.31 DIN 8140 2.5D Stainless steel Box of 10 pcs BSW 1" x 8 Medium ren Whitworth BSW
08655 €13.55 DIN 8140 3D Stainless steel Box of 10 pcs BSW 1" x 8 Medium ren Whitworth BSW
