Home V-coil VÖLKEL V-COIL wire thread insert free running type S, UNF thread
Categories
VÖLKEL V-COIL wire thread insert free running type S, UNF thread
V-coil

VÖLKEL V-COIL wire thread insert free running type S, UNF thread

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL V-COIL wire thread insert free running type S, UNF thread, 75 items UNF No. 4 x 48 – UNF 1.1/2 x 12.

SKU: 0839x
75 variants
€0.37 - €16.31
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL V-COIL wire thread insert free running type S, UNF thread, 75 items UNF No. 4 x 48 – UNF 1.1/2 x 12.

Specifications

  • Wire thread insert, helical coil spring form
  • Wire cross-section: diamond (rhombic) profile
  • Free running type S: no bolt clamping
  • Bolt screws in and out with light torque
  • Thread system: UNF, inch unified fine
  • Thread sizes to ANSI B 1.1
  • Installed internal thread tolerance class: 2B
  • Insert length stated as multiple of nominal diameter D

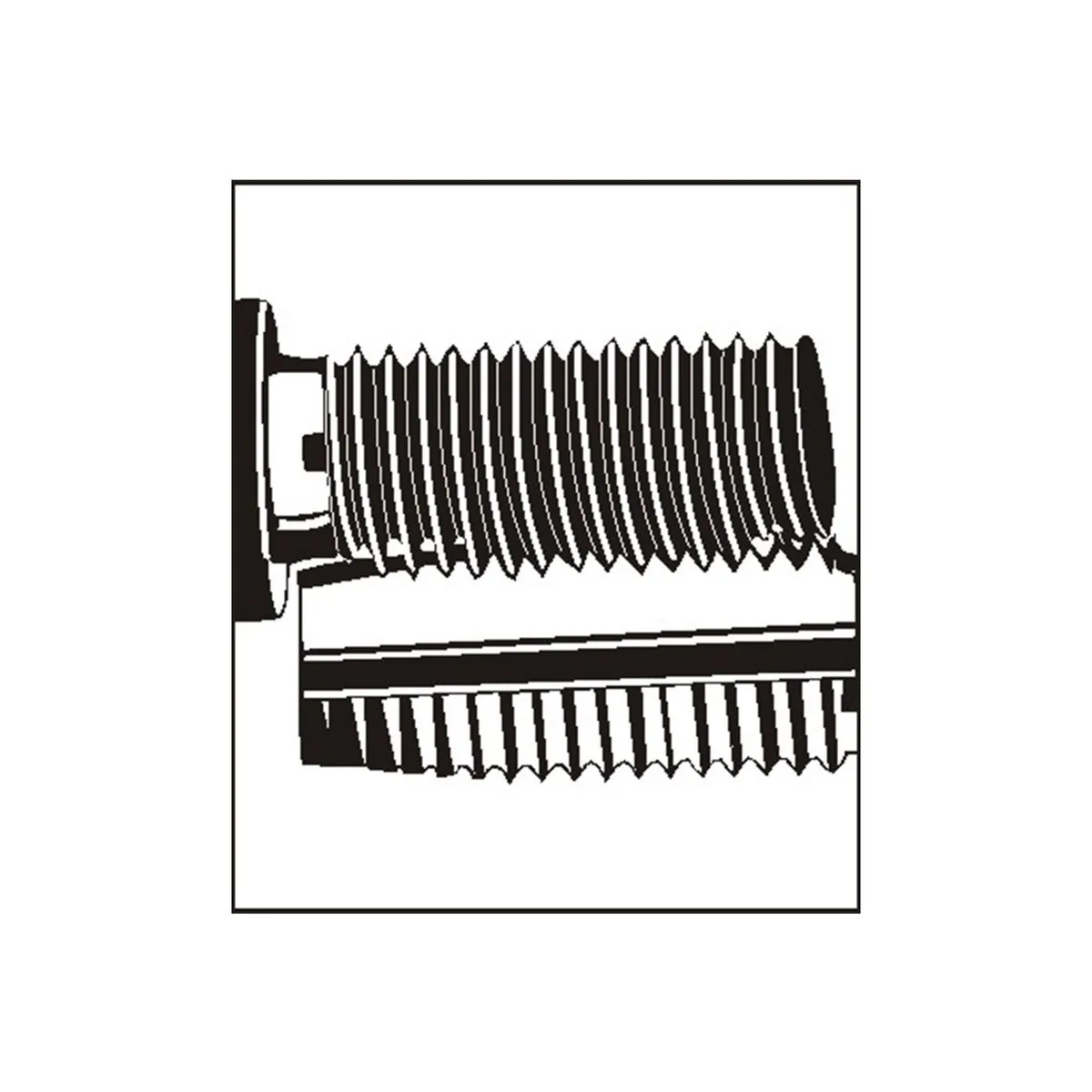

  • Function: repair stripped, worn or oversized internal threads
  • Retains original bolt size after repair
  • Reinforces threads in aluminium, magnesium alloy, cast iron, plastic

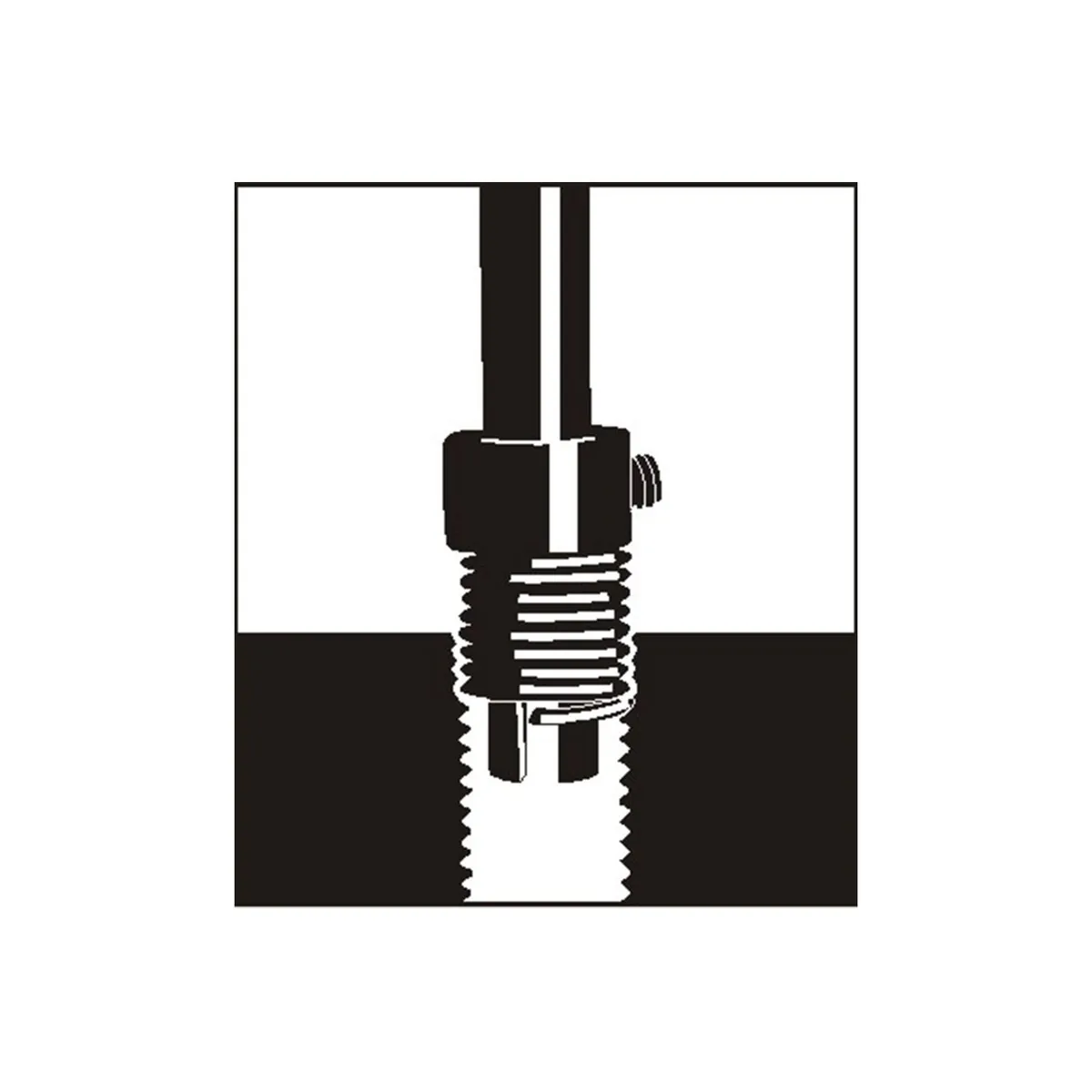

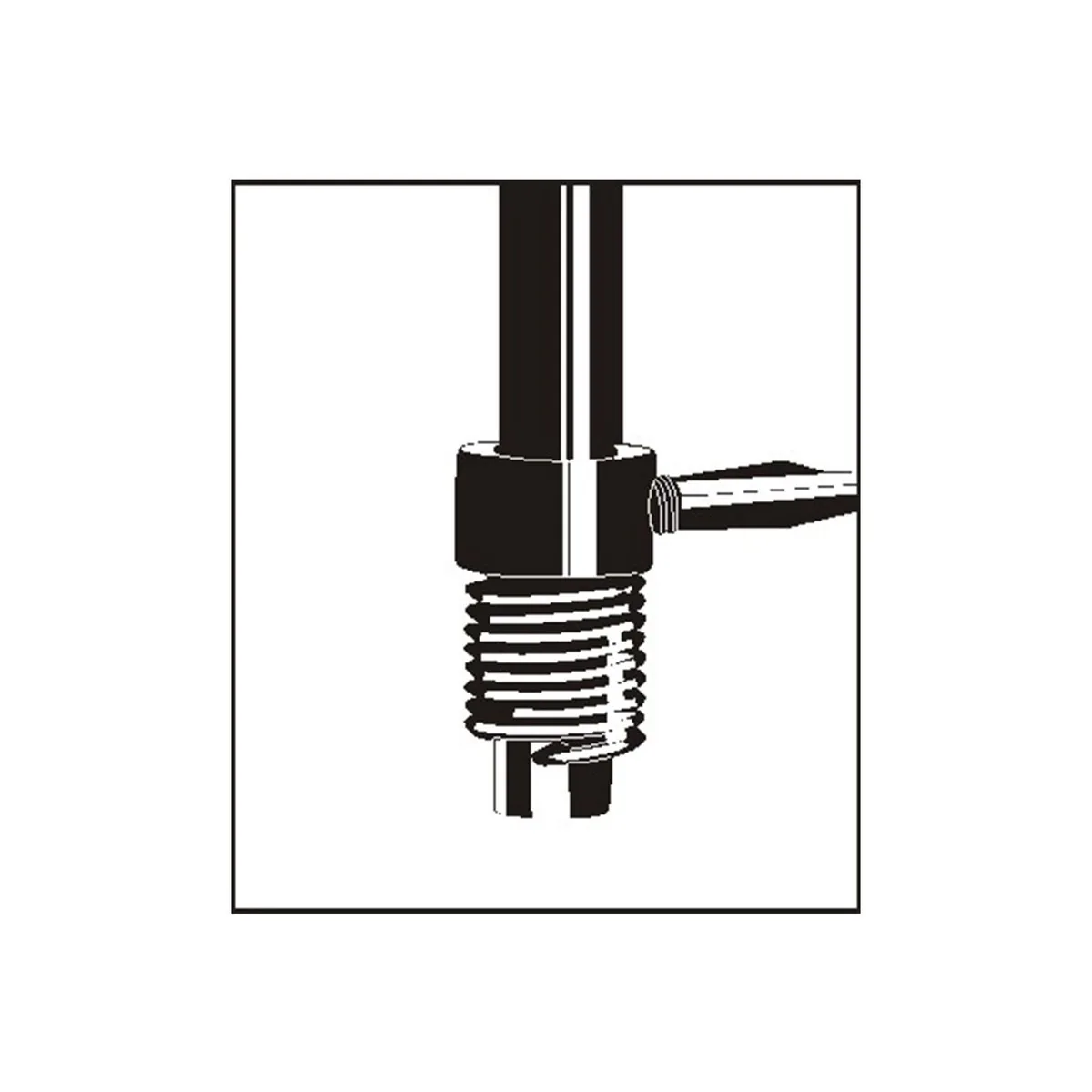

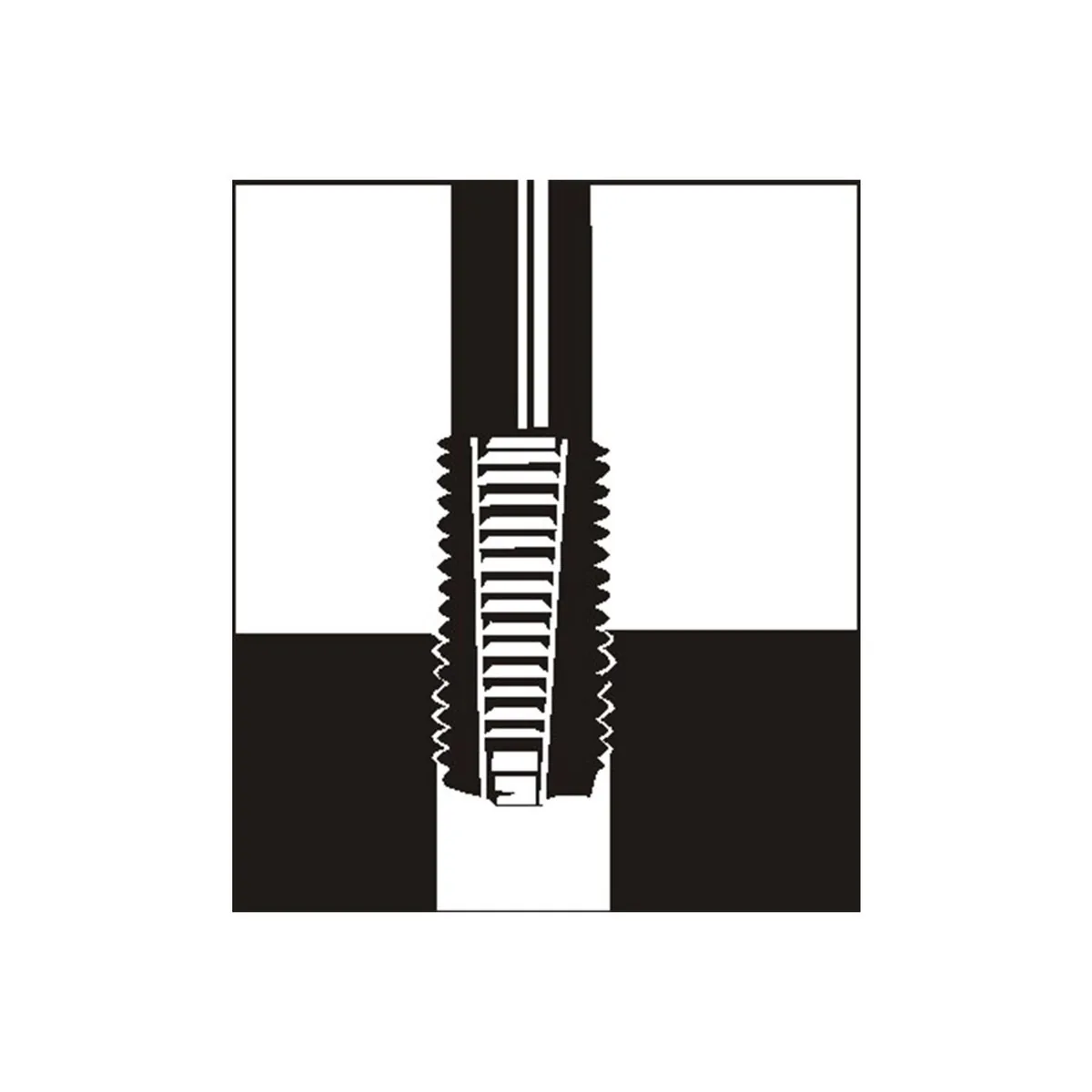

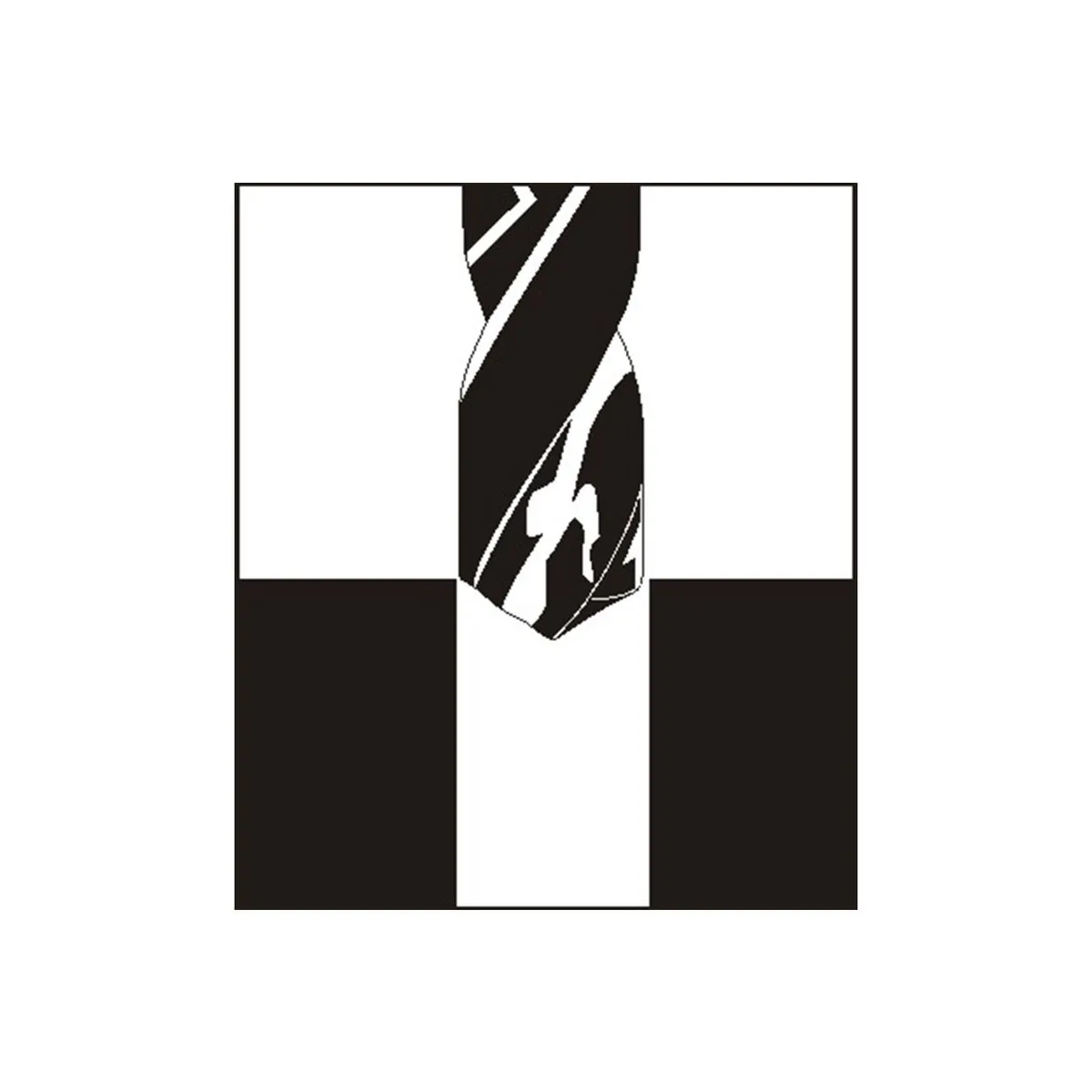

  • Installation: STI drill, STI tap, insertion tool

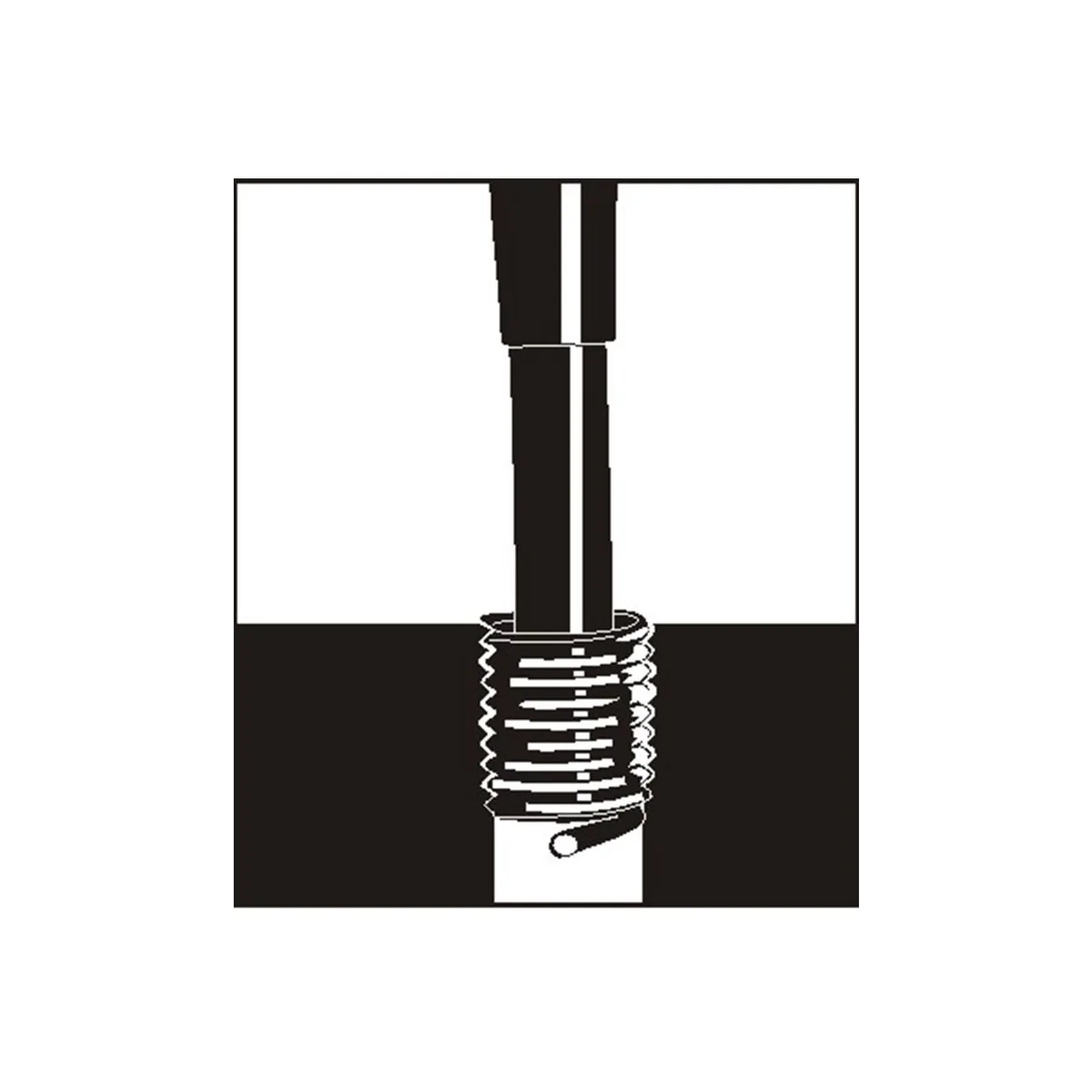

  • Tang broken off with tang break-off tool after fitting
  • Applications: machine maintenance, engine repair, mould repair, aluminium housings
  • Compatible with V-COIL thread repair kits and insertion heads
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock DIN or ISO standard Length Material Packing standard Thread size Thread tolerance class Thread type
08290 €0.64 DIN 8140 1D Stainless steel Box of 100 pcs UNF No. 4 x 48 2B ren UNF
08390 €0.87 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF No. 4 x 48 2B ren UNF
08490 €1.07 DIN 8140 2D Stainless steel Box of 100 pcs UNF No. 4 x 48 2B ren UNF
08590 €1.17 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF No. 4 x 48 2B ren UNF
08690 €1.51 DIN 8140 3D Stainless steel Box of 100 pcs UNF No. 4 x 48 2B ren UNF
08291 €0.64 DIN 8140 1D Stainless steel Box of 100 pcs UNF No. 6 x 40 2B ren UNF
08391 €0.87 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF No. 6 x 40 2B ren UNF
08491 €1.07 DIN 8140 2D Stainless steel Box of 100 pcs UNF No. 6 x 40 2B ren UNF
08591 €1.17 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF No. 6 x 40 2B ren UNF
08691 €1.51 DIN 8140 3D Stainless steel Box of 100 pcs UNF No. 6 x 40 2B ren UNF
08292 €0.64 DIN 8140 1D Stainless steel Box of 100 pcs UNF No. 8 x 36 2B ren UNF
08392 €0.87 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF No. 8 x 36 2B ren UNF
08492 €1.07 DIN 8140 2D Stainless steel Box of 100 pcs UNF No. 8 x 36 2B ren UNF
08592 €1.17 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF No. 8 x 36 2B ren UNF
08692 €1.51 DIN 8140 3D Stainless steel Box of 100 pcs UNF No. 8 x 36 2B ren UNF
08293 €0.37 DIN 8140 1D Stainless steel Box of 100 pcs UNF No. 10 x 32 2B ren UNF
08393 €0.37 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF No. 10 x 32 2B ren UNF
08493 €0.44 DIN 8140 2D Stainless steel Box of 100 pcs UNF No. 10 x 32 2B ren UNF
08593 €0.50 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF No. 10 x 32 2B ren UNF
08693 €0.57 DIN 8140 3D Stainless steel Box of 100 pcs UNF No. 10 x 32 2B ren UNF
08225 €0.37 DIN 8140 1D Stainless steel Box of 100 pcs UNF 1/4 x 28 2B ren UNF
08325 €0.37 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF 1/4 x 28 2B ren UNF
08425 €0.44 DIN 8140 2D Stainless steel Box of 100 pcs UNF 1/4 x 28 2B ren UNF
08525 €0.50 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF 1/4 x 28 2B ren UNF
08625 €0.57 DIN 8140 3D Stainless steel Box of 100 pcs UNF 1/4 x 28 2B ren UNF
08226 €0.44 DIN 8140 1D Stainless steel Box of 100 pcs UNF 5/16 x 24 2B ren UNF
08326 €0.50 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF 5/16 x 24 2B ren UNF
08426 €0.50 DIN 8140 2D Stainless steel Box of 100 pcs UNF 5/16 x 24 2B ren UNF
08526 €0.64 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF 5/16 x 24 2B ren UNF
08626 €0.74 DIN 8140 3D Stainless steel Box of 100 pcs UNF 5/16 x 24 2B ren UNF
08227 €0.64 DIN 8140 1D Stainless steel Box of 100 pcs UNF 3/8 x 24 2B ren UNF
08327 €0.64 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF 3/8 x 24 2B ren UNF
08427 €0.87 DIN 8140 2D Stainless steel Box of 100 pcs UNF 3/8 x 24 2B ren UNF
08527 €1.01 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF 3/8 x 24 2B ren UNF
08627 €1.17 DIN 8140 3D Stainless steel Box of 100 pcs UNF 3/8 x 24 2B ren UNF
08228 €0.87 DIN 8140 1D Stainless steel Box of 100 pcs UNF 7/16 x 20 2B ren UNF
08328 €1.01 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF 7/16 x 20 2B ren UNF
08428 €1.07 DIN 8140 2D Stainless steel Box of 100 pcs UNF 7/16 x 20 2B ren UNF
08528 €1.31 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF 7/16 x 20 2B ren UNF
08628 €1.61 DIN 8140 3D Stainless steel Box of 100 pcs UNF 7/16 x 20 2B ren UNF
08229 €0.87 DIN 8140 1D Stainless steel Box of 100 pcs UNF 1/2 x 20 2B ren UNF
08329 €1.01 DIN 8140 1.5D Stainless steel Box of 100 pcs UNF 1/2 x 20 2B ren UNF
08429 €1.07 DIN 8140 2D Stainless steel Box of 100 pcs UNF 1/2 x 20 2B ren UNF
08529 €1.31 DIN 8140 2.5D Stainless steel Box of 100 pcs UNF 1/2 x 20 2B ren UNF
08629 €1.61 DIN 8140 3D Stainless steel Box of 100 pcs UNF 1/2 x 20 2B ren UNF
08230 €2.01 DIN 8140 1D Stainless steel Box of 50 pcs UNF 9/16 x 18 2B ren UNF
08330 €2.18 DIN 8140 1.5D Stainless steel Box of 50 pcs UNF 9/16 x 18 2B ren UNF
08430 €2.62 DIN 8140 2D Stainless steel Box of 50 pcs UNF 9/16 x 18 2B ren UNF
08530 €2.99 DIN 8140 2.5D Stainless steel Box of 50 pcs UNF 9/16 x 18 2B ren UNF
08630 €3.69 DIN 8140 3D Stainless steel Box of 50 pcs UNF 9/16 x 18 2B ren UNF
08231 €2.01 DIN 8140 1D Stainless steel Box of 50 pcs UNF 5/8 x 18 2B ren UNF
08331 €2.18 DIN 8140 1.5D Stainless steel Box of 50 pcs UNF 5/8 x 18 2B ren UNF
08431 €2.62 DIN 8140 2D Stainless steel Box of 50 pcs UNF 5/8 x 18 2B ren UNF
08531 €2.99 DIN 8140 2.5D Stainless steel Box of 50 pcs UNF 5/8 x 18 2B ren UNF
08631 €3.69 DIN 8140 3D Stainless steel Box of 50 pcs UNF 5/8 x 18 2B ren UNF
08233 €3.49 DIN 8140 1D Stainless steel Box of 25 pcs UNF 3/4 x 16 2B ren UNF
08333 €4.93 DIN 8140 1.5D Stainless steel Box of 25 pcs UNF 3/4 x 16 2B ren UNF
08433 €5.94 DIN 8140 2D Stainless steel Box of 25 pcs UNF 3/4 x 16 2B ren UNF
08533 €7.18 DIN 8140 2.5D Stainless steel Box of 25 pcs UNF 3/4 x 16 2B ren UNF
08633 €8.76 DIN 8140 3D Stainless steel Box of 25 pcs UNF 3/4 x 16 2B ren UNF
08235 €4.86 DIN 8140 1D Stainless steel Box of 10 pcs UNF 7/8 x 14 2B ren UNF
08335 €6.88 DIN 8140 1.5D Stainless steel Box of 10 pcs UNF 7/8 x 14 2B ren UNF
08435 €8.49 DIN 8140 2D Stainless steel Box of 10 pcs UNF 7/8 x 14 2B ren UNF
08535 €10.23 DIN 8140 2.5D Stainless steel Box of 10 pcs UNF 7/8 x 14 2B ren UNF
08635 €12.31 DIN 8140 3D Stainless steel Box of 10 pcs UNF 7/8 x 14 2B ren UNF
08237 €5.44 DIN 8140 1D Stainless steel Box of 10 pcs UNF 1" x 12 2B ren UNF
08337 €7.68 DIN 8140 1.5D Stainless steel Box of 10 pcs UNF 1" x 12 2B ren UNF
08437 €9.50 DIN 8140 2D Stainless steel Box of 10 pcs UNF 1" x 12 2B ren UNF
08537 €11.31 DIN 8140 2.5D Stainless steel Box of 10 pcs UNF 1" x 12 2B ren UNF
08637 €13.55 DIN 8140 3D Stainless steel Box of 10 pcs UNF 1" x 12 2B ren UNF
08338 €12.68 DIN 8140 1.5D Stainless steel Box of 10 pcs UNF 1" x 14 2B ren UNF
08396 €11.61 DIN 8140 1.5D Stainless steel Box of 5 pcs UNF 1.1/8 x 12 2B ren UNF
08397 €12.75 DIN 8140 1.5D Stainless steel Box of 5 pcs UNF 1.1/4 x 12 2B ren UNF
08398 €13.99 DIN 8140 1.5D Stainless steel Box of 5 pcs UNF 1.3/8 x 12 2B ren UNF
08399 €16.31 DIN 8140 1.5D Stainless steel Box of 5 pcs UNF 1.1/2 x 12 2B ren UNF
