VÖLKEL V-COIL wire thread insert free running type S, UNC thread
V-coil

VÖLKEL V-COIL wire thread insert free running type S, UNC thread

★ 0.0 (0 reviews)
Sold: 100
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL V-COIL wire thread insert free running type S, UNC thread, 89 items UNC No. 2 x 56 – UNC 1.1/2 x 6.

SKU: 083xx
89 variants
€0.20 - €16.31
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL V-COIL wire thread insert free running type S, UNC thread, 89 items UNC No. 2 x 56 – UNC 1.1/2 x 6.

Specifications

  • Wire thread insert, free running type S
  • Helical coil wound from diamond-section wire
  • Insert does not clamp bolt thread flanks
  • Bolt screws in and out by hand

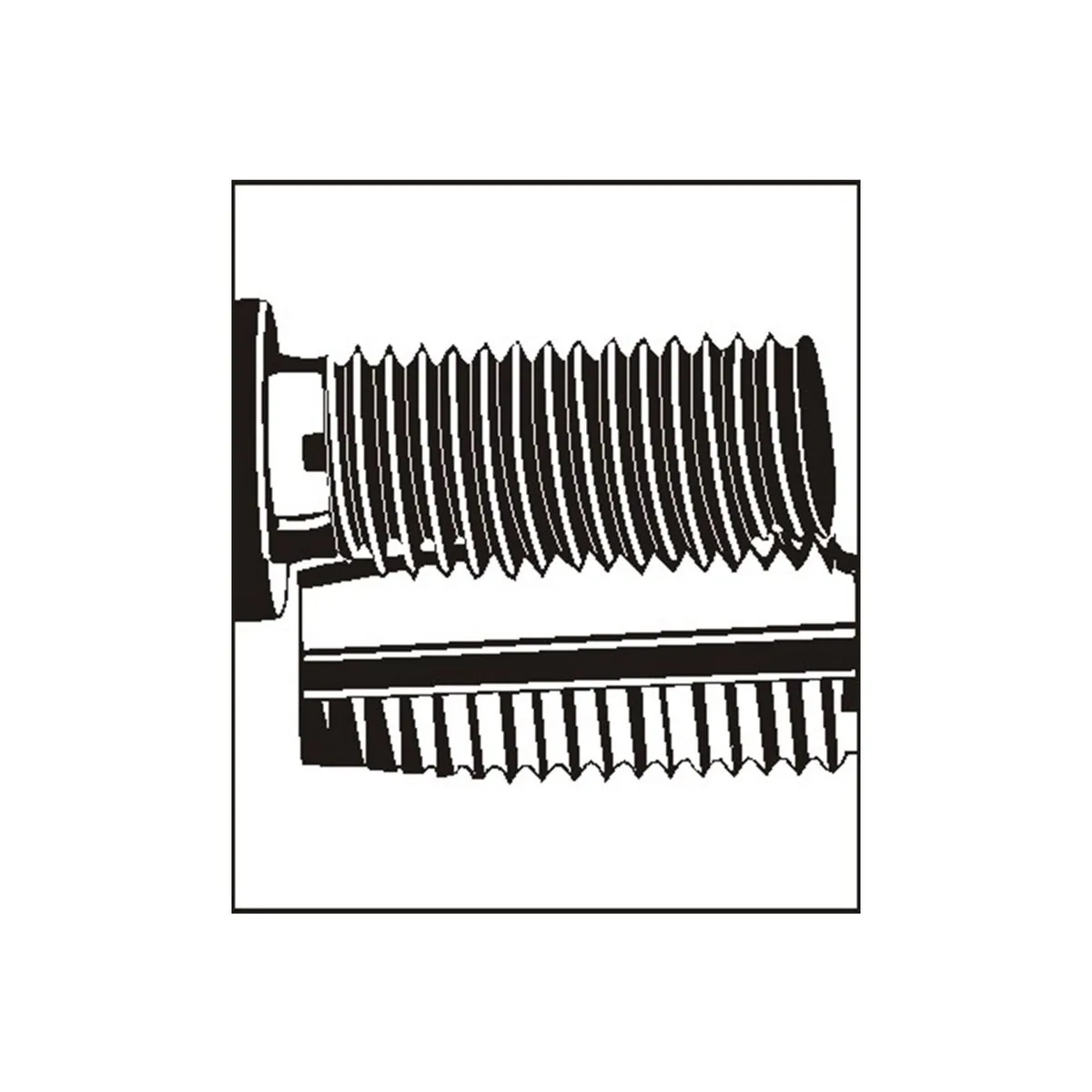

  • Restores stripped, worn or mis-drilled internal threads
  • Retains original nominal bolt size after repair
  • Reinforces threads in aluminium, magnesium alloy, cast iron, plastic
  • Installed thread tolerance class 2B
  • UNC thread profile to ANSI B 1.1
  • Insert geometry to DIN 8140
  • Nominal length expressed as multiple of diameter D

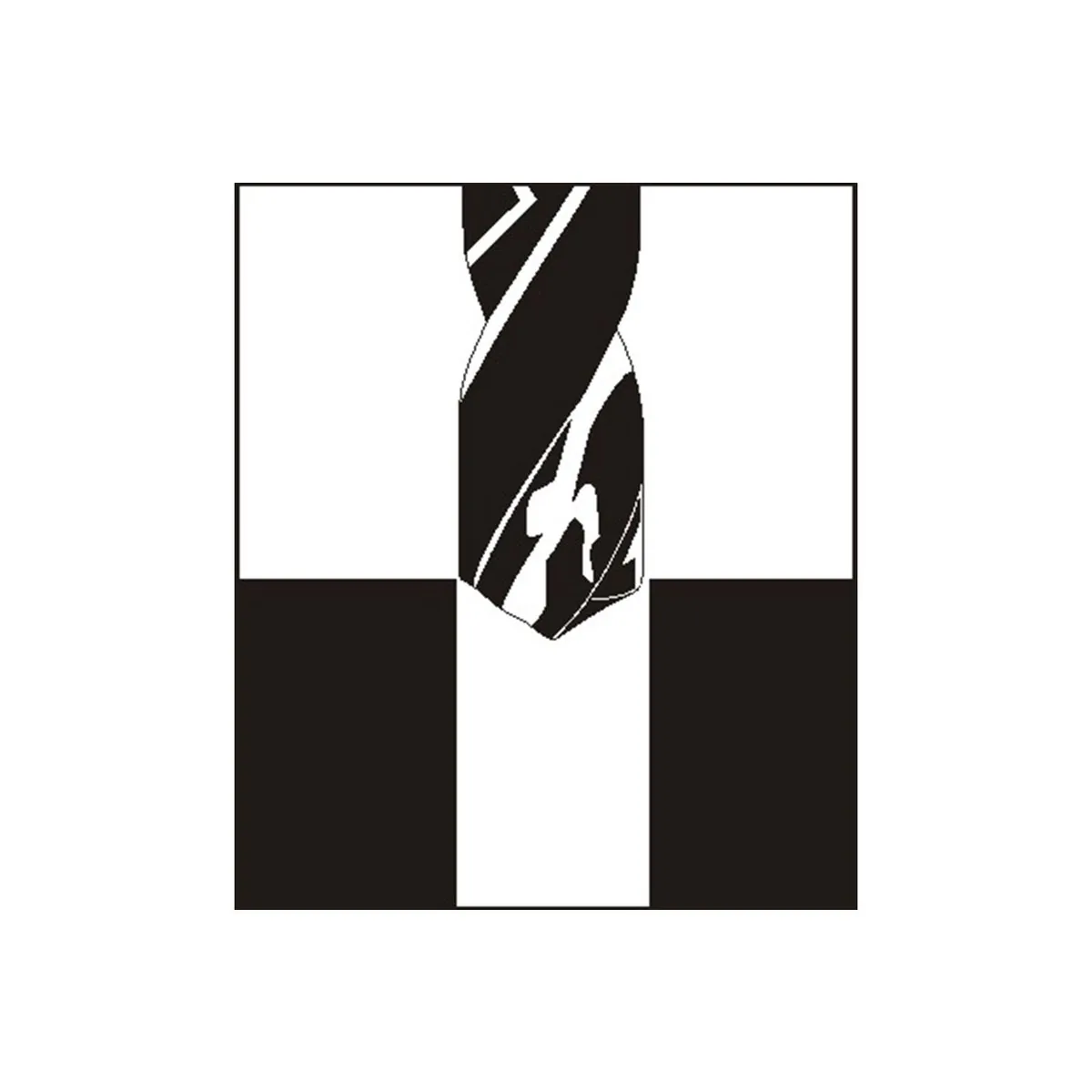

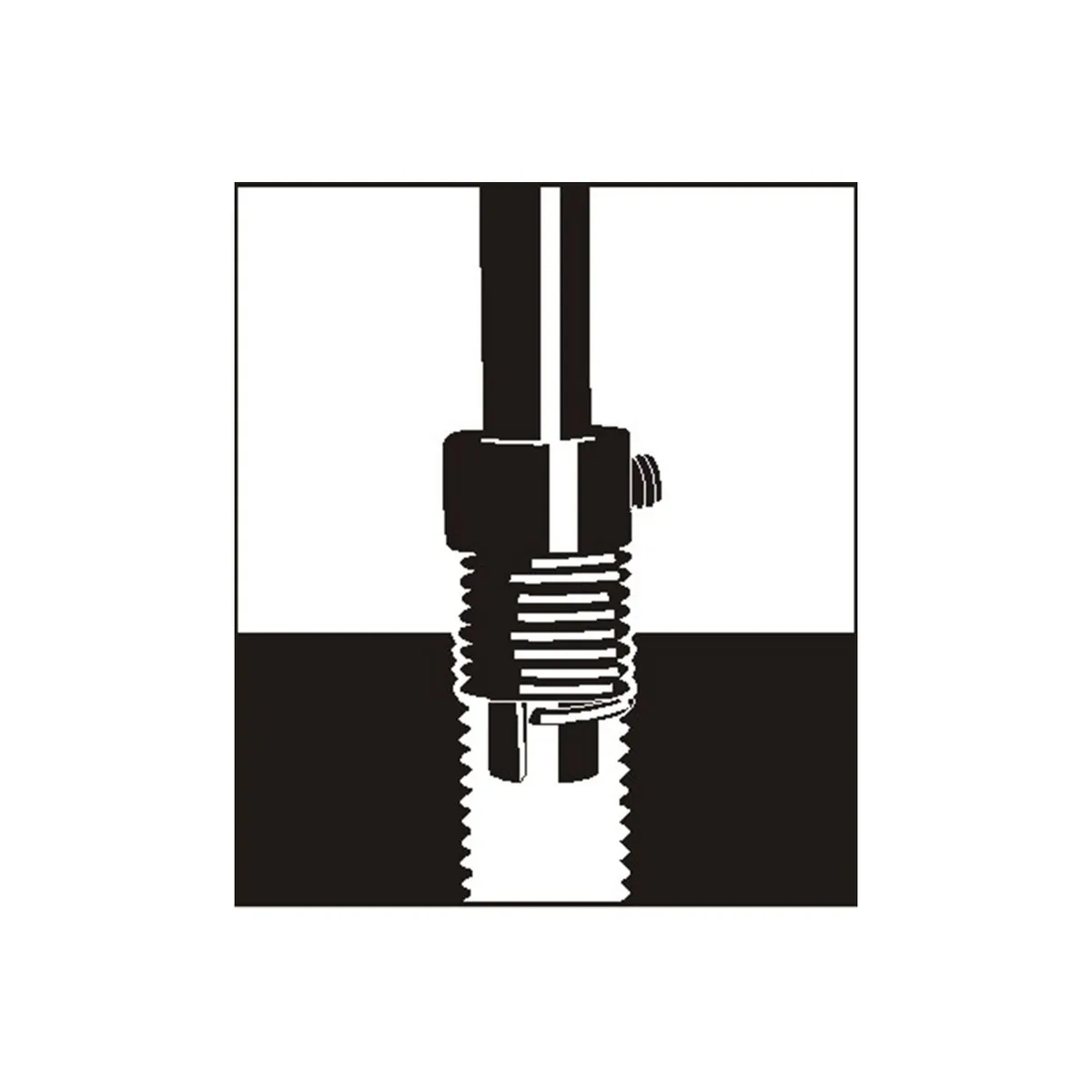

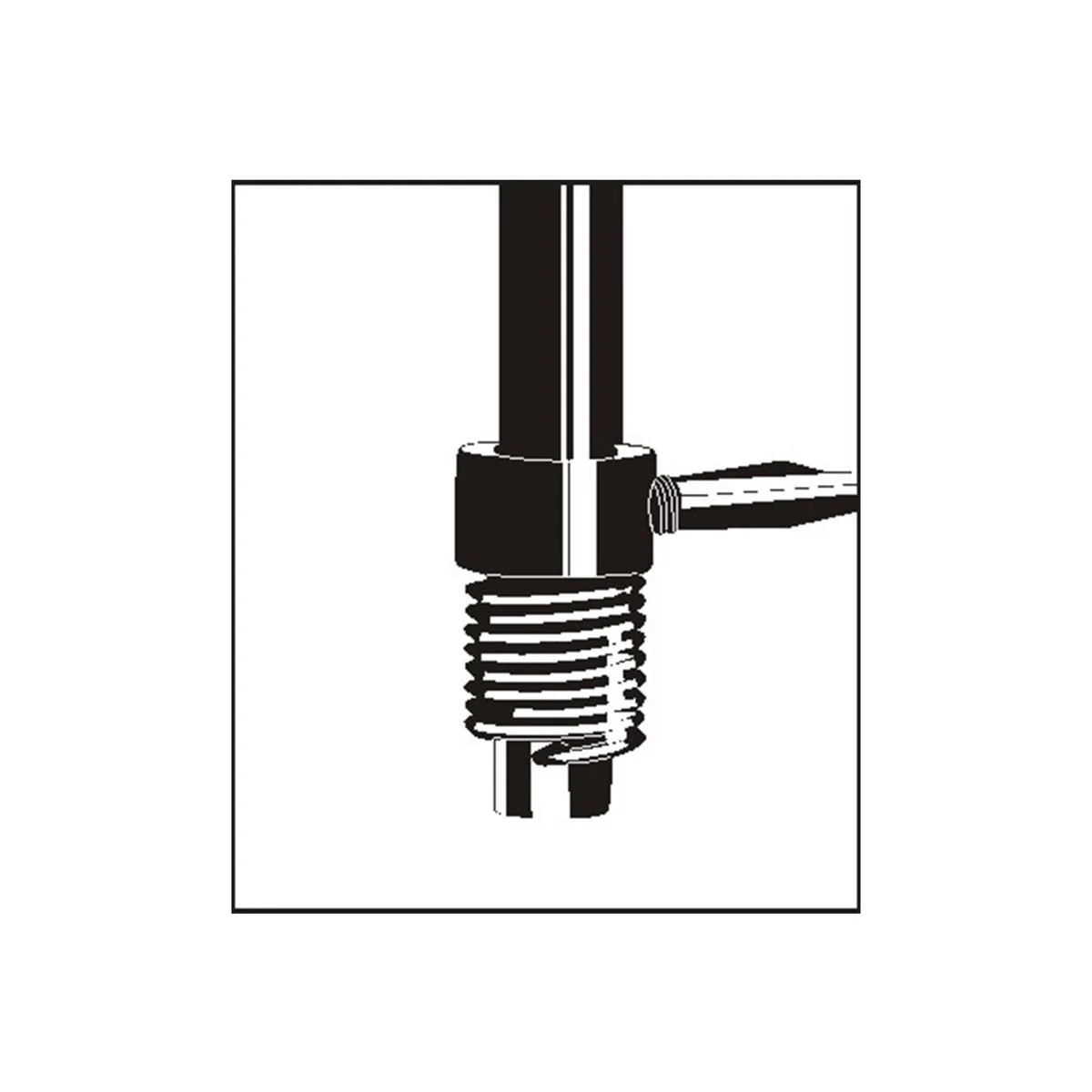

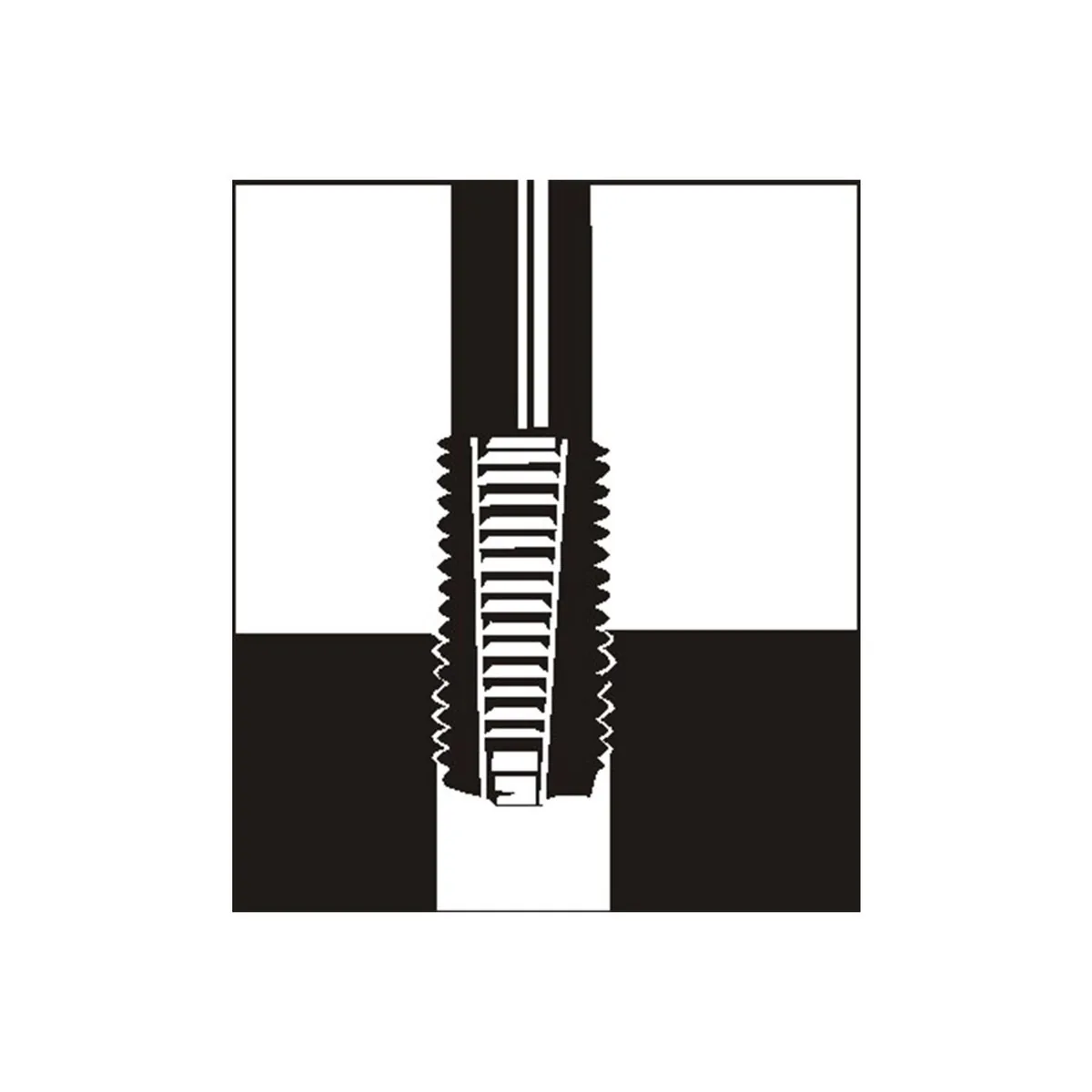

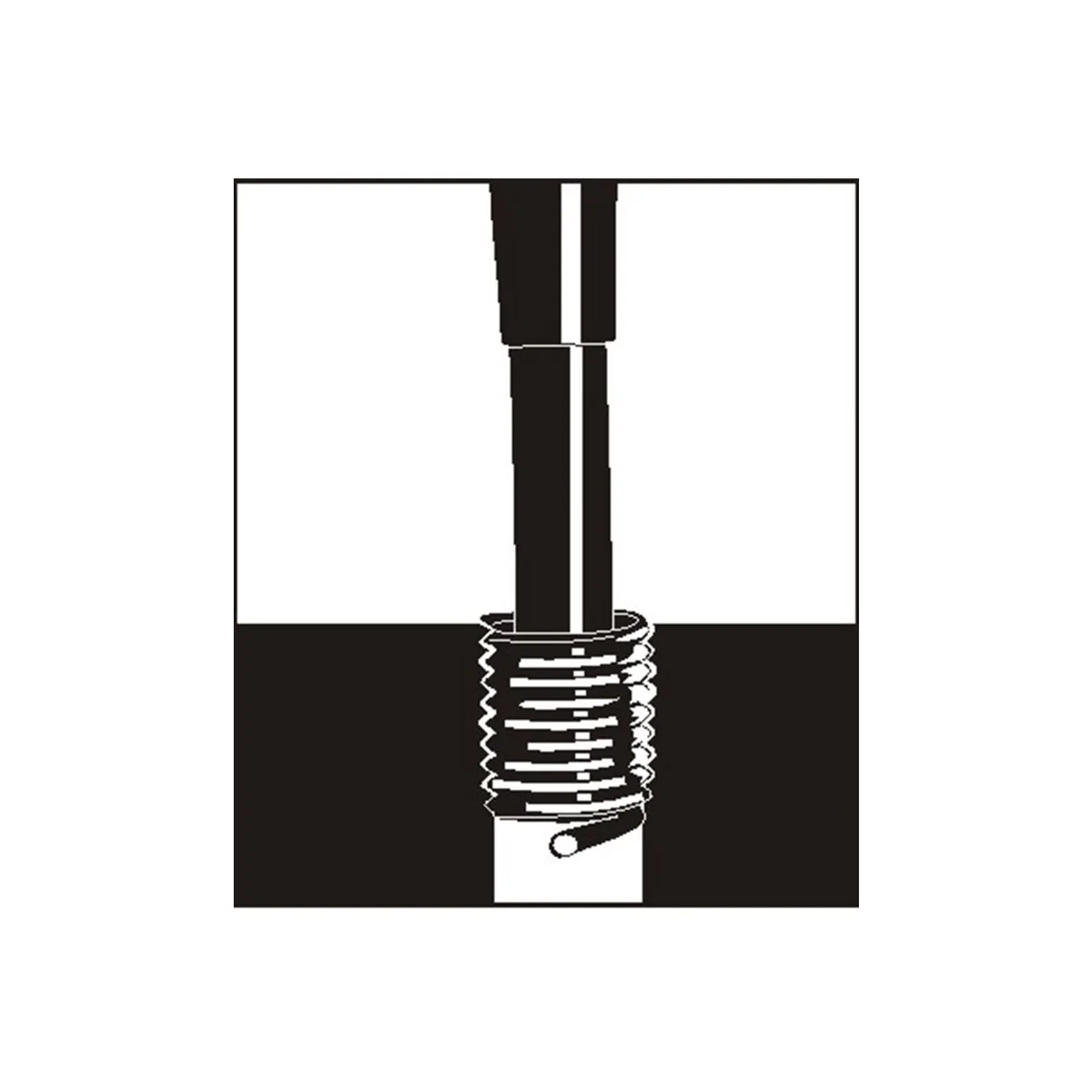

  • Installation: STI drill, STI tap, insertion tool
  • Tanged versions require tang break-off tool
  • Applications: machine maintenance, engine repair, mould repair
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock DIN or ISO standard Length Material Packing standard Thread size Thread tolerance class Thread type
08200 €0.87 DIN 8140 1D Stainless steel Box of 100 pcs UNC No. 2 x 56 2B ren UNC
08300 €1.01 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC No. 2 x 56 2B ren UNC
08400 €1.24 DIN 8140 2D Stainless steel Box of 100 pcs UNC No. 2 x 56 2B ren UNC
08500 €1.44 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC No. 2 x 56 2B ren UNC
08600 €1.74 DIN 8140 3D Stainless steel Box of 100 pcs UNC No. 2 x 56 2B ren UNC
08201 €0.37 DIN 8140 1D Stainless steel Box of 100 pcs UNC No. 4 x 40 2B ren UNC
08301 €0.20 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC No. 4 x 40 2B ren UNC
08401 €0.37 DIN 8140 2D Stainless steel Box of 100 pcs UNC No. 4 x 40 2B ren UNC
08501 €0.37 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC No. 4 x 40 2B ren UNC
08601 €0.44 DIN 8140 3D Stainless steel Box of 100 pcs UNC No. 4 x 40 2B ren UNC
08202 €0.37 DIN 8140 1D Stainless steel Box of 100 pcs UNC No. 5 x 40 2B ren UNC
08302 €0.37 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC No. 5 x 40 2B ren UNC
08402 €0.37 DIN 8140 2D Stainless steel Box of 100 pcs UNC No. 5 x 40 2B ren UNC
08502 €0.44 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC No. 5 x 40 2B ren UNC
08602 €0.50 DIN 8140 3D Stainless steel Box of 100 pcs UNC No. 5 x 40 2B ren UNC
08203 €0.20 DIN 8140 1D Stainless steel Box of 100 pcs UNC No. 6 x 32 2B ren UNC
08303 €0.20 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC No. 6 x 32 2B ren UNC
08403 €0.20 DIN 8140 2D Stainless steel Box of 100 pcs UNC No. 6 x 32 2B ren UNC
08503 €0.37 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC No. 6 x 32 2B ren UNC
08603 €0.44 DIN 8140 3D Stainless steel Box of 100 pcs UNC No. 6 x 32 2B ren UNC
08204 €0.20 DIN 8140 1D Stainless steel Box of 100 pcs UNC No. 8 x 32 2B ren UNC
08304 €0.20 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC No. 8 x 32 2B ren UNC
08404 €0.20 DIN 8140 2D Stainless steel Box of 100 pcs UNC No. 8 x 32 2B ren UNC
08504 €0.37 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC No. 8 x 32 2B ren UNC
08604 €0.44 DIN 8140 3D Stainless steel Box of 100 pcs UNC No. 8 x 32 2B ren UNC
08205 €0.37 DIN 8140 1D Stainless steel Box of 100 pcs UNC No. 10 x 24 2B ren UNC
08305 €0.37 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC No. 10 x 24 2B ren UNC
08405 €0.37 DIN 8140 2D Stainless steel Box of 100 pcs UNC No. 10 x 24 2B ren UNC
08505 €0.44 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC No. 10 x 24 2B ren UNC
08605 €0.50 DIN 8140 3D Stainless steel Box of 100 pcs UNC No. 10 x 24 2B ren UNC
08206 €0.37 DIN 8140 1D Stainless steel Box of 100 pcs UNC No. 12 x 24 2B ren UNC
08306 €0.37 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC No. 12 x 24 2B ren UNC
08406 €0.44 DIN 8140 2D Stainless steel Box of 100 pcs UNC No. 12 x 24 2B ren UNC
08506 €0.50 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC No. 12 x 24 2B ren UNC
08606 €0.57 DIN 8140 3D Stainless steel Box of 100 pcs UNC No. 12 x 24 2B ren UNC
08207 €0.37 DIN 8140 1D Stainless steel Box of 100 pcs UNC 1/4 x 20 2B ren UNC
08307 €0.37 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC 1/4 x 20 2B ren UNC
08407 €0.44 DIN 8140 2D Stainless steel Box of 100 pcs UNC 1/4 x 20 2B ren UNC
08507 €0.50 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC 1/4 x 20 2B ren UNC
08607 €0.57 DIN 8140 3D Stainless steel Box of 100 pcs UNC 1/4 x 20 2B ren UNC
08208 €0.44 DIN 8140 1D Stainless steel Box of 100 pcs UNC 5/16 x 18 2B ren UNC
08308 €0.50 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC 5/16 x 18 2B ren UNC
08408 €0.50 DIN 8140 2D Stainless steel Box of 100 pcs UNC 5/16 x 18 2B ren UNC
08508 €0.64 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC 5/16 x 18 2B ren UNC
08608 €0.74 DIN 8140 3D Stainless steel Box of 100 pcs UNC 5/16 x 18 2B ren UNC
08209 €0.64 DIN 8140 1D Stainless steel Box of 100 pcs UNC 3/8 x 16 2B ren UNC
08309 €0.64 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC 3/8 x 16 2B ren UNC
08409 €0.87 DIN 8140 2D Stainless steel Box of 100 pcs UNC 3/8 x 16 2B ren UNC
08509 €1.01 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC 3/8 x 16 2B ren UNC
08609 €1.17 DIN 8140 3D Stainless steel Box of 100 pcs UNC 3/8 x 16 2B ren UNC
08210 €0.87 DIN 8140 1D Stainless steel Box of 100 pcs UNC 7/16 x 14 2B ren UNC
08310 €1.01 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC 7/16 x 14 2B ren UNC
08410 €1.07 DIN 8140 2D Stainless steel Box of 100 pcs UNC 7/16 x 14 2B ren UNC
08510 €1.31 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC 7/16 x 14 2B ren UNC
08610 €1.61 DIN 8140 3D Stainless steel Box of 100 pcs UNC 7/16 x 14 2B ren UNC
08211 €0.87 DIN 8140 1D Stainless steel Box of 100 pcs UNC 1/2 x 13 2B ren UNC
08311 €1.01 DIN 8140 1.5D Stainless steel Box of 100 pcs UNC 1/2 x 13 2B ren UNC
08411 €1.07 DIN 8140 2D Stainless steel Box of 100 pcs UNC 1/2 x 13 2B ren UNC
08511 €1.31 DIN 8140 2.5D Stainless steel Box of 100 pcs UNC 1/2 x 13 2B ren UNC
08611 €1.61 DIN 8140 3D Stainless steel Box of 100 pcs UNC 1/2 x 13 2B ren UNC
08212 €2.89 DIN 8140 1D Stainless steel Box of 50 pcs UNC 9/16 x 12 2B ren UNC
08312 €3.93 DIN 8140 1.5D Stainless steel Box of 50 pcs UNC 9/16 x 12 2B ren UNC
08412 €4.80 DIN 8140 2D Stainless steel Box of 50 pcs UNC 9/16 x 12 2B ren UNC
08512 €5.74 DIN 8140 2.5D Stainless steel Box of 50 pcs UNC 9/16 x 12 2B ren UNC
08612 €6.88 DIN 8140 3D Stainless steel Box of 50 pcs UNC 9/16 x 12 2B ren UNC
08214 €2.68 DIN 8140 1D Stainless steel Box of 50 pcs UNC 5/8 x 11 2B ren UNC
08314 €3.56 DIN 8140 1.5D Stainless steel Box of 50 pcs UNC 5/8 x 11 2B ren UNC
08414 €4.36 DIN 8140 2D Stainless steel Box of 50 pcs UNC 5/8 x 11 2B ren UNC
08514 €5.13 DIN 8140 2.5D Stainless steel Box of 50 pcs UNC 5/8 x 11 2B ren UNC
08614 €6.31 DIN 8140 3D Stainless steel Box of 50 pcs UNC 5/8 x 11 2B ren UNC
08216 €3.19 DIN 8140 1D Stainless steel Box of 25 pcs UNC 3/4 x 10 2B ren UNC
08316 €4.36 DIN 8140 1.5D Stainless steel Box of 25 pcs UNC 3/4 x 10 2B ren UNC
08416 €5.37 DIN 8140 2D Stainless steel Box of 25 pcs UNC 3/4 x 10 2B ren UNC
08516 €6.44 DIN 8140 2.5D Stainless steel Box of 25 pcs UNC 3/4 x 10 2B ren UNC
08616 €7.68 DIN 8140 3D Stainless steel Box of 25 pcs UNC 3/4 x 10 2B ren UNC
08218 €4.26 DIN 8140 1D Stainless steel Box of 10 pcs UNC 7/8 x 9 2B ren UNC
08318 €6.31 DIN 8140 1.5D Stainless steel Box of 10 pcs UNC 7/8 x 9 2B ren UNC
08418 €8.12 DIN 8140 2D Stainless steel Box of 10 pcs UNC 7/8 x 9 2B ren UNC
08518 €9.56 DIN 8140 2.5D Stainless steel Box of 10 pcs UNC 7/8 x 9 2B ren UNC
08618 €11.61 DIN 8140 3D Stainless steel Box of 10 pcs UNC 7/8 x 9 2B ren UNC
08219 €4.80 DIN 8140 1D Stainless steel Box of 10 pcs UNC 1" x 8 2B ren UNC
08319 €7.11 DIN 8140 1.5D Stainless steel Box of 10 pcs UNC 1" x 8 2B ren UNC
08419 €8.99 DIN 8140 2D Stainless steel Box of 10 pcs UNC 1" x 8 2B ren UNC
08519 €10.74 DIN 8140 2.5D Stainless steel Box of 10 pcs UNC 1" x 8 2B ren UNC
08619 €12.88 DIN 8140 3D Stainless steel Box of 10 pcs UNC 1" x 8 2B ren UNC
08320 €11.61 DIN 8140 1.5D Stainless steel Box of 5 pcs UNC 1.1/8 x 7 2B ren UNC
08321 €12.75 DIN 8140 1.5D Stainless steel Box of 5 pcs UNC 1.1/4 x 7 2B ren UNC
08322 €13.99 DIN 8140 1.5D Stainless steel Box of 5 pcs UNC 1.3/8 x 6 2B ren UNC
08323 €16.31 DIN 8140 1.5D Stainless steel Box of 5 pcs UNC 1.1/2 x 6 2B ren UNC
