V-COIL rapid Thread Repair Kits, 12 x 1,25 - 1,5D

Name: V-COIL rapid Thread Repair Kits, 12 x 1,25 - 1,5D
Brand: VOLKEL
SKU: 04323
Price: 1516000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

V-COIL rapid Thread Repair Kits, 12 x 1,25 - 1,5D by VÖLKEL, item no. 04323, suitable for thread repair and insert installation.

SKU: 04323

1.516.000 đ

Price includes VAT

Description

V-COIL rapid Thread Repair Kit, M12 x 1.25 – 1.5D

The V-COIL rapid thread repair kit enables fast, precise, and long-lasting restoration of internal threads M12 x 1.25. The system combines stainless steel wire inserts (Type S, 1.5D) with STI tools and the rapid installation tool (1/4”) – ideal for workshop, maintenance, and assembly.

Application & Benefits

Repairs damaged or worn internal threads (M12 x 1.25)
Reinforces weak materials with low shear strength
Restores rejected or worn parts
1/4” hex drive for manual or power tool use
Corrosion- and heat-resistant stainless steel inserts
Compact, quick, and no manual alignment required

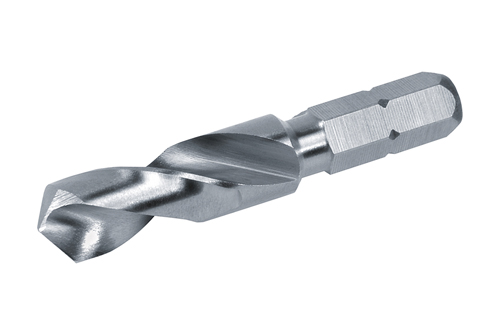

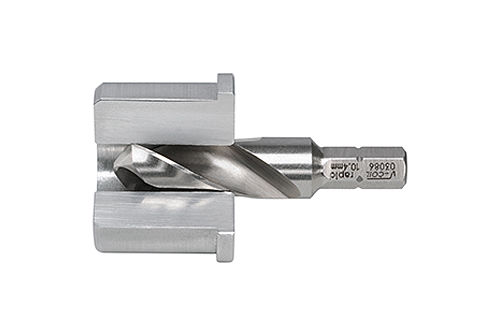

1 × V-COIL rapid STI twist drill 12.3 mm – VÖLKEL 03472

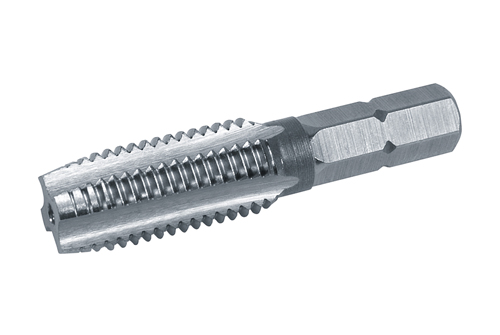

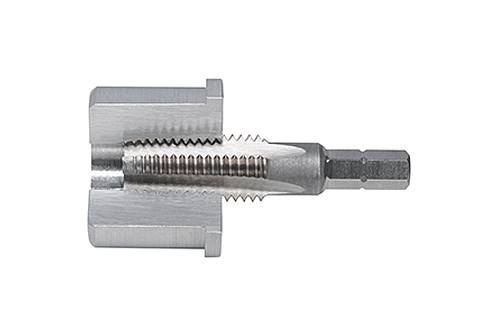

1 × V-COIL rapid STI tap, Form D, HSS-G, M12 × 1.25 – 03401

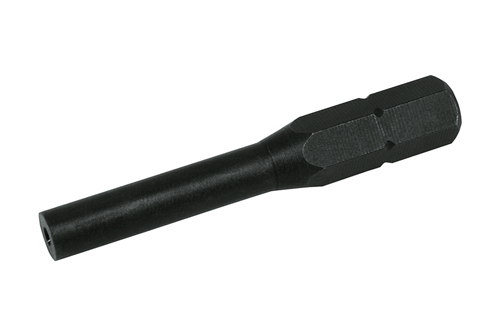

1 × Tang break tool No. 15 – VÖLKEL 07097
6 × Wire thread inserts Type S, free running M12 × 1.25 – 1.5D – 07323

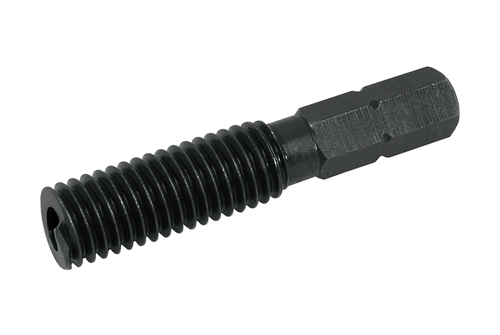

1 × V-COIL rapid installation tool M12 × 1.25 – 08191

Step-by-Step Instructions

1. Prepare: Drill out the damaged thread, deburr edges, and clean the bore thoroughly.
2. Cut the STI thread: Use the included STI tap to create the new receiving thread.
3. Insert the coil: Screw in the wire insert with the Rapid tool and align flush with the surface.
4. Remove tang: Break off the driving tang carefully using the tang break tool.
5. Check fit: Verify the thread using a screw or gauge.

FAQ

What is this kit suitable for?
For fast repair and reinforcement of damaged M12 × 1.25 internal threads in low-strength materials.

What does 1.5D mean?
The insert length equals 1.5 times the nominal diameter – the standard for most applications.

Can I use this kit with a cordless screwdriver?
Yes, all tools have a 1/4” hex drive for hand or cordless use.

Are replacement inserts available?
Yes, V-COIL inserts are available separately in various lengths.

Do I need alignment?
No, the Rapid system requires no manual adjustment.

Have questions about selection or application? Our team will be happy to help – please use the contact form.

Specifications

Form	Form D
Material	Wire Thread Inserts frostainless steel
Size	Diameter 12 x 1.75
Drive connector	Hexagon 1/4" inch
Packing	in plastic case
EAN	4022835043218
Item number	04323
