Thread Repair Kits M 42 x 4.5 - 1.5D

Name: Thread Repair Kits M 42 x 4.5 - 1.5D
Brand: VOLKEL
SKU: 04234
Price: 24000000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Thread Repair Kits M 42 x 4.5 - 1.5D by VÖLKEL, item no. 04234, suitable for thread repair and insert installation.

SKU: 04234

24.000.000 đ

Stock status: Hết hàng

Price includes VAT

Description

V-COIL Thread Repair Kit M 42 x 4.5 – 1.5D

The V-COIL Thread Repair Kit M 42 x 4.5 – 1.5D provides a durable and precise solution for restoring worn or damaged internal threads. Using a STI hand tap and stainless steel inserts according to DIN 8140, it produces a new, long-lasting thread with improved strength and wear resistance.

Typical applications: maintenance, assembly, repair workshops, and small batch production.

Application & Benefits

Repair of damaged or worn internal threads
Reinforcement of threads in materials with low shear strength
Recovery of defective or rejected parts
Creation of high-strength, long-lasting internal threads
Perfect for maintenance, installation, and small series production
Wire Thread Inserts DIN 8140, Type S, free running, stainless steel, ISO 2 (6H)

Advantages:

Flexible use even for large thread dimensions
High availability of standard and special sizes
Easy hand operation without special machinery
Increased load capacity of repaired threads
Temperature and corrosion resistant
Delivered in a robust and functional metal case

Step-by-Step Instructions

Preparation: Drill out the damaged thread to the correct core diameter, deburr, and clean the hole.
Cut the STI thread: Use the STI Hand Tap M 42 x 4.5 with cutting oil to produce a clean base thread.
Insert installation: Screw in the V-COIL insert until it sits flush or slightly below the surface.
Break tang: Remove the driving tang using the installation tool.
Inspection: Check the thread with a bolt or gauge and clean if necessary.

Technical Data

Brand: V-COIL
Nominal size: M 42 x 4.5
Repair length: 1.5D
Insert type: DIN 8140, Type S, free running, stainless steel, ISO 2 (6H)
Packaging: Metal case
EAN: 4022835042341
Article number: 04234

Kit Contents

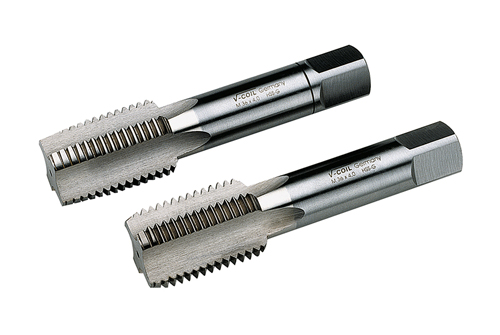

1× STI Hand Tap ISO 529 HSS-G – M 42 × 4.5 (03067)
10× V-COIL Wire Thread Insert, Type S, free running – M 42 × 4.5 – 1.5D (07377)

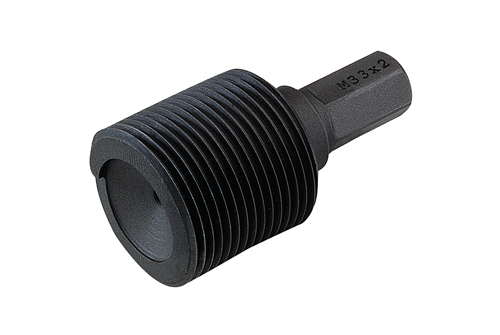

1× V-COIL Inserting Tool (Drive connector 3/4") – M 42 × 4.5 (08041)

Frequently Asked Questions (FAQ)

Can it be used on aluminum or soft alloys?
Yes, the stainless steel inserts greatly improve thread strength in soft materials.

What does 1.5D mean?
The insert length is 1.5 times the nominal thread diameter, ensuring optimal load distribution.

Is it suitable for manual use?
Yes, the kit is designed for precise and easy manual operation.

Are the inserts corrosion-resistant?
Yes, they are made of high-quality stainless steel and resistant to heat and corrosion.

Can replacement inserts be ordered?
Yes, V-COIL inserts are available separately in various sizes and lengths.

Need help choosing the right kit? Our team will be happy to assist – please use the contact form.

Specifications

Material	Wire Thread Inserts frostainless steel
Size	M 42 x 4.5
Packing	in metal case
EAN	4022835040637
Item number	04234

Optional Accessories

SKU	Price VNĐ	Product name & short description
07372	636.800	V-COIL Wire thread insert Free running type S M 42 x 4.5 - 1.5 D (5 pcs.) V-COIL Wire thread insert Free running type S M 42 x 4.5 - 1.5 D (5 pcs.) by VÖLKEL, item no. 07372, suitable for thread repair and reinforcement.
08041	1.260.800	V-COIL Inserting Tool (Drive connector 3/4") M 42 x 4.5 V-COIL Inserting Tool (Drive connector 3/4") M 42 x 4.5 by VÖLKEL, item no. 08041, suitable for thread repair and insert installation.

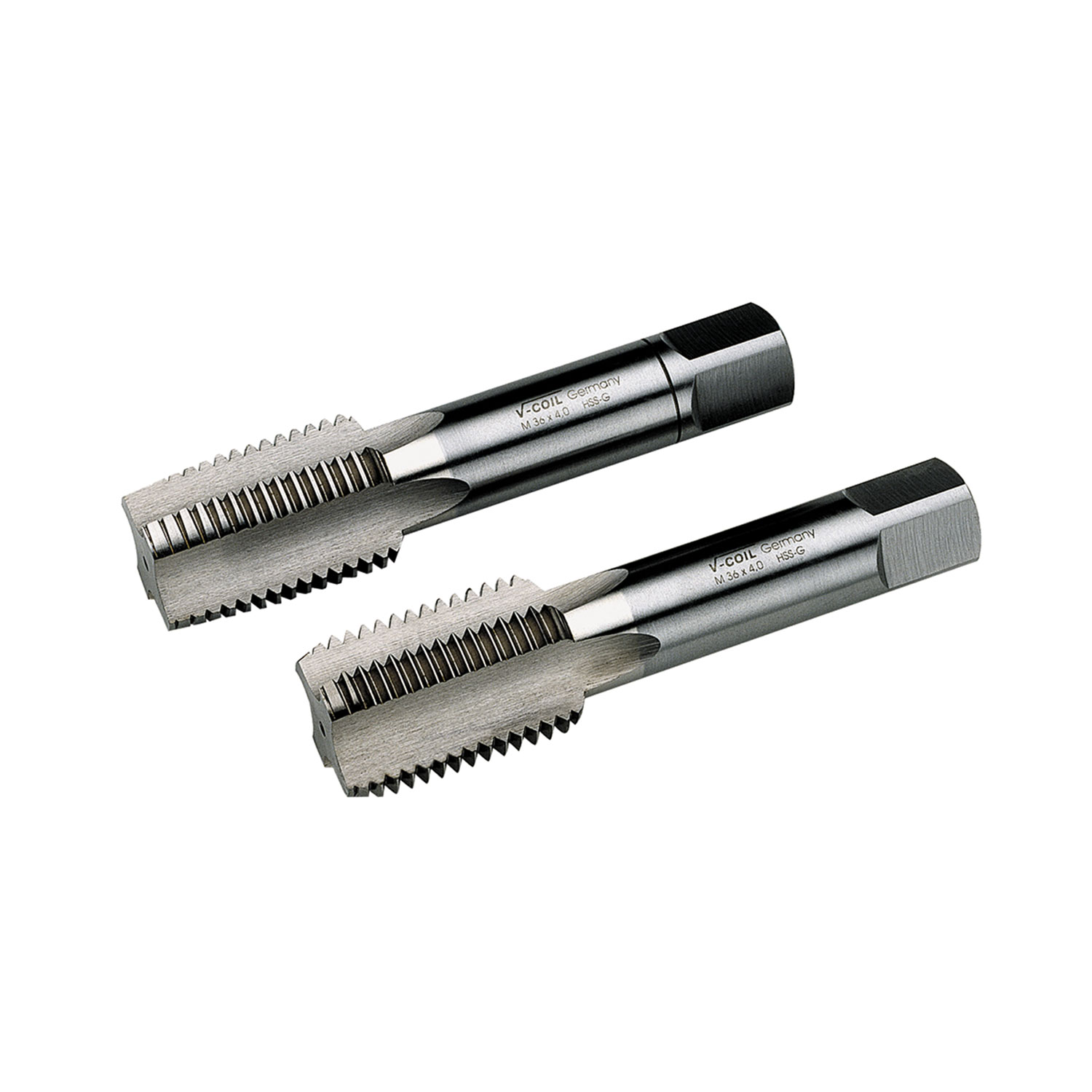

03067	17.408.000	STI Hand Tap ISO 529 HSS-G - M 42 x 4.5 STI Hand Tap ISO 529 HSS-G - M 42 x 4.5 by VÖLKEL, item no. 03067, suitable for cutting internal threads.

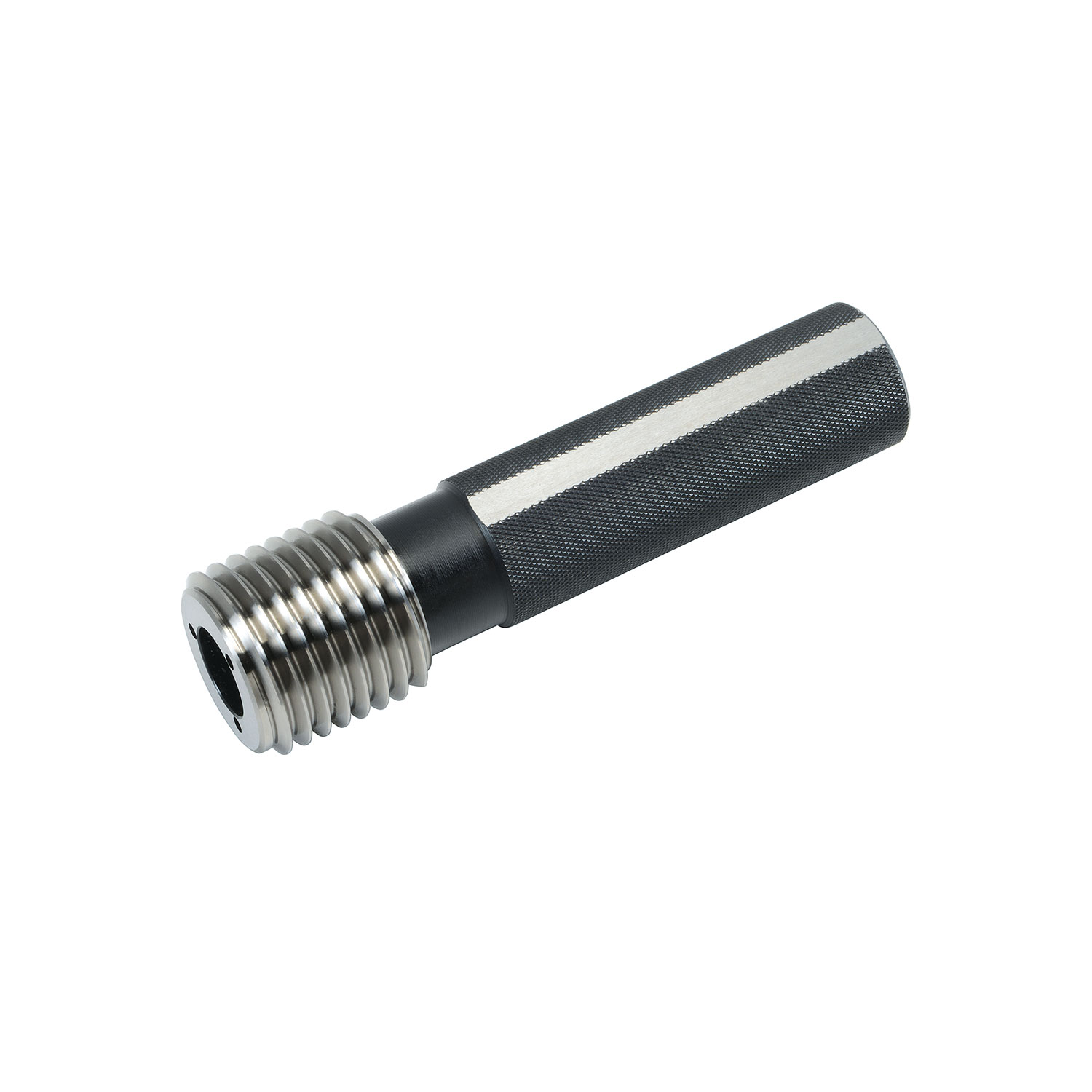

19666	2.880.000	Precision GO Thread Plug Gauge Tol. ISO1 (4H) metric STI-Thread - M 42 x 4.5 Precision GO Thread Plug Gauge Tol. ISO1 (4H) metric STI-Thread - M 42 x 4.5 by VÖLKEL, item no. 19666, suitable for thread inspection and quality control.

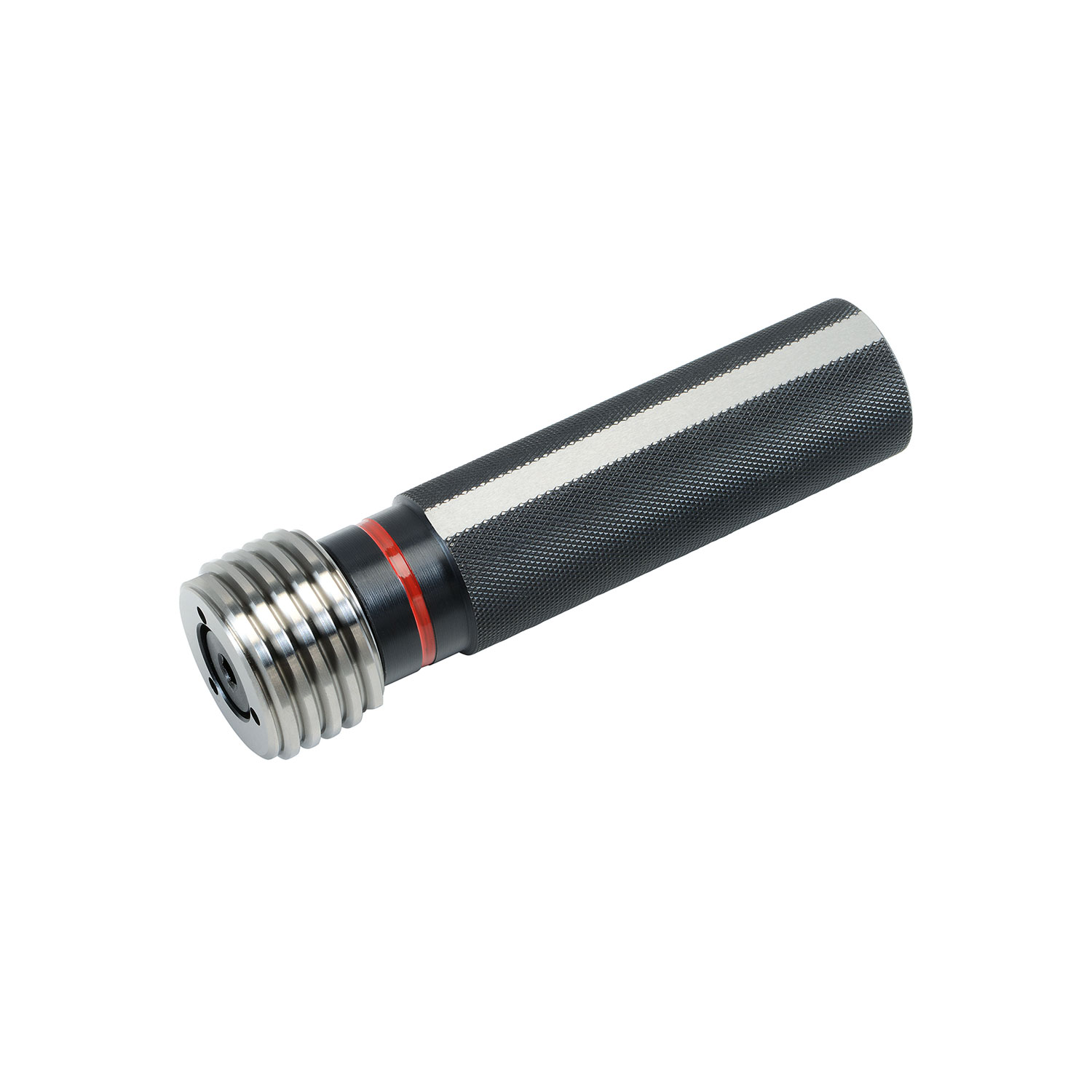

19667	2.880.000	Precision NOGO Thread Plug Gauge Tol. ISO1 (4H) metric STI-Thread - M 42 x 4.5 Precision NOGO Thread Plug Gauge Tol. ISO1 (4H) metric STI-Thread - M 42 x 4.5 by VÖLKEL, item no. 19667, suitable for thread inspection and quality control.
