Thread Repair Kits M 39 x 4.0 - 1.5D

Name: Thread Repair Kits M 39 x 4.0 - 1.5D
Brand: VOLKEL
SKU: 04231
Price: 18400000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Thread Repair Kits M 39 x 4.0 - 1.5D by VÖLKEL, item no. 04231, suitable for thread repair and insert installation.

SKU: 04231

18.400.000 đ

Stock status: Hết hàng

Price includes VAT

Description

V-COIL Thread Repair Kit M 39 x 4.0 – 1.5D

The V-COIL Thread Repair Kit M 39 x 4.0 – 1.5D is a complete solution to restore worn or damaged internal threads, reinforce softer materials and recover rejected parts. It creates new, strong and long-lasting threads ideal for maintenance, installation and small-series production.

How it works: First, cut a dedicated STI thread; then screw in a stainless steel wire insert (free running). The result is a durable internal thread—often stronger than the original.

Application & Advantages

Thread repair of damaged or worn-out threads
Thread reinforcement for materials with low shear strength
Recovery of rejected parts
Creation of new, highly stable and long-lasting internal threads
Perfect for maintenance, installation and small-series production
Wire thread inserts per DIN 8140, ISO 2 (6H), Type S – free running, stainless steel

Advantages:

Flexible use with a wide choice of inserts and drill sizes (up to M12)
High stock availability for standard and special sizes
Designed for hand thread cutting
Higher load capacity after repair due to improved thread properties
Corrosion and temperature resistance
Attractive, functional and robust metal case

Step-by-Step Instructions

Preparation: Drill out the damaged thread to the correct core diameter (see chart), deburr edges and clean the hole.
Cut STI thread: Use the STI hand tap M 39 × 4.0 with cutting oil; keep the tap perpendicular and feed evenly.
Insert coil: Screw in the V-COIL free-running insert with the inserting tool until flush or slightly below the surface.
Remove tang (if applicable): Carefully break off the drive tang using the correct tool.
Inspection: Check with a screw or gauge; clean the repaired thread.

Technical Specifications

Brand: V-COIL
Nominal size: M 39 x 4.0
Repair length: 1.5D
Inserts: DIN 8140, Type S, free running, stainless steel, ISO 2 (6H)
Insert material: Stainless steel
Packaging: Metal case
GTIN (EAN): 4022835042310
SKU / Article No.: 04231

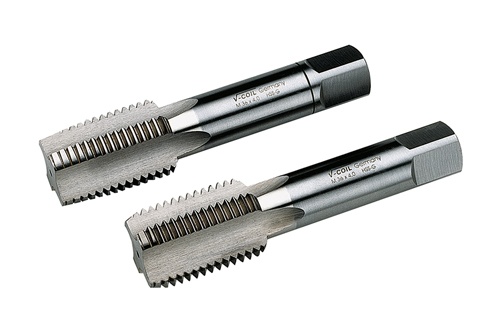

1× STI Hand Tap ISO 529 HSS-G – M 39 x 4.0 (03064)
10× V-COIL Wire Thread Insert, Free running, Type S – M 39 x 4.0 – 1.5D (07364)

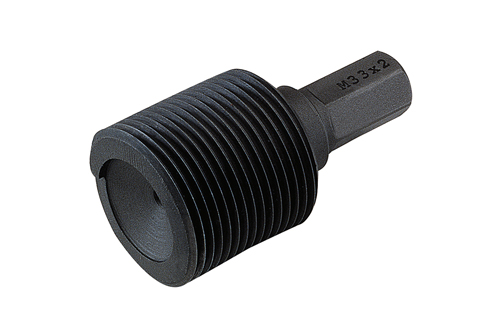

1× V-COIL Inserting Tool (Drive connector 3/4") – M 39 x 4.0 (08038)

Frequently Asked Questions (FAQ)

Can soft materials be repaired permanently?
Yes. The stainless-steel inserts reinforce the thread even in softer alloys.

What does 1.5D mean?
The insert length equals 1.5 times the nominal thread diameter.

Are the inserts corrosion-resistant?
Yes, they are stainless steel and resist corrosion and heat.

Do I need special tools?
The kit contains the essentials; cutting oil and a deburring tool are recommended.

Can I order replacement inserts?
Yes, V-COIL inserts are available separately in various lengths and sizes.

Questions about selection or use? Our team will be happy to help – please use the contact form.

Specifications

Material	Wire Thread Inserts frostainless steel
Size	M 39 x 4.0
Packing	in metal case
EAN	4022835040637
Item number	04231

Optional Accessories

SKU	Price VNĐ	Product name & short description
07364	458.240	V-COIL Wire thread insert Free running type S M 39 x 4.0 - 1.5 D (5 pcs.) V-COIL Wire thread insert Free running type S M 39 x 4.0 - 1.5 D (5 pcs.) by VÖLKEL, item no. 07364, suitable for thread repair and reinforcement.
08038	1.078.400	V-COIL Inserting Tool (Drive connector 3/4") M 39 x 4.0 V-COIL Inserting Tool (Drive connector 3/4") M 39 x 4.0 by VÖLKEL, item no. 08038, suitable for thread repair and insert installation.

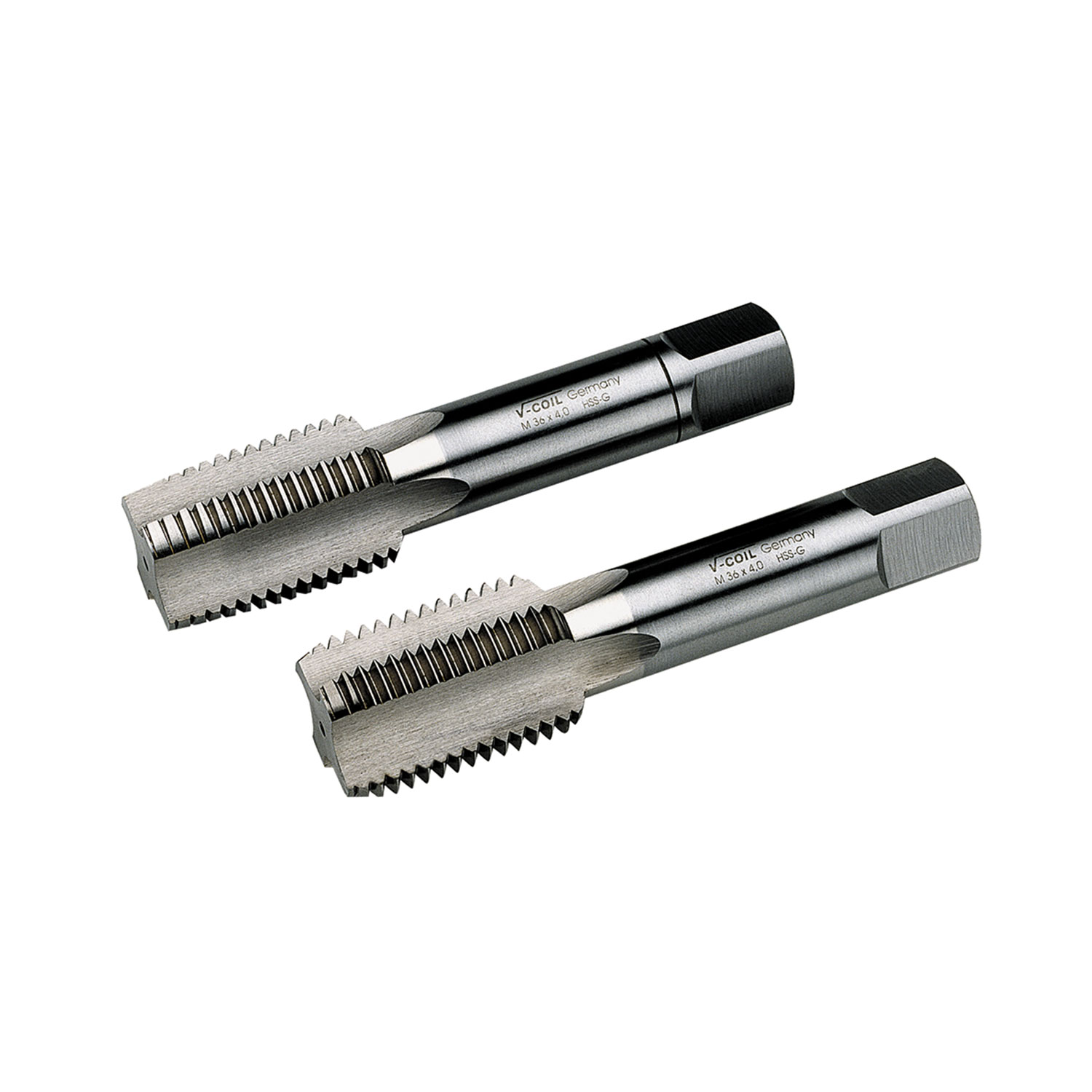

03064	12.320.000	STI Hand Tap ISO 529 HSS-G - M 39 x 4.0 STI Hand Tap ISO 529 HSS-G - M 39 x 4.0 by VÖLKEL, item no. 03064, suitable for cutting internal threads.

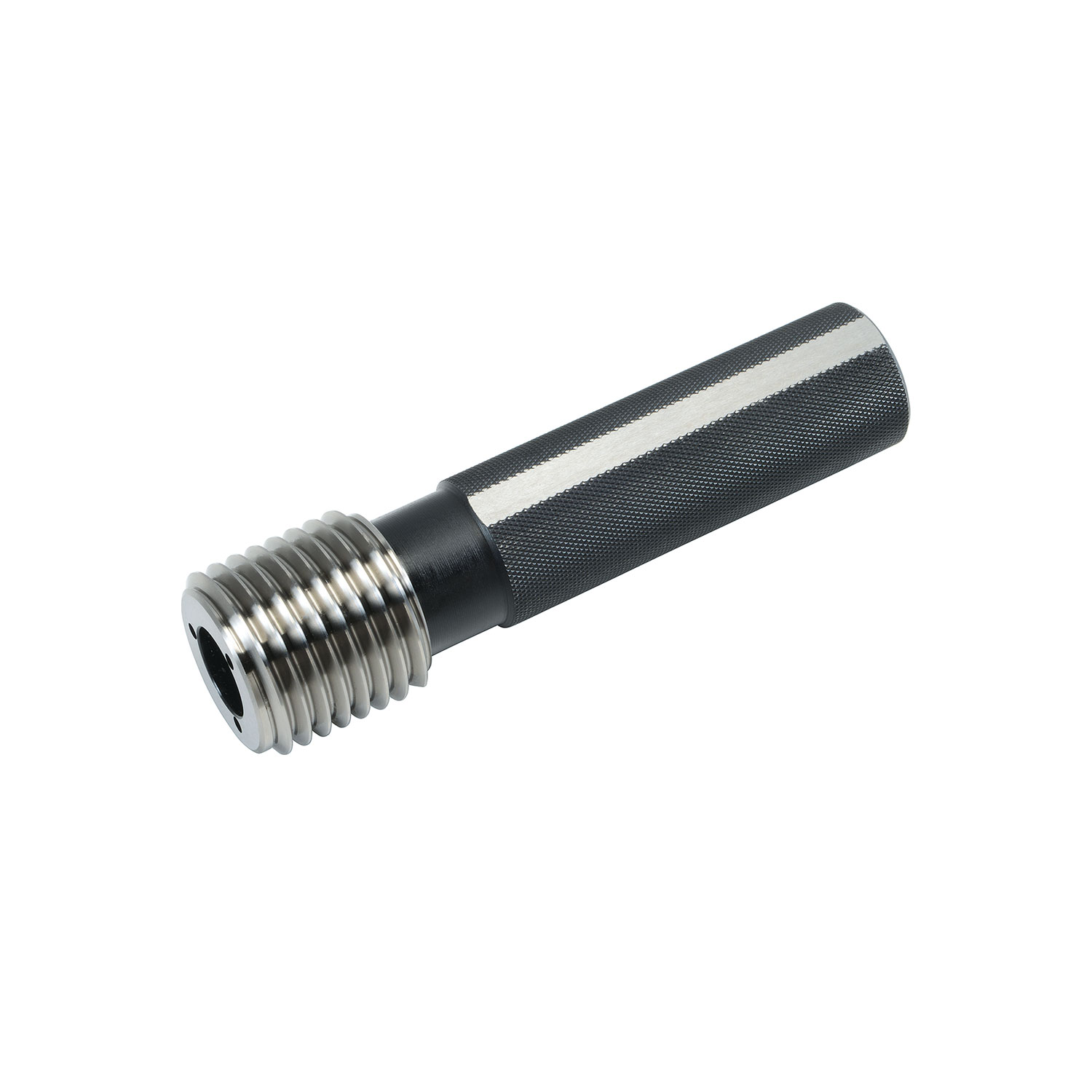

19660	2.672.000	Precision GO Thread Plug Gauge Tol. ISO1 (4H) metric STI-Thread - M 39 x 4.0 Precision GO Thread Plug Gauge Tol. ISO1 (4H) metric STI-Thread - M 39 x 4.0 by VÖLKEL, item no. 19660, suitable for thread inspection and quality control.

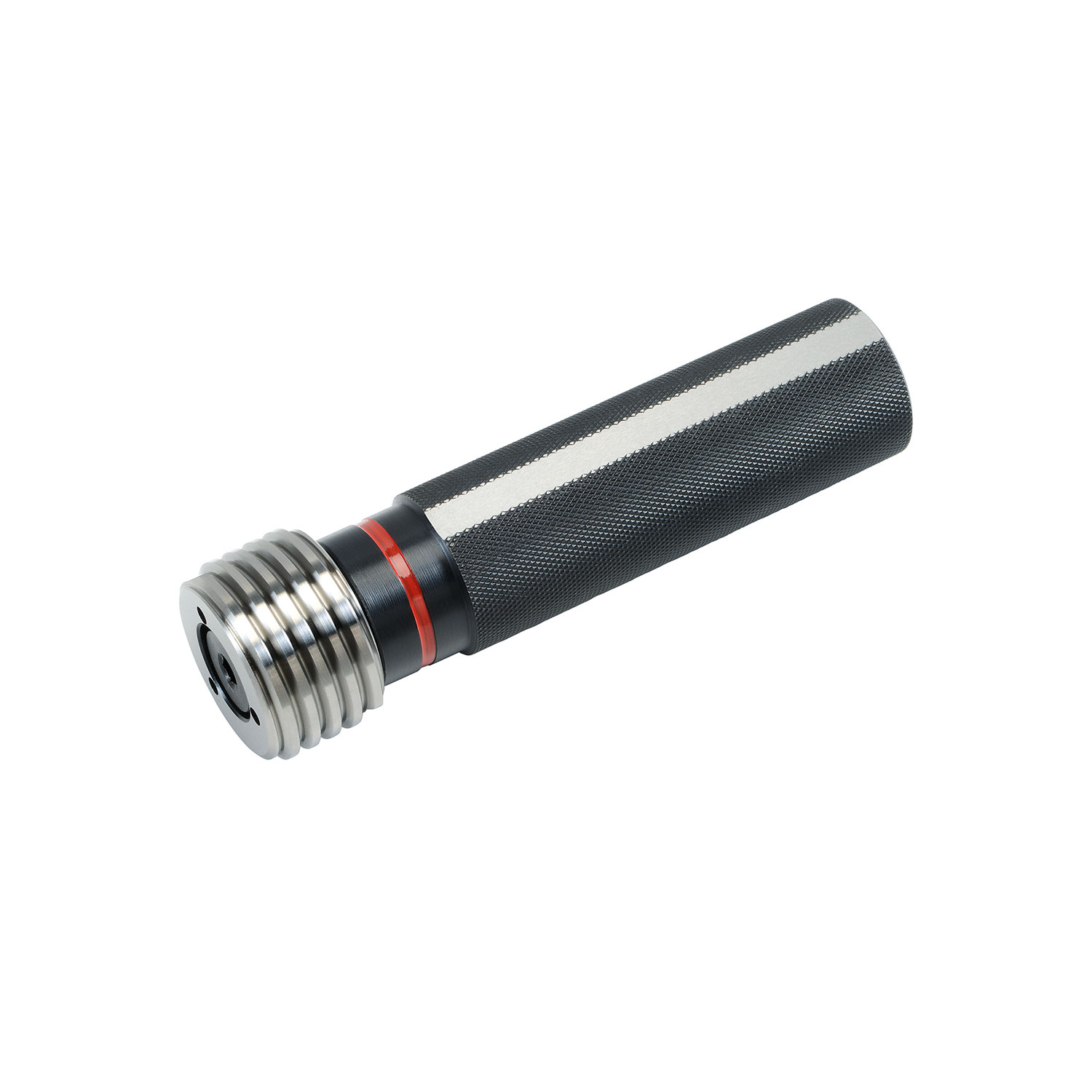

19661	2.672.000	Precision NOGO Thread Plug Gauge Tol. ISO1 (4H) metric STI-Thread - M 39 x 4.0 Precision NOGO Thread Plug Gauge Tol. ISO1 (4H) metric STI-Thread - M 39 x 4.0 by VÖLKEL, item no. 19661, suitable for thread inspection and quality control.
