VÖLKEL V-COIL wire thread insert free running type S, G BSP pipe thread
V-coil

VÖLKEL V-COIL wire thread insert free running type S, G BSP pipe thread

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL V-COIL wire thread insert free running type S, G BSP pipe thread, 8 items G 1/8 x 28 – G 1" x 11.

SKU: 0838x
8 variants
€0.64 - €13.92
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL V-COIL wire thread insert free running type S, G BSP pipe thread, 8 items G 1/8 x 28 – G 1" x 11.

Specifications

  • Wire thread insert, helical coil form
  • Type S: free running, no locking coil
  • Bolt threads in and out with light torque
  • Insert does not grip bolt thread flanks
  • Insert standard: DIN 8140
  • Pipe thread profile to DIN ISO 228 (G BSP)
  • Insert length: 1.5 D nominal diameter
  • Installed thread tolerance: ISO2 6H
  • Restores stripped, worn or mis-drilled internal threads
  • Original bolt size retained after repair
  • Reinforces threads in aluminium, magnesium, cast iron, plastic

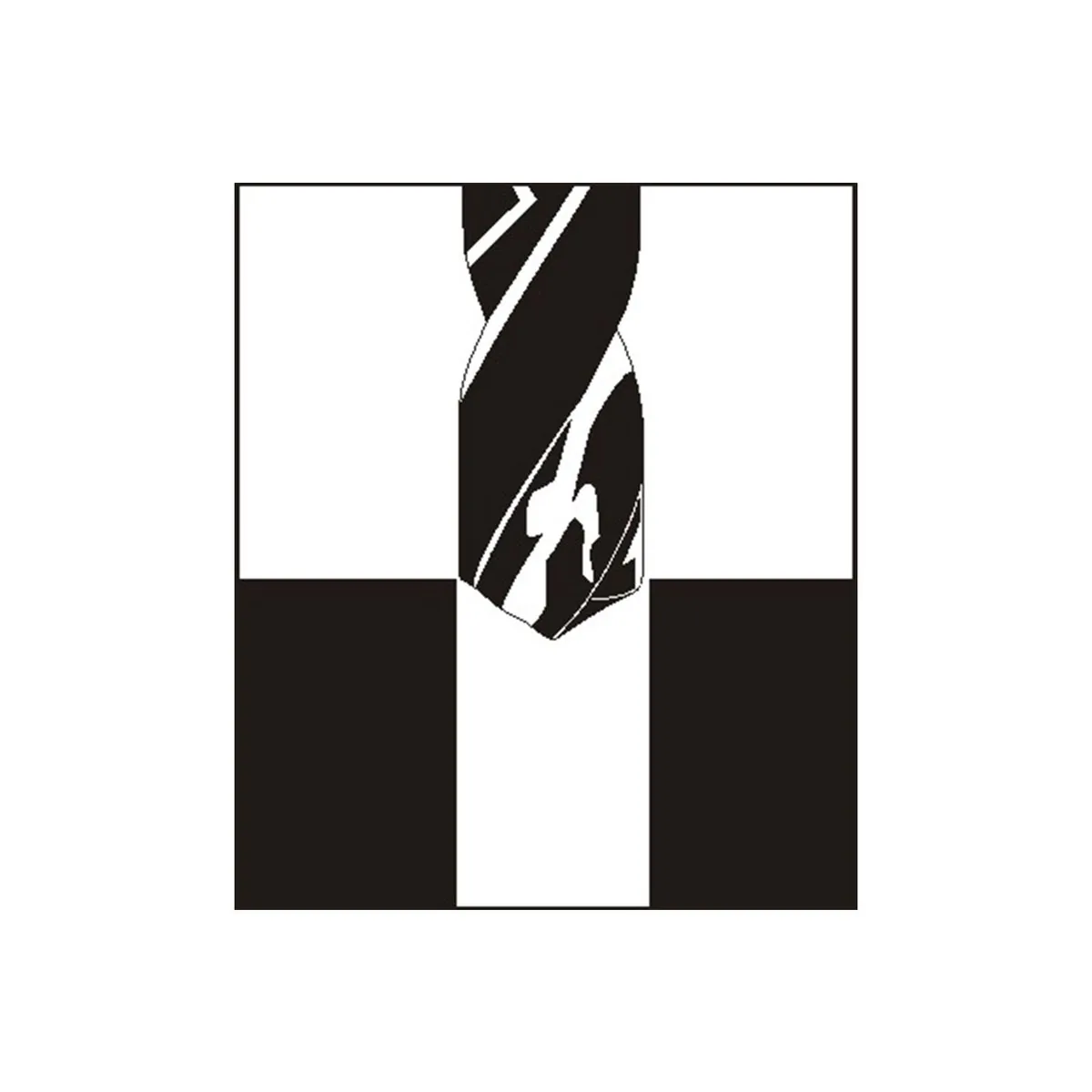

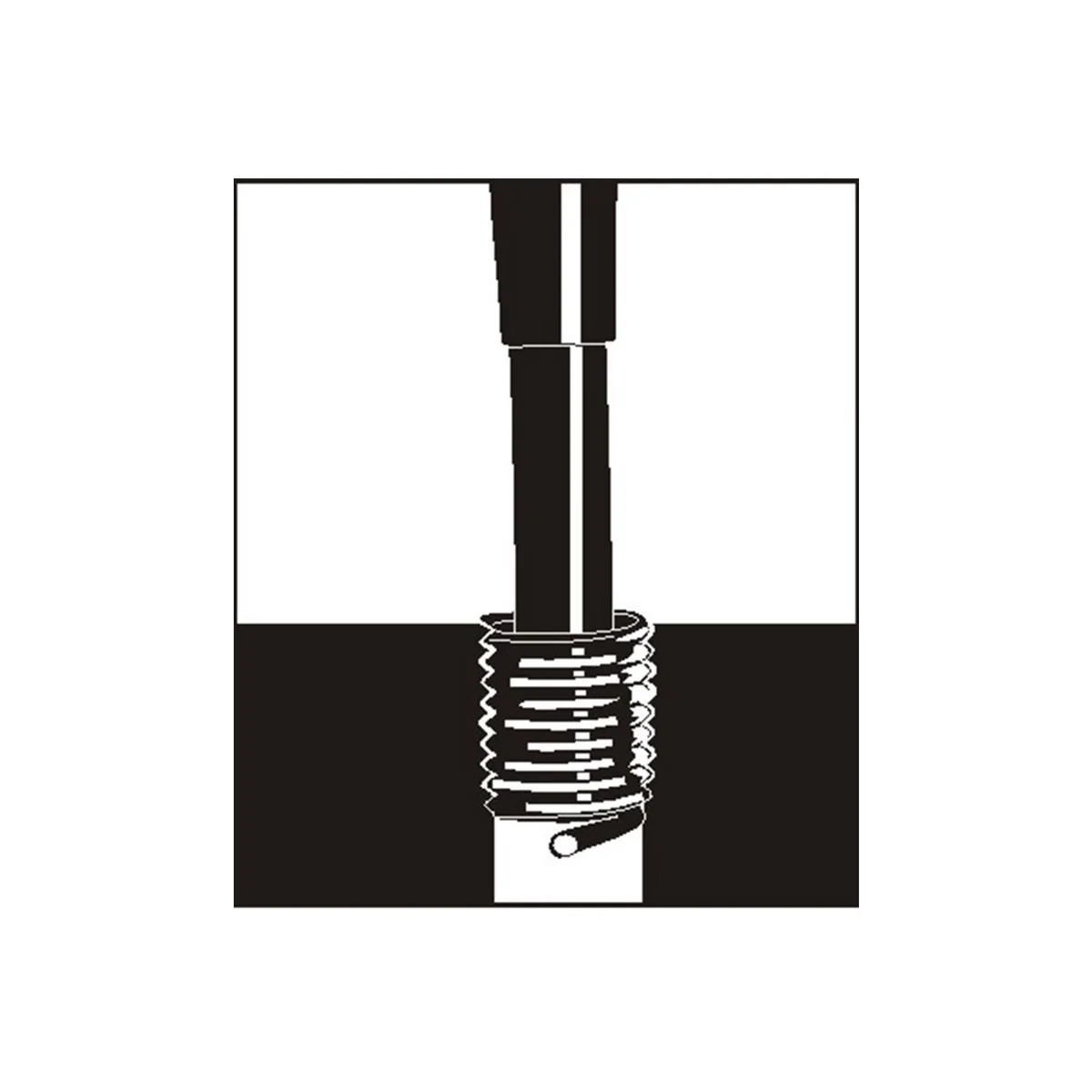

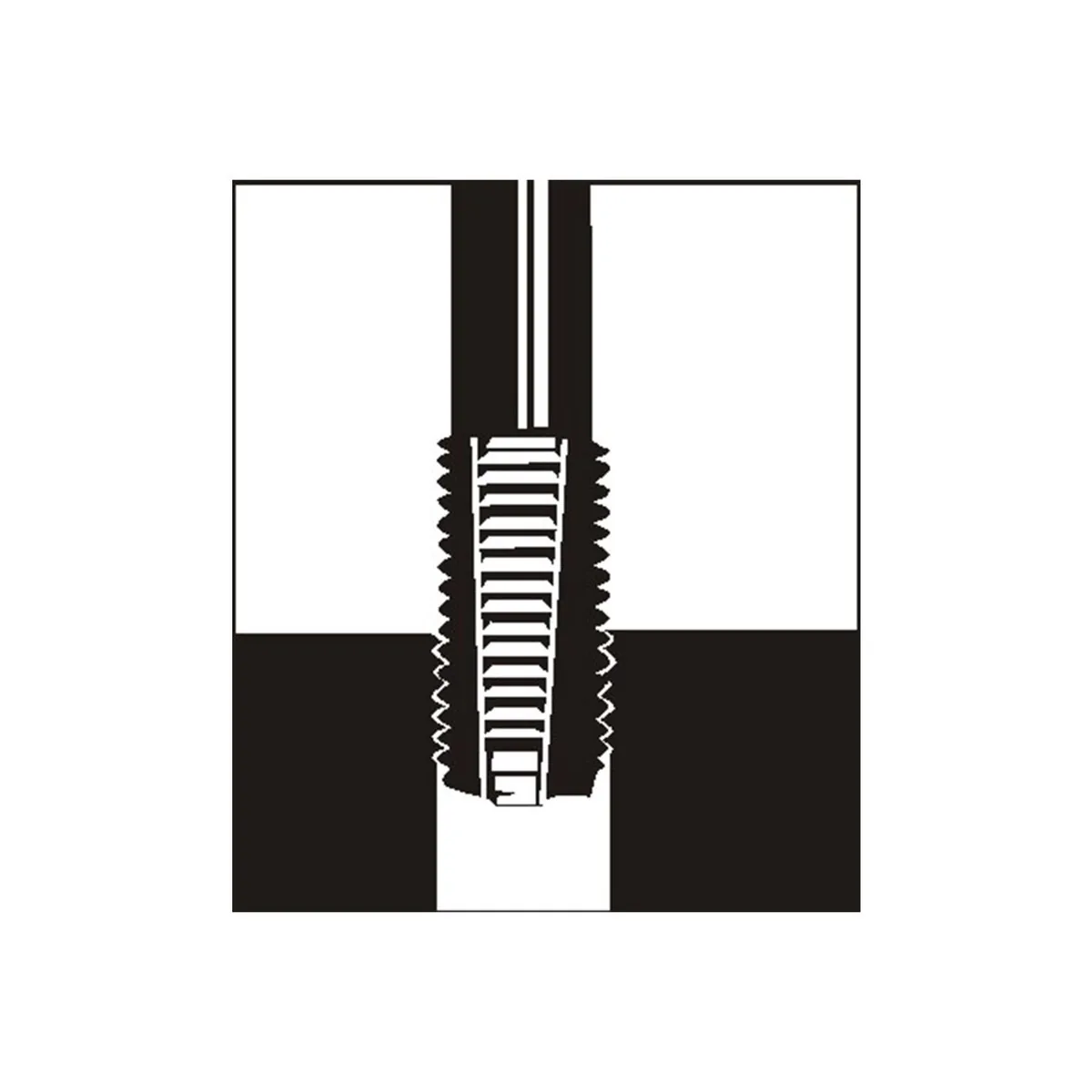

  • Installation: STI drill, STI tap, insert tool
  • Tanged design; tang broken off after installation
  • Applications: machine maintenance, engine repair, mould repair
  • Suited to aluminium housings and repeated assembly points
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock DIN or ISO standard Length Material Packing standard Thread size Thread tolerance class Thread type
08380 €0.64 DIN 8140 1.5D Stainless steel Box of 50 pcs G 1/8 x 28 ISO2 6H Pipe thread G BSP
08381 €1.01 DIN 8140 1.5D Stainless steel Box of 50 pcs G 1/4 x 19 ISO2 6H Pipe thread G BSP
08382 €1.17 DIN 8140 1.5D Stainless steel Box of 50 pcs G 3/8 x 19 ISO2 6H Pipe thread G BSP
08383 €1.61 DIN 8140 1.5D Stainless steel Box of 50 pcs G 1/2 x 14 ISO2 6H Pipe thread G BSP
08384 €4.06 DIN 8140 1.5D Stainless steel Box of 5 pcs G 5/8 x 14 ISO2 6H Pipe thread G BSP
08385 €4.06 DIN 8140 1.5D Stainless steel Box of 5 pcs G 3/4 x 14 ISO2 6H Pipe thread G BSP
08386 €12.62 DIN 8140 1.5D Stainless steel Box of 5 pcs G 7/8 x 14 ISO2 6H Pipe thread G BSP
08387 €13.92 DIN 8140 1.5D Stainless steel Box of 5 pcs G 1" x 11 ISO2 6H Pipe thread G BSP
