Thread tap

VÖLKEL STI Fluteless Machine Tap ISO 529 Form C HSSE, M3 – M12

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

VÖLKEL STI Fluteless Machine Tap ISO 529 Form C HSSE, M3 – M12, 7 sizes. Dimensions per item in the size table.

SKU: ---

7 variants

€22.28 - €77.23

Stock status: Varies by SKU

Indicative price

Description

VÖLKEL STI Fluteless Machine Tap ISO 529 Form C HSSE, M3 – M12, 7 sizes. Dimensions per item in the size table.

Specifications

Type: fluteless forming tap, machine driven
Standard: ISO 529
Shank form: Form C
Thread system: metric ISO coarse
Thread tolerance class: ISO1 (4H)
STI oversize thread for wire thread insert installation
Compatible with V-COIL spring wire inserts
Cold forming action: material displaced, no chips produced
Suitable for through holes and blind holes
Square drive shank for tap holders

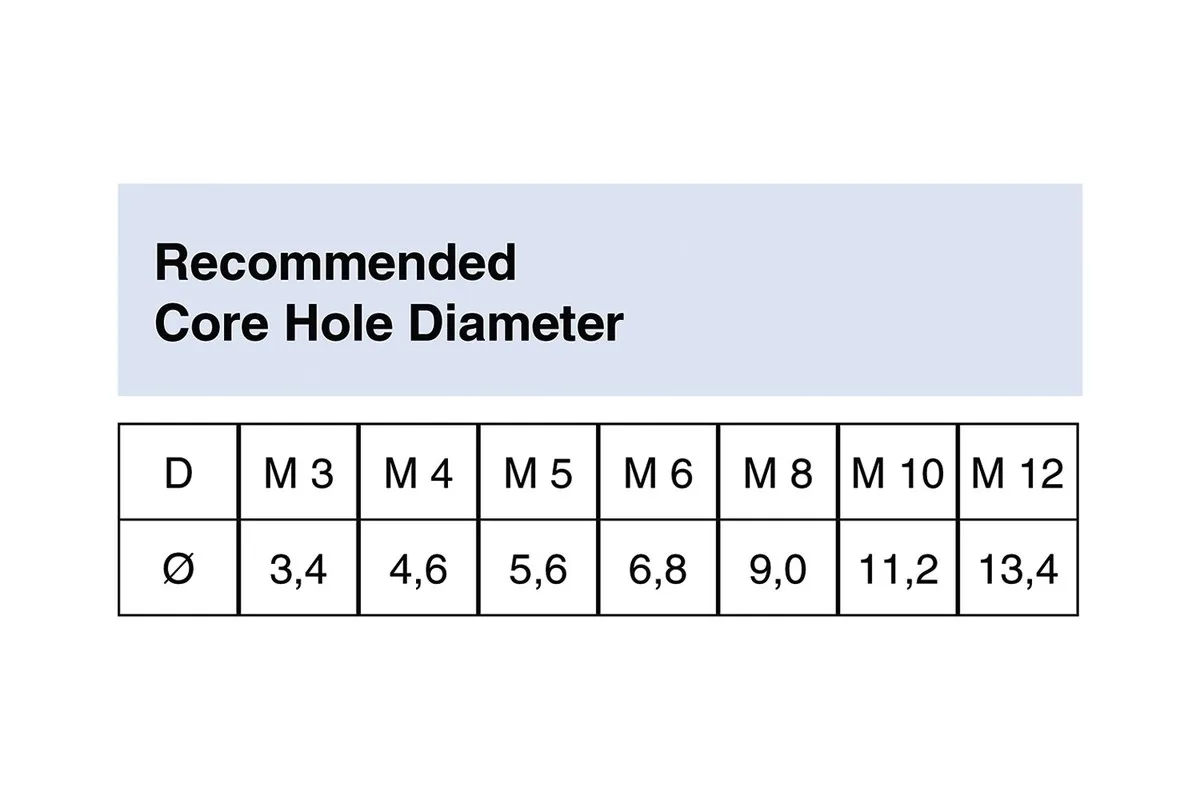

Requires pre-drill diameter specific to forming taps
Best suited to ductile materials: mild steel, aluminium, copper
Requires sufficient cutting oil during forming
Applications: maintenance, mechanical engineering, mould and jig making
Supplied as single piece per size

Price list & Ordering

Drag to reorder

	SKU Code	Price (EUR)	Application	Blade length	DIN or ISO standard	Drill hole diameter	Material	Overall length	Shank diameter	Square shank	Thread size	Thread tolerance class	Thread type
⋮⋮	03605	€22.28	Through and blind hole	13mm	ISO 529	3,2 mm	HSSE	53mm	4mm	3.15mm	M 3 x 0.5	ISO1 (4H)	Metric thread, right hand
⋮⋮	03607	€24.32	Through and blind hole	16mm	ISO 529	4,2 mm	HSSE	58mm	5mm	4mm	M 4 x 0.7	ISO1 (4H)	Metric thread, right hand
⋮⋮	03608	€24.32	Through and blind hole	19mm	ISO 529	5,2 mm	HSSE	66mm	6.3mm	5mm	M 5 x 0.8	ISO1 (4H)	Metric thread, right hand
⋮⋮	03609	€29.38	Through and blind hole	22mm	ISO 529	6,3 mm	HSSE	72mm	8mm	6.4mm	M 6 x 1.0	ISO1 (4H)	Metric thread, right hand
⋮⋮	03611	€34.74	Through and blind hole	24mm	ISO 529	8,3 mm	HSSE	80mm	10mm	8mm	M 8 x 1.25	ISO1 (4H)	Metric thread, right hand
⋮⋮	03615	€43.49	Through and blind hole	29mm	ISO 529	10,4 mm	HSSE	89mm	9mm	7.1mm	M 10 x 1.5	ISO1 (4H)	Metric thread, right hand
⋮⋮	03620	€77.23	Through and blind hole	30mm	ISO 529	12,4 mm	HSSE	95mm	11.2mm	9mm	M 12 x 1.75	ISO1 (4H)	Metric thread, right hand

Optional Accessories

SKU	Price VNĐ	Product name & short description
05205	€0.37	V-COIL Wire thread insert Screw locking type SL M 3 x 0.5 - 1.0 D (100 pcs.) V-COIL Wire thread insert Screw locking type SL M 3 x 0.5 - 1.0 D (100 pcs.) by VÖLKEL, item no. 05205, suitable for thread repair and reinforcement.
05305	€0.37	V-COIL Wire thread insert Screw locking type SL M 3 x 0.5 - 1.5 D (100 pcs.) V-COIL Wire thread insert Screw locking type SL M 3 x 0.5 - 1.5 D (100 pcs.) by VÖLKEL, item no. 05305, suitable for thread repair and reinforcement.
05405	€0.37	V-COIL Wire thread insert Screw locking type SL M 3 x 0.5 - 2.0 D (100 pcs.) V-COIL Wire thread insert Screw locking type SL M 3 x 0.5 - 2.0 D (100 pcs.) by VÖLKEL, item no. 05405, suitable for thread repair and reinforcement.
07205	€0.20	V-COIL Wire thread insert Free running type S M 3 x 0.5 - 1.0 D (100 pcs.) V-COIL Wire thread insert Free running type S M 3 x 0.5 - 1.0 D (100 pcs.) by VÖLKEL, item no. 07205, suitable for thread repair and reinforcement.
07305	€0.20	V-COIL Wire thread insert Free running type S M 3 x 0.5 - 1.5 D (100 pcs.) V-COIL Wire thread insert Free running type S M 3 x 0.5 - 1.5 D (100 pcs.) by VÖLKEL, item no. 07305, suitable for thread repair and reinforcement.
07405	€0.20	V-COIL Wire thread insert Free running type S M 3 x 0.5 - 2.0 D (100 pcs.) V-COIL Wire thread insert Free running type S M 3 x 0.5 - 2.0 D (100 pcs.) by VÖLKEL, item no. 07405, suitable for thread repair and reinforcement.
07505	€0.37	V-COIL Wire thread insert Free running type S M 3 x 0.5 - 2.5 D (100 pcs.) V-COIL Wire thread insert Free running type S M 3 x 0.5 - 2.5 D (100 pcs.) by VÖLKEL, item no. 07505, suitable for thread repair and reinforcement.
07605	€0.44	V-COIL Wire thread insert Free running type S M 3 x 0.5 - 3.0 D (100 pcs.) V-COIL Wire thread insert Free running type S M 3 x 0.5 - 3.0 D (100 pcs.) by VÖLKEL, item no. 07605, suitable for thread repair and reinforcement.
