Home Machine tab VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, No. 10 – 3/8
Categories
VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, No. 10 – 3/8
Machine tab

VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, No. 10 – 3/8

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, No. 10 – 3/8, 4 sizes. Dimensions per item in the size table.

SKU: 7621x
4 variants
€33.72 - €43.60
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, No. 10 – 3/8, 4 sizes. Dimensions per item in the size table.

Specifications

  • Machine tap for cutting internal threads in one pass
  • Standard: DIN 371, reinforced shank design

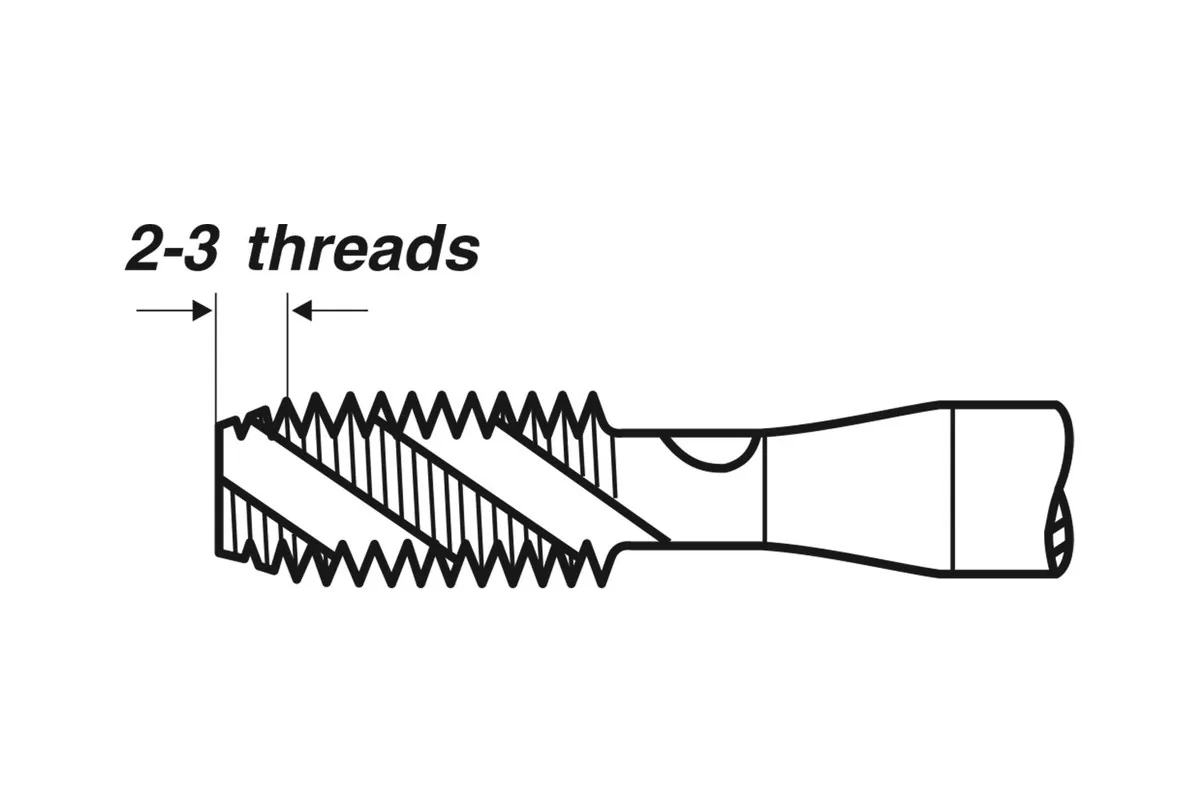

  • Form C: short chamfer, 2–3 thread lead
  • Spiral flute 35°, chip evacuation upward
  • Designed for blind holes
  • Left hand thread version
  • Thread system: UNF (Unified Fine)
  • Tolerance class: 2B
  • Material: HSSE (high speed steel, cobalt alloyed)
  • Thread length: 10 mm
  • Suitable for drilling machines, tapping machines, machining centres
  • Use with axial compensation tapping chuck when feed not synchronised
  • Pre-drill hole per listed tap drill diameter
  • Chamfer hole mouth before tapping
  • Cutting oil matched to workpiece material recommended
  • Applications: maintenance, mechanical manufacturing, mould and jig making
  • Suitable for small batch production
  • Thread check with thread plug gauge after tapping
  • Supplied as single piece per size
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock Application Blade length DIN or ISO standard Drill hole diameter Material Overall length Shank diameter Square shank Thread size Thread tolerance class Thread type
76215 €33.72 Blind hole 10mm DIN 371 4,1 mm HSSE 70mm 6mm 4.9mm UNF No. 10 x 32 2B UNF, left
76217 €33.72 Blind hole 10mm DIN 371 5,5 mm HSSE 80mm 7mm 5.5mm UNF 1/4 x 28 2B UNF, left
76218 €39.90 Blind hole 10mm DIN 371 6,9 mm HSSE 90mm 8mm 6.2mm UNF 5/16 x 24 2B UNF, left
76219 €43.60 Blind hole 10mm DIN 371 8,5 mm HSSE 100mm 9mm 7mm UNF 3/8 x 24 2B UNF, left
