Home Machine tab VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, M3 – M10
Categories
VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, M3 – M10
Machine tab

VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, M3 – M10

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, M3 – M10, 6 sizes. Dimensions per item in the size table.

SKU: 337xx
6 variants
€34.49 - €42.19
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL Machine Tap DIN 371 Form C 35° SP HSSE left hand thread, M3 – M10, 6 sizes. Dimensions per item in the size table.

Specifications

  • Machine tap for cutting internal metric threads
  • Standard: DIN 371

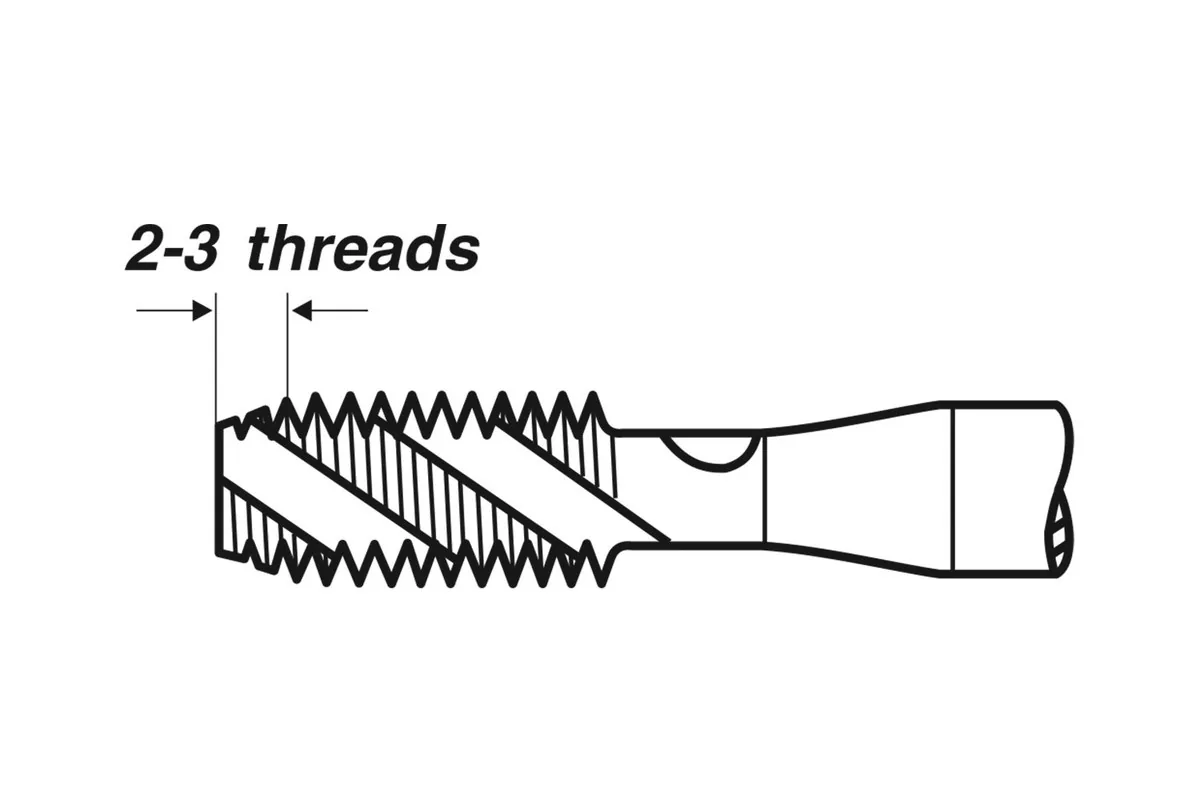

  • Geometry: Form C, short chamfer 2–3 threads
  • Spiral flute 35° for upward chip evacuation
  • Thread direction: left hand
  • Thread system: metric ISO
  • Thread tolerance class: ISO2 (6H)
  • Reinforced shank, diameter equal or larger than thread
  • Square drive end for torque transmission
  • Designed for blind hole threading
  • Suited to materials producing long chips
  • Single pass threading, full depth near hole bottom
  • For use on drilling machines, tapping machines, machining centres
  • Recommended with axial compensation tapping chuck
  • Cutting oil required, matched to workpiece material
  • Pre-drilled hole must be chamfered before tapping
  • Applications: maintenance, mechanical engineering, mould and jig making
  • Small batch and single part production
  • Delivery: one piece per order code
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock Application Blade length DIN or ISO standard Drill hole diameter Material Overall length Shank diameter Square shank Thread size Thread tolerance class Thread type
33726 €34.49 Blind hole 6mm DIN 371 2,5 mm HSSE 56mm 3.5mm 2.7mm M 3 x 0.5 ISO2 (6H) Metric, left
33730 €34.49 Blind hole 7mm DIN 371 3,3 mm HSSE 63mm 4.5mm 3.4mm M 4 x 0.7 ISO2 (6H) Metric, left
33734 €34.49 Blind hole 8mm DIN 371 4,2 mm HSSE 70mm 6mm 4.9mm M 5 x 0.8 ISO2 (6H) Metric, left
33738 €34.49 Blind hole 10mm DIN 371 5 mm HSSE 80mm 6mm 4.9mm M 6 x 1.0 ISO2 (6H) Metric, left
33742 €36.17 Blind hole 14mm DIN 371 6,8 mm HSSE 90mm 8mm 6.2mm M 8 x 1.25 ISO2 (6H) Metric, left
33746 €42.19 Blind hole 16mm DIN 371 8,5 mm HSSE 100mm 10mm 8mm M 10 x 1.5 ISO2 (6H) Metric, left
