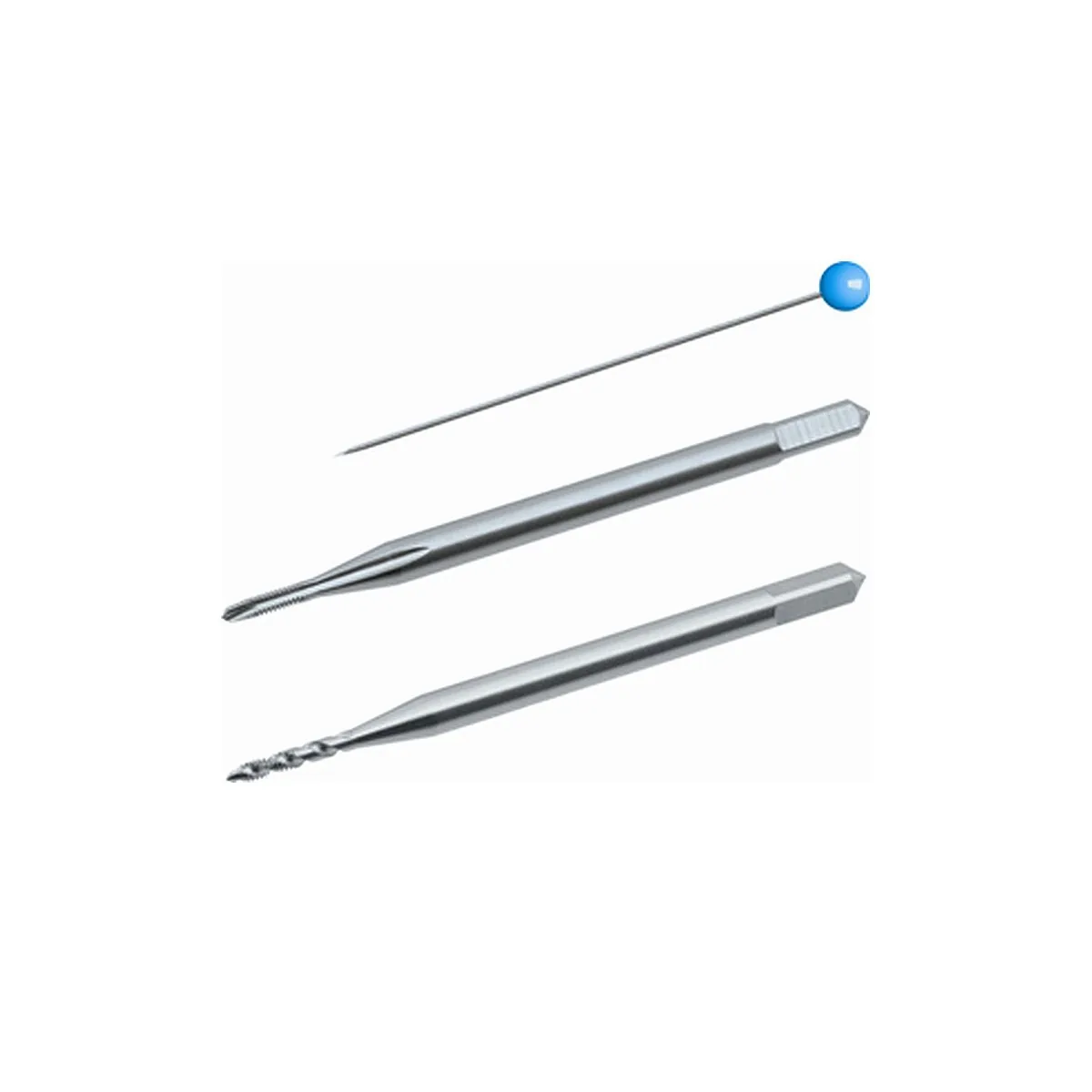

VÖLKEL Machine Tap DIN 371 Form B HSSE, M1 – M10

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

VÖLKEL Machine Tap DIN 371 Form B HSSE, M1 – M10, 17 sizes. Dimensions per item in the size table.

SKU: 375xx

17 variants

€9.65 - €33.75

Stock status: Varies by SKU

Indicative price

Description

VÖLKEL Machine Tap DIN 371 Form B HSSE, M1 – M10, 17 sizes. Dimensions per item in the size table.

Specifications

Machine tap for cutting internal metric threads
Standard: DIN 371, reinforced shank design
Form B: spiral point lead, 3.5–5 thread chamfer
Chip evacuation forward, ahead of the tap
Intended for through holes
Thread tolerance class: ISO2 (6H)
Shank diameter equal to or above thread diameter
Square drive end for torque transmission
Right-hand cutting, single-pass threading
For drilling machines, tapping machines, machining centres
Use with tapping chuck with axial length compensation
Cutting oil recommended, matched to workpiece material
Pilot hole must match tabulated tap drill diameter
Chamfer hole mouth before tapping
Applications: maintenance, mechanical engineering, mould and jig making
Suitable for small batch production
Supply unit: one piece per size

Price list & Ordering

Drag to reorder

	SKU Code	Price (EUR)	Application	Blade length	DIN or ISO standard	Drill hole diameter	Material	Overall length	Shank diameter	Square shank	Thread size	Thread tolerance class	Thread type
⋮⋮	37502	€33.75	Through hole	5mm	DIN 371	0,75 mm	HSSE	40mm	2.5mm	2.1mm	M1 x 0.25	ISO2 (6H)	Metric, right
⋮⋮	37504	€33.75	Through hole	5mm	DIN 371	0,75 mm	HSSE	40mm	2.5mm	2.1mm	M 1.1 x 0.25	ISO2 (6H)	Metric, right
⋮⋮	37506	€33.75	Through hole	5mm	DIN 371	0,95 mm	HSSE	40mm	2.5mm	2.1mm	M 1.2 x 0.25	ISO2 (6H)	Metric, right
⋮⋮	37508	€33.75	Through hole	7mm	DIN 371	1,1 mm	HSSE	40mm	2.5mm	2.1mm	M 1.4 x 0.3	ISO2 (6H)	Metric, right
⋮⋮	37510	€33.75	Through hole	8mm	DIN 371	1,25 mm	HSSE	40mm	2.5mm	2.1mm	M 1.6 x 0.35	ISO2 (6H)	Metric, right
⋮⋮	37512	€33.75	Through hole	8mm	DIN 371	1,3 mm	HSSE	40mm	2.5mm	2.1mm	M 1.7 x 0.35	ISO2 (6H)	Metric, right
⋮⋮	37514	€33.75	Through hole	8mm	DIN 371	1,45 mm	HSSE	40mm	2.5mm	2.1mm	M 1.8 x 0.35	ISO2 (6H)	Metric, right
⋮⋮	37516	€18.35	Through hole	8mm	DIN 371	1,6 mm	HSSE	45mm	2.8mm	2.1mm	M 2 x 0.4	ISO2 (6H)	Metric, right
⋮⋮	37522	€18.35	Through hole	9mm	DIN 371	2,05 mm	HSSE	50mm	2.8mm	2.1mm	M 2.5 x 0.45	ISO2 (6H)	Metric, right
⋮⋮	37526	€9.65	Through hole	11mm	DIN 371	2,5 mm	HSSE	56mm	3.5mm	2.7mm	M 3 x 0.5	ISO2 (6H)	Metric, right
⋮⋮	37528	€10.76	Through hole	13mm	DIN 371	2,9 mm	HSSE	56mm	4mm	3mm	M 3.5 x 0.6	ISO2 (6H)	Metric, right
⋮⋮	37530	€9.88	Through hole	13mm	DIN 371	3,3 mm	HSSE	63mm	4.5mm	3.4mm	M 4 x 0.7	ISO2 (6H)	Metric, right
⋮⋮	37534	€11.33	Through hole	16mm	DIN 371	4,2 mm	HSSE	70mm	6mm	4.9mm	M 5 x 0.8	ISO2 (6H)	Metric, right
⋮⋮	37538	€11.53	Through hole	19mm	DIN 371	5 mm	HSSE	80mm	6mm	4.9mm	M 6 x 1.0	ISO2 (6H)	Metric, right
⋮⋮	37540	€16.47	Through hole	19mm	DIN 371	6 mm	HSSE	80mm	7mm	5.5mm	M 7 x 1.0	ISO2 (6H)	Metric, right
⋮⋮	37542	€14.66	Through hole	22mm	DIN 371	6,8 mm	HSSE	90mm	8mm	6.2mm	M 8 x 1.25	ISO2 (6H)	Metric, right
⋮⋮	37546	€19.83	Through hole	24mm	DIN 371	8,5 mm	HSSE	100mm	10mm	8mm	M 10 x 1.5	ISO2 (6H)	Metric, right
