Home Thread plug gauge VÖLKEL GO-NOGO thread plug gauge, metric M1 – M36, tolerance 6H
Categories
VÖLKEL GO-NOGO thread plug gauge, metric M1 – M36, tolerance 6H
Thread plug gauge

VÖLKEL GO-NOGO thread plug gauge, metric M1 – M36, tolerance 6H

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL GO-NOGO thread plug gauge, metric M1 – M36, 42 sizes, to DIN ISO 1502. Double-ended GO and NOGO gauge. For internal threads after tapping or repair.

SKU: 160xx
42 variants
€68.11 - €274.02
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL GO-NOGO thread plug gauge, metric M1 – M36, 42 sizes, to DIN ISO 1502. Double-ended GO and NOGO gauge. For internal threads after tapping or repair.

Specifications

  • Function: inspection gauge for internal metric threads
  • Double-ended design: GO end and NOGO end on one body
  • Single pass gives pass/fail result

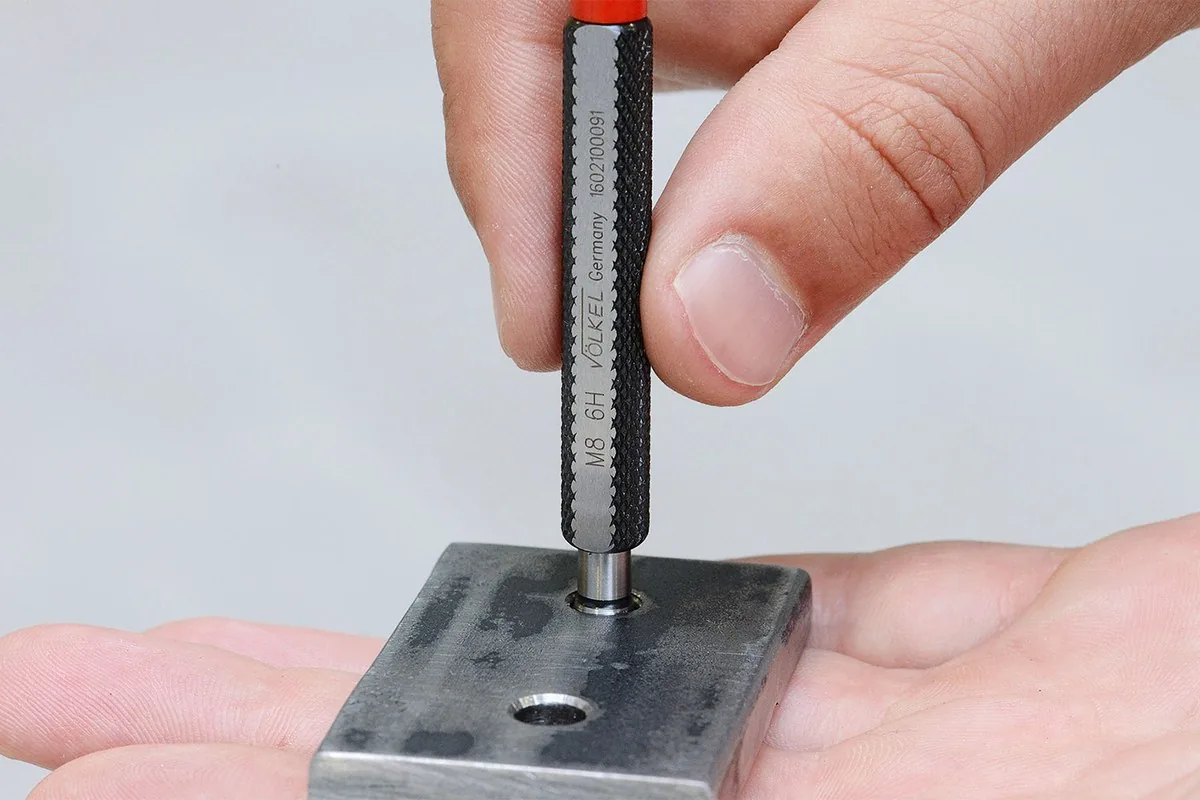

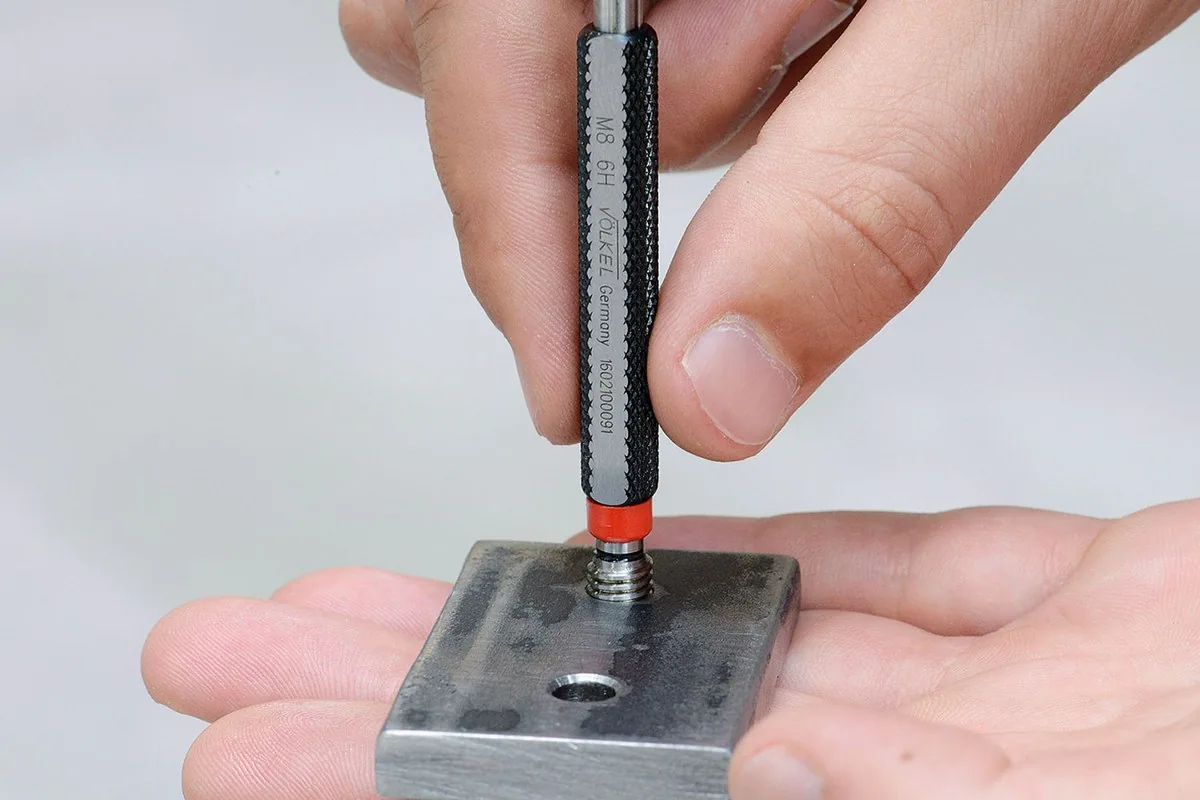

  • GO end must engage freely; NOGO end must not enter beyond allowance
  • Thread system: ISO metric, right-hand
  • Thread designation by nominal diameter and pitch
  • Application: verification after tapping, thread cleaning or repair
  • Use areas: production, maintenance, tool room, incoming inspection
  • Inspection only: not for cutting, reworking or cleaning threads
  • External threads require ring gauges, not plug gauges
  • Repeatable results across shifts and operators
  • Pre-check requirement: hole free of chips, dust and burrs
  • Screw in by hand without force
  • Pairs with matching hand taps and machine taps
  • Supplied as one piece per size
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock Coating DIN or ISO standard Probe type Thread size Thread tolerance class Thread type
16000 €116.32 - DIN ISO 1502 GO NOGO double-ended M1 x 0.25 6H Hệ mét ISO
16003 €116.32 - DIN ISO 1502 GO NOGO double-ended M 1.4 x 0.3 6H Hệ mét ISO
16004 €116.32 - DIN ISO 1502 GO NOGO double-ended M 1.6 x 0.35 6H Hệ mét ISO
16007 €82.70 - DIN ISO 1502 GO NOGO double-ended M 2 x 0.4 6H Hệ mét ISO
16497 €104.51 - DIN ISO 1502 GO NOGO double-ended M 2.2 x 0.45 6H Hệ mét ISO
16498 €104.51 - DIN ISO 1502 GO NOGO double-ended M 2.3 x 0.4 6H Hệ mét ISO
16010 €82.70 - DIN ISO 1502 GO NOGO double-ended M 2.5 x 0.45 6H Hệ mét ISO
16499 €104.51 - DIN ISO 1502 GO NOGO double-ended M 2.6 x 0.45 6H Hệ mét ISO
16012 €78.11 - DIN ISO 1502 GO NOGO double-ended M 3 x 0.5 6H Hệ mét ISO
16013 €72.67 - DIN ISO 1502 GO NOGO double-ended M 3.5 x 0.6 6H Hệ mét ISO
16014 €68.91 - DIN ISO 1502 GO NOGO double-ended M 4 x 0.7 6H Hệ mét ISO
16500 €88.48 - DIN ISO 1502 GO NOGO double-ended M 4.5 x 0.75 6H Hệ mét ISO
16016 €68.91 - DIN ISO 1502 GO NOGO double-ended M 5 x 0.8 6H Hệ mét ISO
16501 €88.48 - DIN ISO 1502 GO NOGO double-ended M 5.5 x 0.9 6H Hệ mét ISO
16019 €68.91 - DIN ISO 1502 GO NOGO double-ended M 6 x 1.0 6H Hệ mét ISO
16020 €68.91 - DIN ISO 1502 GO NOGO double-ended M 7 x 1.0 6H Hệ mét ISO
16021 €68.11 - DIN ISO 1502 GO NOGO double-ended M 8 x 1.25 6H Hệ mét ISO
16022 €72.84 - DIN ISO 1502 GO NOGO double-ended M 9 x 1.25 6H Hệ mét ISO
16023 €72.84 - DIN ISO 1502 GO NOGO double-ended M 10 x 1.5 6H Hệ mét ISO
16024 €78.11 - DIN ISO 1502 GO NOGO double-ended M11x1.5 6H Hệ mét ISO
16025 €78.11 - DIN ISO 1502 GO NOGO double-ended M 12 x 1.75 6H Hệ mét ISO
16027 €82.70 - DIN ISO 1502 GO NOGO double-ended M 14 x 2.0 6H Hệ mét ISO
16028 €89.41 - DIN ISO 1502 GO NOGO double-ended M 16 x 2.0 6H Hệ mét ISO
16029 €99.51 - DIN ISO 1502 GO NOGO double-ended M 18 x 2.5 6H Hệ mét ISO
16030 €107.20 - DIN ISO 1502 GO NOGO double-ended M 20 x 2.5 6H Hệ mét ISO
16031 €116.32 - DIN ISO 1502 GO NOGO double-ended M 22 x 2.5 6H Hệ mét ISO
16032 €124.01 - DIN ISO 1502 GO NOGO double-ended M 24 x 3.0 6H Hệ mét ISO
16033 €136.25 - DIN ISO 1502 GO NOGO double-ended M 27 x 3.0 6H Hệ mét ISO
16034 €148.50 - DIN ISO 1502 GO NOGO double-ended M 30 x 3.5 6H Hệ mét ISO
16035 €157.69 - DIN ISO 1502 GO NOGO double-ended M 33 x 3.5 6H Hệ mét ISO
16036 €171.48 - DIN ISO 1502 GO NOGO double-ended M 36 x 4.0 6H Hệ mét ISO
16474 €136.25 DLC DIN ISO 1502 GO NOGO double-ended M 3 x 0.5 6H Hệ mét ISO
16475 €129.37 DLC DIN ISO 1502 GO NOGO double-ended M 4 x 0.7 6H Hệ mét ISO
16476 €124.01 DLC DIN ISO 1502 GO NOGO double-ended M 5 x 0.8 6H Hệ mét ISO
16477 €122.40 DLC DIN ISO 1502 GO NOGO double-ended M 6 x 1.0 6H Hệ mét ISO
16478 €129.37 DLC DIN ISO 1502 GO NOGO double-ended M 8 x 1.25 6H Hệ mét ISO
16479 €140.88 DLC DIN ISO 1502 GO NOGO double-ended M 10 x 1.5 6H Hệ mét ISO
16480 €156.12 DLC DIN ISO 1502 GO NOGO double-ended M 12 x 1.75 6H Hệ mét ISO
16481 €171.48 DLC DIN ISO 1502 GO NOGO double-ended M 14 x 2.0 6H Hệ mét ISO
16482 €182.18 DLC DIN ISO 1502 GO NOGO double-ended M 16 x 2.0 6H Hệ mét ISO
16483 €215.90 DLC DIN ISO 1502 GO NOGO double-ended M 20 x 2.5 6H Hệ mét ISO
16484 €274.02 DLC DIN ISO 1502 GO NOGO double-ended M 24 x 3.0 6H Hệ mét ISO
