VÖLKEL Fluteless Machine Tap without oil groove JIS B-4430 HSSE,

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

VÖLKEL Fluteless Machine Tap without oil groove JIS B-4430 HSSE, , 15 sizes. Dimensions per item in the size table.

SKU: 908xx

15 variants

€17.41 - €32.98

Stock status: Varies by SKU

Indicative price

Description

VÖLKEL Fluteless Machine Tap without oil groove JIS B-4430 HSSE, , 15 sizes. Dimensions per item in the size table.

Specifications

Function: fluteless forming tap, cold-forms internal threads

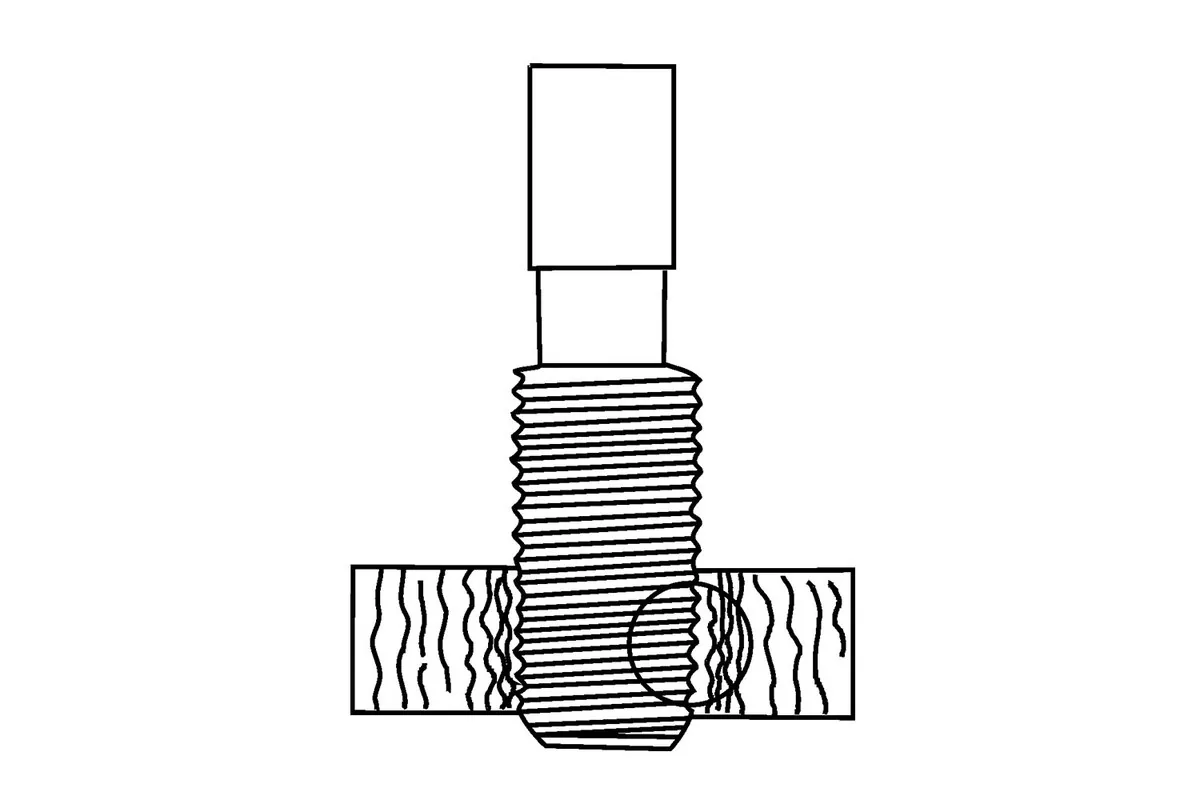

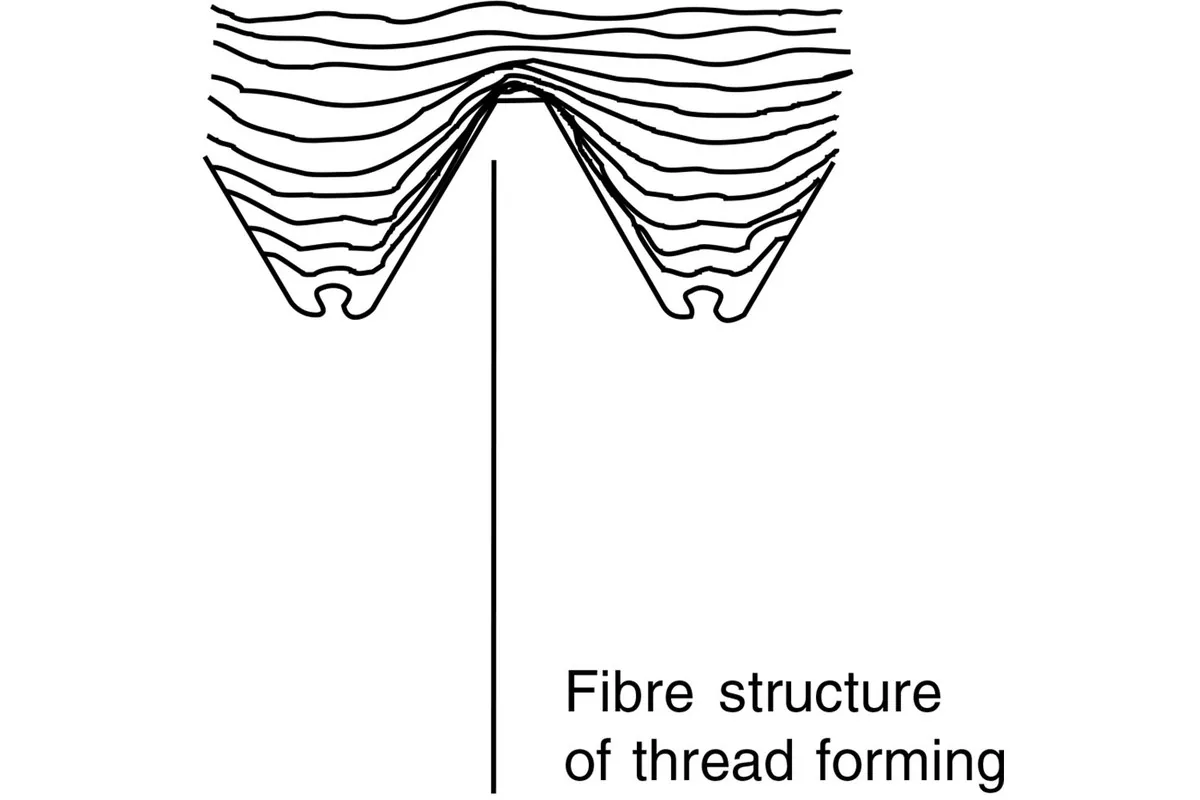

Thread formed by material displacement, no chip generation
No chip evacuation or chip removal required after tapping
Design: fluteless body, without oil groove
Standard: JIS B-4430
Suitable for through holes and blind holes
Shank with square drive for tap holders
Machine tapping on drill presses, milling machines, tapping units
Recommended for ductile materials: mild steel, aluminium, copper
Requires pre-drilled hole per forming-tap drill chart
Chamfer hole mouth before tapping
Sufficient cutting oil lubrication mandatory
Thread check with plug gauge after forming
Applications: maintenance, mechanical engineering, mould and jig making
Supply unit: one piece per size

Price list & Ordering

Drag to reorder

	SKU Code	Price (EUR)	Application	Blade length	DIN or ISO standard	Drill hole diameter	Material	Overall length	Shank diameter	Square shank	Thread size	Thread tolerance class	Thread type
⋮⋮	93804	€29.48	Through and blind hole	10mm	JIS B-4430	2,55 mm	HSSE	45mm	3mm	2.5mm	UNC No. 4 x 40	2BX	UNC, right
⋮⋮	93806	€29.48	Through and blind hole	14mm	JIS B-4430	3,15 mm	HSSE	49mm	4mm	3.2mm	UNC No. 6 x 32	2BX	UNC, right
⋮⋮	93808	€29.48	Through and blind hole	14mm	JIS B-4430	3,8 mm	HSSE	53mm	5mm	4mm	UNC No. 8 x 32	2BX	UNC, right
⋮⋮	93809	€29.48	Through and blind hole	17mm	JIS B-4430	4,35 mm	HSSE	61mm	5.5mm	4.5mm	UNC No. 10 x 24	2BX	UNC, right
⋮⋮	93859	€29.48	Through and blind hole	17mm	JIS B-4430	4,45 mm	HSSE	61mm	5.5mm	4.5mm	UNF No. 10 x 32	2BX	UNF, right
⋮⋮	90814	€32.98	Through and blind hole	8mm	JIS B-4430	1,8 mm	HSSE	40mm	3mm	2.5mm	M 2 x 0.4	ISO2X (6HX)	Metric, right
⋮⋮	90816	€32.98	Through and blind hole	9.5mm	JIS B-4430	2,1 mm	HSSE	42mm	3mm	2.5mm	M 2.3 x 0.4	ISO2X (6HX)	Metric, right
⋮⋮	90818	€32.98	Through and blind hole	9.5mm	JIS B-4430	2,3 mm	HSSE	44mm	3mm	2.5mm	M 2.5 x 0.45	ISO2X (6HX)	Metric, right
⋮⋮	90820	€32.98	Through and blind hole	9.5mm	JIS B-4430	2,4 mm	HSSE	44mm	3mm	2.5mm	M 2.6 x 0.45	ISO2X (6HX)	Metric, right
⋮⋮	90822	€17.41	Through and blind hole	11mm	JIS B-4430	2,8 mm	HSSE	46mm	4mm	3.2mm	M 3 x 0.5	ISO2X (6HX)	Metric, right
⋮⋮	90826	€19.97	Through and blind hole	13mm	JIS B-4430	3,7 mm	HSSE	52mm	5mm	4mm	M 4 x 0.7	ISO2X (6HX)	Metric, right
⋮⋮	90830	€21.48	Through and blind hole	16mm	JIS B-4430	4,65 mm	HSSE	60mm	5.5mm	4.5mm	M 5 x 0.8	ISO2X (6HX)	Metric, right
⋮⋮	90838	€21.48	Through and blind hole	19mm	JIS B-4430	5,55 mm	HSSE	62mm	6mm	4.5mm	M 6 x 1.0	ISO2X (6HX)	Metric, right
⋮⋮	90846	€26.05	Through and blind hole	20mm	JIS B-4430	7,45 mm	HSSE	70mm	6.2mm	5mm	M 8 x 1.25	ISO2X (6HX)	Metric, right
⋮⋮	90854	€30.66	Through and blind hole	22mm	JIS B-4430	9,3 mm	HSSE	75mm	7mm	5.5mm	M 10 x 1.5	ISO2X (6HX)	Metric, right
