V-COIL rapid Thread Repair Kits, 12 x 1,5 - 1,5D

Name: V-COIL rapid Thread Repair Kits, 12 x 1,5 - 1,5D
Brand: VOLKEL
SKU: 04322
Price: 1312000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

V-COIL rapid Thread Repair Kits, 12 x 1,5 - 1,5D by VÖLKEL, item no. 04322, suitable for thread repair and insert installation.

SKU: 04322

1.312.000 đ

Stock status: Hết hàng

Price includes VAT

Description

VÖLKEL V-COIL Rapid Thread Repair Kit M12 x 1.5 – 1.5D

The V-COIL Rapid Thread Repair Kit enables fast, precise and long-lasting repair of internal threads M12 x 1.5. The system combines stainless steel inserts (Type S, 1.5D) with a Rapid insertion tool (1/4" drive), STI tap and twist drill – ideal for maintenance, assembly and small series production.

Application

Repair of damaged or worn internal threads
Thread reinforcement for materials with low shear strength
Recovery of rejected components
Creation of new, high-strength and durable threads
Ideal for maintenance, assembly and small series work

Inserts according to DIN 8140, tolerance ISO 2 (6H), Type S – free running, made of stainless steel.

Advantages & Features

Flexible application – all tools with 1/4" hex drive
Usable by hand or cordless drill
No manual adjustment required during assembly
Compact and practical, even in hard-to-reach places
Smaller and more efficient than conventional repair systems
Higher thread load capacity after repair
Corrosion and temperature resistant
Offered at the same price as the standard system
Functional and attractive packaging

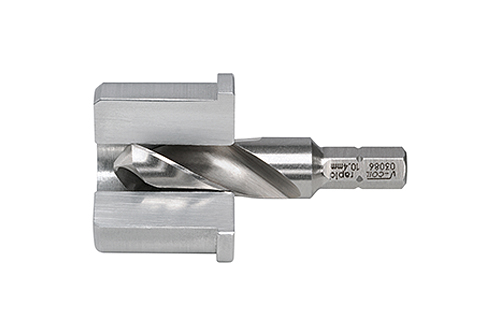

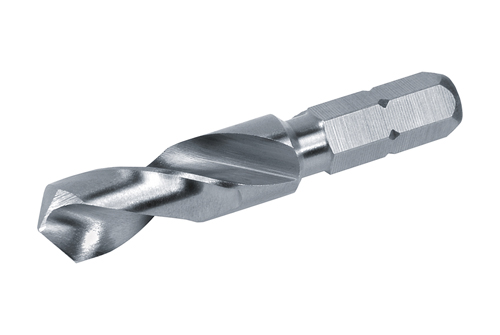

1 × V-COIL Rapid STI Twist Drill 12.4 mm

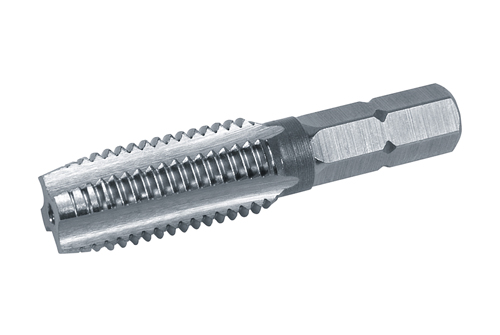

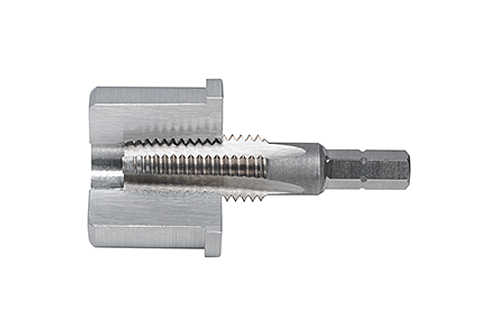

1 × V-COIL Rapid STI Tap, Form D, HSS-G, M12 × 1.5

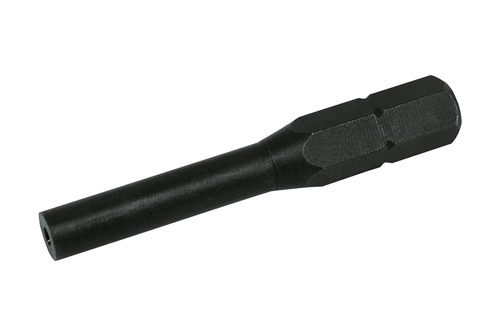

1 × Tang Break Tool No. 15

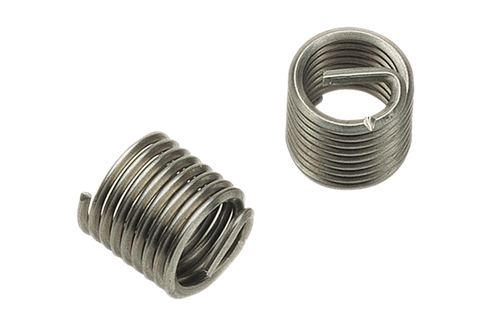

6 × Wire Thread Inserts Type S, free running M12 × 1.5 – 1.5D

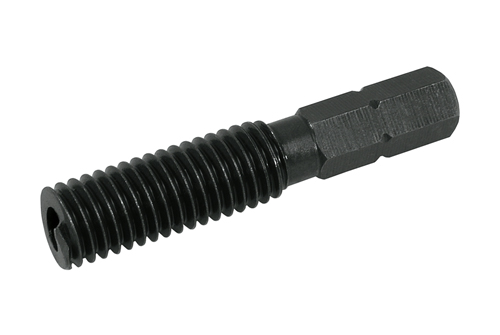

1 × V-COIL Rapid Insertion Tool M12 × 1.5

FAQ

What is this kit used for?
For quick repair, reinforcement of weak materials, and reworking of rejected parts.

What does 1.5D mean?
The insert length equals 1.5 times the nominal diameter – standard for most applications.

Are all tools included?
Yes – the set includes all necessary tools for installation with a 1/4" hex drive.

Can I buy additional inserts?
Yes, matching V-COIL inserts are available separately in various lengths.

Is manual adjustment required?
No, the Rapid system does not require any manual alignment.

Need help selecting or applying the right kit? Contact our support team via the contact form.

Specifications

Form	Form D
Material	Wire Thread Inserts frostainless steel
Size	Diameter 12 x 1.75
Drive connector	Hexagon 1/4" inch
Packing	in plastic case
EAN	4022835043218
Item number	04322

Optional Accessories

SKU	Price VNĐ	Product name & short description
03402	428.800	STI HexTap V-COIL rapid machine tap Form D HSS-G - STI - M 12 x 1.5 STI HexTap V-COIL rapid machine tap Form D HSS-G - STI - M 12 x 1.5 by VÖLKEL, item no. 03402, suitable for thread repair and reinforcement.
03021	438.400	STI Short Machine Tap ISO 529 Form D HSS-G - M 12 x 1.5 STI Short Machine Tap ISO 529 Form D HSS-G - M 12 x 1.5 by VÖLKEL, item no. 03021, suitable for cutting internal threads.
03521	857.600	STI Machine Tap ISO 529 Form B HSSE - M 12 x 1.5 STI Machine Tap ISO 529 Form B HSSE - M 12 x 1.5 by VÖLKEL, item no. 03521, suitable for cutting internal threads.
03721	697.600	STI Machine Tap ISO 529 Form C 35° Spiral Flute HSSE - M 12 x 1.5 STI Machine Tap ISO 529 Form C 35° Spiral Flute HSSE - M 12 x 1.5 by VÖLKEL, item no. 03721, suitable for cutting internal threads.
07222	13.760	V-COIL Wire thread insert Free running type S M 12 x 1.5 - 1.0 D (100 pcs.) V-COIL Wire thread insert Free running type S M 12 x 1.5 - 1.0 D (100 pcs.) by VÖLKEL, item no. 07222, suitable for thread repair and reinforcement.
07322	15.360	V-COIL Wire thread insert Free running type S M 12 x 1.5 - 1.5 D (100 pcs.) V-COIL Wire thread insert Free running type S M 12 x 1.5 - 1.5 D (100 pcs.) by VÖLKEL, item no. 07322, suitable for thread repair and reinforcement.
07422	17.280	V-COIL Wire thread insert Free running type S M 12 x 1.5 - 2.0 D (100 pcs.) V-COIL Wire thread insert Free running type S M 12 x 1.5 - 2.0 D (100 pcs.) by VÖLKEL, item no. 07422, suitable for thread repair and reinforcement.
07522	20.480	V-COIL Wire thread insert Free running type S M 12 x 1.5 - 2.5 D (100 pcs.) V-COIL Wire thread insert Free running type S M 12 x 1.5 - 2.5 D (100 pcs.) by VÖLKEL, item no. 07522, suitable for thread repair and reinforcement.
