VÖLKEL Thread Repair Kits, 20 x 2,0 - 1,5D

This thread repair kit for restoring a damaged internal thread with wire thread inserts is for M 20 x 2.0. Use it when the existing internal thread is damaged and the original screw connection should be restored with a controlled insert repair.

VÖLKEL Thread Repair Kits, 20 x 2,0 - 1,5D

Features and applications

This thread repair kit for restoring a damaged internal thread with wire thread inserts is for M 20 x 2.0. Use it when the existing internal thread is damaged and the original screw connection should be restored with a controlled insert repair.

Metric thread selection is based on nominal diameter and pitch, so both values must match the screw connection or drawing. The kit should be selected by the component thread, available wall thickness, and the required installation workflow. Keep the setup controlled by checking alignment, chip removal, seating position, and final thread engagement.

Applications

• rebuilding stripped or worn M 20 x 2.0 threads using an insert based repair sequence
• service cases where replacing the complete component is less practical than repairing the thread
• repeatable repair preparation using coordinated drilling, STI tapping, inserting, and checking steps
• tool room or field service work where all required kit parts must stay matched to the thread size

Benefits

• kit structure keeps the repair workflow connected to M 20 x 2.0
• coordinated preparation, STI tapping, insertion, and checking steps reduce the risk of mixing tools from different sizes
• insert repair can retain the original screw size when the component condition allows controlled preparation

Application limits

• A repair kit only works when the damaged component can be prepared correctly; replace the component or use a different repair method if alignment or remaining wall strength is not sufficient.

Step by step

1. Compare M 20 x 2.0 with the component drawing or the original fastener before selecting the kit.
2. Remove contamination and damaged thread material from the repair area.
3. Use the preparation tool from the kit sequence while keeping the tool aligned with the original axis.
4. Tap the receiving thread with the matching STI tap from the repair system.
5. Clean the prepared thread before the insert touches the component.
6. Drive the insert into the thread with the installation tool specified for the kit.
7. Finish the installation step by removing the tang if required.
8. Verify smooth screw engagement and document the repair where your process requires traceability.

Used together with

Each component in the kit has its own VÖLKEL item number for reordering.

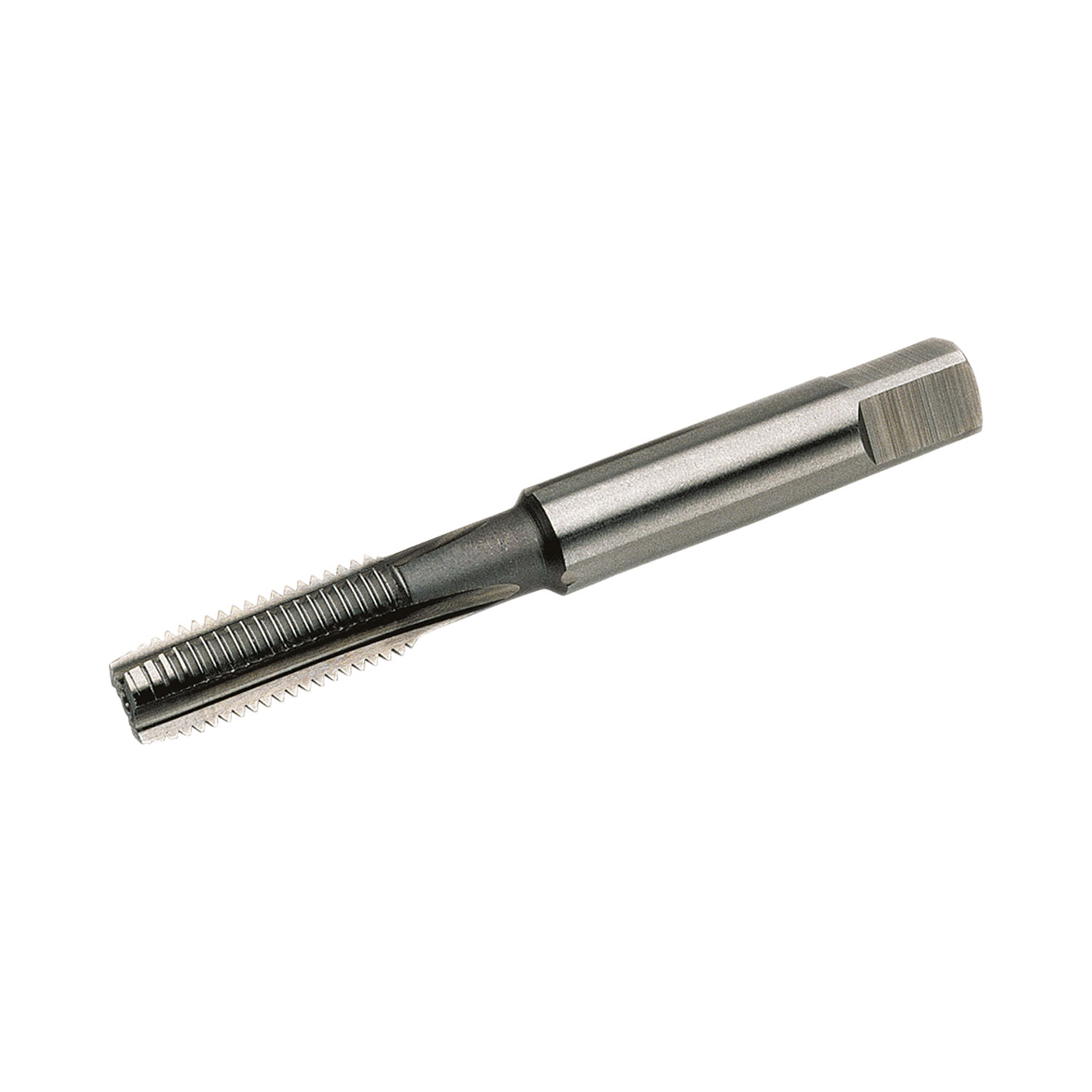

• STI Short Machine Tap ISO 529 Form D HSS-G - M 20 x 2.0: item 03039
• V-COIL Inserting Tool No. 21: item 08021

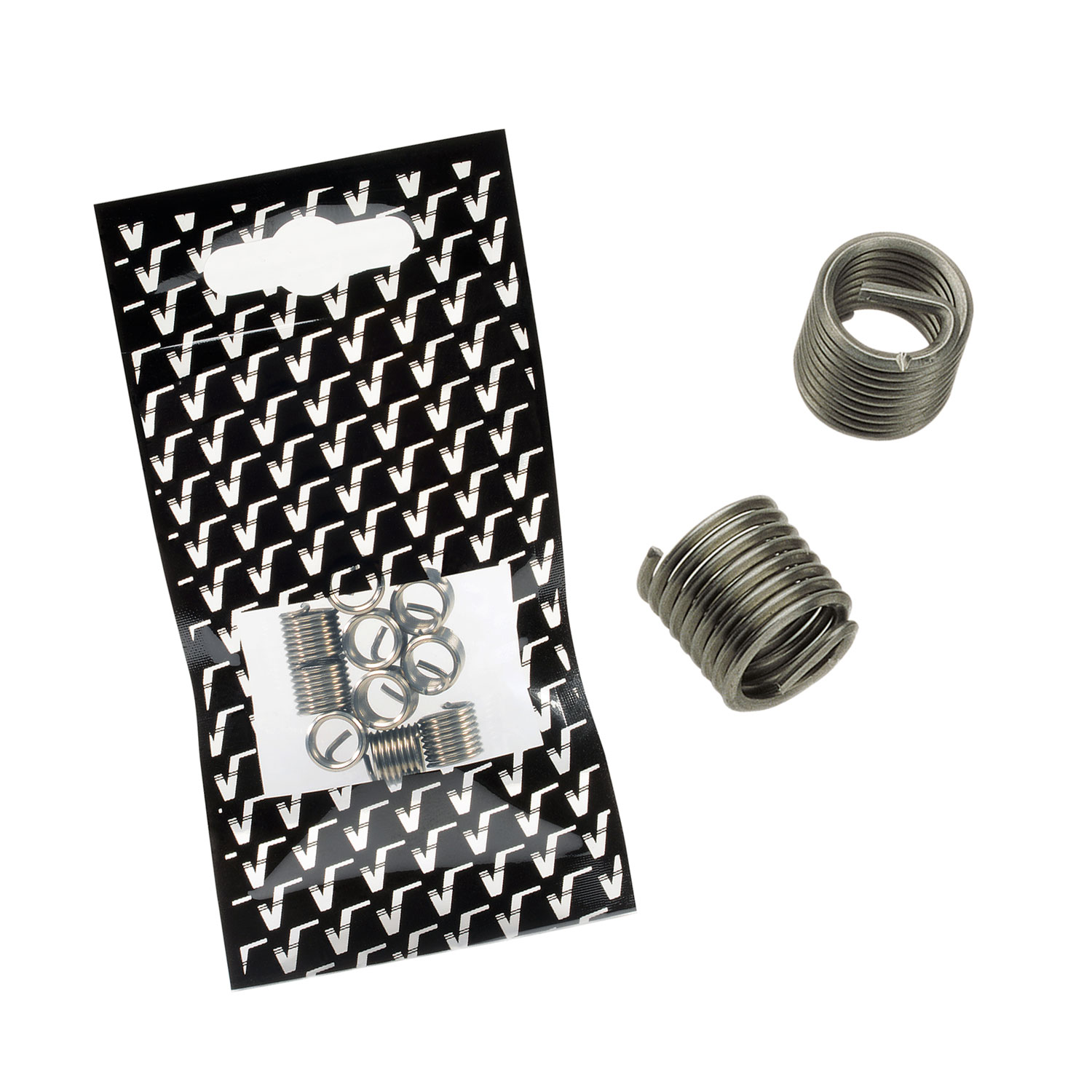

• V-COIL Wire thread insert Free running type S M 20 x 2.0 - 1.5 D: item 07340

How to choose

Confirm M 20 x 2.0, the insert length, and every included tool before starting the repair.
