Thread Repair Kits, 18 x 1,5 - 1,5D

Name: Thread Repair Kits, 18 x 1,5 - 1,5D
Brand: VOLKEL
SKU: 04036
Price: 1900800.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Thread Repair Kits, 18 x 1,5 - 1,5D by VÖLKEL, item no. 04036, suitable for thread repair and insert installation.

SKU: 04036

1.900.800 đ

Stock status: Hết hàng

Price includes VAT

Description

Thread Repair Kits, 18 x 1,5 - 1,5D

This thread repair kit gives you the core tools and inserts for restoring one specified internal thread size in workshop and service work. It is useful when damaged threads must be returned to function without replacing the complete component. The product name defines the repair thread and insert length, which keeps tool selection direct.

DIN 8140 is the common reference family for wire thread insert systems and the related oversized STI mounting thread.

Application

Repair one specified internal thread size with a matched service kit for workshop and field use.
Restore threads in housings, covers, and machine parts instead of replacing the whole component.
Support maintenance, installation, and small batch rework with a ready to use insert system.
Use where durable internal thread function is required after damage, wear, or pull out.

Note Check that the repair size in the kit matches the original thread designation before drilling and STI tapping.

Benefits

Matched repair components reduce setup effort for the specified thread size.
Practical for maintenance and service jobs where speed and completeness matter.
Restores thread function while keeping the original fastening size in service.
Portable kit format helps storage and jobsite handling.

Drawbacks

The kit is limited to the single thread size and insert length stated in the product name.
It is aimed at professional repair steps rather than casual use without thread preparation knowledge.

Step by step

Confirm that the damaged thread matches the kit designation shown in the product name.
Prepare the hole for the repair sequence and keep the drilling axis aligned to the original thread position.
Cut the required STI mounting thread with the tap from the repair system.
Clean the threaded hole thoroughly so the insert can seat without obstruction.
Install the wire thread insert with the matching tool from the kit until the seating position is correct.
Finish the insert according to the system method and verify the fit with the intended mating fastener.

Scope of supply

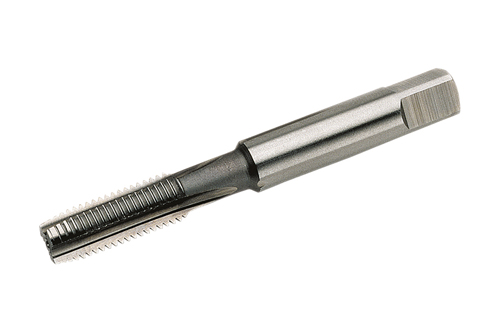

1x STI-Short Machine Taps, Form D, HSS-G, 18 x 1.5 (03037)
5x Wire thread inserts - type S - free running M 18 x 1.5 – 1.5 D (07338)

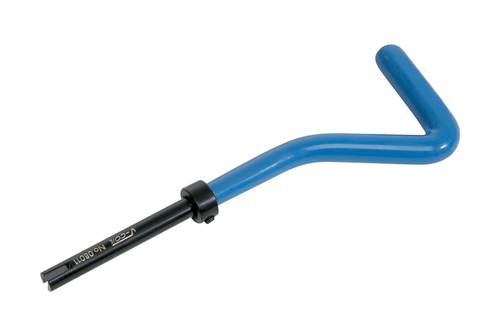

1x Inserting tool with locking ring, No. 20 (08020)

Technical features

Product type: Thread repair kit
Insert length: 1,5D
Standard: DIN 8140
Included groups: machine taps, installation tools, and wire thread inserts

Frequently asked questions (FAQ)

How do you choose the correct repair kit?: Match the damaged thread exactly to the thread designation and insert length shown in the product name. The kit is size specific, so correct identification is the first step.
What is the main advantage of a repair kit over separate purchasing?: The kit keeps the essential repair components grouped for one thread size, which reduces setup effort and lowers the risk of combining mismatched parts.
Can you use the kit for maintenance work on site?: Yes, provided the job allows the required drilling, STI tapping, and insert installation steps with proper control and access.
Where can you read more about the repair system concept?: Technical information V-COIL thread repair as PDF
What must you check before you begin the repair?: Check thread designation, hole accessibility, remaining wall condition, and whether the damaged area can be prepared cleanly for the STI thread.
Where can you find the full thread repair catalog?: VC 23 catalog as PDF
Does the repair keep the original thread system in service?: That is the aim of the system. After proper installation, the mating fastener should return to the original thread designation specified for the component.

Do you need help selecting or using the product?
Use the contact form.

Specifications

Material	Wire Thread Inserts frostainless steel
Size	Diameter 18 x 1.5
Packing	in metal case
EAN	4022835040361
Item number	04036
