Home Machine Tap + Twist Drill VÖLKEL standard TwinBox Machine Tap + Twist Drill Form C 35° SP HSSE, Nominal diameter D M 10 – Nominal diameter D M 8
Categories
VÖLKEL standard TwinBox Machine Tap + Twist Drill Form C 35° SP HSSE, Nominal diameter D M 10 – Nominal diameter D M 8
Machine Tap + Twist Drill

VÖLKEL standard TwinBox Machine Tap + Twist Drill Form C 35° SP HSSE, Nominal diameter D M 10 – Nominal diameter D M 8

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

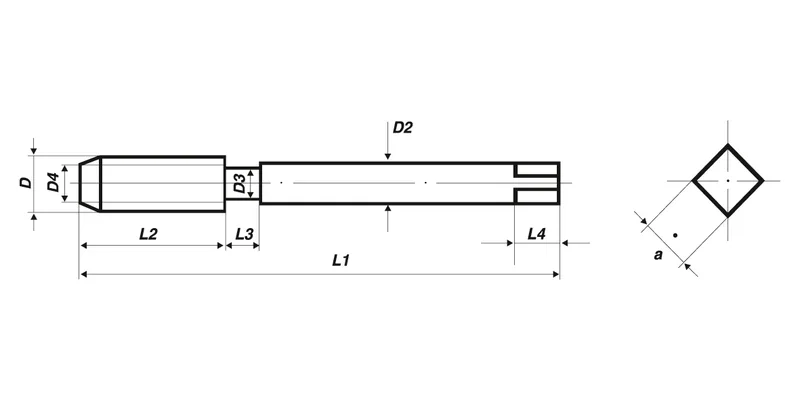

VÖLKEL standard TwinBox Machine Tap + Twist Drill Form C 35° SP HSSE, Nominal diameter D M 10 – Nominal diameter D M 8, 6 sizes. Dimensions per item in the size table.

SKU: 3779x
6 variants
€12.40 - €27.16
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL standard TwinBox Machine Tap + Twist Drill Form C 35° SP HSSE, Nominal diameter D M 10 – Nominal diameter D M 8, 6 sizes. Dimensions per item in the size table.

Specifications

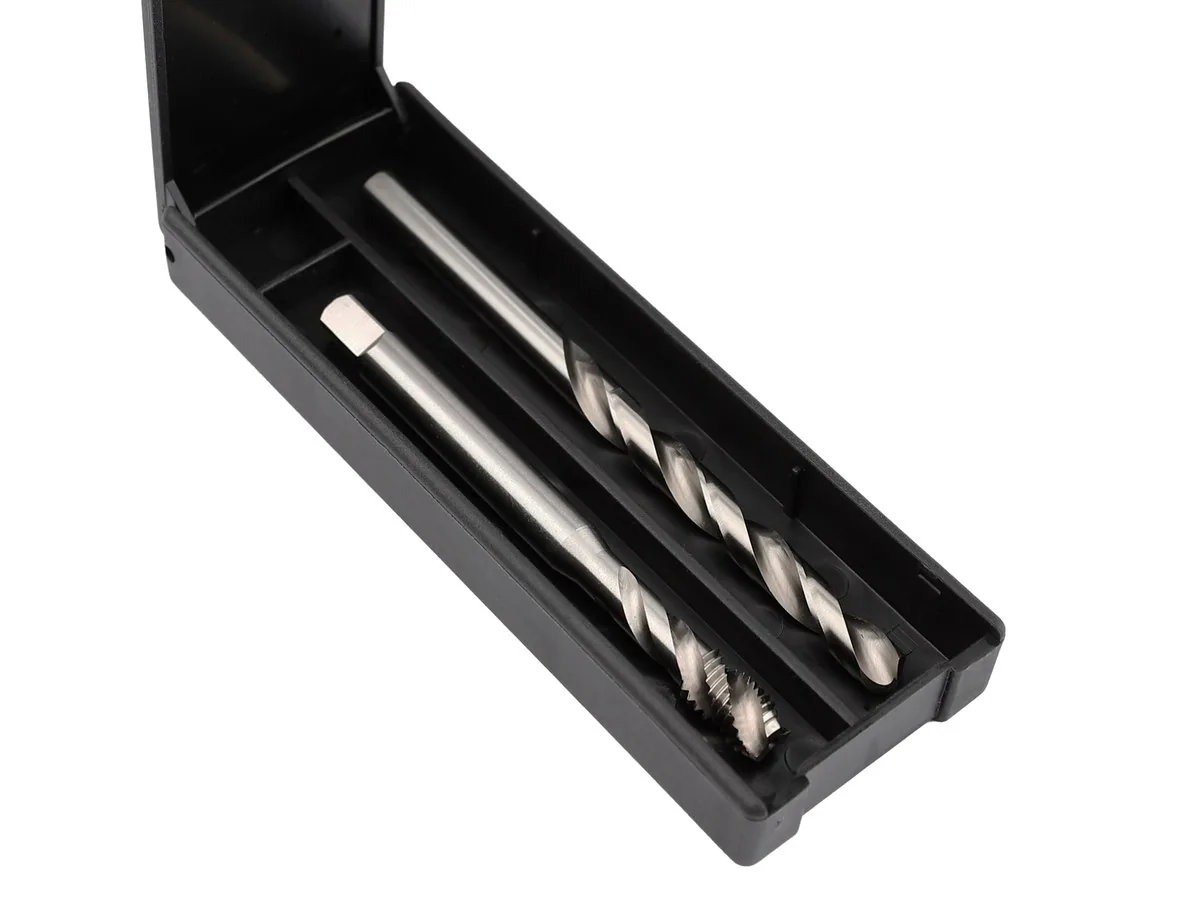

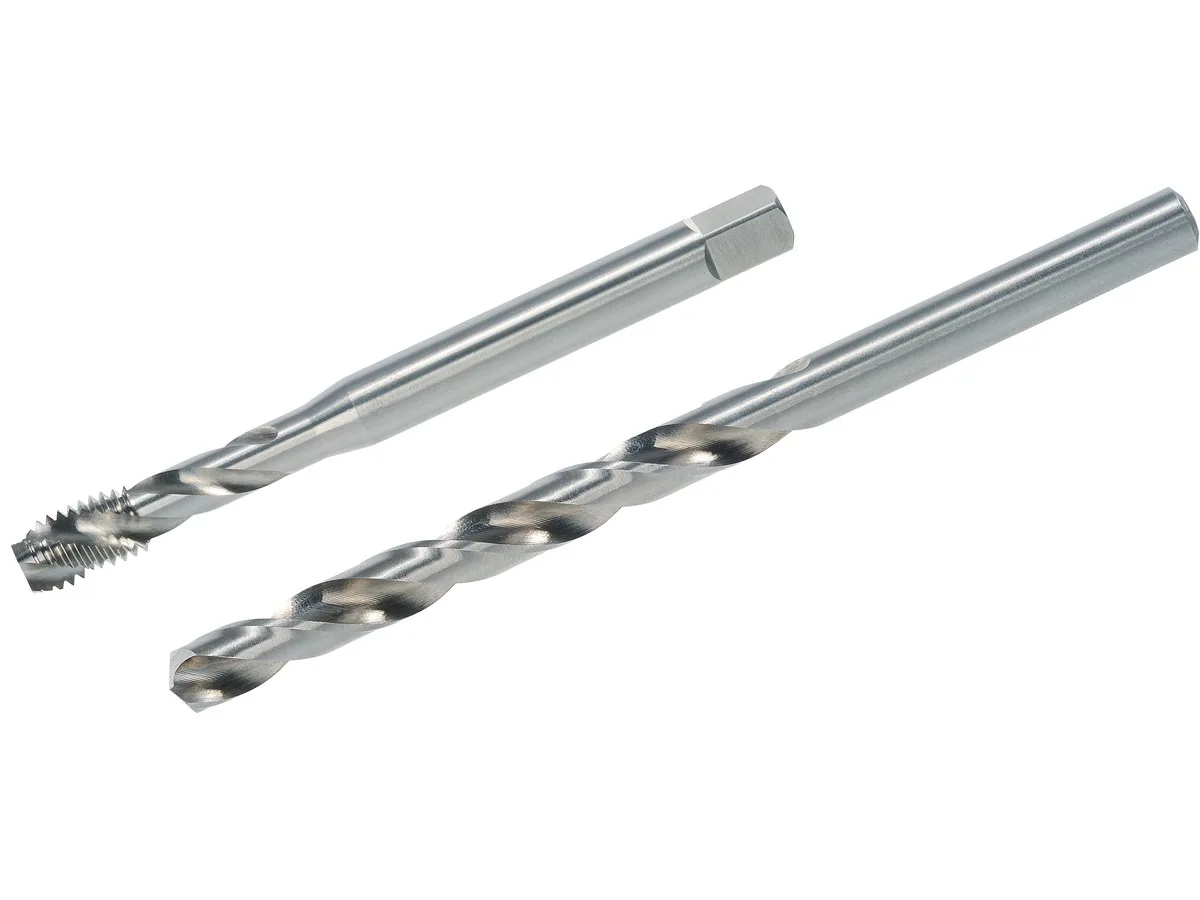

  • TwinBox set: one machine tap plus one matching twist drill
  • Drill diameter pre-matched to tap core hole

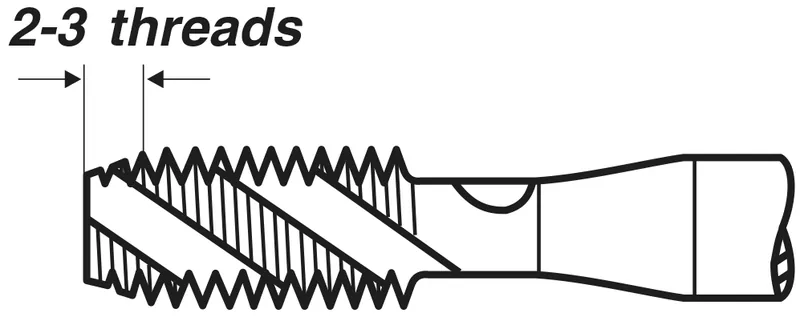

  • Tap geometry: Form C, lead chamfer for through and blind-hole entry
  • Spiral flute 35° for upward chip evacuation
  • High-speed steel cobalt alloyed, ground thread profile
  • Metric coarse internal threads, right-hand cut
  • Square drive shank for tap holders and tapping chucks
  • Single-pass threading on drill press, tapping machine or machining centre
  • Compatible with length-compensating tap holders
  • Suitable for steel, cast iron and non-ferrous metals
  • Applications: maintenance, general machining, mould and jig making
  • Small-batch and repair threading operations
  • Cutting fluid recommended for thread quality and tool life
  • Chamfer hole edge before tapping
  • Thread gauge check recommended after tapping
  • Supplied in protective box, one set per order unit
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock DIN or ISO standard Material Thread size Thread tolerance class Thread type
37790 €12.40 DIN 371 HSSE Nominal diameter D M 3 x 0.5 ISO2 (6H) Metric, right
37791 €12.64 DIN 371 HSSE Nominal diameter D M 4 x 0.7 ISO2 (6H) Metric, right
37792 €13.95 DIN 371 HSSE Nominal diameter D M 5 x 0.8 ISO2 (6H) Metric, right
37793 €15.03 DIN 371 HSSE Nominal diameter D M 6 x 1.0 ISO2 (6H) Metric, right
37794 €19.97 DIN 371 HSSE Nominal diameter D M 8 x 1.25 ISO2 (6H) Metric, right
37795 €27.16 DIN 371 HSSE Nominal diameter D M 10 x 1.5 ISO2 (6H) Metric, right
