Home Machine Tap + Twist Drill VÖLKEL RED RING TwinBox Machine Tap + Twist Drill HSSE-PM TiALN, M3 – M16
Categories
VÖLKEL RED RING TwinBox Machine Tap + Twist Drill HSSE-PM TiALN, M3 – M16
Machine Tap + Twist Drill

VÖLKEL RED RING TwinBox Machine Tap + Twist Drill HSSE-PM TiALN, M3 – M16

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL RED RING TwinBox Machine Tap + Twist Drill HSSE-PM TiALN, M3 – M16, 9 sizes. Dimensions per item in the size table.

SKU: 3619x
9 variants
€34.49 - €188.64
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL RED RING TwinBox Machine Tap + Twist Drill HSSE-PM TiALN, M3 – M16, 9 sizes. Dimensions per item in the size table.

Specifications

  • Function: cutting internal metric threads on machines

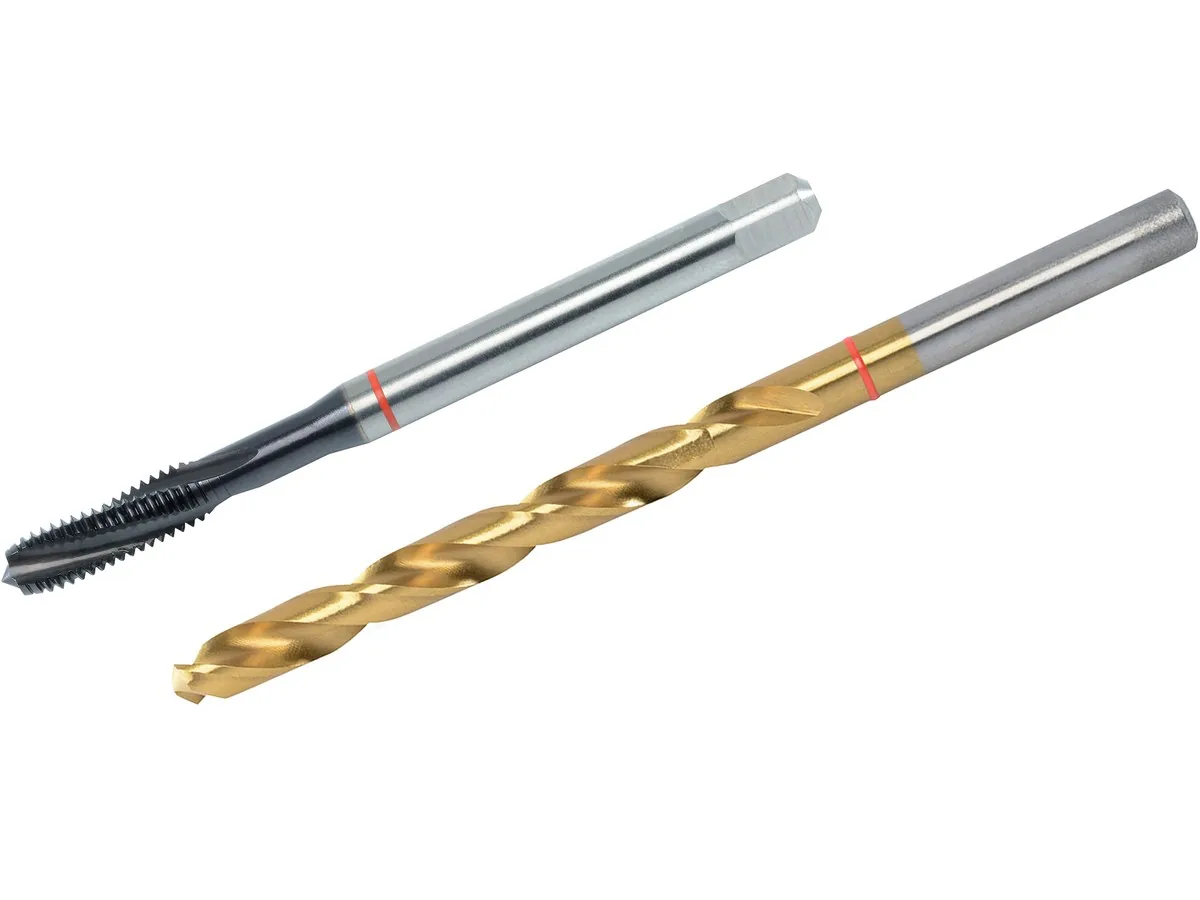

  • Set contents: one machine tap plus matched twist drill
  • Drill diameter pre-matched to tap core hole
  • Thread system: metric coarse ISO
  • Thread tolerance class: ISO2 (6H)
  • Standards: DIN 371, DIN 376
  • Cutting material: HSSE-PM powder metallurgy high speed steel
  • Suitable for through holes and blind holes
  • Square drive shank for tap holders
  • Single-pass threading on drill press, tapping machine, machining centre
  • Recommended use with axial compensation tapping chuck
  • Cutting oil matched to workpiece material recommended
  • Chamfer hole mouth before tapping
  • Applications: maintenance, mechanical engineering, mould and jig making
  • Suited to small batch production

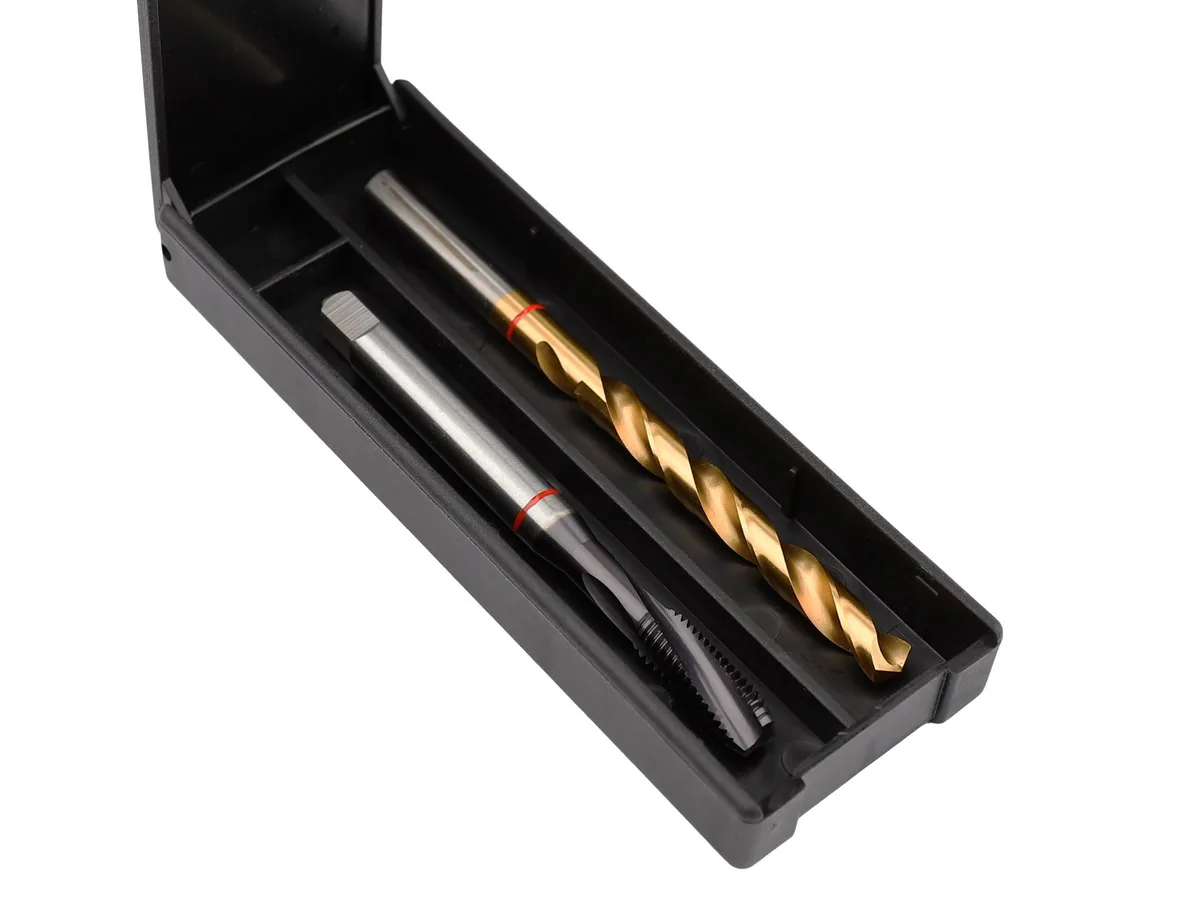

  • Packaging: TwinBox, one tap and one drill per box
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock Application Blade length Coating DIN or ISO standard Drill hole diameter Material Overall length Shank diameter Square shank Thread size Thread tolerance class Thread type
36191 €34.62 Through and blind hole 13mm TiALN DIN 371 3,3 mm HSSE-PM 63mm 4.5mm 3.4mm M 4 x 0.7 ISO2 (6H) Metric, right
36190 €34.49 Through and blind hole 11mm TiALN DIN 371 2,5 mm HSSE-PM 56mm 3.5mm 2.7mm M 3 x 0.5 ISO2 (6H) Metric, right
36192 €37.61 Through and blind hole 16mm TiALN DIN 371 4,2 mm HSSE-PM 70mm 6mm 4.9mm M 5 x 0.8 ISO2 (6H) Metric, right
36193 €41.82 Through and blind hole 19mm TiALN DIN 371 5 mm HSSE-PM 80mm 6mm 4.9mm M 6 x 1.0 ISO2 (6H) Metric, right
36194 €52.64 Through and blind hole 22mm TiALN DIN 371 6,8 mm HSSE-PM 90mm 8mm 6.2mm M 8 x 1.25 ISO2 (6H) Metric, right
36195 €75.50 Through and blind hole 24mm TiALN DIN 371 8,5 mm HSSE-PM 100mm 10mm 8mm M 10 x 1.5 ISO2 (6H) Metric, right
36196 €98.96 Through and blind hole 29mm TiALN DIN 376 10,2 mm HSSE-PM 110mm 9mm 7mm M 12 x 1.75 ISO2 (6H) Metric, right
36197 €153.42 Through and blind hole 30mm TiALN DIN 376 12 mm HSSE-PM 110mm 11mm 9mm M 14 x 2.0 ISO2 (6H) Metric, right
36198 €188.64 Through and blind hole 32mm TiALN DIN 376 14 mm HSSE-PM 110mm 12mm 9mm M 16 x 2.0 ISO2 (6H) Metric, right
