Home Machine tab VÖLKEL Machine Tap DIN 376 Form B HSSE left hand thread, 1/2 – 1"
Categories
VÖLKEL Machine Tap DIN 376 Form B HSSE left hand thread, 1/2 – 1"
Machine tab

VÖLKEL Machine Tap DIN 376 Form B HSSE left hand thread, 1/2 – 1"

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL Machine Tap DIN 376 Form B HSSE left hand thread, 1/2 – 1", 6 sizes. Dimensions per item in the size table.

SKU: 7022x
6 variants
€55.19 - €219.33
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL Machine Tap DIN 376 Form B HSSE left hand thread, 1/2 – 1", 6 sizes. Dimensions per item in the size table.

Specifications

  • Machine tap for cutting internal threads
  • Standard: DIN 376
  • Geometry: Form B, spiral point

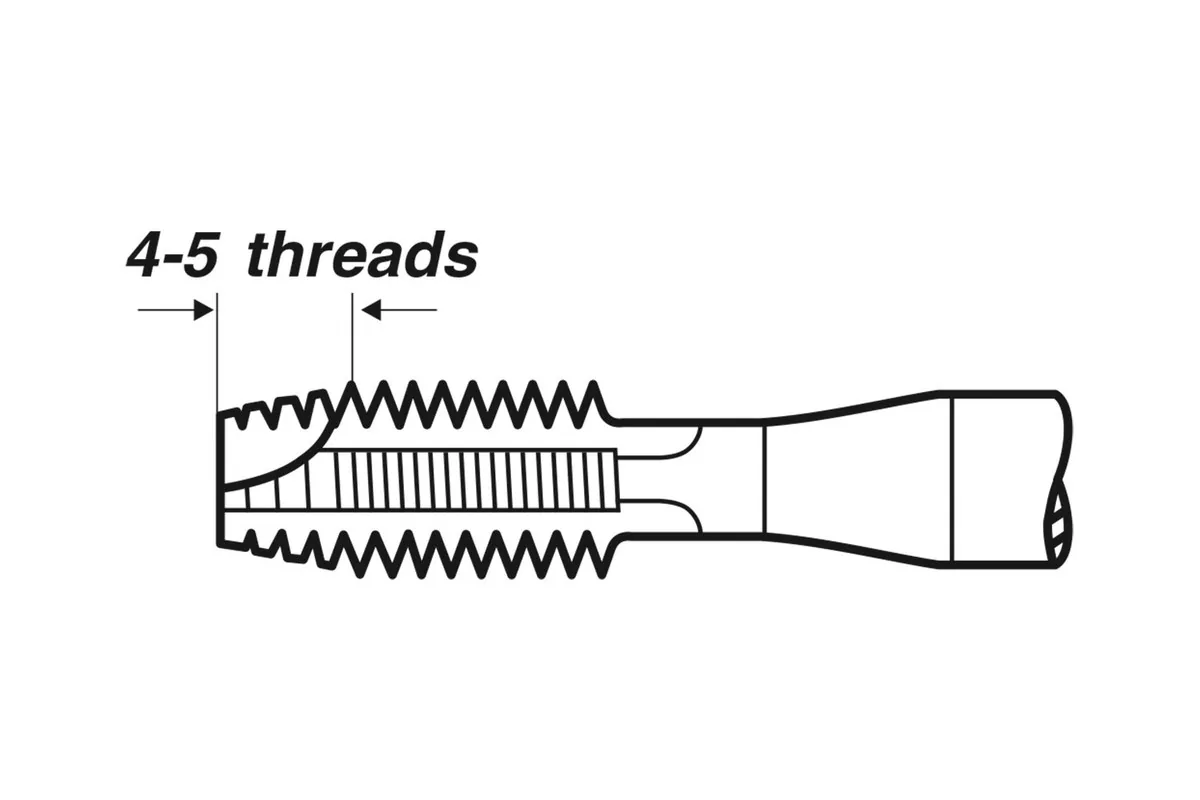

  • Chamfer: 3.5 to 5 thread turns
  • Chip evacuation: forward, ahead of the tap
  • Hole type: through holes
  • Thread direction: left hand
  • Thread system: Whitworth BSW, coarse pitch
  • Reduced shank diameter, smaller than thread core
  • Square drive on shank for torque transmission
  • Single-pass threading in one operation
  • For drilling machines, tapping machines, machining centres
  • Compatible with axial-compensating tapping chucks
  • Requires cutting oil matched to workpiece material
  • Pre-drilled hole must be chamfered before tapping
  • Thread check with internal thread gauge recommended
  • Uses: maintenance, mechanical engineering, jig and mould making
  • Suitable for small-batch machining
  • Supplied as single piece per size
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock Application Blade length DIN or ISO standard Drill hole diameter Material Overall length Shank diameter Square shank Thread size Thread tolerance class Thread type
70221 €55.19 Through hole 25mm DIN 376 10,5 mm HSSE 110mm 9mm 7mm BSW 1/2 x 12 Medium Whitworth BSW, left
70222 €60.84 Through hole 26mm DIN 376 12 mm HSSE 110mm 11mm 9mm BSW 9/16 x 12 Medium Whitworth BSW, left
70223 €70.59 Through hole 27mm DIN 376 13,5 mm HSSE 110mm 12mm 9mm BSW 5/8 x 11 Medium Whitworth BSW, left
70224 €122.63 Through hole 30mm DIN 376 16,5 mm HSSE 125mm 14mm 11mm BSW 3/4 x 10 Medium Whitworth BSW, left
70225 €179.40 Through hole 32mm DIN 376 19,25 mm HSSE 140mm 18mm 14.5mm BSW 7/8 x 9 Medium Whitworth BSW, left
70226 €219.33 Through hole 36mm DIN 376 22 mm HSSE 160mm 20mm 16mm BSW 1" x 8 Medium Whitworth BSW, left
