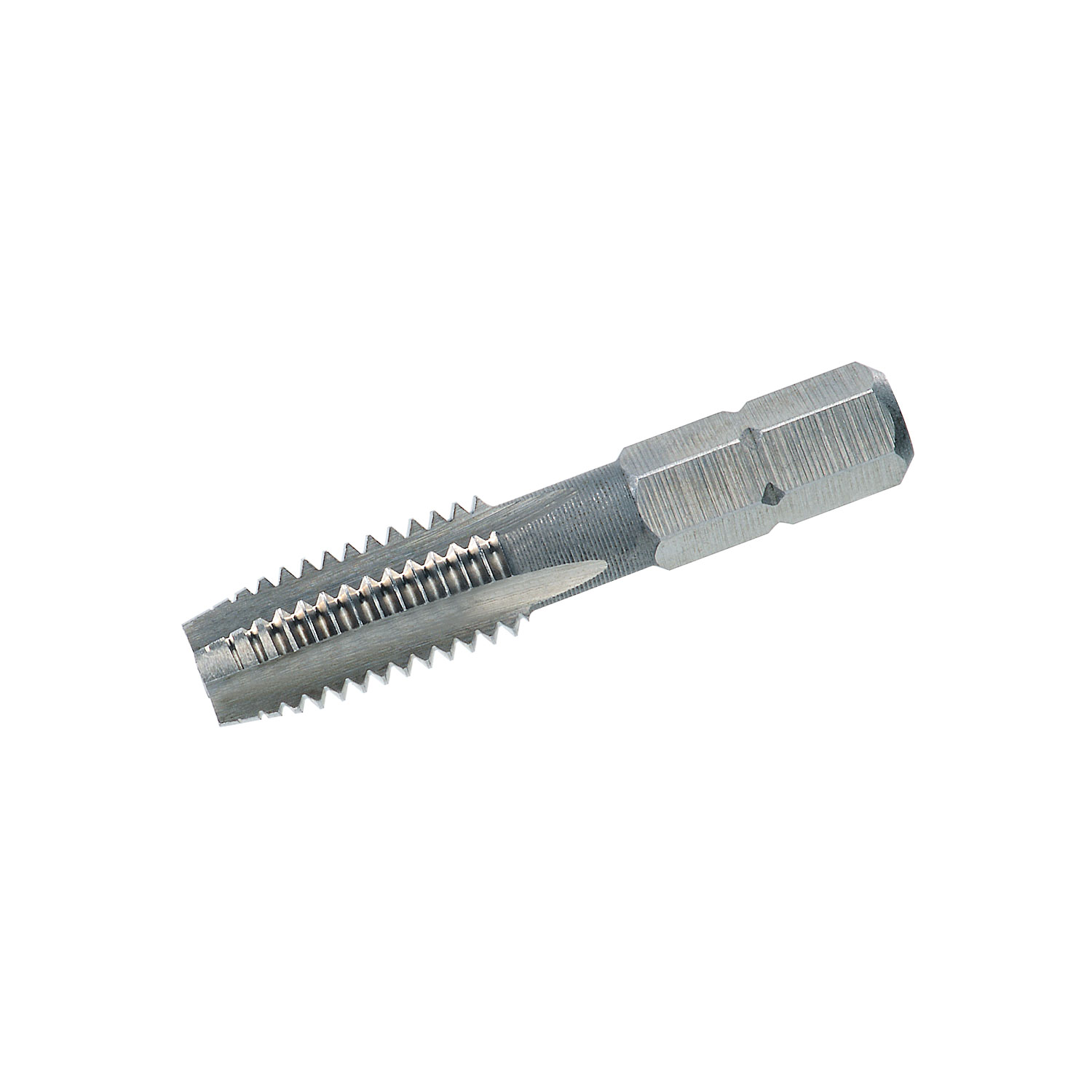

HexTap Type S Threading Bit, 1/4" hexagon drive Form D HSS-G - M 4 x 0.7
Use this tool when you need reliable thread creation or re-tapping on the shop floor. Correct preparation, alignment, and lubrication are the main practical checkpoints.
Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering. HSS-G indicates ground high speed steel, typically used when you need a clean profile and stable tool guidance.
- Cut or restore internal threads in pre-drilled holes in maintenance work, prototyping, and controlled small batch production.
- Select the tool by the thread designation and standard stated in the product name and keep the tool square to the bore axis.
- Use cutting fluid matched to the material to reduce friction and support chip evacuation from the flutes.
- Process: manual driving or assisted driving depending on your holder and machine setup
- Use: thread cutting, re tapping, and thread cleaning depending on condition
Note Verify the workpiece preparation before you start and stop if torque increases unexpectedly.
- Controlled internal thread cutting for workshop and maintenance tasks.
- Supports clean thread start when you keep the tap aligned and use suitable lubrication.
- Fits common tapping workflows for through holes and blind holes as stated in the product name.
- Useful for repair tapping when you need manual feel and torque feedback.
Drawbacks
- Not suitable for very hard or highly abrasive materials where carbide tooling is required.
- Not suitable for high volume production tapping where cycle time is critical.

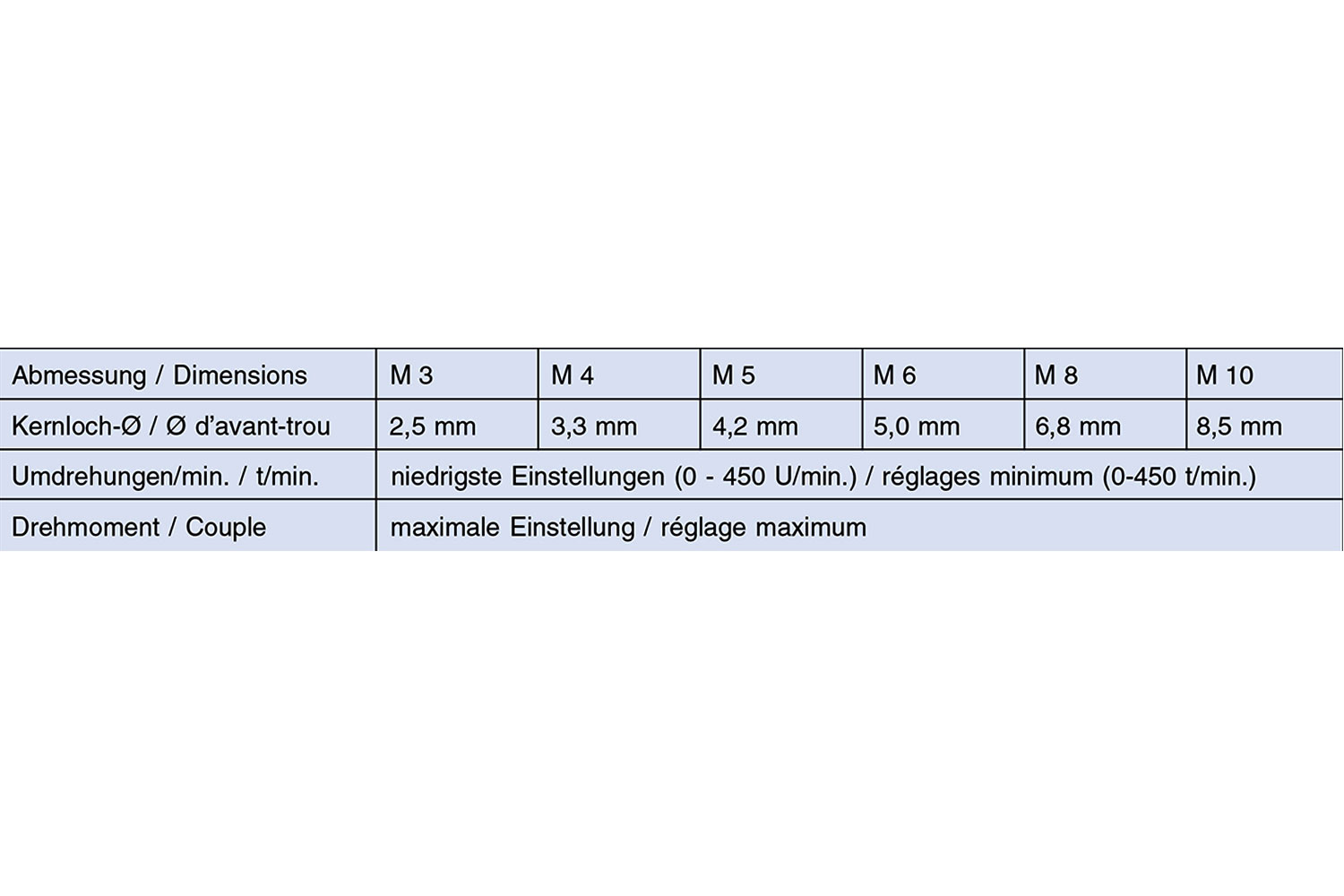

- Confirm the thread designation in the product name and prepare a suitable core hole for that thread system.
- Chamfer the hole edge and remove burrs so the tap starts cleanly.
- Secure the tap in a suitable holder and align it square to the bore axis.
- Apply cutting fluid matched to the material and start with steady torque.
- Advance with controlled feed and briefly back off when torque rises to clear chips.
- Continue until the required depth is reached, then reverse out fully.
- Clean the thread and verify fit with a matching fastener or gauge.
- 1 piece HexTap Type S Threading Bit, 1/4" hexagon drive Form D HSS-G - M 4 x 0.7
- Tool type: Threading bit
- Thread system: Metric ISO
- Tool material: HSS-G
- How do you select the correct tool variant from the product name?
- Match the thread designation and standard stated in the product name to your drawing or the mating fastener. Confirm whether you need an internal or external thread tool and whether the thread is left hand or right hand.
- What does the thread designation in the product name mean?
- Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.
- How do you verify the result after threading?
- Use the mating part or a suitable thread gauge to confirm smooth engagement and correct fit. Clean the thread first so chips do not mask the result.
- What does HSS-G mean in practice?
- HSS-G indicates ground high speed steel, typically used when you need a clean profile and stable tool guidance.
- How do you store the tool between uses?
- Keep the tool clean and dry and store it so the cutting edges or gauge threads are protected from impact.
- Where can you find more product and application information in a catalog?
- VD 23 catalog as PDF
