This VÖLKEL round die is your reliable tool for the precise creation of external threads in size M 25x1.5. It is specifically designed for use on electrical conduit systems, where an exact thread cut is essential for a secure and standard-compliant connection. The die comes in a practical plastic box that protects it and keeps it ready for use.
This die is ideal for general use in cutting metric ISO threads according to DIN 13 on materials with good machinability up to 900 N/mm², such as unalloyed or low-alloy steels. It can be used for both manual and machine applications.
Q: What is a die and what is it used for?
A: A die is a tool for cutting external threads, for example, on bolts, screws, or, in this case, conduit pipes. It cuts the thread in a single operation and ensures a precise shape.
Q: What does the designation M 25x1.5 mean?
A: The designation stands for a metric thread. M 25 indicates the external diameter of 25 mm, and 1.5 stands for the thread pitch (the distance between two thread crests) of 1.5 mm.
Q: What material is the die made of?
A: This die is made of high-quality tool steel (WS). This type of steel offers a good balance between hardness and toughness and is excellent for universal use.
Q: What is the DIN 13 standard?
A: DIN 13 is a German industry standard that specifies the requirements for metric ISO threads. Adherence to this standard ensures that the cut thread is compatible with other components that also comply with this standard.

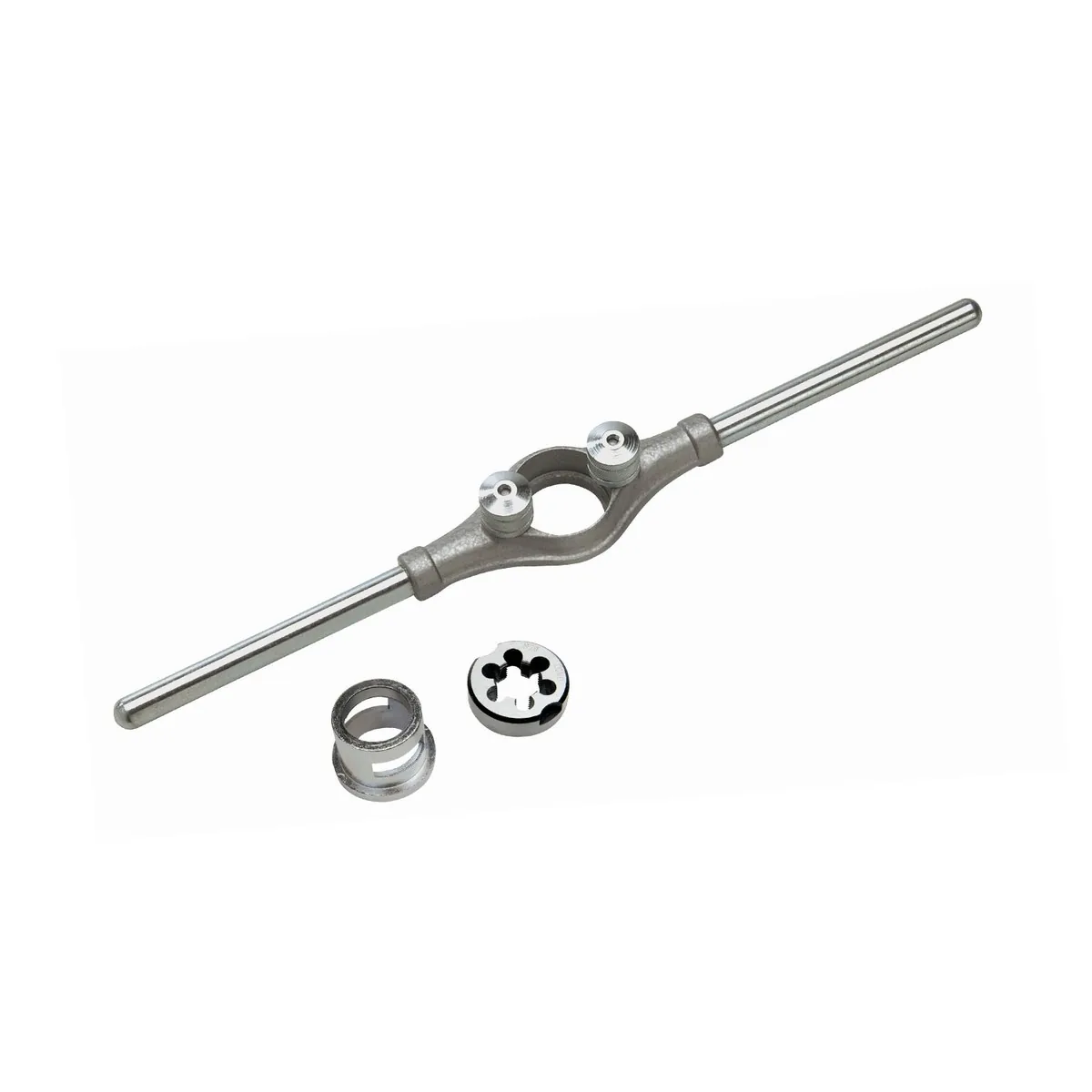

Q: Do I need a special holder for this die?
A: Yes, a die must always be clamped in a suitable die holder, also known as a die stock. This holder provides the necessary stability and the correct cutting angle for the threading process.
The VÖLKEL Round Die – precise and reliable for your electrical installations!
Do you have more questions? We are happy to help you! You can always reach us via our contact form.
| Type of thread | metric ISO-thread |
|---|---|
| Standard | Works Standard |
| Form | for electrical conduit pipes |
| Material | WS |
| Tolerance | ISO2 (6H) |
| Size | M 25 x 1.5 |
| Packing | in plastic case |
| Outer diameter | 42.0 mm |
| EAN | 4022835180036 |
| Item number | 18003 |
| Thread standard | DIN 13 |
| Rec. Bolt diameter | 24.85 mm |
