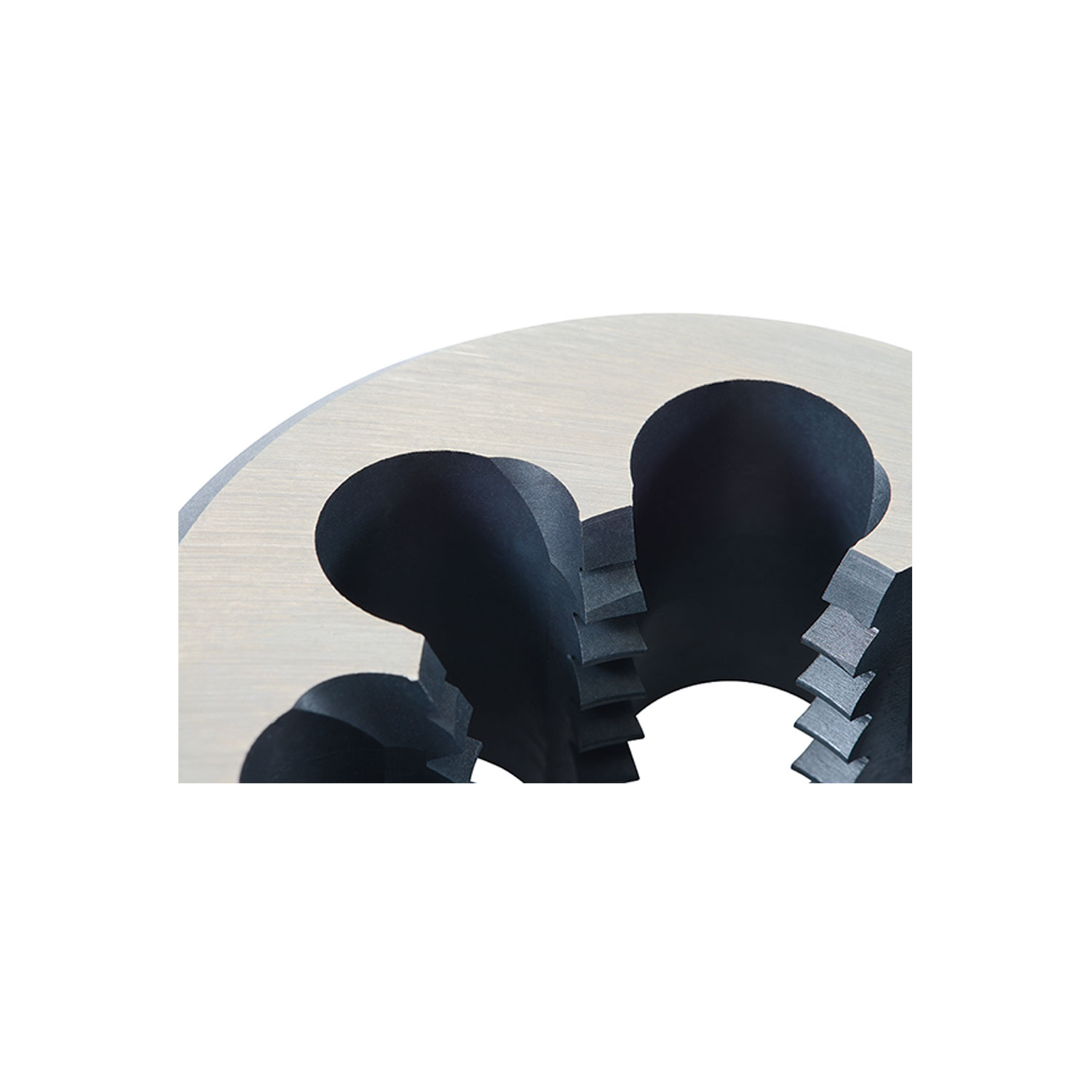

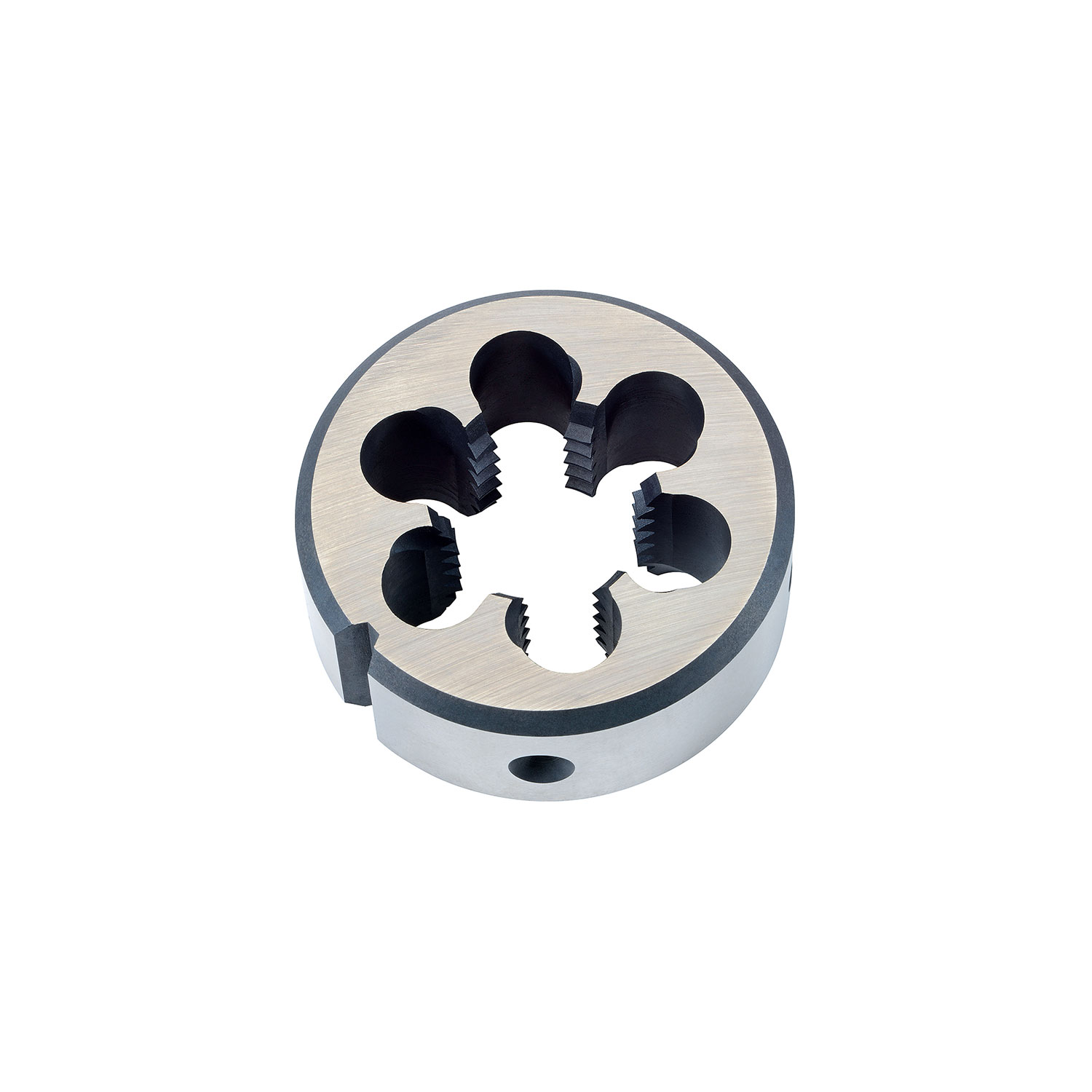

The VÖLKEL P.V.96 Round Dies VX set combines seven precision-ground HSSE round dies with a VAP (steam-tempered) finish. Designed for demanding tasks on alloyed tough materials up to 1200 N/mm², stainless steels, aluminium castings and spheroidal cast iron (GGG). Thanks to reduced torque, uninterrupted swarf flow towards the feed and excellent oil adhesion, you achieve clean results in both hand and machine operations.
All threading tools, die holders and accessories can also be ordered separately.
| Standard | DIN 223 / DIN EN 22568 |
| Material | HSSE (cobalt-alloyed) |
| Finish | VAP (steam-tempered) |
| Range | M 3 – M 12 (7 pcs) |
| Use | Hand & machine; INOX, tough alloyed steels, aluminium castings, GGG up to 1200 N/mm² |
How does HSSE compare to HSS?
HSSE contains cobalt for higher hot hardness and tool life—ideal on tough/stainless materials.
Why choose VAP over bright finish?
The vaporised surface improves oil adhesion, lowers friction and helps maintain a smooth chip flow to the front.
Machine use recommendations?
Use conservative speeds, abundant cutting oil and ensure alignment to avoid chatter and premature wear.
Do I need a special die holder?
A precise, low-play holder improves runout and process reliability—especially on machines.
How do I check results?
Clean the thread and verify with a matching nut or a thread gauge. Inspect surface finish and dimensional accuracy.
Need help choosing holders or cutting data? Reach out via our contact form.
| Type of thread | metric ISO-thread DIN 13 |
|---|---|
| Standard | DIN Standard |
| Material | HSS-E |
| Size | Diameter M 3 - 12 |
| Packing | in metal case |
| EAN | 4022835495222 |
| Item number | 49523 |
| Coating | VAP |
