Dưỡng kiểm ren ngoài GO chính xác (Tol. 2A) - UNC số 2 x 56

• Check threads with a functional limit gauging method for routine inspection decisions.
• Use in production control, incoming inspection, and maintenance workflows where a fast pass or fail result is required.
• Select by thread designation as stated in the product name: UNC số 2 x 56.
• Select by tolerance class as stated in the product name: 2A.
• Thread system reference: UNC.
• Apply manual engagement only and stop when resistance becomes significant, without forcing the gauge.
• Keep threads and gauge surfaces clean to reduce measurement risk and wear.

Lưu ý Maintain cleanliness and avoid impact loads. Store the product protected and dry.

• Fast pass or fail thread verification without measurement setup
• Supports consistent inspection decisions in production control
• Helps detect out of tolerance threads before assembly
• Suitable for routine checks in workshop and quality environments

• Limit gauge only, it does not provide the numeric deviation from nominal
• Not intended for automated gauging without a dedicated fixture

1. Clean the thread and remove debris, chips, and residual Chất bôi trơn cắt gọt ren.
2. Wipe the gauge measuring surfaces and visually check for contamination.

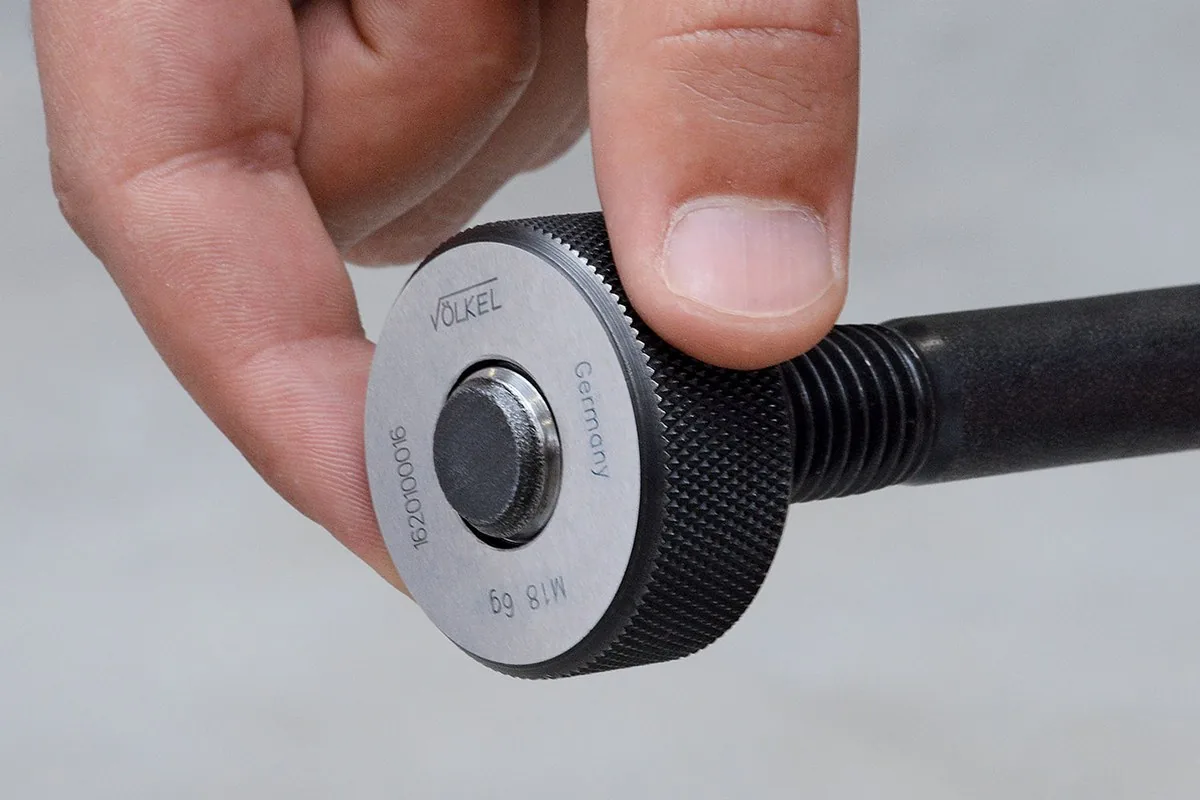

3. Align the gauge straight to the thread axis and start engagement by hand.
4. Turn the gauge with steady manual torque and stop when resistance becomes significant.
5. Interpret the result according to the GO or NO GO function stated for the gauge type.
6. Document the inspection outcome and segregate nonconforming parts.
7. Clean the gauge after use and store it protected from impact and corrosion.

Scope of supply is not listed for this item in the product data file.

• Product class: Thread gauges and inspection
• Gauge type: Dưỡng kiểm ren ngoài
• Thread system: UNC
• Thread designation: UNC số 2 x 56
• Tolerance class: 2A
• Gauge function: GO
