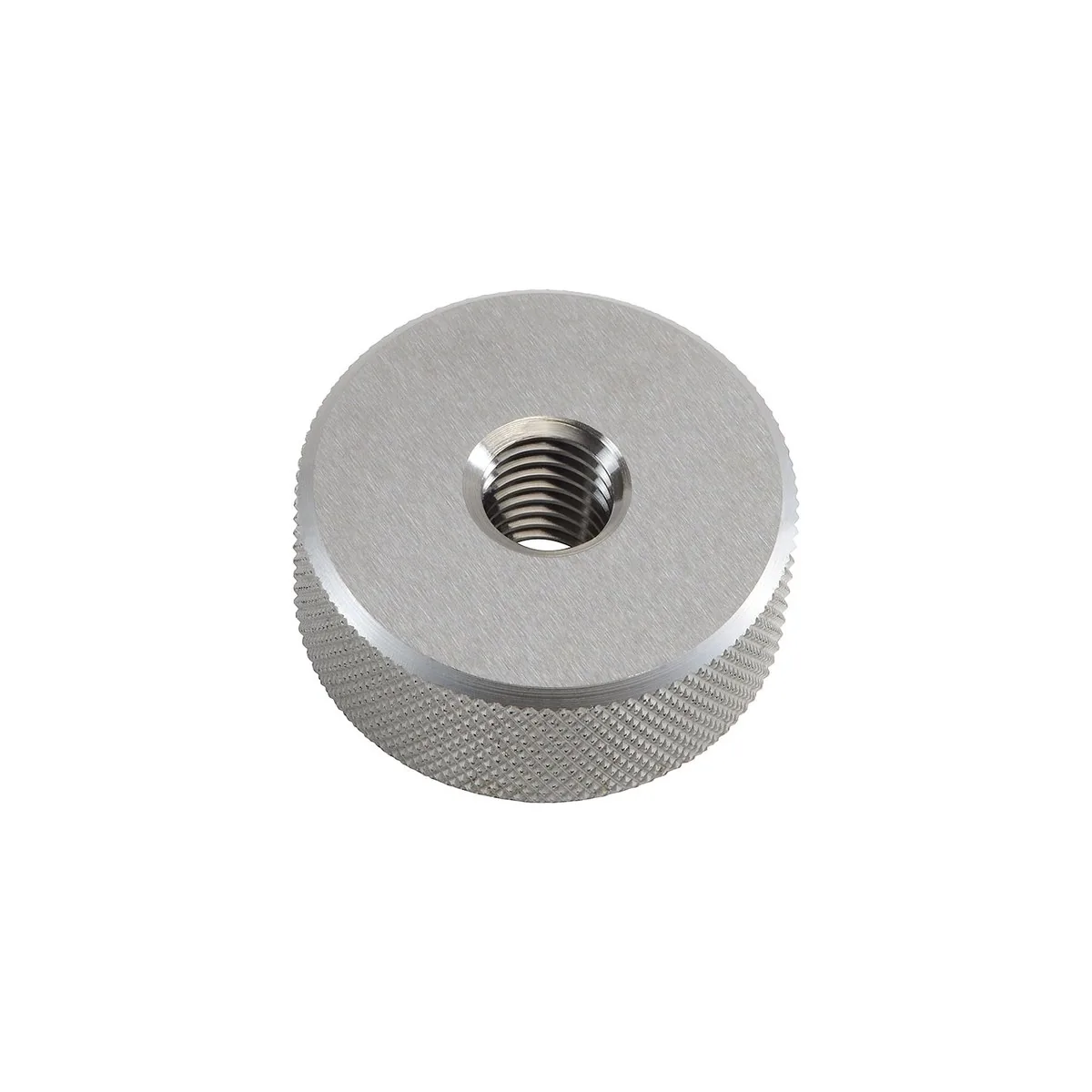

Dưỡng kiểm ren ngoài GO chính xác (Tol. 2A) - UNC số 6 x 32

• Inspect threads by limit gauging, with a clear go and no go decision.
• Use in production checks, incoming inspection, and maintenance verification.
• Suitable when you need fast pass fail confirmation without measurement equipment.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
• Use a suitable Chất bôi trơn cắt gọt ren for the work material and keep the tool aligned to the axis.

Lưu ý Keep the gauge clean and lightly protected, because dirt and dents can change the feel.

• Fast pass fail assessment without measurement interpretation
• Suitable for routine checks close to the production process
• Supports consistent inspection when many operators are involved
• Helps detect tool wear and process drift through repeated checks
• Suitable for routine use in metal fabrication and plant engineering service

• Limited by work material hardness and by the stability of your clamping setup
• Not intended for high performance production cycles without validated process parameters

1. Clean the thread and remove burrs, chips, and heavy Chất bôi trơn cắt gọt ren.
2. Identify the go and no go sides on the gauge body.
3. Apply a light protective film and align the gauge to the thread axis.
4. Turn the go side with a consistent, low effort feel until it seats or reaches the specified engagement length.
5. Apply the no go side with the same straight alignment and stop at the first resistance without forcing.
6. Record the result according to your inspection plan and protect the gauge after use.

• 1 chiếc Dưỡng kiểm ren ngoài GO chính xác (Tol. 2A) - UNC số 6 x 32

• Product type: Dưỡng kiểm ren ngoài
• Inspection principle: Limit gauging with go and no go acceptance
• Thread designation: UNC
