Home Bộ mũi khoan taro BLUE RING Machine taps (set of 14 pcs.) incl. drills DIN 371/376 M 3 – M 12

Bộ mũi khoan taro

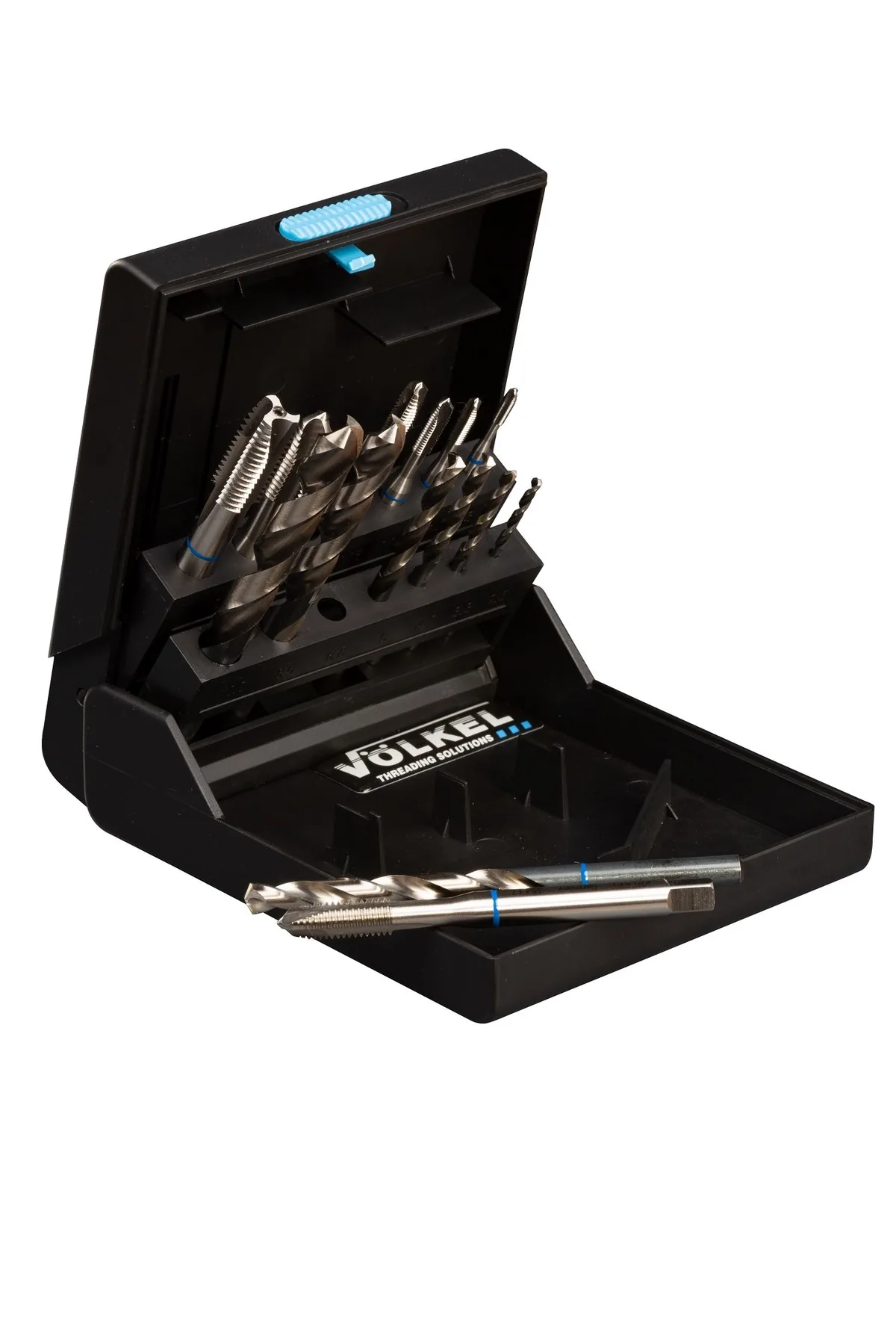

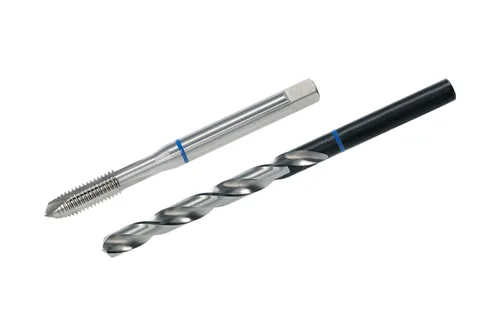

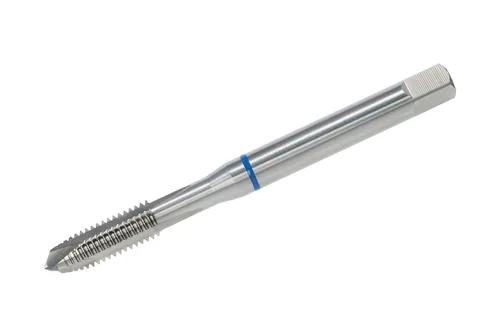

BLUE RING Machine taps (set of 14 pcs.) incl. drills DIN 371/376 M 3 – M 12

Name: BLUE RING Machine taps (set of 14 pcs.) incl. drills DIN 371/376 M 3 – M 12
Brand: VOLKEL
SKU: 47857
Price: 4000000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

BLUE RING Machine taps (set of 14 pcs.) incl. drills DIN 371/376 M 3 – M 12 by VÖLKEL, item no. 47857, suitable for metal drilling and thread preparation.

SKU: 47857

4.000.000 đ

Stock status: Hết hàng

Price includes VAT

Description

BLUE RING Machine taps (set of 14 pcs.) incl. drills DIN 371/376 M 3 – M 12

You use this threading tool to cut or restore threads in metalworking and maintenance tasks. Selection starts with matching the thread designation in the product name to your drawing and workpiece.

Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.

Application

Cut or restore internal threads in pre-drilled holes in maintenance work, prototyping, and controlled small batch production.
Select the tool by the thread designation and standard stated in the product name and keep the tool square to the bore axis.
Use cutting fluid matched to the material to reduce friction and support chip evacuation from the flutes.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: thread cutting, re tapping, and thread cleaning depending on condition

Note Verify the workpiece preparation before you start and stop if torque increases unexpectedly.

Benefits

Controlled internal thread cutting for workshop and maintenance tasks.
Supports clean thread start when you keep the tap aligned and use suitable lubrication.
Fits common tapping workflows for through holes and blind holes as stated in the product name.
Useful for repair tapping when you need manual feel and torque feedback.

Drawbacks

Not suitable for very hard or highly abrasive materials where carbide tooling is required.
Not suitable for high volume production tapping where cycle time is critical.

Step by step

Confirm the thread designation in the product name and prepare a suitable core hole for that thread system.
Chamfer the hole edge and remove burrs so the tap starts cleanly.
Secure the tap in a suitable holder and align it square to the bore axis.
Apply cutting fluid matched to the material and start with steady torque.
Advance with controlled feed and briefly back off when torque rises to clear chips.
Continue until the required depth is reached, then reverse out fully.
Clean the thread and verify fit with a matching fastener or gauge.

Scope of supply

Technical features

Tool type: Machine tap
Thread system: Metric ISO
Standard: DIN 371

Frequently asked questions (FAQ)

How do you select the correct tool variant from the product name?: Match the thread designation and standard stated in the product name to your drawing or the mating fastener. Confirm whether you need an internal or external thread tool and whether the thread is left hand or right hand.
What does the thread designation in the product name mean?: Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.
Where can you find technical guidance for machine taps?: Technical information machine taps as PDF
How do you reduce the risk of cross-threading at the start?: Prepare a clean chamfer and keep the tool axis aligned with the hole or rod axis. Start with controlled torque and stop if the tool tilts or binds.
How do you verify the result after threading?: Use the mating part or a suitable thread gauge to confirm smooth engagement and correct fit. Clean the thread first so chips do not mask the result.
Where can you find more product and application information in a catalog?: VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	metric ISO-thread DIN 13
Standard	DIN 371/376
Form	Form
Material	HSS-E
Tolerance	ISO 2 /6H
Size	Diameter M 3 - 12
Packing	in plastic case
EAN	4022835478577
Item number	47857

Optional Accessories

SKU	Price VNĐ	Product name & short description
35426	304.000	Machine Tap BLUE RING DIN 371 Form B HSSE - M 3 x 0.5 Machine Tap BLUE RING DIN 371 Form B HSSE - M 3 x 0.5 by VÖLKEL, item no. 35426, suitable for cutting internal threads.
35430	304.000	Machine Tap BLUE RING DIN 371 Form B HSSE - M 4 x 0.7 Machine Tap BLUE RING DIN 371 Form B HSSE - M 4 x 0.7 by VÖLKEL, item no. 35430, suitable for cutting internal threads.
35434	332.800	Machine Tap BLUE RING DIN 371 Form B HSSE - M 5 x 0.8 Machine Tap BLUE RING DIN 371 Form B HSSE - M 5 x 0.8 by VÖLKEL, item no. 35434, suitable for cutting internal threads.
35438	332.800	Machine Tap BLUE RING DIN 371 Form B HSSE - M 6 x 1.0 Machine Tap BLUE RING DIN 371 Form B HSSE - M 6 x 1.0 by VÖLKEL, item no. 35438, suitable for cutting internal threads.
35442	384.000	Machine Tap BLUE RING DIN 371 Form B HSSE - M 8 x 1.25 Machine Tap BLUE RING DIN 371 Form B HSSE - M 8 x 1.25 by VÖLKEL, item no. 35442, suitable for cutting internal threads.
35446	608.000	Machine Tap BLUE RING DIN 371 Form B HSSE - M 10 x 1.5 Machine Tap BLUE RING DIN 371 Form B HSSE - M 10 x 1.5 by VÖLKEL, item no. 35446, suitable for cutting internal threads.
35450	771.200	Machine Tap BLUE RING DIN 376 Form B HSSE - M 12 x 1.75 Machine Tap BLUE RING DIN 376 Form B HSSE - M 12 x 1.75 by VÖLKEL, item no. 35450, suitable for cutting internal threads.
