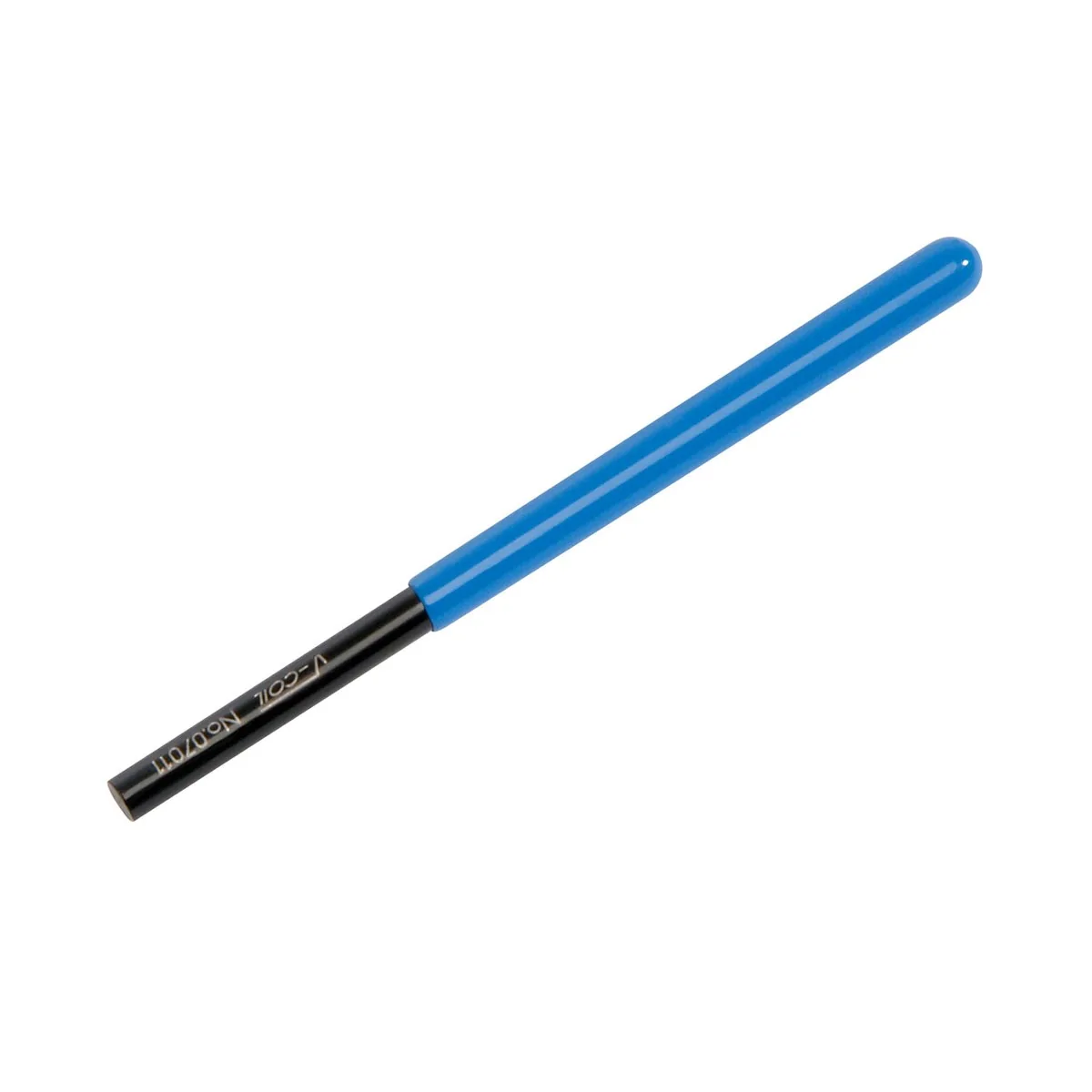

Dụng cụ bẻ chân ren cấy số 15

• Remove insert tangs after installation so the bore is clear for assembly and functional use.
• Use in repair and maintenance operations where Ren cấy V-COIL are installed in blind or lỗ thông.
• Select the tool by the insert size reference stated in the product name.
• Ensure the insert is seated correctly before tang removal.
• Remove loose debris after tang removal before final assembly.

Lưu ý Keep the tool or gauge clean and stored protected from impact and corrosion.

• Supports controlled tang removal after insert installation
• Helps keep the bore clear for assembly and functional use
• Simple handling tool for repair and maintenance workflows
• Reduces the risk of improvised tang removal methods

• Requires correct alignment to avoid contact with insert coils
• Not intended for high volume automated work without a dedicated setup

1. Verify that the Ren cấy V-COIL is installed to the required depth.
2. Remove loose debris from the bore so the tool can be guided straight.
3. Insert the Dụng cụ bẻ chân ren cấy centrally through the insert until it contacts the tang.
4. Apply a controlled drive action according to your tool execution to separate the tang.
5. Remove the tool and confirm that the tang is fully removed from the insert.
6. Remove loose debris and check that the bore is clear before assembly.
7. Store the tool clean and protected for the next use.

The provided file does not specify scope of supply for this product.

• Product class: sửa ren
• Tool type: Dụng cụ bẻ chân ren cấy

How do you select the correct Dụng cụ bẻ chân ren cấy?
Match the tool execution to the insert size range and drive interface stated in the product name. Use stable alignment and avoid contact with the insert coil body.

When do you remove the tang?
Remove the tang after the insert is installed to depth and before final assembly, when a clear bore is required for functional use.

How do you avoid damaging the installed insert?
Keep the tool centred, apply a controlled drive action, and remove loose debris before and after tang removal. Avoid side load that can deform coils.

Can you use the tool for blind and lỗ thông?
Depending on access, you can use the tool where it can be guided straight to the tang. Ensure the tang can be removed from the bore so it does not remain loose in the part.

How do you verify the repair after tang removal?
Check that the tang is fully removed and the bore is clear, then verify assembly with the intended fastener or inspection method suitable for the application.

What practical limitations apply to sửa ren tools?
Results depend on correct preparation steps, cleanliness, and insert system execution. Validate the process when loads are critical.

Where can you find additional information in the VÖLKEL sửa ren catalog?
Use the catalog for system overview and selection guidance: VC 23 catalog as PDF
