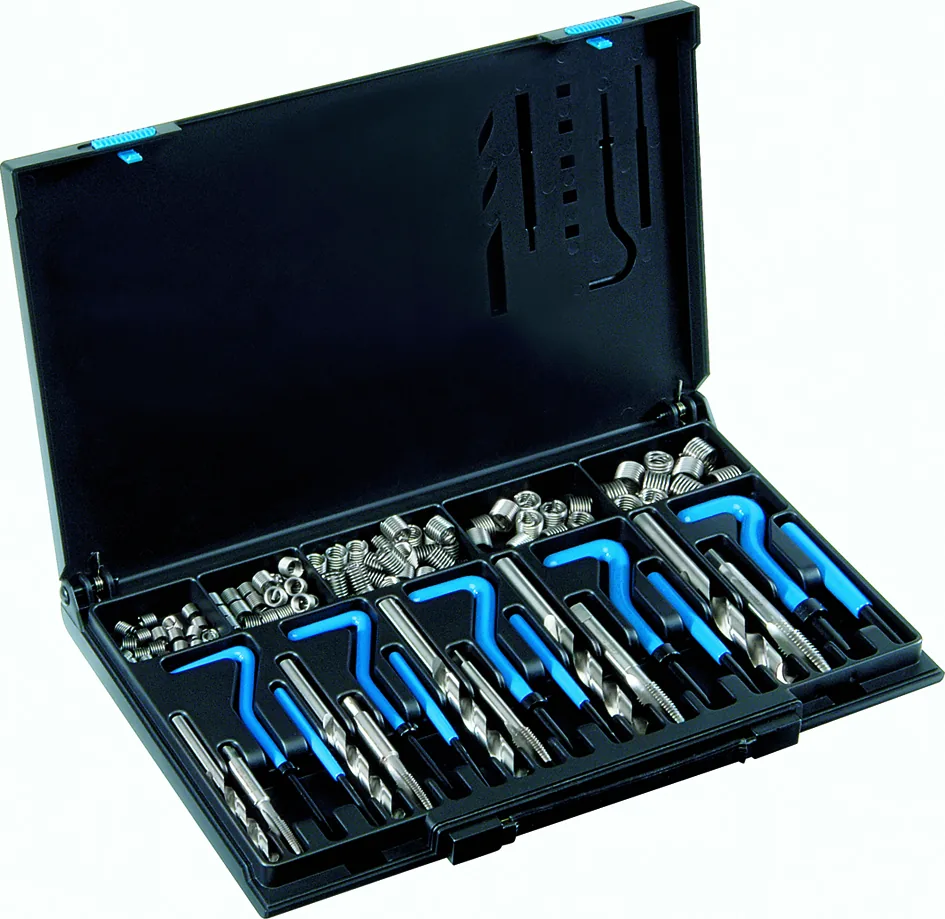

VC81 Thread Repair Bộ sửa ren M 5 – M 12

• sửa ren of damaged or worn-out ren trong
• Thread reinforcement for materials with low shear strength
• Recovery of rejected or worn parts
• creation of new high-strength and long-lasting ren trong
• ideal for maintenance, installation and small series production
• Ren cấy V-COIL DIN 8140, tolerance ISO 2 (6H), Type S – free running, stainless thép
• assortment with the most popular dimensions in a functional presentation case

• flexible application with inserts and drills covering sizes up to M12
• high stock availability for standard and special dimensions
• suitable for hand tapping
• increased load capacity after repair due to improved thread properties
• temperature and corrosion resistance
• excellent price-performance ratio
• attractive and functional storage case

1. Preparation: Clean the damaged thread and remove chips, dirt, grease and residues.
2. Drilling: Select the appropriate STI Mũi khoan xoắn and prepare the core hole for the insert.
3. Tapping: Tap the STI thread using the suitable STI tap for the selected dimension.
4. Insert Installation: Select the correct Dụng cụ lắp ren cấy and insert type. Wind the insert into the STI thread with light downward pressure.
5. Tang Removal: Remove the tang using the appropriate Dụng cụ bẻ chân ren cấy.
6. Final Check: Test the repaired thread with a matching screw to confirm smooth operation and load capability.

• 1× STI Mũi taro máy ngắn M 5 × 0.8 VÖLKEL 03008
• 1× STI Mũi taro máy ngắn M 6 × 1.0 VÖLKEL 03009
• 1× STI Mũi taro máy ngắn M 8 × 1.25 VÖLKEL 03011
• 1× STI Mũi taro máy ngắn M 10 × 1.5 VÖLKEL 03015
• 1× STI Mũi taro máy ngắn M 12 × 1.75 VÖLKEL 03020
• 1× Dụng cụ bẻ chân ren cấy số 8 VÖLKEL 07008
• 1× Dụng cụ bẻ chân ren cấy số 9 VÖLKEL 07009
• 1× Dụng cụ bẻ chân ren cấy số 11 VÖLKEL 07011
• 1× Dụng cụ bẻ chân ren cấy số 13 VÖLKEL 07013
• 1× Dụng cụ bẻ chân ren cấy số 15 VÖLKEL 07015
• 25× Ren cấy V-COIL – Type S – free running M 5 × 0.8 – 1.5D
• 25× Ren cấy V-COIL – Type S – free running M 6 × 1.0 – 1.5D
• 25× Ren cấy V-COIL – Type S – free running M 8 × 1.25 – 1.5D
• 25× Ren cấy V-COIL – Type S – free running M 10 × 1.5 – 1.5D
• 10× Ren cấy V-COIL – Type S – free running M 12 × 1.75 – 1.5D
• 1× Dụng cụ lắp ren cấy số 8 VÖLKEL 08008
• 1× Dụng cụ lắp ren cấy số 9 VÖLKEL 08009
• 1× Dụng cụ lắp ren cấy số 11 VÖLKEL 08011
• 1× Dụng cụ lắp ren cấy số 13 VÖLKEL 08013
• 1× Dụng cụ lắp ren cấy số 15 VÖLKEL 08015
• STI Mũi khoan xoắn 5.2 / 6.3 / 8.3 / 10.4 / 12.4 mm

• Material: Stainless thép Ren cấy V-COIL
• size Range: M 5 – M 12
• Packaging: Plastic case
• EAN: 4022835040811
• Item Number: 04081

Watch how a V-COIL sửa ren is performed:
