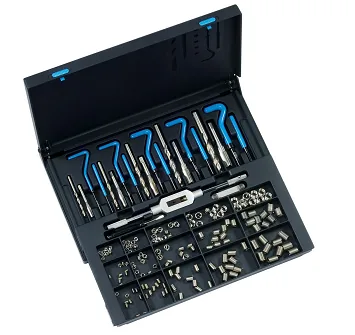

VC80 Thread Repair Bộ sửa ren M 5 - M 12

• sửa ren of damaged or worn-out ren trong
• Thread reinforcement for materials with low shear strength
• Recovery of rejected components
• For new, highly stable and long-lasting ren trong
• Perfect for maintenance, installation and small series production
• Ren cấy V-COIL DIN 8140, tolerance ISO 2 (6H), Type S – free running, stainless thép
• Assortment with the most popular dimensions in an attractive and functional case

• Flexible use thanks to inserts and drills for sizes up to M12
• High availability for standard and special dimensions
• Designed for manual operation
• Higher load capacity after repair due to improved thread properties
• Corrosion and temperature resistance
• Attractive and functional plastic case

1. Prepare: Clean the damaged thread and remove chips, dirt and oil residues.
2. Drill: Select the appropriate STI Mũi khoan xoắn version and drill the core hole.
3. Tap: Cut the STI ren trong using the matching STI Mũi taro máy ngắn (Form D).
4. Install insert: Select the required insert length (1.0 D / 1.5 D / 2.0 D) and install it with the matching hand Dụng cụ lắp ren cấy.
5. Break tang: Remove the tang using the matching Dụng cụ bẻ chân ren cấy.
6. Check: Verify the repaired thread with a suitable screw or bolt.

• 1x STI Mũi taro máy ngắn HSS-G Form D M 5 (03008)
• 1x STI Mũi taro máy ngắn HSS-G Form D M 6 (03009)
• 1x STI Mũi taro máy ngắn HSS-G Form D M 8 (03011)
• 1x STI Mũi taro máy ngắn HSS-G Form D M 10 (03015)
• 1x STI Mũi taro máy ngắn HSS-G Form D M 12 (03020)
• 1x STI Mũi khoan xoắn HSS-G 5.2 mm (00052)
• 1x STI Mũi khoan xoắn HSS-G 6.3 mm (00063)
• 1x STI Mũi khoan xoắn HSS-G 8.3 mm (00083)
• 1x STI Mũi khoan xoắn HSS-G 10.4 mm (00104)
• 1x STI Mũi khoan xoắn HSS-G 12.4 mm (00124)
• 1x Hand Dụng cụ lắp ren cấy (08008) and Dụng cụ bẻ chân ren cấy số 8 for M 5 (07008)
• 1x Hand Dụng cụ lắp ren cấy (08009) and Dụng cụ bẻ chân ren cấy số 9 for M 6 (07009)
• 1x Hand Dụng cụ lắp ren cấy (08011) and Dụng cụ bẻ chân ren cấy số 11 for M 8 (07011)
• 1x Hand Dụng cụ lắp ren cấy (08013) and Dụng cụ bẻ chân ren cấy số 13 for M 10 (07013)
• 1x Hand Dụng cụ lắp ren cấy (08015) and Dụng cụ bẻ chân ren cấy số 15 for M 12 (07015)
• Ren cấy V-COIL M 5 (10 pcs each): 1.0 D (07208), 1.5 D (07308), 2.0 D (07408)
• Ren cấy V-COIL M 6 (10 pcs each): 1.0 D (07209), 1.5 D (07309), 2.0 D (07409)
• Ren cấy V-COIL M 8 (10 pcs each): 1.0 D (07211), 1.5 D (07311), 2.0 D (07411)
• Ren cấy V-COIL M 10 (10 pcs each): 1.0 D (07215), 1.5 D (07315), 2.0 D (07415)
• Ren cấy V-COIL M 12 (5 pcs each): 1.0 D (07221), 1.5 D (07321), 2.0 D (07421)

• Material: stainless thép Ren cấy V-COIL
• size range: M 5 – M 12
• Packaging: plastic case
• EAN: 4022835040804
• Item number: 04080

Why are three insert lengths included (1.0 D / 1.5 D / 2.0 D)?

They allow you to match the insert length to component thickness and load requirements for a reliable repair.

Are Ren cấy V-COIL suitable for aluminum?

Yes, Ren cấy V-COIL are commonly used in aluminum and similar materials to improve load capacity and durability.

Can I reuse the tools in the kit?

Yes. Drills, taps, hand inserting tools and tang break tools are reusable. Only the inserts are consumables.

Do I need additional tools for the repair process?

số The VC80 kit contains all essential tools for the typical sửa ren workflow.

What does “Type S – free running” mean?

It describes inserts designed for standard applications with a free running thread, according to DIN 8140.
