Home Thread plug gauge VÖLKEL GO-NOGO thread plug gauge, UNF No. 2 – 1.1/2, tolerance 2B
Categories
VÖLKEL GO-NOGO thread plug gauge, UNF No. 2 – 1.1/2, tolerance 2B
Thread plug gauge

VÖLKEL GO-NOGO thread plug gauge, UNF No. 2 – 1.1/2, tolerance 2B

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

VÖLKEL GO-NOGO thread plug gauge, UNF No. 2 – 1.1/2, 23 sizes, to ANSI B1.2. Double-ended GO and NOGO gauge. For internal threads after tapping or repair.

SKU: 1658x
23 variants
€85.72 - €281.33
Stock status: Varies by SKU
Indicative price
Description

VÖLKEL GO-NOGO thread plug gauge, UNF No. 2 – 1.1/2, 23 sizes, to ANSI B1.2. Double-ended GO and NOGO gauge. For internal threads after tapping or repair.

Specifications

  • Function: inspection gauge for internal threads
  • Double-ended design: GO end and NOGO end on one body
  • Thread system: Unified fine pitch, inch series
  • Thread direction: right-hand

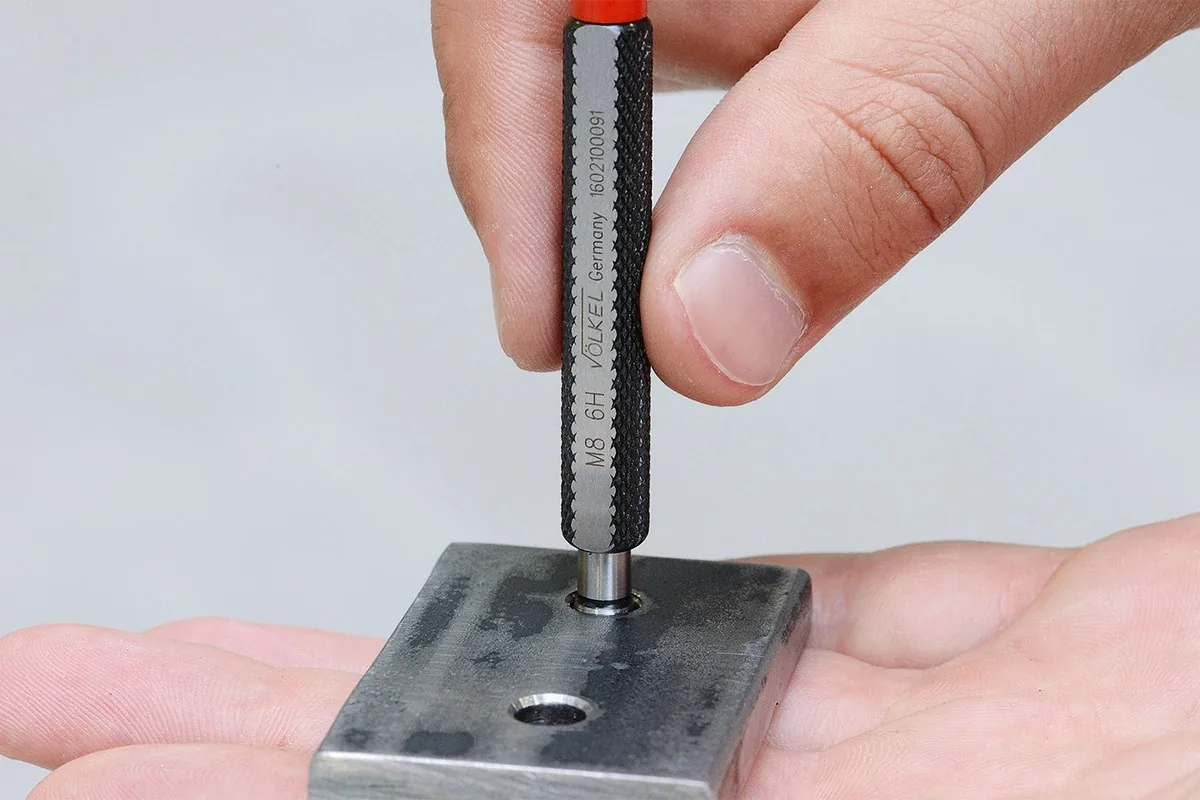

  • GO end must enter the tapped hole freely

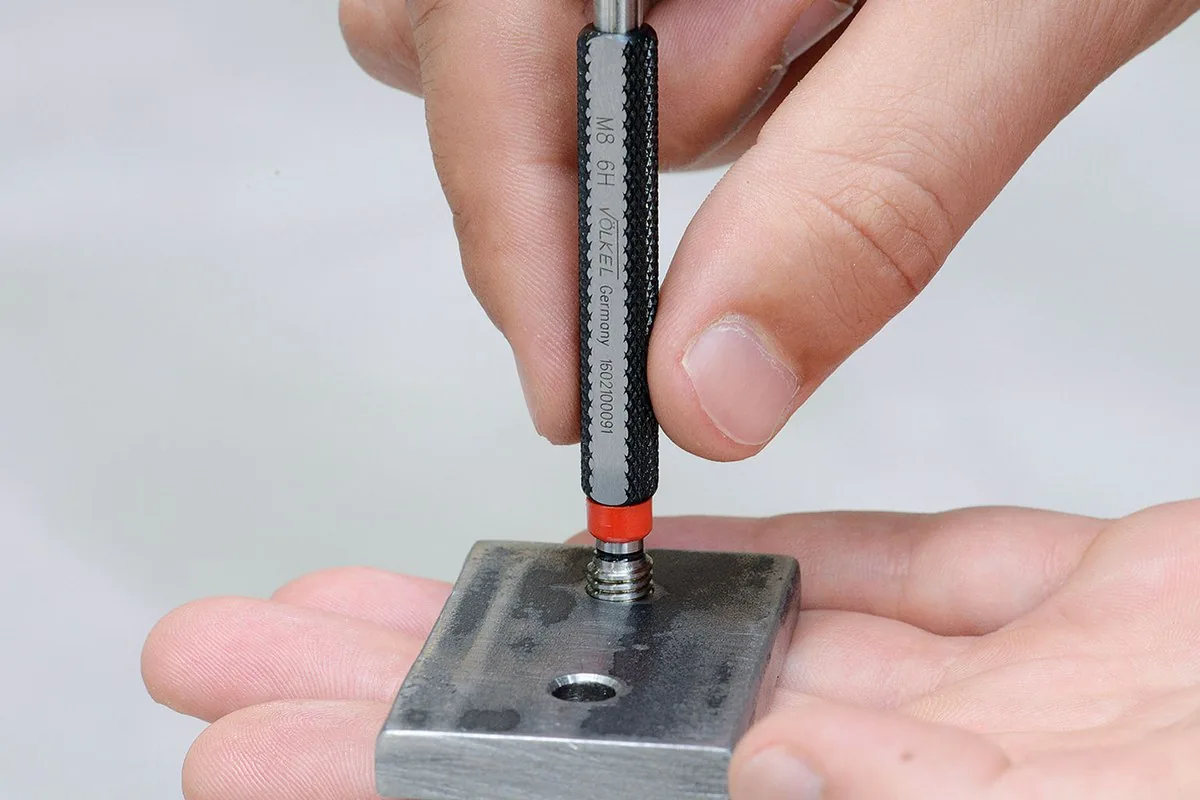

  • NOGO end must not engage beyond allowed limit
  • Pass/fail result read directly, no measuring instrument required
  • Thread designation marked on gauge body
  • Application: checking holes after tapping, thread cleaning or repair
  • Use areas: production, maintenance, tool room, incoming inspection
  • Not intended for cutting, forming or cleaning threads
  • External threads require ring gauges, not plug gauges
  • Delivery: one single gauge per order item
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock DIN or ISO standard Probe type Thread size Thread tolerance class Thread type
16578 €96.46 ANSI B1.2 GO NOGO double-ended UNF No. 2 x 64 2B Unified bước mịn UNF
16579 €96.46 ANSI B1.2 GO NOGO double-ended UNF No. 3 x 56 2B Unified bước mịn UNF
16116 €91.83 ANSI B1.2 GO NOGO double-ended UNF No. 4 x 48 2B Unified bước mịn UNF
16580 €96.46 ANSI B1.2 GO NOGO double-ended UNF No. 5 x 44 2B Unified bước mịn UNF
16117 €91.83 ANSI B1.2 GO NOGO double-ended UNF No. 6 x 40 2B Unified bước mịn UNF
16118 €91.83 ANSI B1.2 GO NOGO double-ended UNF No. 8 x 36 2B Unified bước mịn UNF
16119 €88.78 ANSI B1.2 GO NOGO double-ended UNF No. 10 x 32 2B Unified bước mịn UNF
16581 €88.48 ANSI B1.2 GO NOGO double-ended UNF No. 12 x 28 2B Unified bước mịn UNF
16120 €85.72 ANSI B1.2 GO NOGO double-ended UNF 1/4 x 28 2B Unified bước mịn UNF
16121 €85.72 ANSI B1.2 GO NOGO double-ended UNF 5/16 x 24 2B Unified bước mịn UNF
16122 €88.78 ANSI B1.2 GO NOGO double-ended UNF 3/8 x 24 2B Unified bước mịn UNF
16123 €91.83 ANSI B1.2 GO NOGO double-ended UNF 7/16 x 20 2B Unified bước mịn UNF
16124 €97.90 ANSI B1.2 GO NOGO double-ended UNF 1/2 x 20 2B Unified bước mịn UNF
16125 €101.33 ANSI B1.2 GO NOGO double-ended UNF 9/16 x 18 2B Unified bước mịn UNF
16126 €111.76 ANSI B1.2 GO NOGO double-ended UNF 5/8 x 18 2B Unified bước mịn UNF
16127 €124.01 ANSI B1.2 GO NOGO double-ended UNF 3/4 x 16 2B Unified bước mịn UNF
16582 €160.75 ANSI B1.2 GO NOGO double-ended UNF 7/8 x 14 2B Unified bước mịn UNF
16583 €168.86 ANSI B1.2 GO NOGO double-ended UNF 1" x 12 2B Unified bước mịn UNF
16584 €168.86 ANSI B1.2 GO NOGO double-ended UNF 1" x 14 2B Unified bước mịn UNF
16585 €208.93 ANSI B1.2 GO NOGO double-ended UNF 1.1/8 x 12 2B Unified bước mịn UNF
16586 €208.93 ANSI B1.2 GO NOGO double-ended UNF 1.1/4 x 12 2B Unified bước mịn UNF
16587 €257.21 ANSI B1.2 GO NOGO double-ended UNF 1.3/8 x 12 2B Unified bước mịn UNF
16588 €281.33 ANSI B1.2 GO NOGO double-ended UNF 1.1/2 x 12 2B Unified bước mịn UNF
