Precision GO Thread Ring Gauge (Tol. 2A) - UNC 3" x 4

Name: Precision GO Thread Ring Gauge (Tol. 2A) - UNC 3" x 4
Brand: VOELKEL
SKU: 17129
Price: 19755000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

Precision GO Thread Ring Gauge (Tol. 2A) - UNC 3" x 4 by VÖLKEL, item no. 17129, suitable for thread inspection and quality control.

SKU: 17129

€664.05

Stock status: Out of stock

Indicative price

Description

Precision GO Thread Ring Gauge (Tol. 2A) - UNC 3" x 4

You use Precision GO Thread Ring Gauge (Tol. 2A) - UNC 3" x 4 to verify thread conformity in incoming inspection, in process checks, or final quality control. A gauge supports fast functional checks when you need consistent assembly fit.

UNC means Unified National Coarse, an inch based thread series used on many North American designs and service parts.

Application

Ring Gauge for functional inspection of threads in machining and maintenance environments.
Incoming inspection and in process checks where fast pass or fail decisions are required.
Verification of thread conformity without calculating pitch or diameter during production flow.
Thread system context: use it on UNC threads so the inspection matches the drawing callout.

Note Clean threads and tools before use, apply suitable lubrication for cutting operations, and stop if resistance rises sharply.

Benefits

Fast functional inspection without calculations or a full metrology setup.
Supports consistent pass or fail decisions in incoming and in process checks.
Helps prevent assembly issues caused by oversize or damaged threads.
Useful for documenting repeatable quality checks in workshop routines.

Drawbacks

Does not provide a full dimensional report, only a functional limit check.
Not suitable for high performance metrology tasks that require traceable calibration documentation.

Step by step

Clean the thread and remove chips, dirt, and burrs before inspection.
Confirm the gauge type and tolerance class marking for the required check.

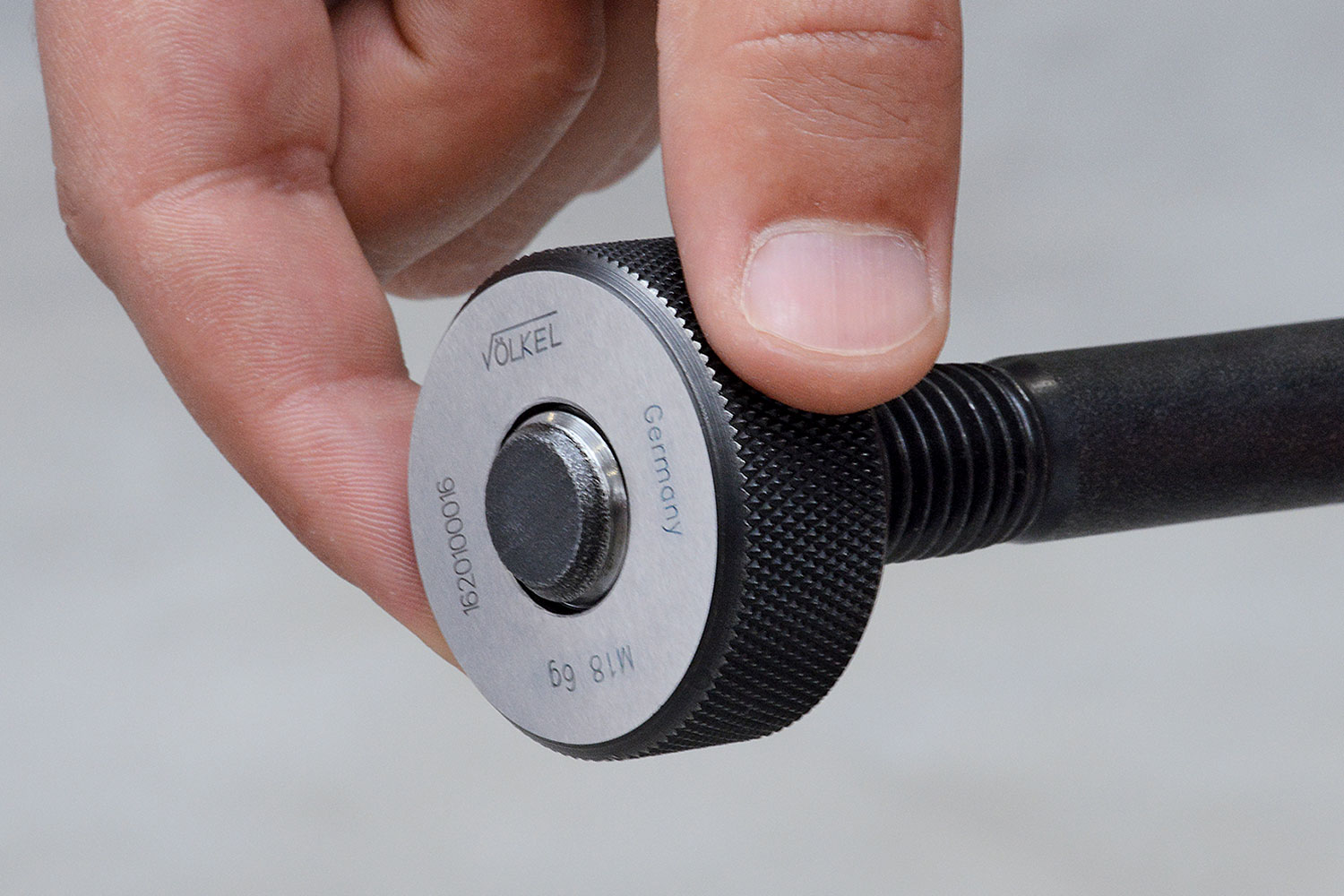

Apply the gauge gently by hand without forcing entry.
Stop if the gauge binds and clean the thread and gauge contact surfaces.
Evaluate entry behavior according to your inspection plan and record the result.
Apply light corrosion protection and store the gauge in its case.

Scope of supply

1 piece Precision GO Thread Ring Gauge (Tol. 2A) - UNC 3" x 4

Technical features

Product type: Ring Gauge
Thread designation: UNC
Tolerance class marking: 2A

Frequently asked questions (FAQ)

What is the difference between GO and NO GO in thread gauging? GO checks that the thread accepts the functional size for assembly, while NO GO checks that the thread is not oversize beyond the limit. The gauge gives a fast pass or fail result. How do you prepare the thread before gauging? Clean the thread, remove chips and dirt, and remove burrs that could block entry. A clean thread is required for a meaningful check. How much force should you use on a thread gauge? Use light hand force only and avoid tools that add torque. If the gauge binds, stop and investigate contamination or thread damage. Where do you find the matching catalog for additional variants and reference data? Use the catalog for additional information and product family context: VG 23 catalog as PDF Does a gauge replace measurement of diameter and pitch? A GO and NO GO gauge checks functional fit, not every geometric parameter. Use metrology tools if you need a dimensional report. How do you store and protect gauges between checks? Keep the gauge clean, apply light corrosion protection, and store it in the case. Avoid impacts that could damage the measuring faces.
