HexTap Type S Threading Bit, 1/4" hexagon drive Form D HSS-G - M 10 x 0.5

Name: HexTap Type S Threading Bit, 1/4" hexagon drive Form D HSS-G - M 10 x 0.5
Brand: VOLKEL
SKU: 67718
Price: 340000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

HexTap Type S Threading Bit, 1/4" hexagon drive Form D HSS-G - M 10 x 0.5 by VÖLKEL, item no. 67718, suitable for cutting internal threads.

SKU: 67718

340.000 đ

Price includes VAT

Description

HexTap Type S Threading Bit, 1/4" hexagon drive Form D HSS-G - M 10 x 0.5

HexTap Type S Threading Bit, 1/4" hexagon drive Form D HSS-G - M 10 x 0.5 supports controlled thread cutting when you select it by thread system and apply it in a stable, guided setup. It fits typical shop workflows in machine building, service, and metal fabrication.

M denotes an ISO metric thread, common in mechanical engineering where metric drawings and tolerances are used. HSS-G means ground high speed steel, which is commonly used when you need stable cutting behavior and clean thread flanks.

Application

Hextap use in repair and small batch work, including service workshops and mechanical engineering.
Thread production on prepared holes or blanks where alignment is controlled by a holder, guide, or machine spindle.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: thread cutting, re tapping, and thread cleaning depending on condition
Use suitable lubrication and remove chips regularly so cutting edges do not pack up.
Thread system context: match the tool to the M specification stated on the part or drawing.

Note Clean threads and tools before use, apply suitable lubrication for cutting operations, and stop if resistance rises sharply.

Benefits

Direct selection by thread designation such as M when stated reduces setup mistakes.
Suitable for workshop processes where alignment and controlled engagement are practical priorities.
Supports consistent thread quality when you use steady feed and lubrication.
Works well for maintenance tasks where parts must be reworked to the drawing requirement.

Drawbacks

Not suitable for materials or hardness outside the typical range for the named tool material and execution.
Not intended for high performance production without a validated process and rigid machine conditions.

Step by step

Prepare the hole or existing thread so entry is clean and burr free.
Select a suitable holder and ensure the tool is aligned square to the thread axis.
Apply suitable cutting lubricant and start the cut with steady rotation.
Maintain even feed without side force so the tool follows the axis.
Reverse briefly to clear chips from the flutes, then continue with controlled engagement.
Stop when required depth is reached, then back the tool out completely.
Clean the thread and tool, then protect the tool from corrosion for storage.

Scope of supply

1 piece HexTap Type S Threading Bit, 1/4" hexagon drive Form D HSS-G - M 10 x 0.5

Technical features

Product type: Hextap
Thread designation: M
Tool material or execution: HSS-G

Frequently asked questions (FAQ)

How do you decide between a hand tap and a machine tap for this thread? You choose by the driving method and the stability of the setup. Hand taps support controlled manual work, while machine taps support guided or powered driving with stable alignment. What do you check before you start cutting the thread? Confirm the thread designation, the hole preparation, and the workpiece material. Keep alignment square to the axis and plan lubrication and chip evacuation. How do you reduce the risk of a tapered or oversize thread? Maintain alignment, avoid side load, and use steady feed. Clean chips from the cutting geometry and verify the first part against the specification. Where do you find the matching catalog for additional variants and reference data? Use the catalog for additional information and product family context: VD 23 catalog as PDF How do you choose the correct drill preparation without guessing values? Use a drill size chart that matches the thread system and the tool type. For inch based threads, confirm that the notation is interpreted correctly before drilling. When should you replace the tool instead of forcing it? Replace it if cutting torque rises abruptly, if the tool rubs without cutting, or if the thread surface becomes torn. Forcing a worn tool can damage the workpiece and the tool.

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	metric-fine ISO-thread
Standard	Works Standard
Form	Form D
Material	HSS-G
Tolerance	ISO2 (6H)
Size	M 10 x 0.5

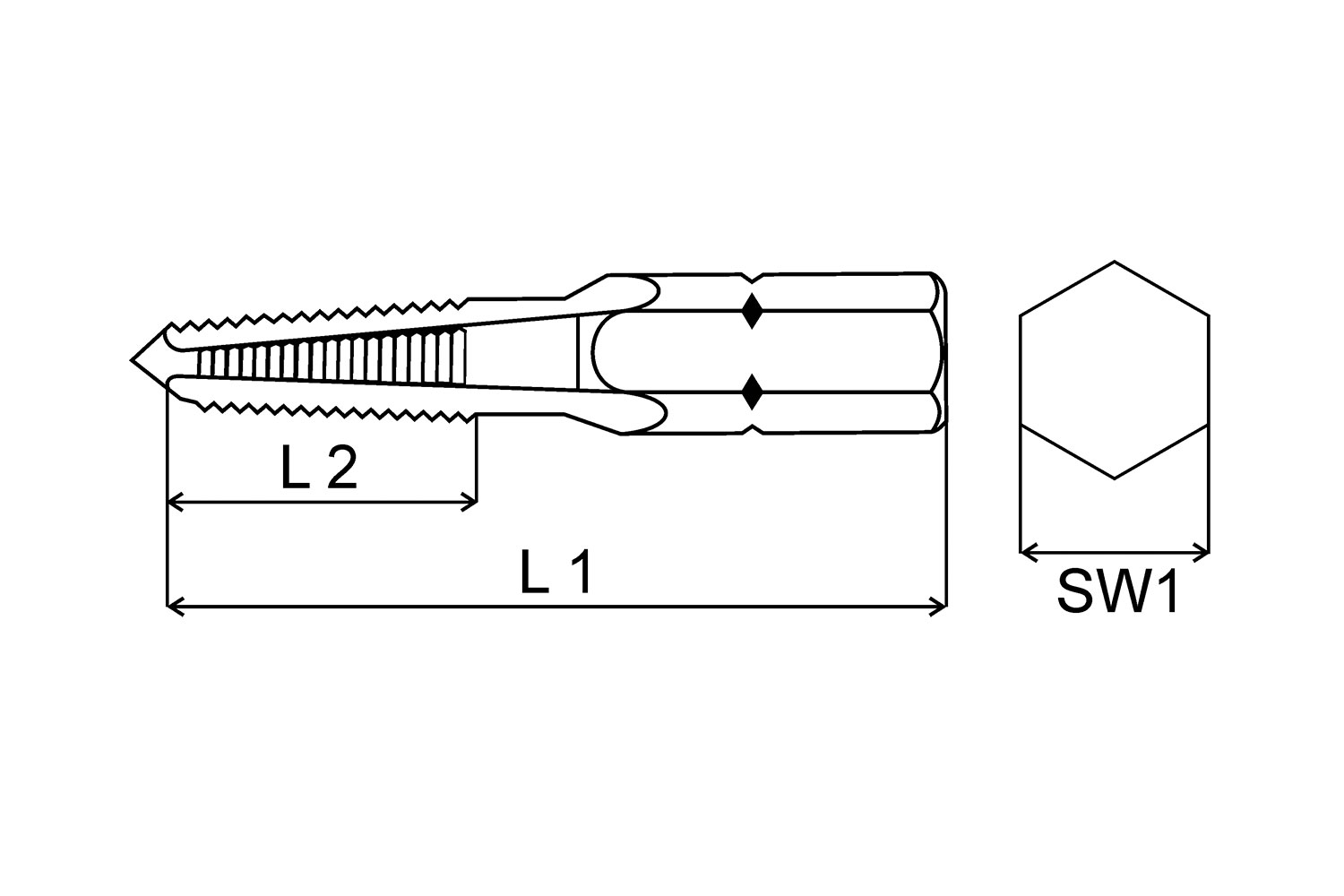

Overall length (L1)	41 mm
Thread length (L2)	21 mm

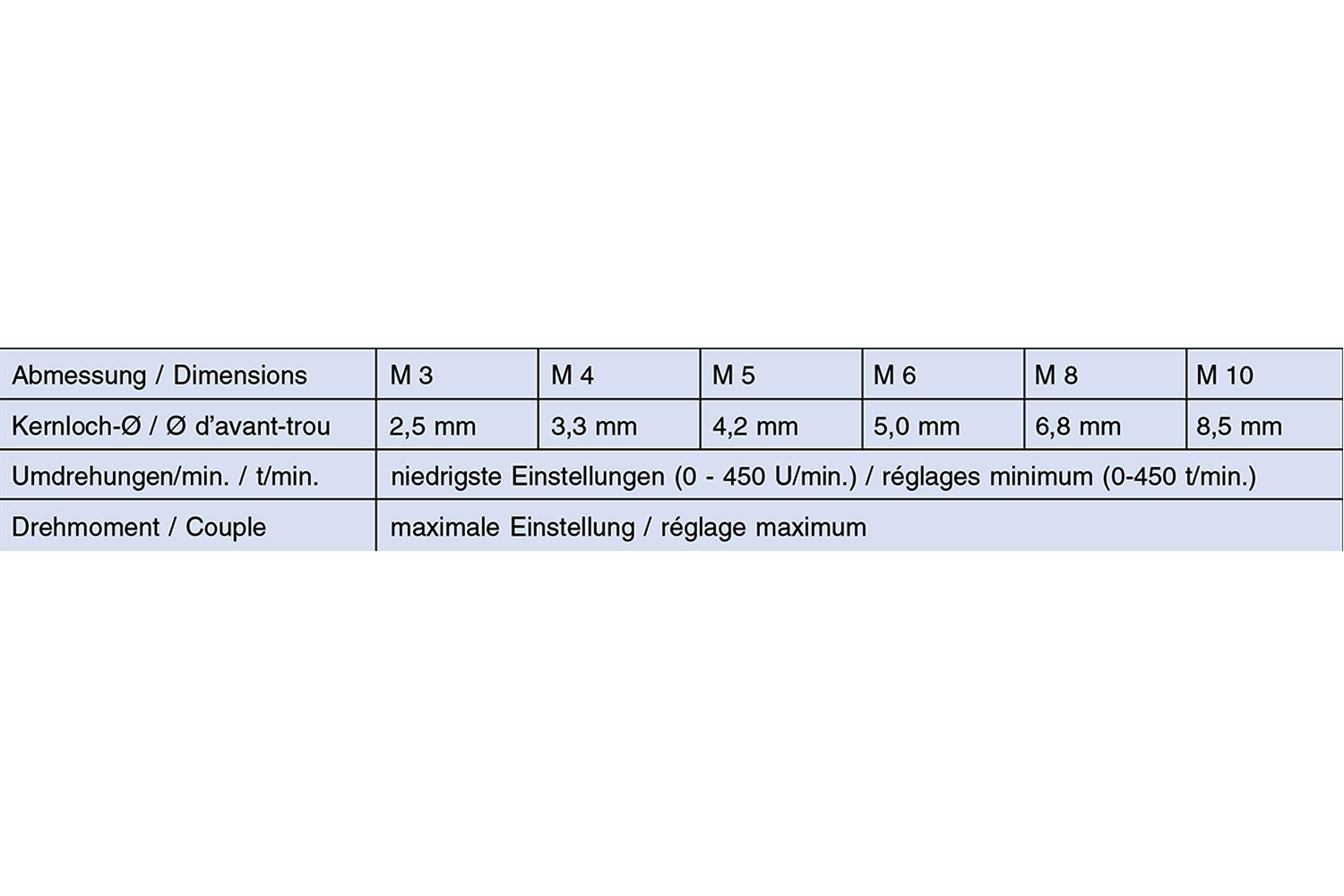

Core hole diameter (D1)	9.5 mm
Width across flat (SW1)	Zoll
EAN	4022835677185
Item number	67718
Type of flute	straight fluted
Application	for through and blind holes
Thread standard	DIN 13
