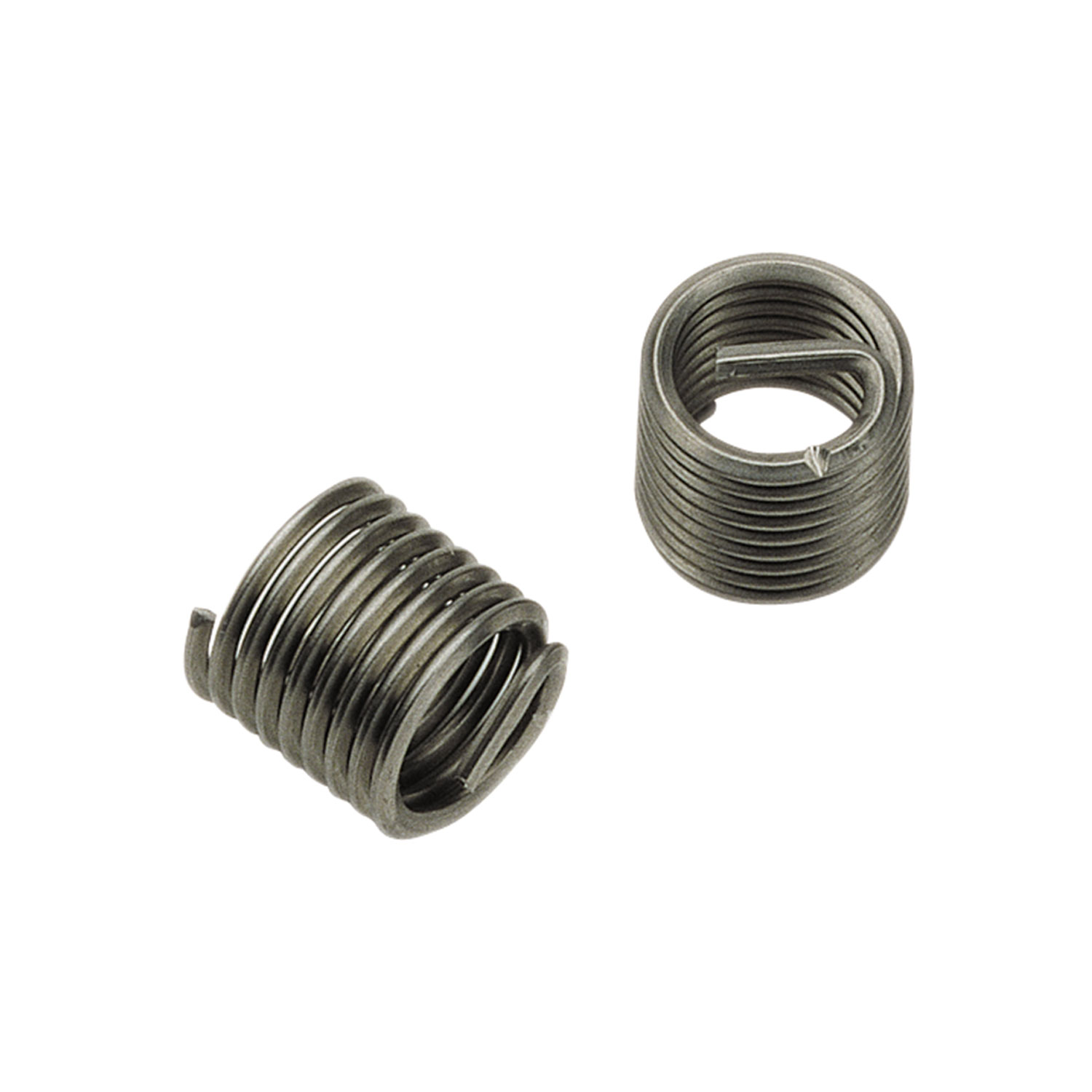

A damaged thread can bring a project to a halt. With the V-COIL Thread Inserts gói bổ sungyou have a quick and reliable solution at your fingertips. This practical set contains 10 free-running thread inserts made of stainless thép, specifically developed for the repair or reinforcement of M3 metric threads. Rely on V-COIL to restore your threads permanently and securely.
V-COIL thread inserts are not just a repair tool but also an intelligent solution for adding value to your projects. The gói bổ sung is designed to make your work as efficient and convenient as possible.
This "free-running" and "Type S" thread insert is made of high-quality stainless thép according to DIN 8140.
We have compiled detailed information and valuable tips on the topic of thread inserts in our blog. Take a look to deepen your knowledge:
What does "free-running" mean?
"Free-running" means that the thread inserts have a spiral shape without a locking function. The installed threads are free to move for standard screws and bolts, and they provide a low-friction and strong connection.
What is the difference between a gói bổ sung and a repair kit?
A gói bổ sung contains only the thread inserts in a specific size. A repair kit (or set) also includes the matching tools: a special Mũi khoan, a tap, an installation tool, and a tang breaker.
Why is the length specified as "1.5 D"?
The length designation "1.5 D" is a standardized abbreviation. The "D" stands for the nominal diameter of the thread (in this case, 3 mm). The length of the insert is therefore 1.5 times the diameter, which is 1.5 x 3 mm = 4.5 mm.
| Loại ren | metric ISO-thread |
|---|---|
| Tiêu chuẩn | DIN 8140 |
| Vật liệu | from stainless steel |
| Tolerance | ISO2 (6H) |
| Kích thước | M 3 x 0.5 |
| Chiều dài | 1.5 x D |
| Packaging unit (piece) | 10 |
| EAN | 4022835403050 |
| Mã hàng | 40305 |
| Chuẩn ren | DIN 13 |
| Quy cách đóng gói | 10 |
| SKU | Hình | Giá VNĐ | Tên sản phẩm & mô tả ngắn | |
|---|---|---|---|---|
| 08070 |
|
288.000
|
V-COIL Dụng cụ lắp ren cấy (with 1/4" Hexagon Drive for machine use) M 3 x 0.5
V-COIL Dụng cụ lắp ren cấy (with 1/4" Hexagon Drive for machine use) M 3 x 0.5 VÖLKEL, mã 08070, phù hợp cho sửa ren và lắp ren cấy.
|
|
| 08091 |
|
204.800
|
V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 3 x 0.5
V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 3 x 0.5 VÖLKEL, mã 08091, phù hợp cho sửa ren và lắp ren cấy.
|
