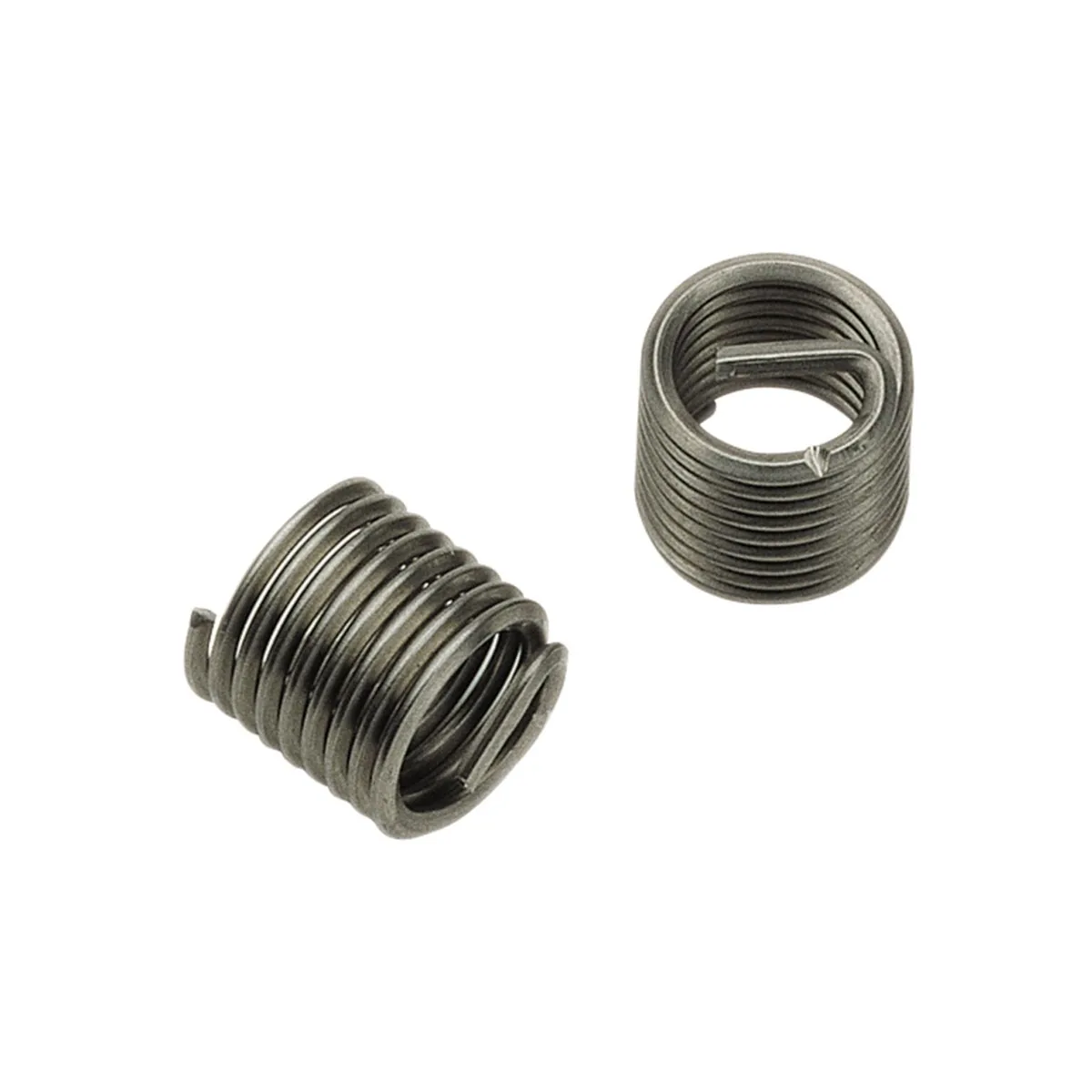

V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 3/4 x 12 - 3.0 D (5 pcs.)

• Restore damaged ren trong in components, housings, and machine parts.
• Use when you need a repair process that supports repeated service and fastener replacement.
• Common in maintenance, overhaul, and field repair where replacement parts are costly.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
• Use a suitable Chất bôi trơn cắt gọt ren for the work material and keep the tool aligned to the axis.

Lưu ý Keep alignment consistent across drilling, STI tapping, and insert installation to avoid eccentric threads.

• Restores functional threads without replacing the full component
• Supports repeatable fastener assembly after repair
• Reduces downtime in maintenance and overhaul work
• Helps standardize repair steps across service locations
• Suitable for routine use in metal fabrication and plant engineering service

• Limited by work material hardness and by the stability of your clamping setup
• Not intended for high performance production cycles without validated process parameters

1. Assess the damage and confirm that sửa ren is the appropriate option for the component.
2. Secure the workpiece and align your tooling to the original thread axis.
3. Remove the damaged thread using the preparation drill step required by the repair system.
4. Create the STI thread using the correct STI tap for the insert system in the product name.
5. Clean the hole and remove chips and cutting fluid residues.
6. Install the Ren cấy V-COIL with the matching installation tool and stop at the intended position.
7. If the insert style uses a tang, remove the tang using the correct breaking tool and keep the bore clean.
8. Verify the repaired thread with the intended fastener or a suitable gauge and protect the repaired area.

• 5 chiếc V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 3/4 x 12 - 3.0 D (5 pcs.)

• Product type: Ren cấy V-COIL
• System: Ren cấy V-COIL based repair process
• Standard: BS
