V-COIL Ren cấy V-COIL kiểu khóa vít SL M 3 x 0.5 - 1.0 D (100 pcs.)

Name: V-COIL Ren cấy V-COIL kiểu khóa vít SL M 3 x 0.5 - 1.0 D (100 pcs.)
Brand: VOLKEL
SKU: 05205
Price: 6000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

V-COIL Ren cấy V-COIL kiểu khóa vít SL M 3 x 0.5 - 1.0 D (100 pcs.) VÖLKEL, mã 05205, phù hợp cho phục hồi và gia cường ren hỏng.

SKU: 05205

6.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

V-COIL Self-Locking Thread Insert Type SL M 3 x 0.5 - 1.0 D

V-COIL Self-Locking Thread Insert Type SL M 3 x 0.5 - 1.0 D (100 chiếc)

This red V-COIL self-locking thread insert Type SL is the specialized solution for high-stress connections exposed to vibration or shock. Through a special clamping effect, it reliably secures screws and bolts against loosening. It is made from high-quality, stainless thép and is used for the repair, reinforcement, and restoration of threads in materials with low shear strength.

Application & Advantages

Application Area:
- sửa ren of damaged or worn threads.
- Thread reinforcement of materials with low shear strength.
- Salvaging rejectsespecially with faulty threads.
- Preferred for applications with vibration or shock effects.
Advantages:
- Made from high-quality austenitic stainless chrome-nickel precision profile thép wire.
- Offers increased temperature and corrosion resistance.
- Leads to higher thread load capacity after repair due to improved thread properties.
- Provides an additional security through clamping torque.
- Due to its compact design, it can be installed in existing constructions without any other preparations.
- The position is maintained by the radial pressure effect between the coils and the flanks of the tapped hole.

Functionality

One or more polygonal clamping coils of the insert exert a radial pressure on the ren ngoài of the screw. Each clamping coil consists of a number of tangential strands that protrude beyond the diameter of the ordinary free-running coils.

When the bolt/screw is inserted, the clamping surfaces are displaced, creating the radial pressure that securely locks the screw. When the bolt/screw is removed, the clamping coils relax and return to their original shape. This allows for repeated screwing while maintaining a measurable degree of radial pressure.

Technical Data

Standard: DIN 8140
Material: Stainless thép
Tolerance: ISO 2 / 6H
Nominal Dimension: D 3 x 0.5
Length: 1 D
Packaging Unit: 100 chiếc
EAN: 4022835052050
Article Number: 05205

Câu hỏi thường gặp (FAQ)

Q1: What is the main difference between this and a free-running thread insert? The main difference lies in the clamping effect. The self-locking Type SL exerts a radial pressure on the screw through special clamping coils, which secures it against loosening. A free-running insert does not have this function.
Q2: Why is the thread insert red? The red color serves as a clear identification feature for the self-locking Type SL thread insert. This allows you to easily distinguish it from other V-COIL inserts.
Q3: Can I use the insert in any material? Yes, the insert is designed for materials with low shear strength, such as aluminum or magnesium. It reinforces the thread and prevents damage.
Q4: What does the specification "M 3 x 0.5" mean? "M 3" stands for the metric nominal diameter of 3 mm, and "0.5" is the thread pitch. It describes the exact specification of the thread being repaired or reinforced.
Q5: What is the advantage of the "clamping effect" with vibrations? The clamping effect prevents the screw from self-loosening under dynamic loads like vibrations or shocks. The radial pressure generated holds the screw firmly in the thread.

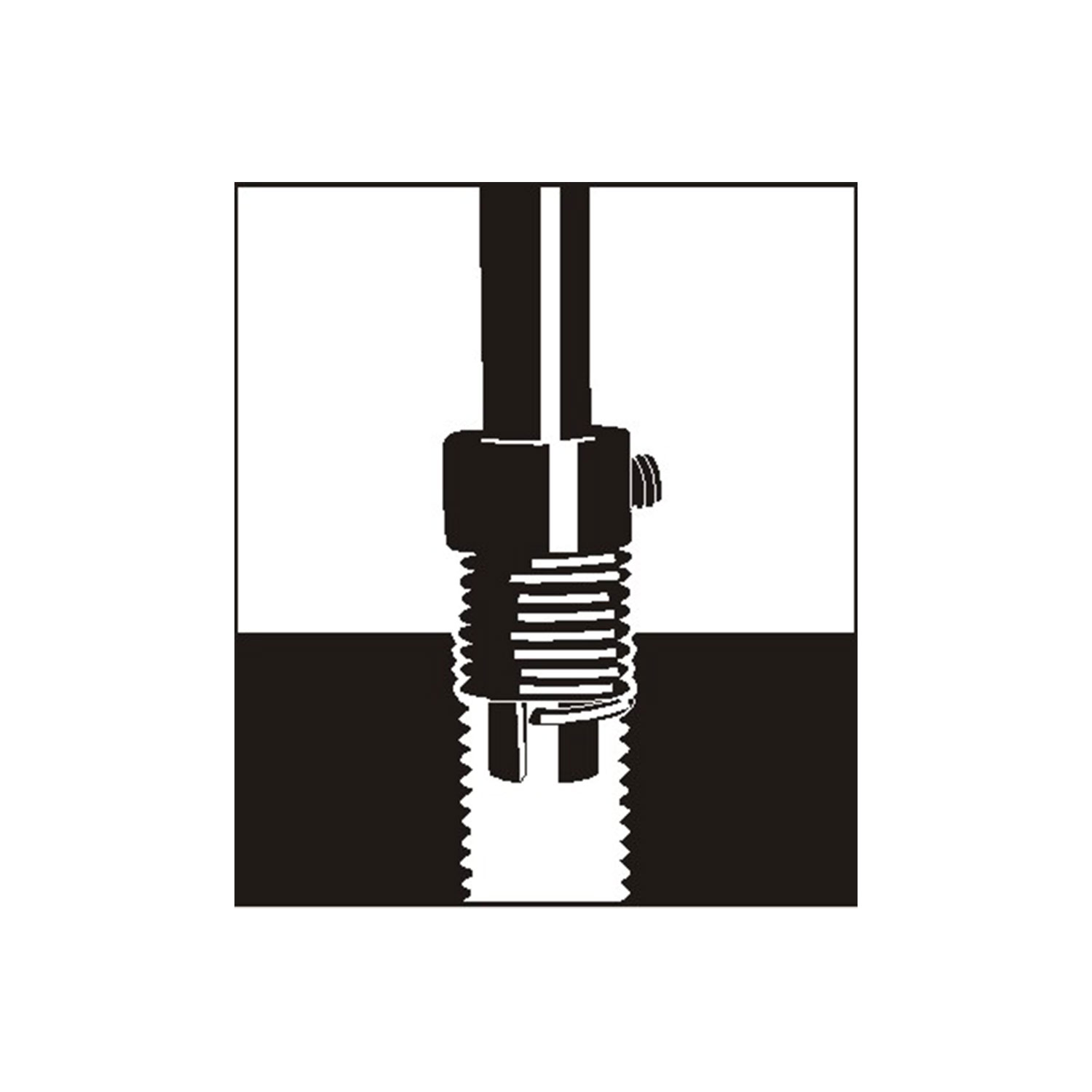

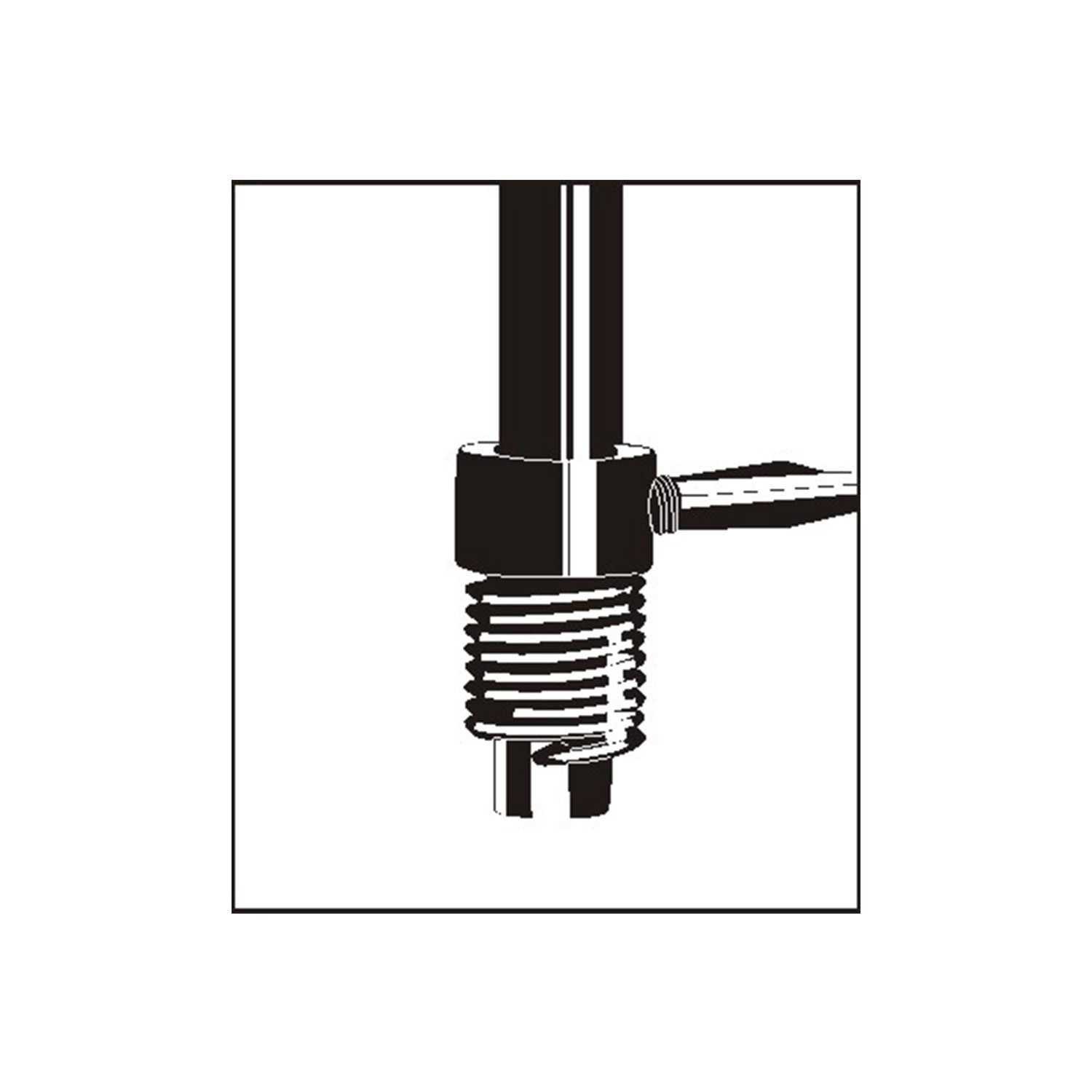

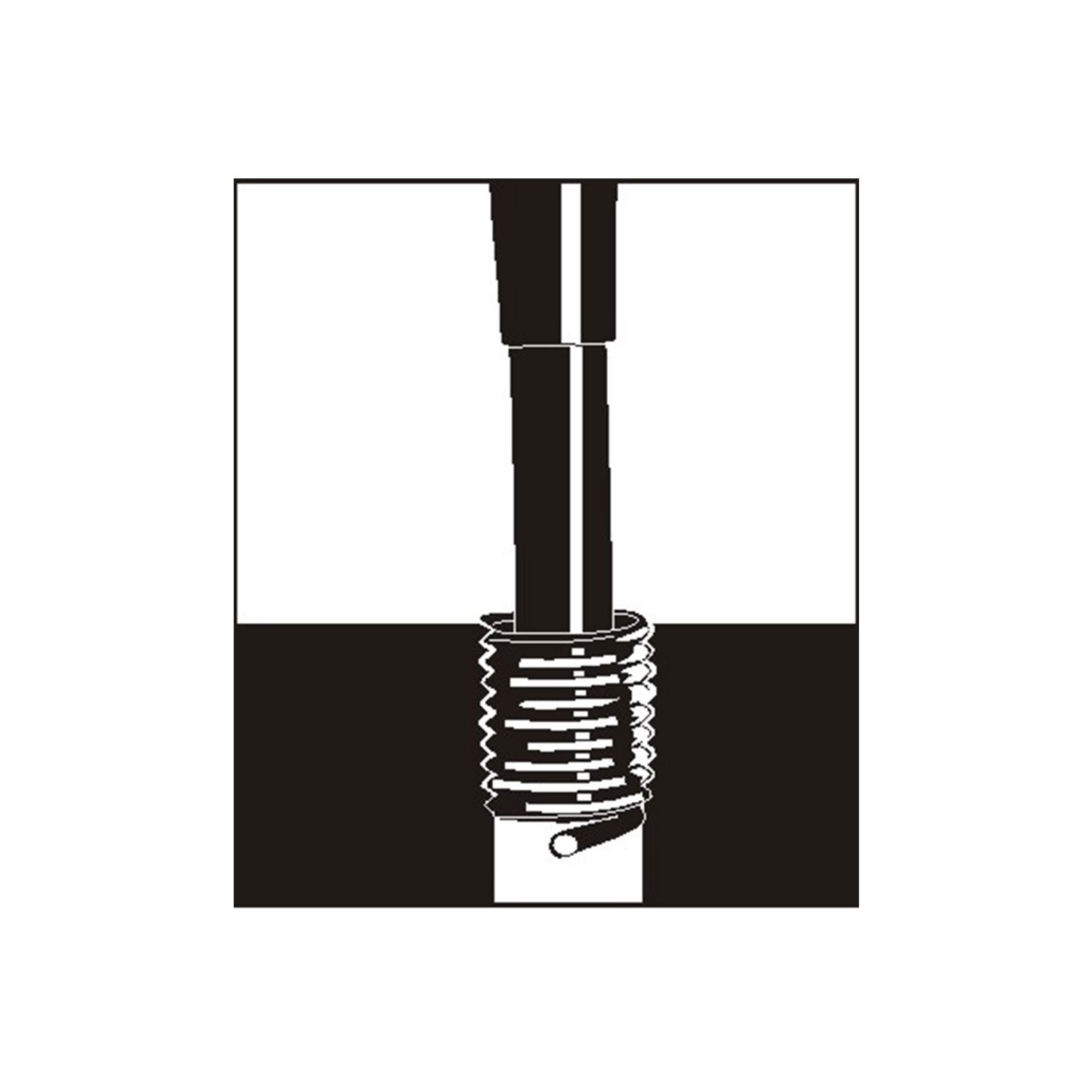

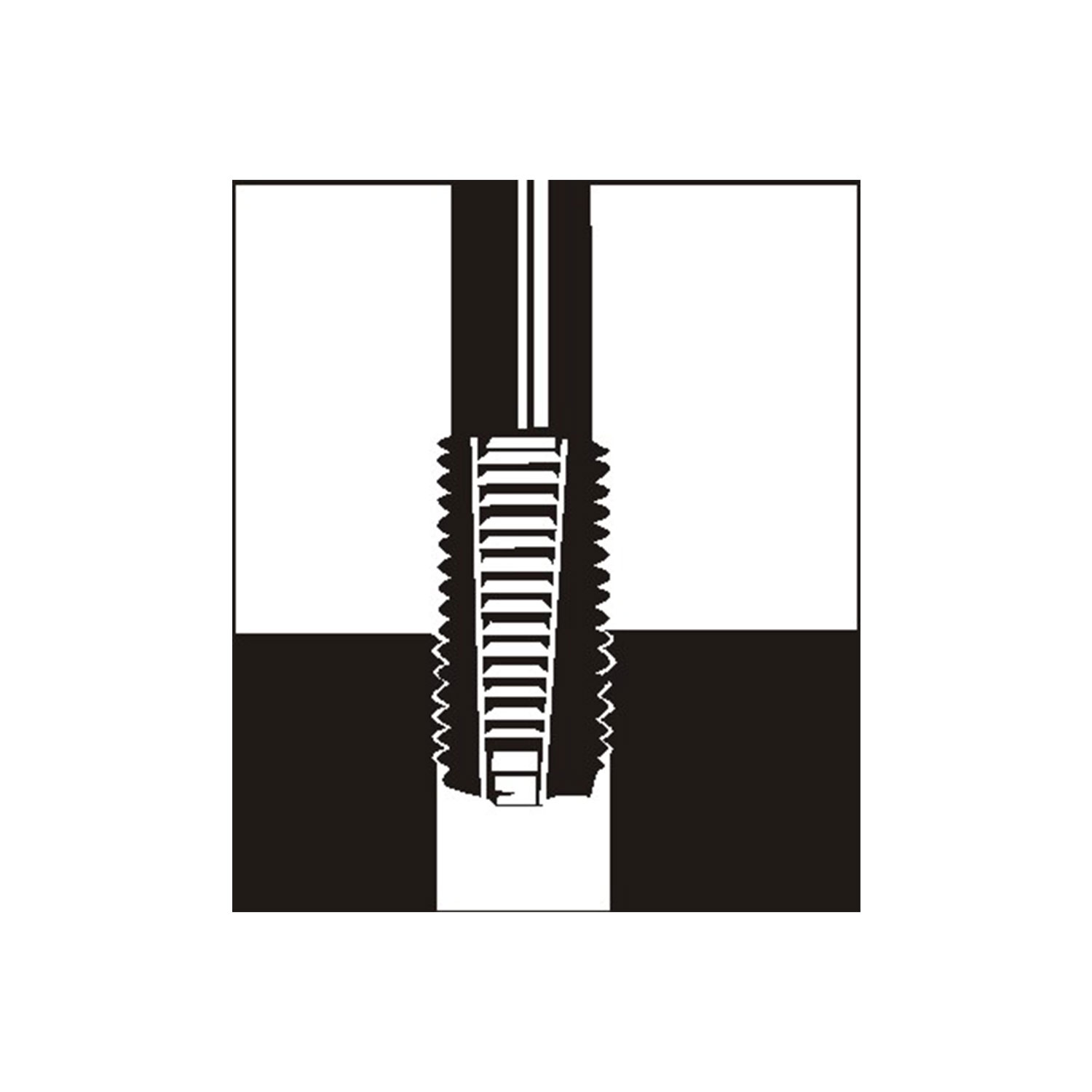

Q6: Do I need special tools for installation? Yes, for a professional installation, you need specific V-COIL tools, including a matching tap and an installation tool, to ensure the correct function of the thread insert.

Secure your connections permanently and reliably – with V-COIL self-locking thread inserts.

.accordion-container { margin-top: 20px; border: 1px solid #e0e0e0; border-radius: 5px; overflow: hidden; } .accordion-item { margin-bottom: 0; border-bottom: 1px solid #eee; } .accordion-item:last-child { border-bottom: none; } .accordion-header { padding: 15px 20px; background-color: #f8f8f8; cursor: pointer; display: flex; align-items: center; justify-content: space-between; font-weight: 600; color: #333; transition: background-color 0.2s ease; } .accordion-header h3 { margin: 0; font-size: 1.1em; color: inherit; } .accordion-header::marker, .accordion-header::-webkit-details-marker { display: none; } .accordion-header::after { content: '\25BC'; font-size: 0.8em; transition: transform 0.2s ease; margin-left: 10px; } details[open] > summary.accordion-header::after { transform: rotate(-180deg); } .accordion-header:hover { background-color: #f0f0f0; } .accordion-content { padding: 15px 20px; background-color: #ffffff; line-height: 1.6; color: #555; } .accordion-content p, .accordion-content ul, .accordion-content ol, .accordion-content dl { margin-bottom: 10px; } .accordion-content p:last-child, .accordion-content ul:last-child, .accordion-content ol:last-child, .accordion-content dl:last-child { margin-bottom: 0; } .accordion-content a { color: var(--primary-color, #007bff); text-decoration: none; } .accordion-content a:hover { text-decoration: underline; }

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	DIN 8140
Vật liệu	from stainless steel
Tolerance	ISO2 (6H)
Kích thước	M 3 x 0.5
Chiều dài	1.0 x D
Packaging unit (piece)	100
EAN	4022835052050
Mã hàng	05205
Chuẩn ren	DIN 13
Quy cách đóng gói	100
