V-COIL Ren cấy V-COIL kiểu khóa vít SL M 4 x 0.7 - 1.0 D (100 pcs.)

Name: V-COIL Ren cấy V-COIL kiểu khóa vít SL M 4 x 0.7 - 1.0 D (100 pcs.)
Brand: VOELKEL
SKU: 05207
Price: 11000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: CHLB Đức

Xuất xứ: CHLB Đức

V-COIL Ren cấy V-COIL kiểu khóa vít SL M 4 x 0.7 - 1.0 D (100 pcs.) VÖLKEL, mã 05207, phù hợp cho phục hồi và gia cường ren hỏng.

SKU: 05207

11.000,0 đ

Trạng thái kho: Hết hàng

Giá tham khảo, gồm VAT

Mô tả

V-COIL Ren cấy V-COIL kiểu khóa vít SL M 4 x 0.7 - 1.0 D (100 pcs.)

You select this Ren cấy V-COIL when you need a repair that restores thread function and keeps the nominal fastener system in service. It supports maintenance and component recovery in housings, machine parts, and other threaded locations where repeat assembly is expected. The designation in the product name defines the repair size and insert length.

The M designation identifies ren hệ mét ISO that are standard across general engineering, maintenance, and machine building.

Ứng dụng

Restore damaged or worn ren trong while keeping the original fastener system in service.
Reinforce threads in materials with lower shear strength when repeated assembly is expected.
Recover expensive components during maintenance, overhaul, and small batch rework.
Use in mechanical engineering, automotive service, fixture repair, and general workshop maintenance.

Lưu ý Select the matching STI tap, hole preparation, installation tool, and tang handling method for the stated insert size and length.

Lợi ích

Restores thread function without changing the original screw system.
Supports higher load distribution than a damaged parent thread alone.
Compact insert geometry allows repair in existing components without major redesign.
Stainless wire construction supports corrosion and temperature resistance tendencies.

Hạn chế

Installation requires the correct repair preparation tools and an oversized STI mounting thread.
It is not a substitute for correcting cracked parent material or damaged seating faces around the thread.

Các bước thực hiện

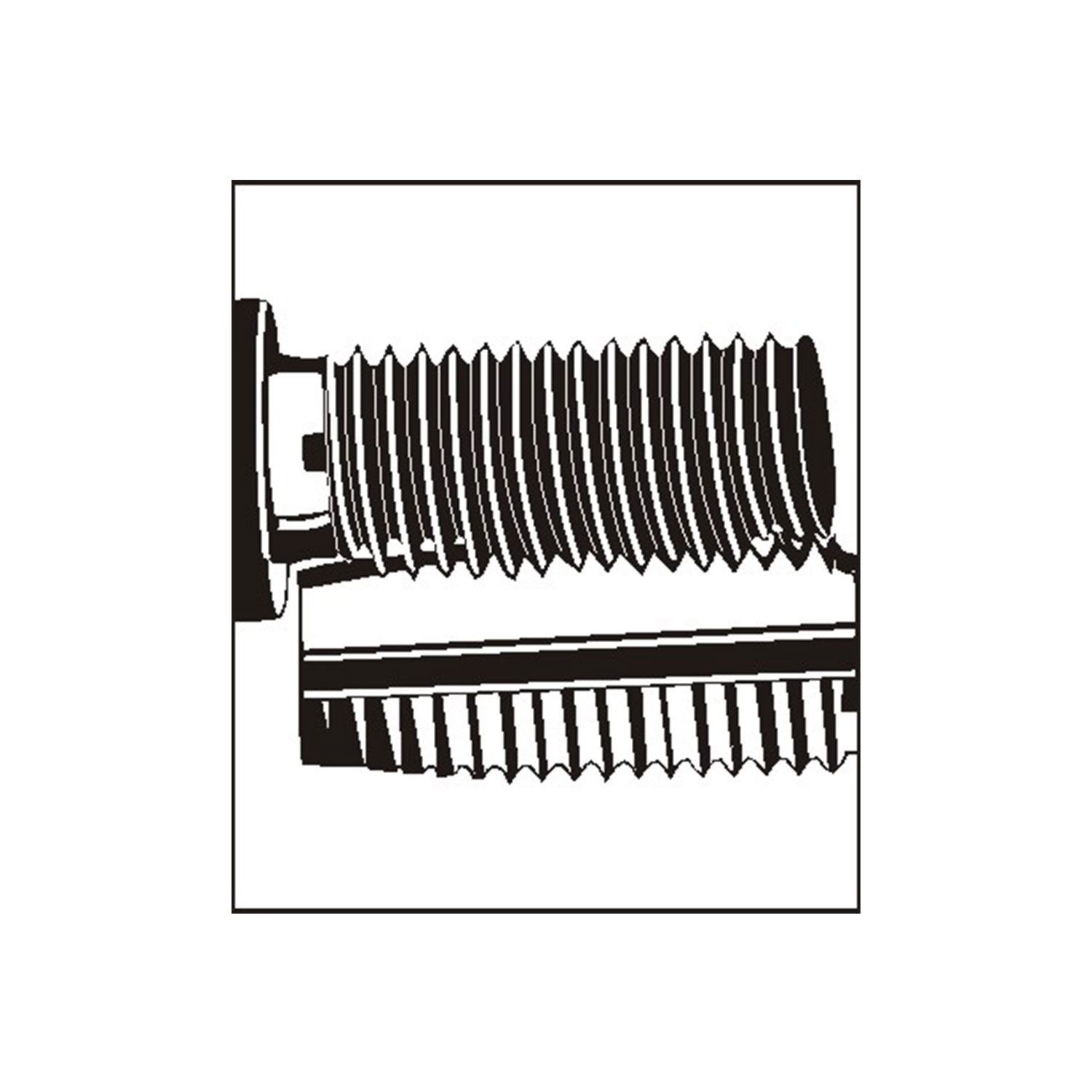

Inspect the damaged thread and confirm that the repair size in the product name matches the original fastener system.

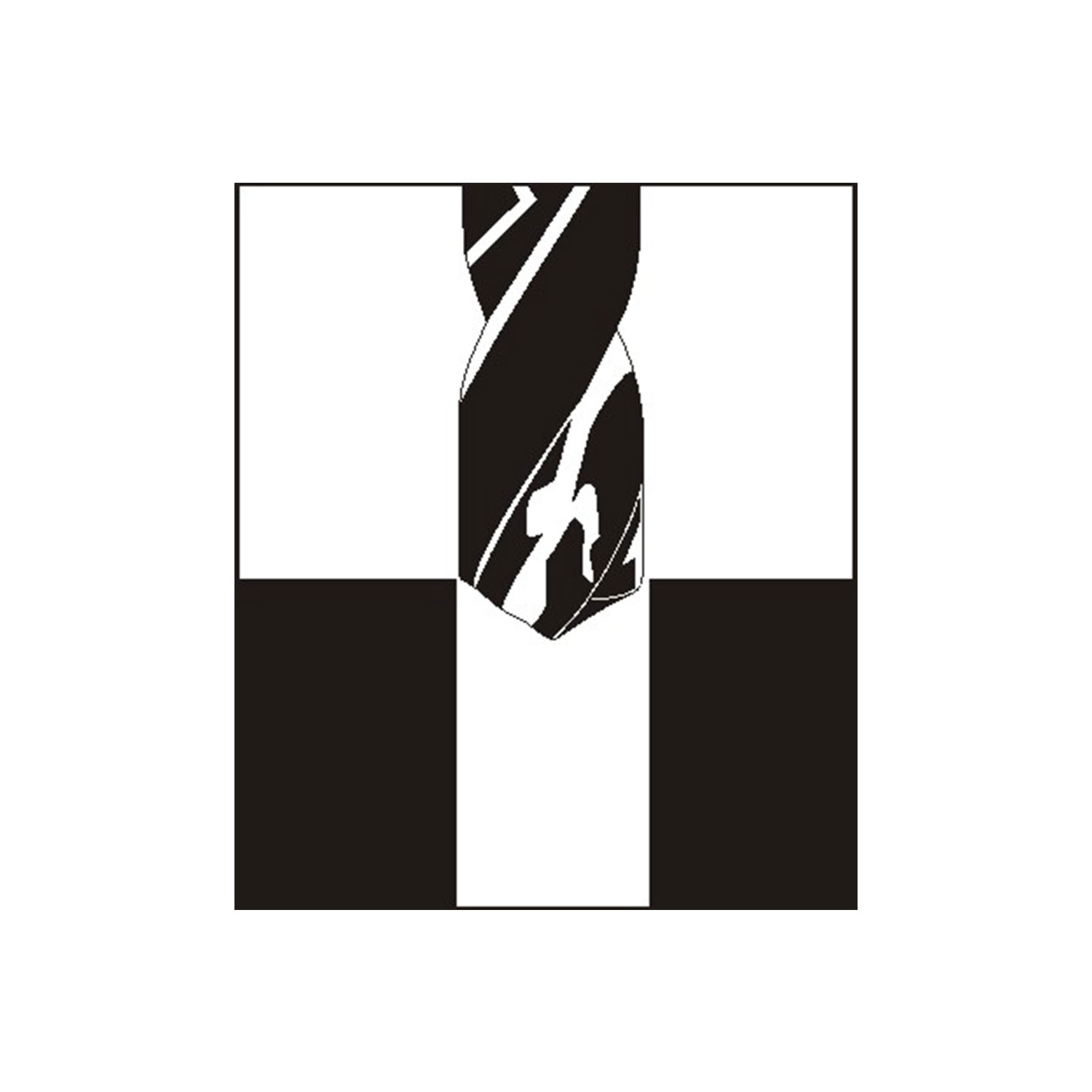

Prepare the hole according to the insert system so the damaged thread area is ready for the oversized STI thread.

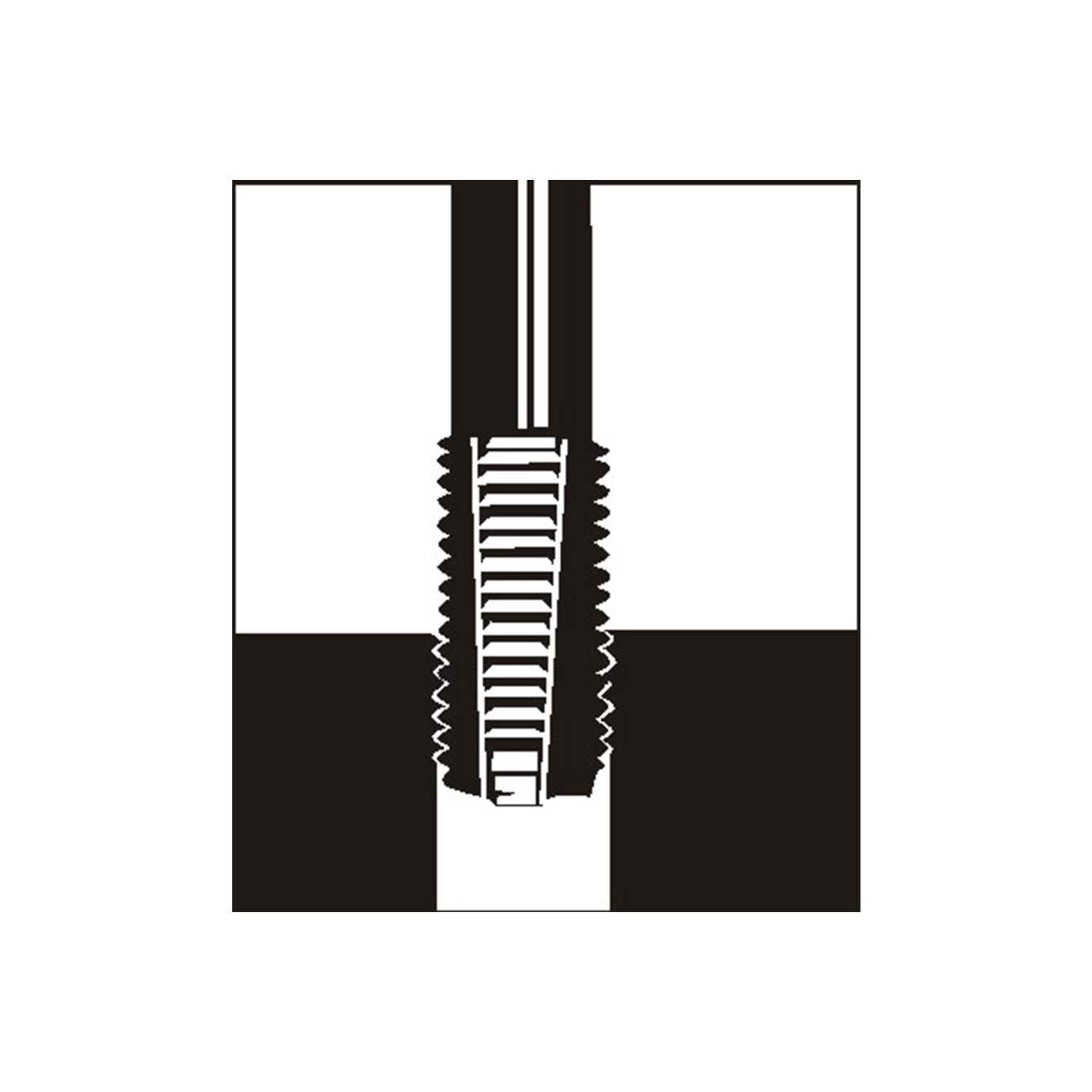

Cut the STI mounting thread with the matching repair tap and keep the tool square to the hole axis.
Clean the prepared hole so chips, oil residue, and loose material do not interfere with insert seating.

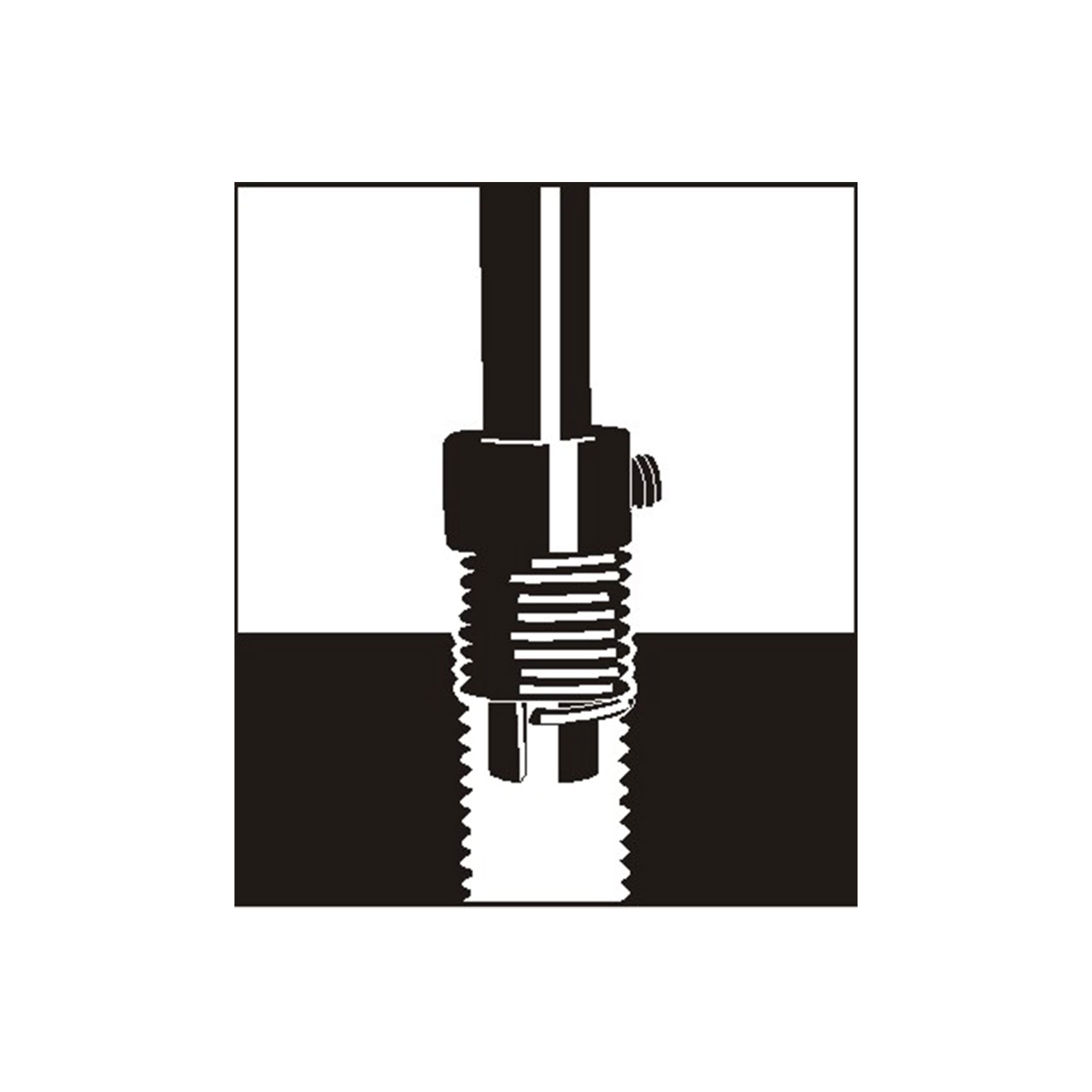

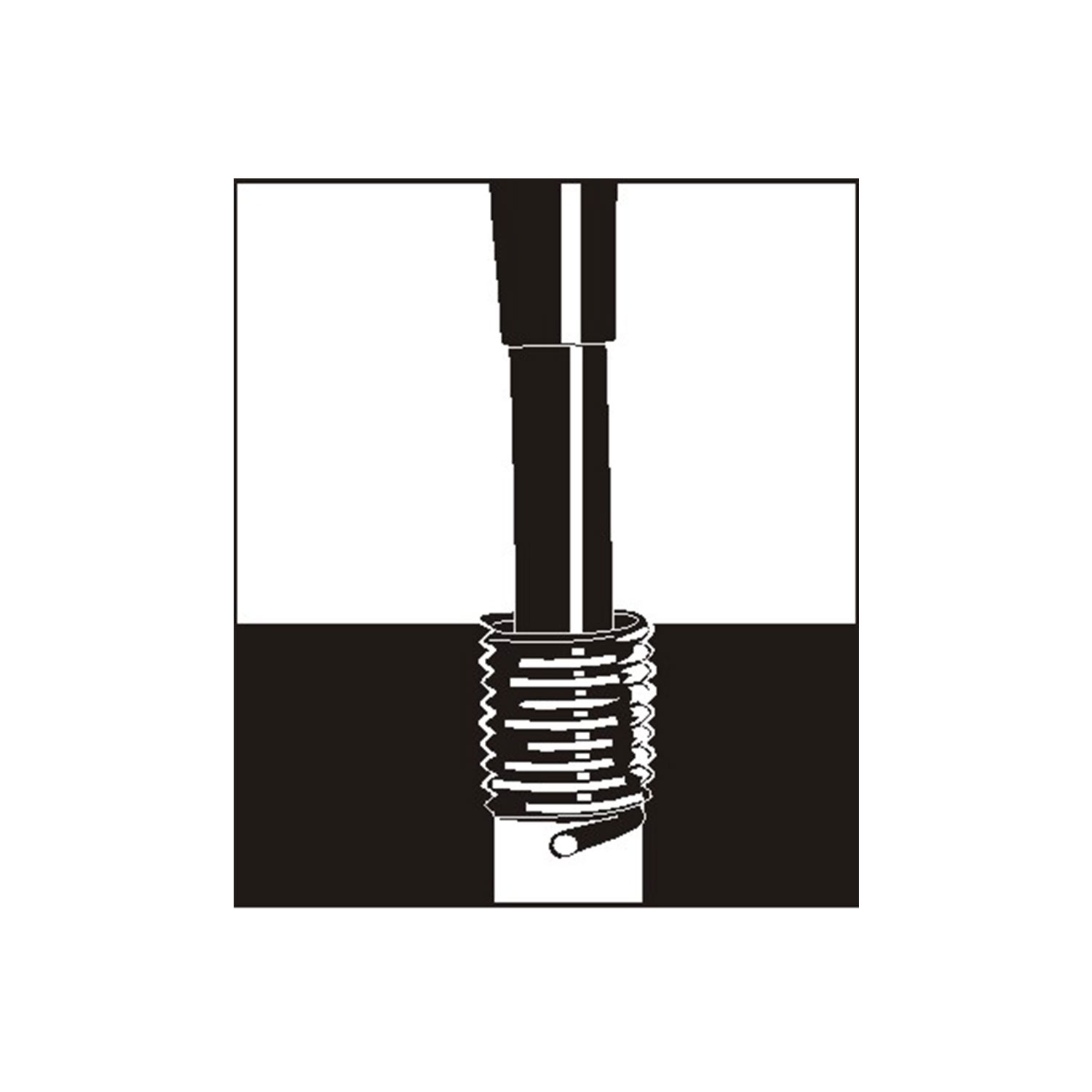

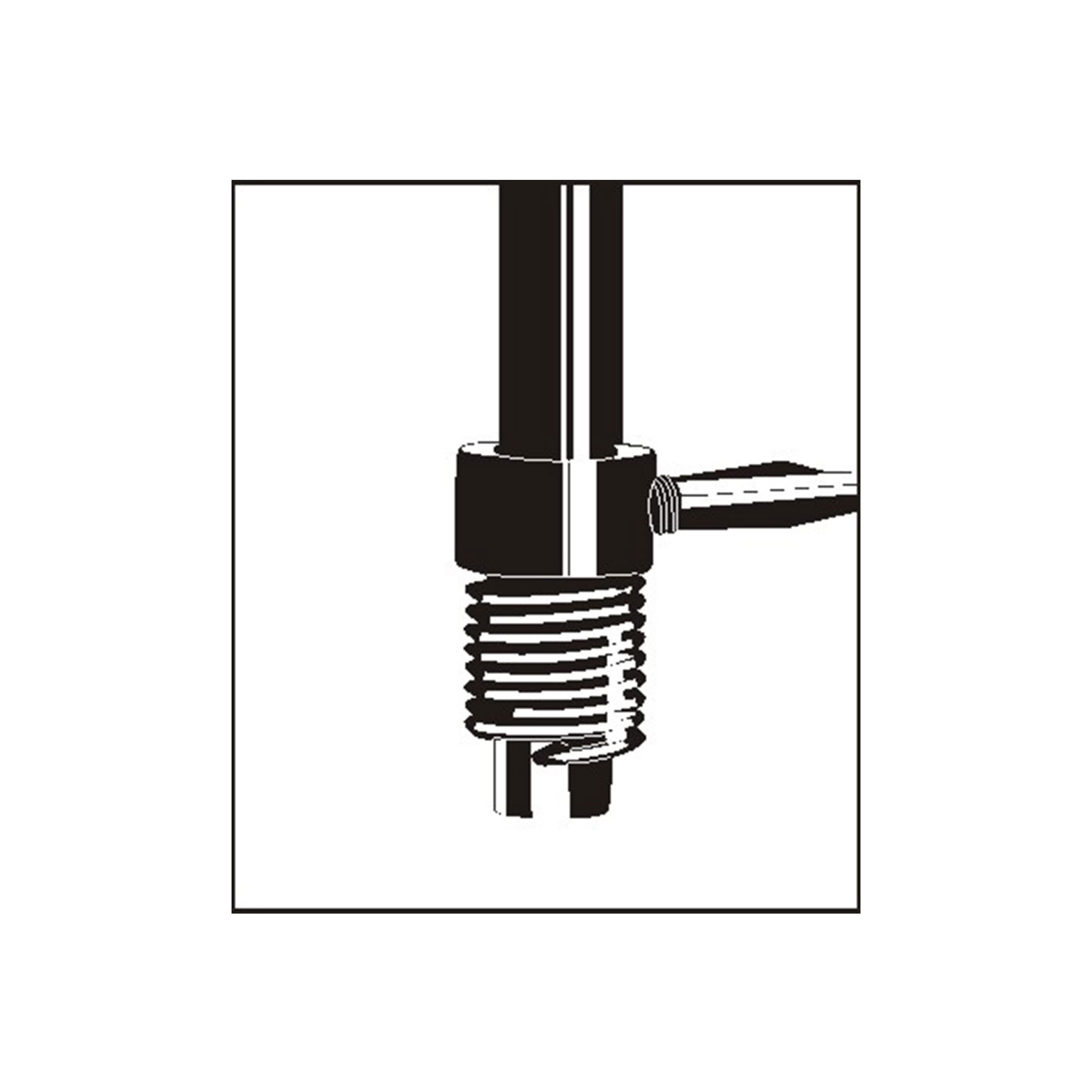

Drive the insert with the matching installation tool until it sits correctly below the surface and follows the thread path cleanly.
Remove the tang where the system requires it and then check that the mating screw runs freely in the repaired thread.

Phạm vi cung cấp

100 chiếc V-COIL Ren cấy V-COIL kiểu khóa vít SL M 4 x 0.7 - 1.0 D (100 pcs.)

Đặc tính kỹ thuật

Product type: Ren cấy V-COIL
Execution: kiểu tự do S
Thread system: M
Insert length: 1.0D
Pack size: 100 chiếc
Material: Stainless thép wire

Vui lòng dùng biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	DIN 8140
Vật liệu	from stainless steel
Tolerance	ISO2 (6H)
Kích thước	M 4 x 0.7
Chiều dài	1.0 x D
Packaging unit (piece)	100
EAN	4022835052074
Mã hàng	05207
Chuẩn ren	DIN 13
Quy cách đóng gói	100

Phụ kiện tùy chọn

	SKU	Hình	Giá VNĐ	Tên sản phẩm & mô tả ngắn
	08071		410.000,0	V-COIL Dụng cụ lắp ren cấy (with 1/4" Hexagon Drive for machine use) M 4 x 0.7 Dụng cụ lắp/sửa ren cùng hệ
	08092		294.000,0	V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 4 x 0.7 Dụng cụ lắp/sửa ren cùng hệ
