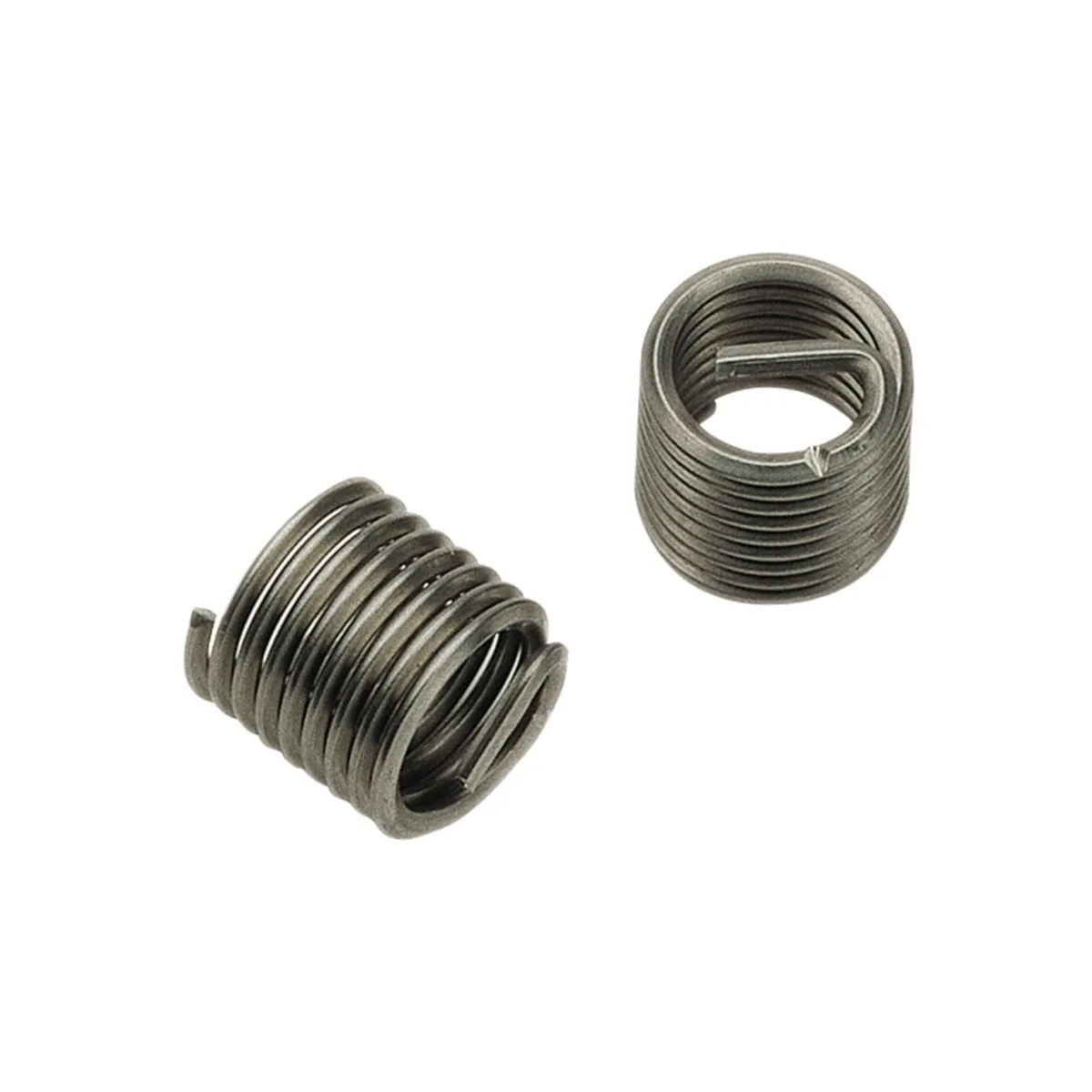

Ren cấy UNC 1.1/2 x 6 - 1.5 D V-COIL, bộ 5 cuộn

• Restore damaged or worn ren trong while keeping the original fastener system in service.
• Reinforce threads in materials with lower shear strength when repeated assembly is expected.
• Recover expensive components during maintenance, overhaul, and small batch rework.
• Use in mechanical engineering, automotive service, fixture repair, and general workshop maintenance.

Lưu ý Select the matching STI tap, hole preparation, installation tool, and tang handling method for the stated insert size and length.

• Restores thread function without changing the original screw system.
• Supports higher load distribution than a damaged parent thread alone.
• Compact insert geometry allows repair in existing components without major redesign.
• Stainless wire construction supports corrosion and temperature resistance tendencies.

• Installation requires the correct repair preparation tools and an oversized STI mounting thread.
• It is not a substitute for correcting cracked parent material or damaged seating faces around the thread.

1. Inspect the damaged thread and confirm that the repair size in the product name matches the original fastener system.

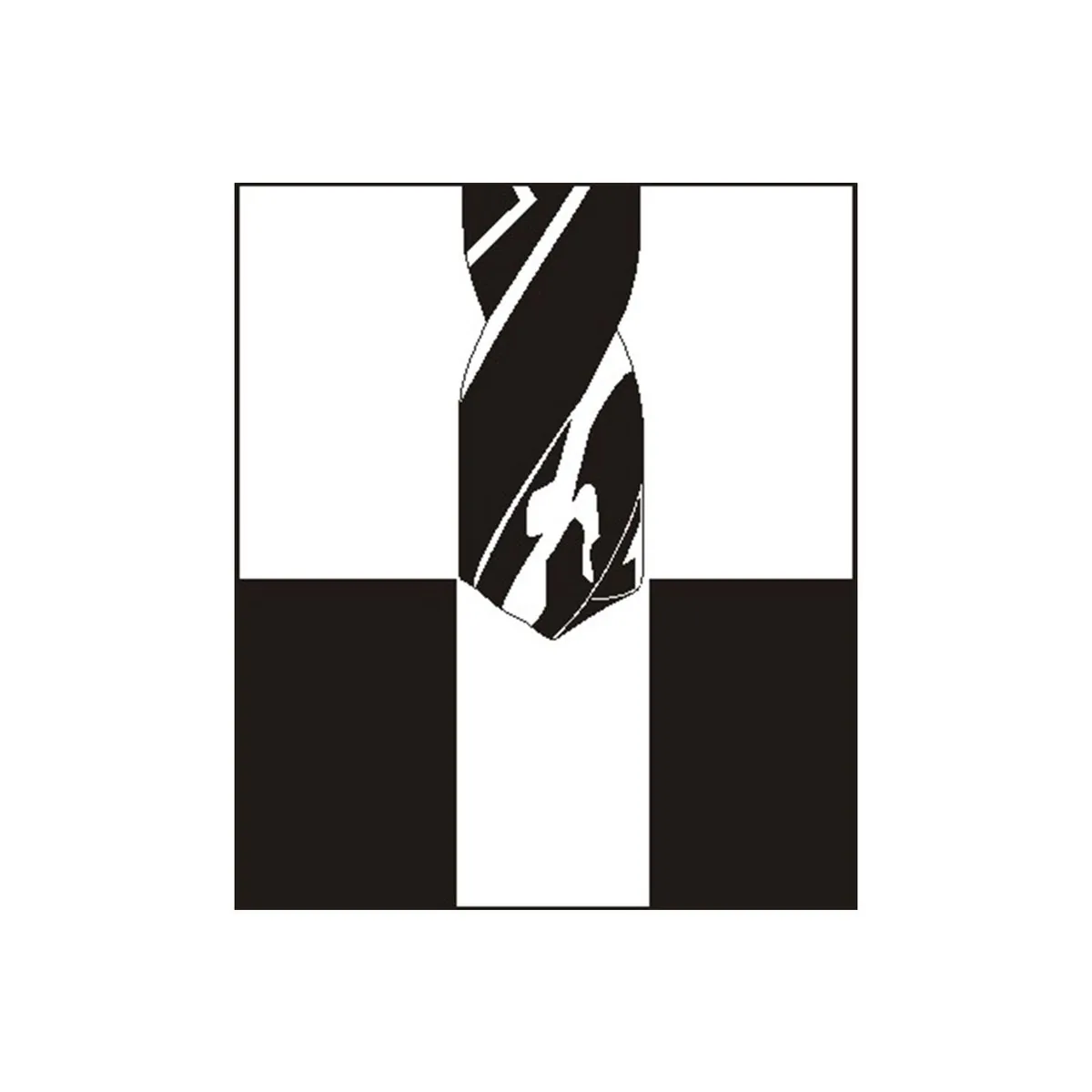

2. Prepare the hole according to the insert system so the damaged thread area is ready for the oversized STI thread.

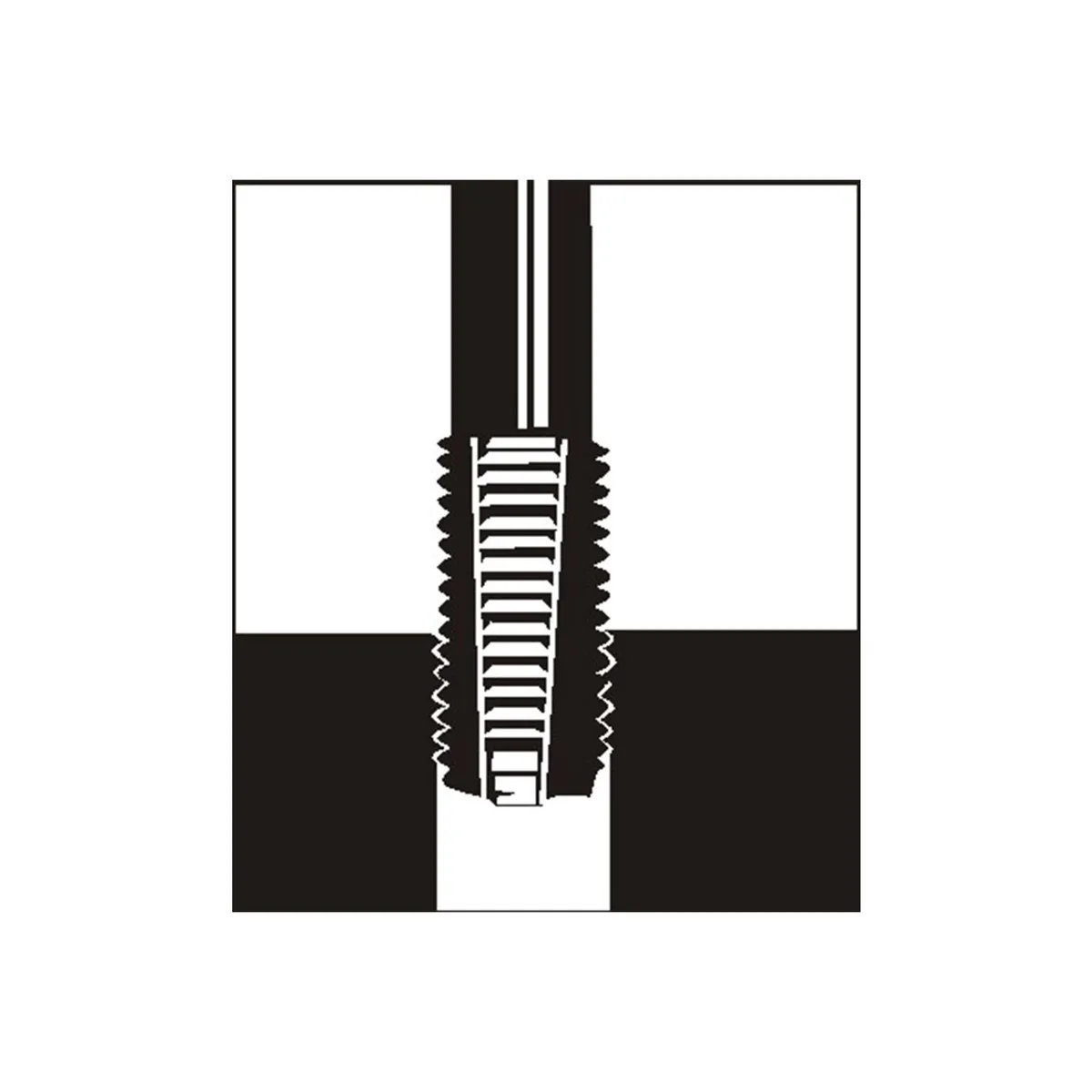

3. Cut the STI mounting thread with the matching repair tap and keep the tool square to the hole axis.
4. Clean the prepared hole so chips, oil residue, and loose material do not interfere with insert seating.

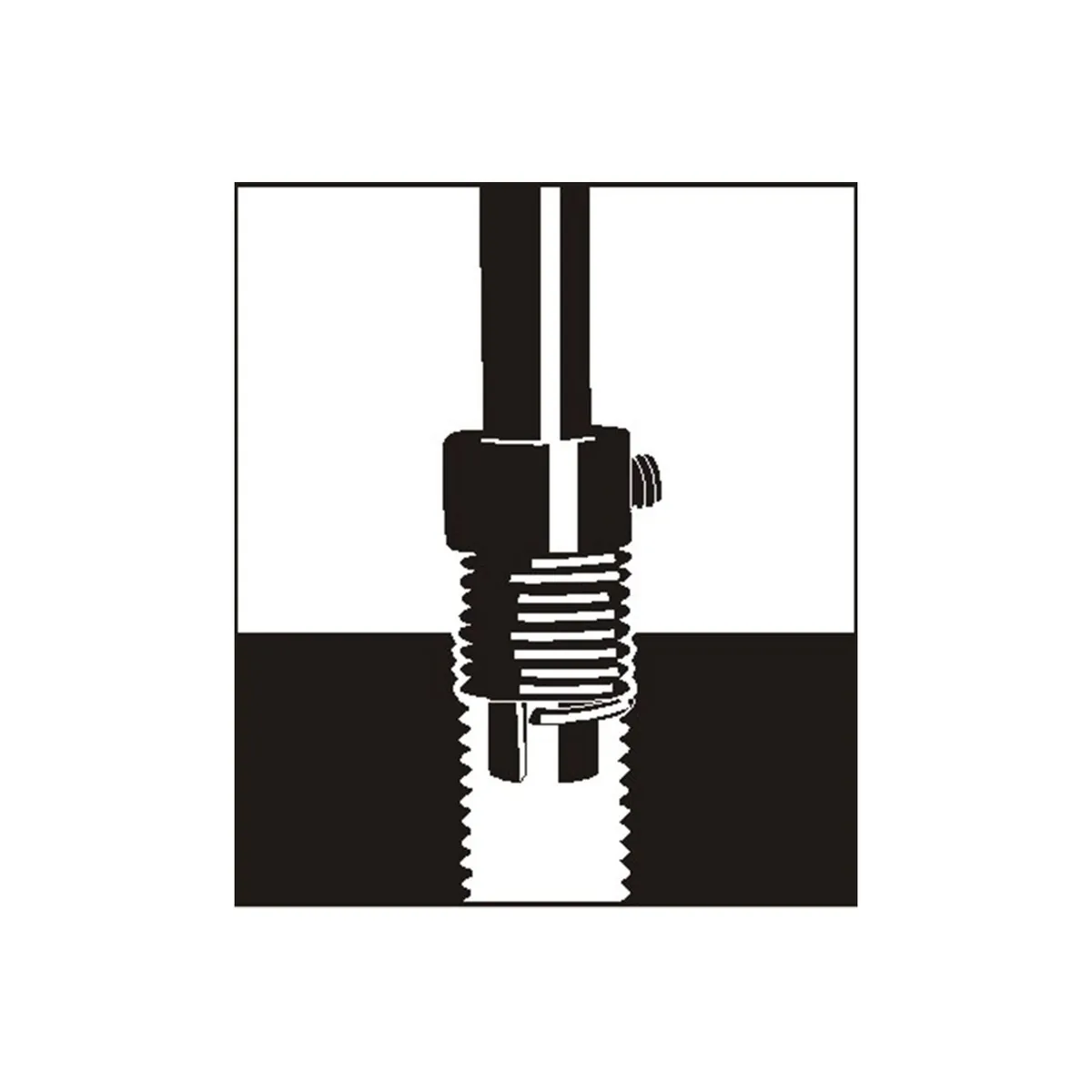

5. Drive the insert with the matching installation tool until it sits correctly below the surface and follows the thread path cleanly.

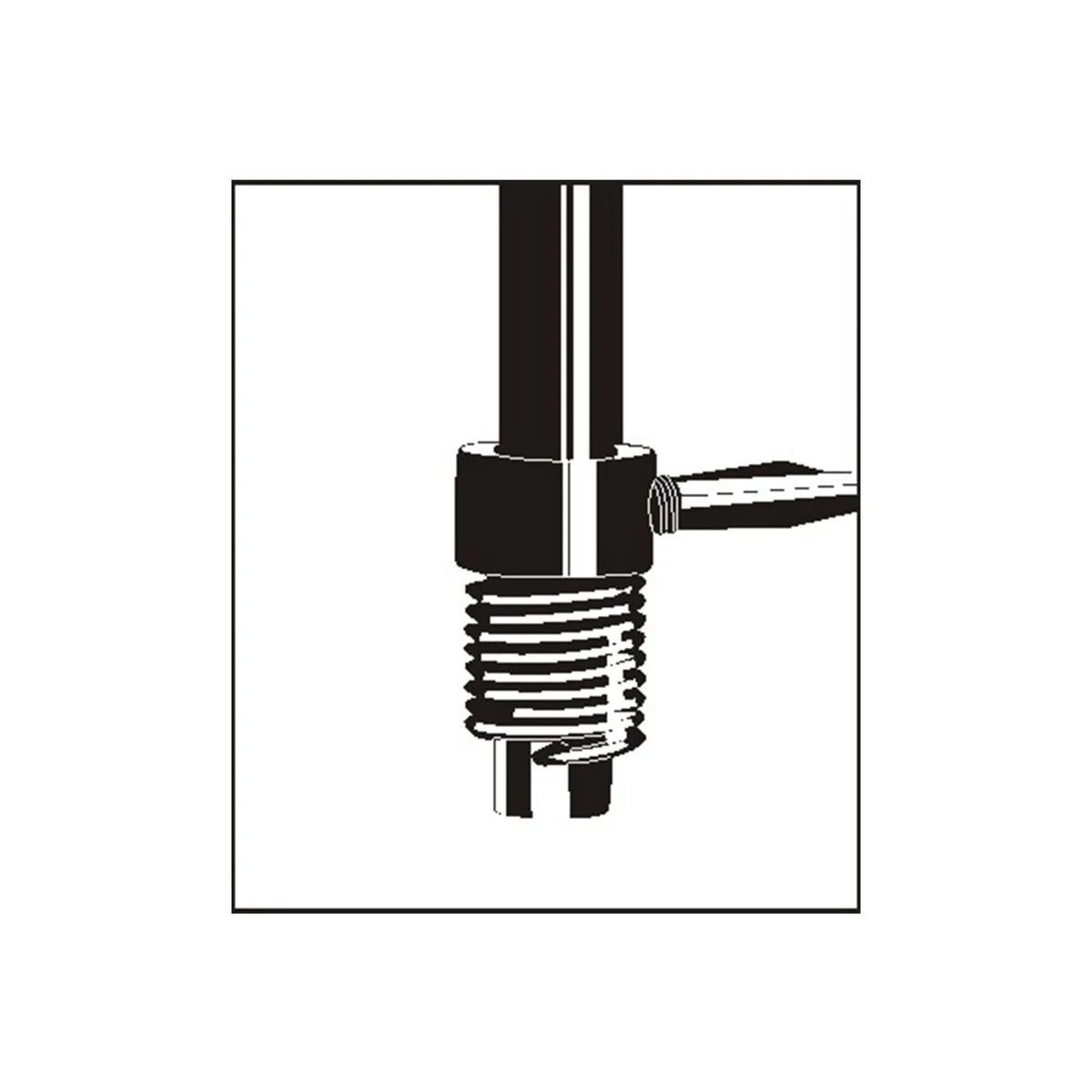

6. Remove the tang where the system requires it and then check that the mating screw runs freely in the repaired thread.

• 5 chiếc V-COIL Ren cấy V-COIL kiểu tự do S UNC 1.1/2 x 6 - 1.5 D (5 pcs.)

• Product type: Ren cấy V-COIL
• Execution: kiểu tự do S
• Thread system: UNC
• Insert length: 1.5D
• Pack size: 5 chiếc
• Material: Stainless thép wire
