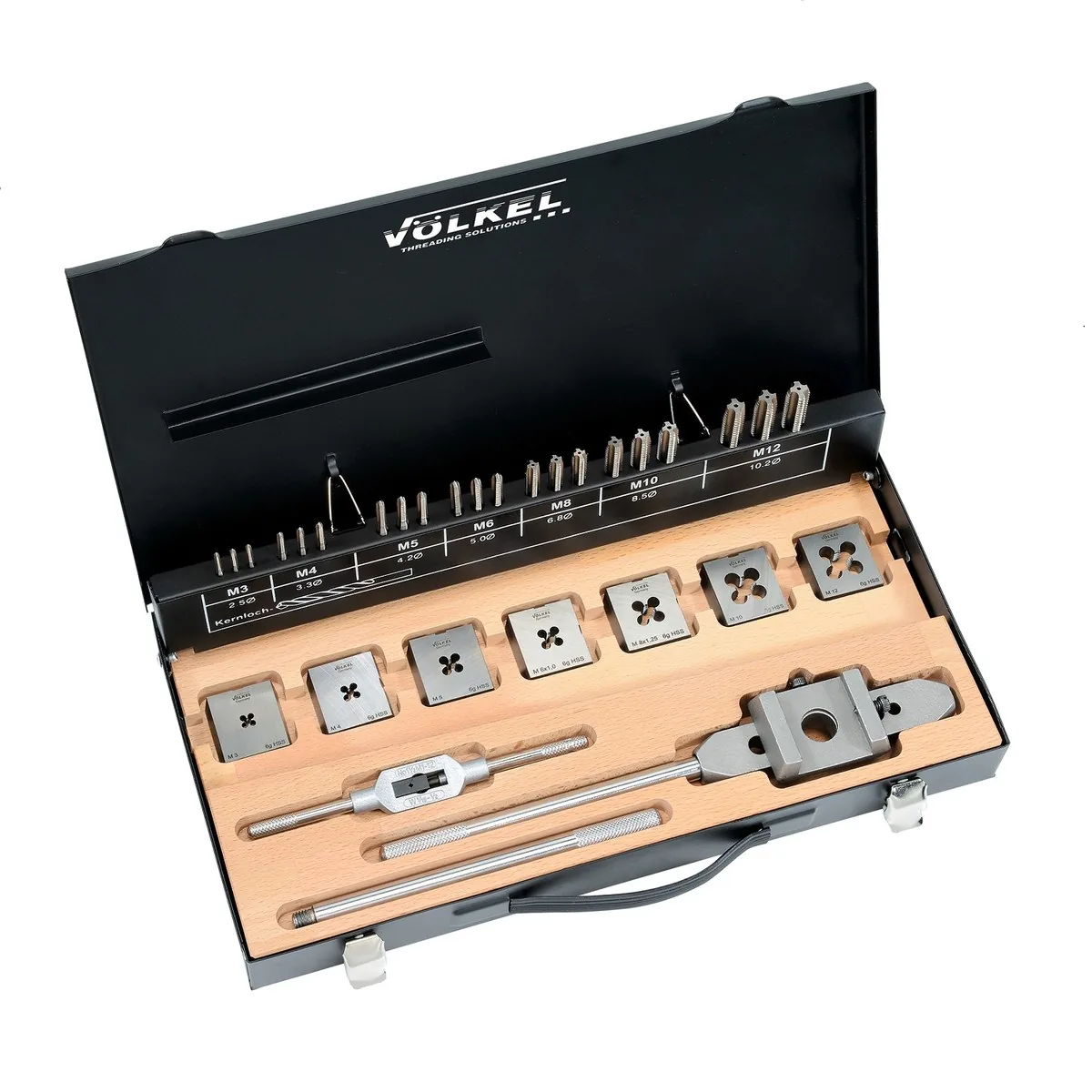

Mũi taro ren tay (tạo ren trong) and square dies (set of 30 pcs.) M 3 – M 12

• Cut ren trong in drilled holes for fasteners, fittings, and mechanical assemblies.
• Use in mechanical engineering, metal fabrication, and maintenance work where controlled threading is required.
• Start the tap square to the hole to reduce risk of cross starting and uneven flank load.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý For consistent results, deburr the entry and keep the cutting area clean during use.

• Controlled ren trong cutting with direct process feedback
• Suitable for repair work, prototyping, and general workshop machining
• Supports repeatable thread fit when the pre hole and alignment are correct
• Applicable across maintenance and production environments

• Not suitable for brittle or abrasive materials without adapted cutting strategy and tool choice.
• Manual or guided threading can be slow for high throughput applications.

1. Prepare the hole with a correct core diameter and a clean entry chamfer.
2. Secure the workpiece and align the tool square to the hole axis.
3. Apply suitable cutting Chất bôi trơn cắt gọt ren for the material and process.
4. Start the tool with controlled torque until it is guided by the thread form.
5. Advance with steady turns or a guided feed while keeping alignment constant.
6. Withdraw the tool at intervals and clear chips from the flutes.
7. Continue until the required thread depth is reached, then remove the tool fully.
8. Clean the thread and check fit with a matching screw or gauge.

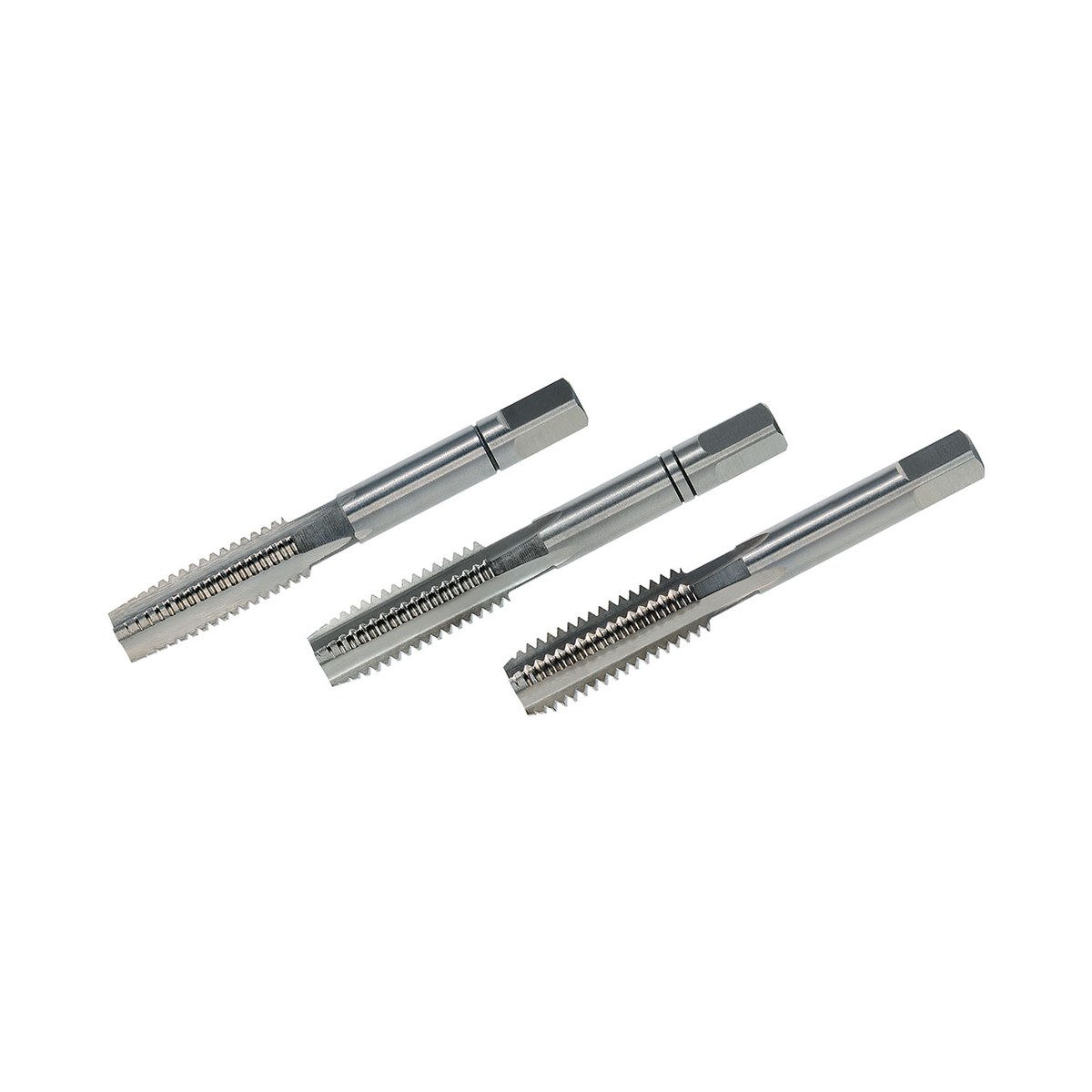

• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - M 3 x 0.5 VÖLKEL 27326
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - M 4 x 0.7 VÖLKEL 27330
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - M 5 x 0.8 VÖLKEL 27334
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - M 6 x 1.0 VÖLKEL 27338
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - M 8 x 1.25 VÖLKEL 27342
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - M 10 x 1.5 VÖLKEL 27346
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - M 12 x 1.75 VÖLKEL 27350
• 1x Square Die HSS - M 3 x 0.5 VÖLKEL 29301
• 1x Square Die HSS - M 4 x 0.7 VÖLKEL 29302
• 1x Square Die HSS - M 5 x 0.8 VÖLKEL 29303
• 1x Square Die HSS - M 6 x 1.0 VÖLKEL 29304

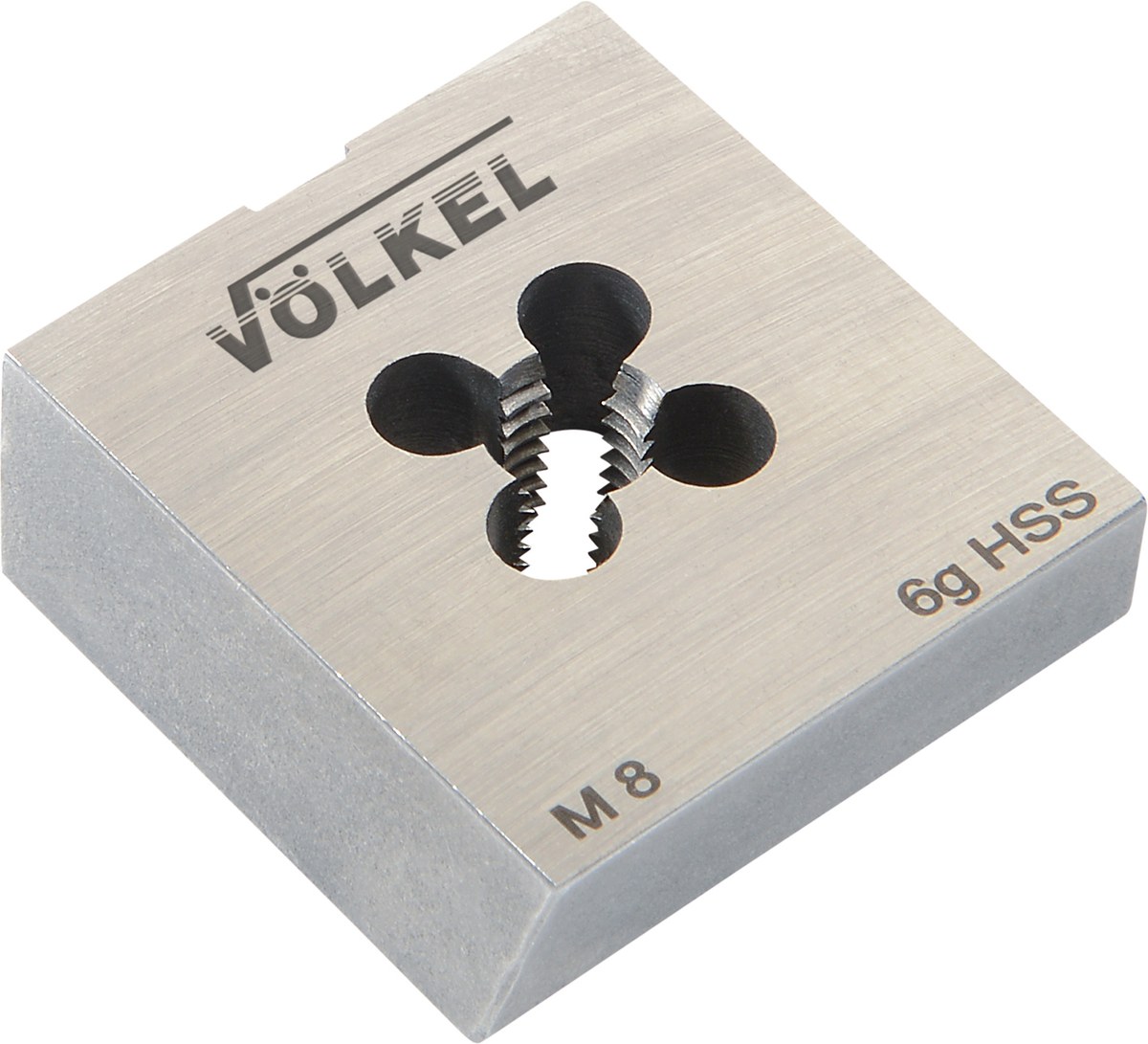

• 1x Square Die HSS - M 8 x 1.25 VÖLKEL 29306
• 1x Square Die HSS - M 10 x 1.5 VÖLKEL 29308
• 1x Square Die HSS - M 12 x 1.75 VÖLKEL 29309

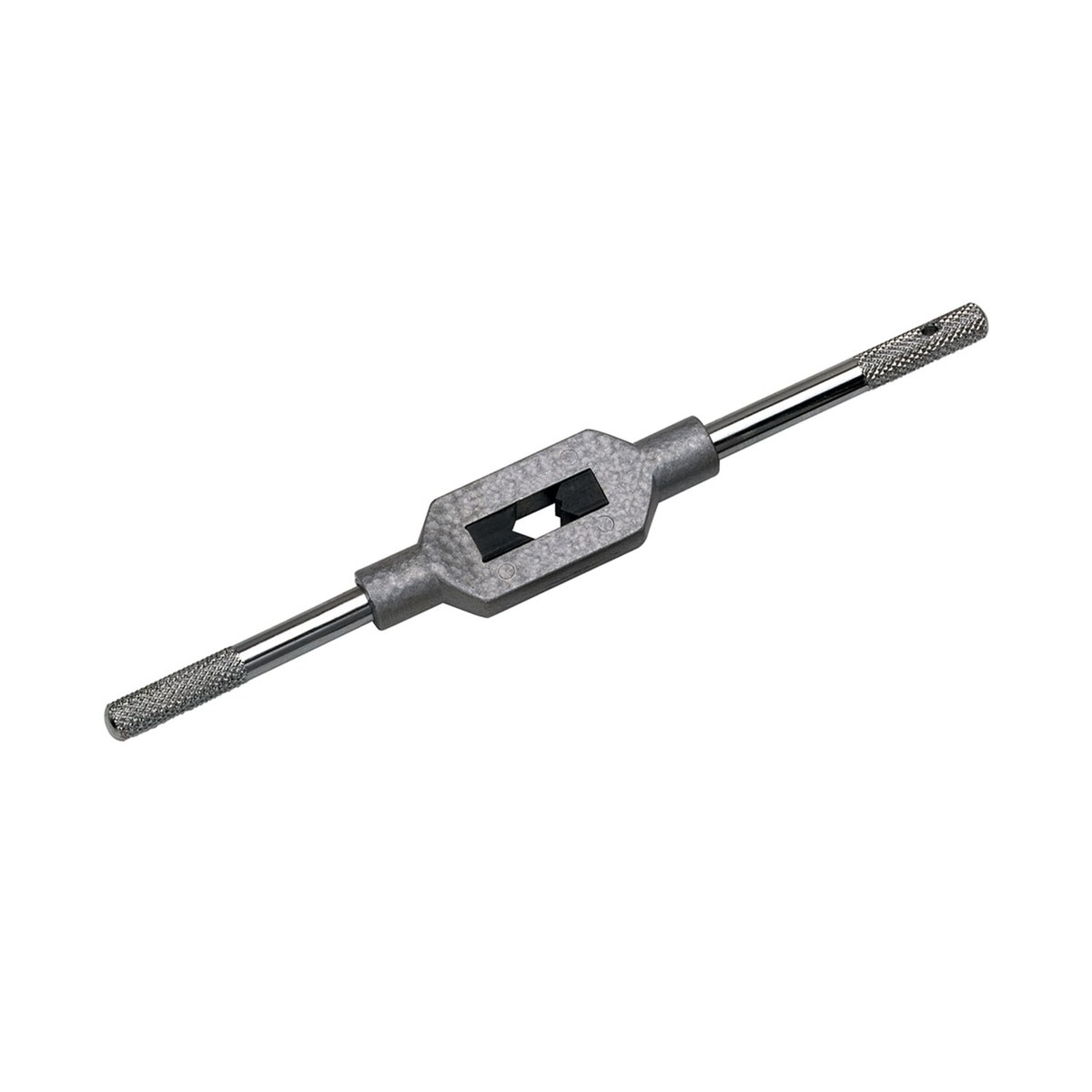

• 1x Tay quay taro điều chỉnh Zinc die cast số 1.1/2 VÖLKEL 13015

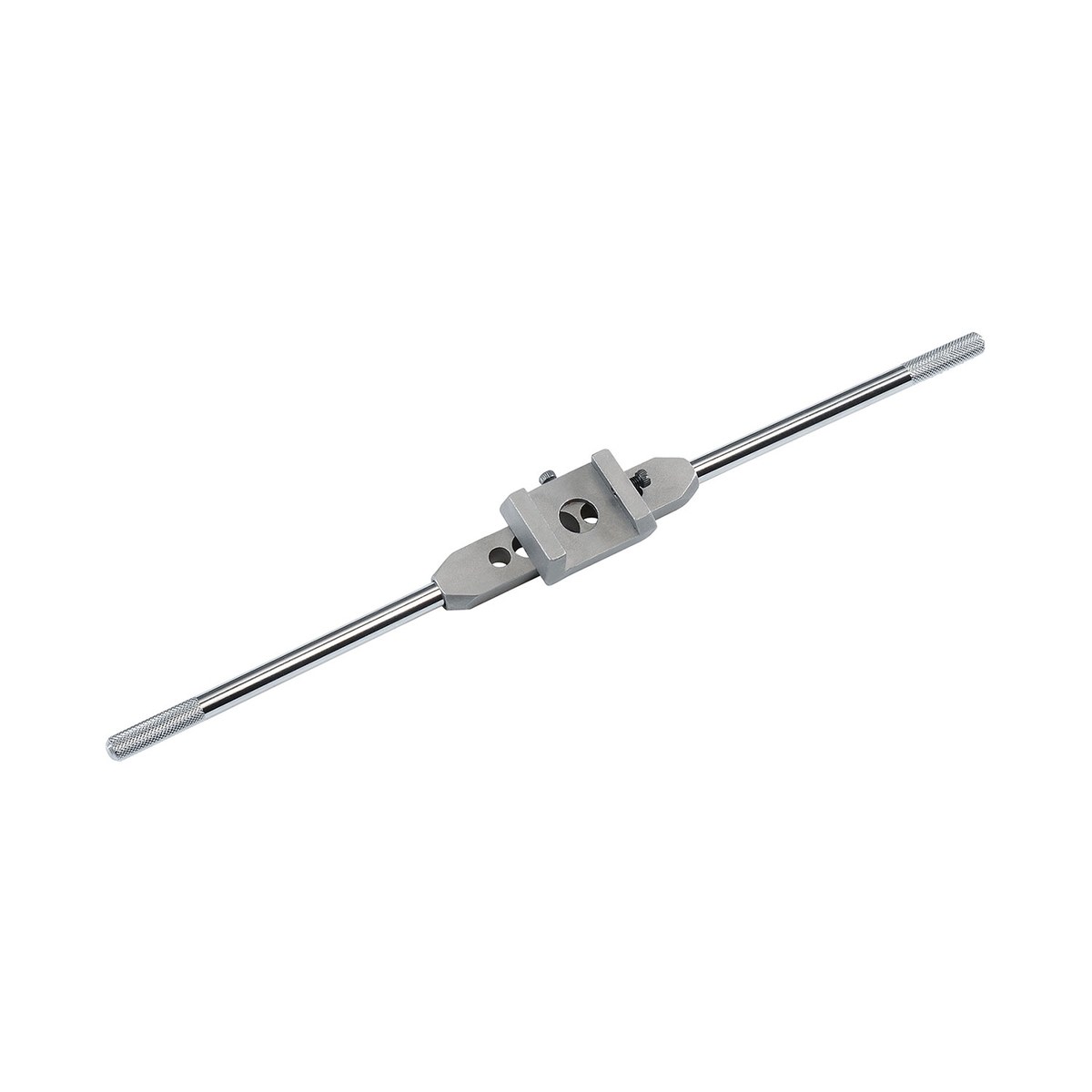

• 1x Tay quay bàn ren for square dies thép số 1 VÖLKEL 29398

• Tool type: Mũi taro ren tay (tạo ren trong)
• Thread system: ISO metric

How do you confirm that the thread system matches the mating part? Match the designation on the tool to the drawing and the mating fastener or gauge. For inch and pipe threads, confirm thread family and fit class before you start machining. How do taper and second Mũi taro ren tay (tạo ren trong) differ in use? A taper lead starts gently and helps alignment, while a second lead engages more quickly after starting. Select based on access, hole type, and how the thread is started. Where can you find technical information for Mũi taro ren tay (tạo ren trong)? Use this document for handling concepts and selection basics. Technical information Mũi taro ren tay (tạo ren trong) as PDF What are common causes of poor thread quality? Misalignment at the start, an incorrect pre hole, or insufficient lubrication can increase torque and damage flanks. Clean chips from the tool and verify setup rigidity. Can you use this tool for reworking an existing thread? You can often re tap or clean threads if the original form is correct and damage is limited. If threads are severely deformed, consider re machining or repair options instead. Where can you find catalog information for this product family? Use the product catalog for overview tables and selection context. VD 23 catalog as PDF
