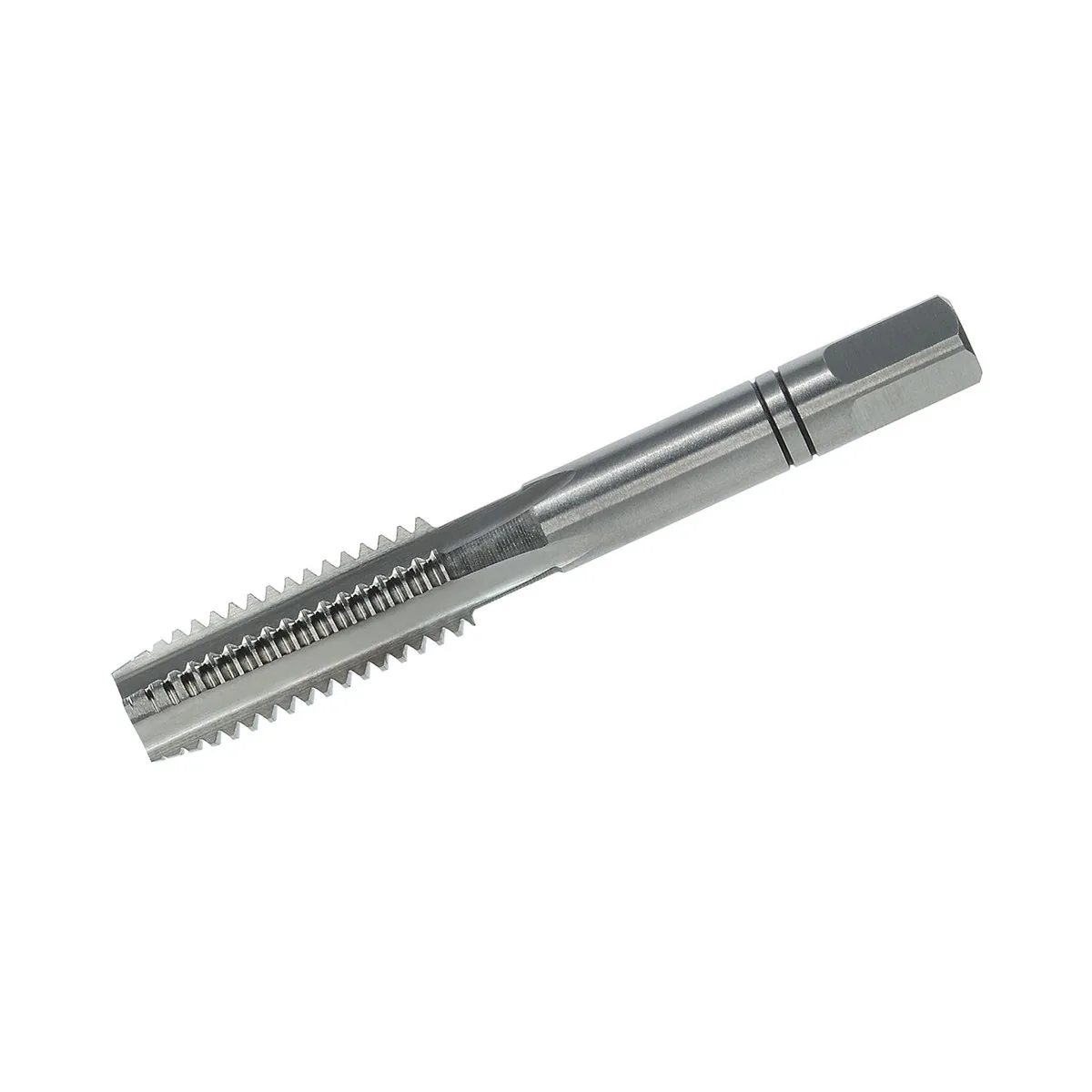

Mũi taro ren tay (tạo ren trong) Intermediate DIN 352 HSS-G - BSW 2" x 4.5

• Cut ren trong in lỗ thông or lỗ bít when you need manual control of the tapping process.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
• Use cutting fluid suitable for the material and keep the tool square to the hole axis.

Lưu ý Verify the thread designation before starting and check the first turns for square alignment.

• Manual control over torque and alignment during cắt ren
• Suitable for workshop repair, maintenance, and low volume production
• Practical for starting threads in assembled or hard to fixture parts
• Ground tool geometry can support consistent cutting action

• Not suitable for abrasive or highly work hardening materials without adapted process control
• Not intended for high performance cycle times in mass production

1. Prepare the hole with the correct pre machining and add a small entry chamfer.
2. Secure the workpiece so it cannot move during tapping.
3. Clamp the tap in a suitable Tay quay taro and bring it to the hole axis squarely.
4. Apply a cutting fluid matched to the workpiece material.
5. Start the first turns with steady pressure while keeping alignment.
6. Advance with controlled torque and reverse slightly at intervals to clear chips from the flutes.
7. Continue until the required thread depth is reached, then back out smoothly.
8. Clean the thread and inspect fit with a gauge or mating part.

• 1 chiếc Mũi taro ren tay (tạo ren trong) Intermediate DIN 352 HSS-G - BSW 2" x 4.5

• Product type: Mũi taro ren tay (tạo ren trong)
• Standard: DIN 352
• Tool material: HSS-G
• Thread designation: BSW 2" x 4.5
• Thread system: BSW
