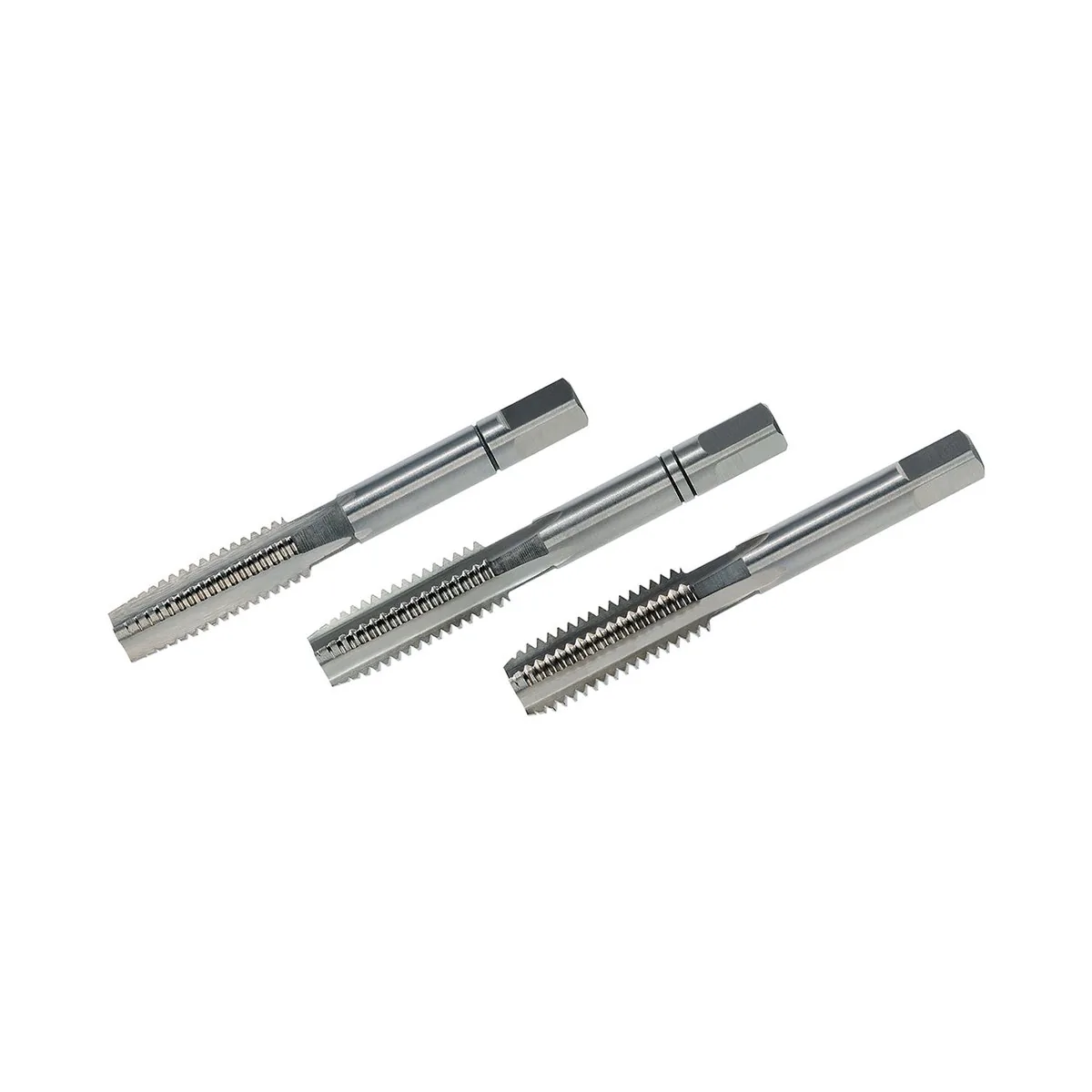

This 3-chiếc VÖLKEL tap set allows you to cut precise and easy metric threads. As a classic Mũi taro ren tay (tạo ren trong) M 4, the set consists of a taper, intermediate, and bottoming tap, which are perfectly matched to each other. With this versatile thread cutter from VÖLKEL, you can cut threads in soft to medium-hard materials. It is the ideal thread cutter for anyone who values quality and clean results.
Q: Why does the set consist of three taps?
A: The 3-chiếc set is designed for hand use. It distributes the cutting load among three tools, which makes cutting easier and increases the tool life of each individual tap. The taper tap starts the cut, the intermediate tap deepens it, and the bottoming tap brings it to the final shape and exact dimension.
Q: What does the tolerance ISO 2 / 6H mean?
A: The tolerance class ISO 2 / 6H is the standard tolerance for ren hệ mét ISO. It ensures that the cut thread is precise enough for most general applications and that common screws will fit the thread.
Q: What is the difference between an HSS-G and an HSS-E tap?
A: HSS-G stands for "High Speed thép - Ground." The material is ideal for easily machinable steels. HSS-E also contains cobalt, which increases hardness and heat resistance, making it suitable for harder or stainless steels.
Q: Is this tap set suitable for lỗ bít?
A: Yes, the set is specifically designed for hand use in both through and lỗ bít. The three-chiếc set allows for a step-by-step process, so the thread can be cleanly cut to the bottom of the blind hole.
Q: What is the recommended torque?
A: The recommended torque depends heavily on the material and the Chất bôi trơn cắt gọt ren. Since this is a hand tool, feel is crucial. Pay attention to the resistance when turning. If the resistance increases sharply, turn the tool back slightly to break the chips, and then continue the cut.
Have more questions? We're happy to help! You can reach us anytime via our biểu mẫu liên hệ.
| Loại ren | metric ISO-thread |
|---|---|
| Tiêu chuẩn | DIN 352 |
| Vật liệu | HSS-G |
| Tolerance | ISO2 (6H) |
| Kích thước | M 4 x 0.7 |
| Overall length (L1) | 45 mm |
| Thread length (L2) | 13 mm |
| Core hole diameter (D1) | 3.3 mm |
| Shank diameter (D2) | 4.5 mm |
| Drive connector | 3.4 mm |
| EAN | 4022835273301 |
| Mã hàng | 27330 |
| Type of flute | straight fluted |
| Phạm vi ứng dụng | for through and blind holes |
| Chuẩn ren | DIN 13 |
| SKU | Hình | Giá VNĐ | Tên sản phẩm & mô tả ngắn | |
|---|---|---|---|---|
| 27330-1 |
|
76.800
|
Mũi taro ren tay (tạo ren trong) Rougher DIN 352 HSS-G - M 4 x 0.7
Mũi taro ren tay (tạo ren trong) Rougher DIN 352 HSS-G - M 4 x 0.7 VÖLKEL, mã 27330-1, phù hợp cho gia công ren trong.
|
|
| 27330-2 |
|
76.800
|
Mũi taro ren tay (tạo ren trong) Intermediate DIN 352 HSS-G - M 4 x 0.7
Mũi taro ren tay (tạo ren trong) Intermediate DIN 352 HSS-G - M 4 x 0.7 VÖLKEL, mã 27330-2, phù hợp cho gia công ren trong.
|
|
| 27330-3 |
|
76.800
|
Mũi taro ren tay (tạo ren trong) Finisher DIN 352 HSS-G - M 4 x 0.7
Mũi taro ren tay (tạo ren trong) Finisher DIN 352 HSS-G - M 4 x 0.7 VÖLKEL, mã 27330-3, phù hợp cho gia công ren trong.
|
