Sanitary Set - G 1/4 - 3/4" - HexTap + Bàn ren lục giác

• for general sanitary and installation applications
• for cleaning and rethreading damaged pipe threads
• practical set with the most common sizes used in the sanitary sector
• suitable for maintenance, repair and installation work

Key advantages:

• HexTap DS double-ended design for high efficiency
• Multi-Drive design for flexible use with standard hand tools
• Bàn ren lục giác according to DIN 382
• no special holders required
• HSS / HSS-G quality for long tool life
• Gel cắt gọt ren included for clean cutting results

1. Identify the thread:
   Determine the pipe thread size (e.g. G 1/2 or G 3/4) and select the matching tool from the set.
2. Prepare the work area:
   Clean the existing thread from dirt, deposits or corrosion to ensure proper tool guidance.
3. Apply Gel cắt gọt ren:
   Apply the supplied Gel cắt gọt ren evenly to the tool and the thread to reduce friction and improve surface quality.
4. Align the tool:
   Position the HexTap DS or Bàn ren lục giác straight onto the thread and ensure correct alignment.
5. Rethread or clean:
   Turn the tool evenly using a ratchet, wrench or open-end spanner. Work in a controlled manner without tilting.
6. Remove the tool:
   Unscrew the tool completely after machining and clean the thread from residues.
7. Check the result:
   Test the thread with a suitable fitting or pipe connection to ensure smooth and accurate engagement.

• Thread type: Pipe thread G (BSP)
• Thread range: G 1/4 – G 3/4
• Taps: HexTap type DS, form C
• Die nuts: Hexagon, DIN 382
• Material: HSS / HSS-G
• Item number: 48651
• EAN: 4022835486510

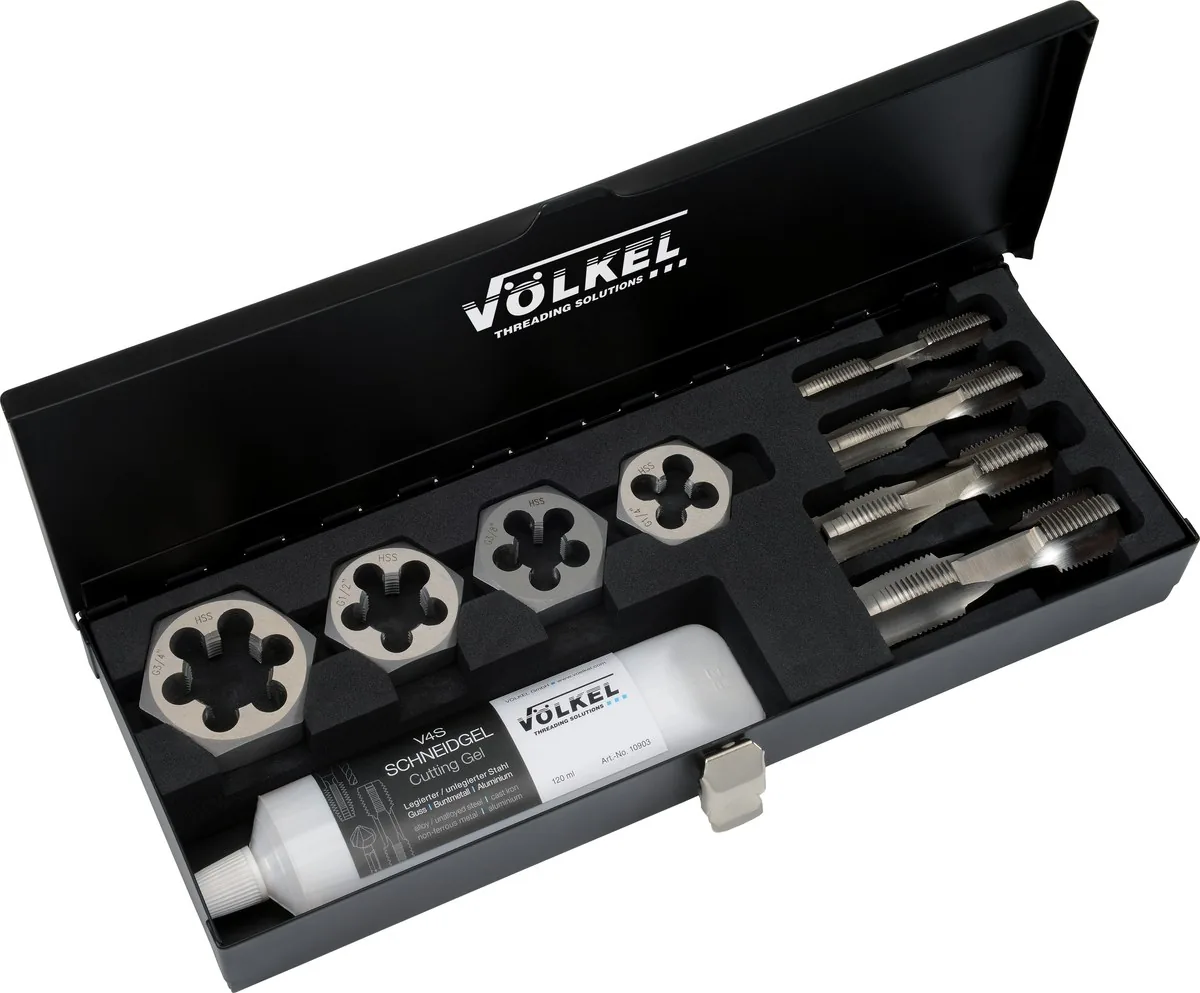

Included:

• 1× Bàn ren lục giác DIN 382 HSS – G 1/4 × 19 (25514)
• 1× Bàn ren lục giác DIN 382 HSS – G 3/8 × 19 (25516)
• 1× Bàn ren lục giác DIN 382 HSS – G 1/2 × 14 (25518)
• 1× Bàn ren lục giác DIN 382 HSS – G 3/4 × 14 (25522)
• 1× HexTap DS double-ended tap, Multi-Drive, HSS-G – G 1/4 × 19 (67871)
• 1× HexTap DS double-ended tap, Multi-Drive, HSS-G – G 3/8 × 19 (67872)
• 1× HexTap DS double-ended tap, Multi-Drive, HSS-G – G 1/2 × 14 (67873)
• 1× HexTap DS double-ended tap, Multi-Drive, HSS-G – G 3/4 × 14 (67874)
• 1× Gel cắt gọt ren V4S, 120 ml (10903)

What applications is this sanitary set suitable for?

The set is ideal for typical sanitary work such as cleaning, rethreading and repairing damaged pipe threads.

Which thread types can be machined?

The set is designed for pipe threads G (BSP) from G 1/4 to G 3/4.

Do I need special holders or machines?

số All tools can be used with standard hand tools such as ratchets, spanners or open-end wrenches.

Is the set suitable for repair work?

Yes, it is particularly well suited for cleaning and reworking damaged threads.

Why is Gel cắt gọt ren included?

The Gel cắt gọt ren reduces friction, improves surface quality and helps extend tool life.

Can the individual tools be reordered?

Yes, all included HexTap DS taps and Bàn ren lục giác are also available individually.
