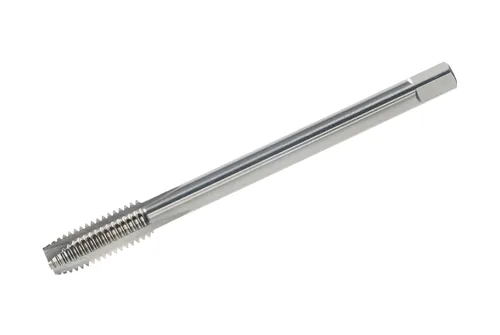

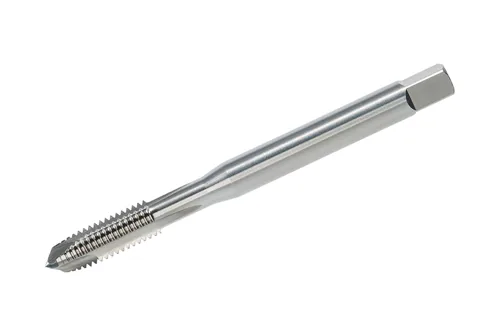

WHITE RING Machine taps (set of 14 pcs.) incl. drills DIN 371/376 M 3 – M 12
Use this tool when you need reliable thread creation or re-tapping on the shop floor. Correct preparation, alignment, and lubrication are the main practical checkpoints.
Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.
- Cut or restore ren trong in pre-drilled holes in maintenance work, prototyping, and controlled small batch production.
- Select the tool by the thread designation and standard stated in the product name and keep the tool square to the bore axis.
- Use cutting fluid matched to the material to reduce friction and support chip evacuation from the flutes.
- Process: manual driving or assisted driving depending on your holder and machine setup
- Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
Lưu ý Verify the workpiece preparation before you start and stop if torque increases unexpectedly.
- Controlled ren trong cutting for workshop and maintenance tasks.
- Supports clean thread start when you keep the tap aligned and use suitable lubrication.
- Fits common tapping workflows for lỗ thông and lỗ bít as stated in the product name.
- Useful for repair tapping when you need manual feel and torque feedback.
Hạn chế
- Not suitable for very hard or highly abrasive materials where carbide tooling is required.
- Not suitable for high volume production tapping where cycle time is critical.
- Confirm the thread designation in the product name and prepare a suitable core hole for that thread system.
- Chamfer the hole edge and remove burrs so the tap starts cleanly.
- Secure the tap in a suitable holder and align it square to the bore axis.
- Apply cutting fluid matched to the material and start with steady torque.
- Advance with controlled feed and briefly back off when torque rises to clear chips.
- Continue until the required depth is reached, then reverse out fully.
- Clean the thread and verify fit with a matching fastener or gauge.
- Tool type: Mũi taro máy
- Thread system: Metric ISO
- Standard: DIN 371
- How do you select the correct tool variant from the product name?
- Match the thread designation and standard stated in the product name to your drawing or the mating fastener. Confirm whether you need an internal or ren ngoài tool and whether the thread is trái or right hand.
- What does the thread designation in the product name mean?
- Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.
- Where can you find technical guidance for machine taps?
- Technical information machine taps as PDF
- How do you reduce the risk of cross-threading at the start?
- Prepare a clean chamfer and keep the tool axis aligned with the hole or rod axis. Start with controlled torque and stop if the tool tilts or binds.
- How do you verify the result after threading?
- Use the mating part or a suitable thread gauge to confirm smooth engagement and correct fit. Clean the thread first so chips do not mask the result.
- Where can you find more product and application information in a catalog?
- VD 23 catalog as PDF
