Machine Tap DIN 374 Form C HSSE - Vg 8 x 32

Name: Machine Tap DIN 374 Form C HSSE - Vg 8 x 32
Brand: VOLKEL
SKU: 79433
Price: 3626000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

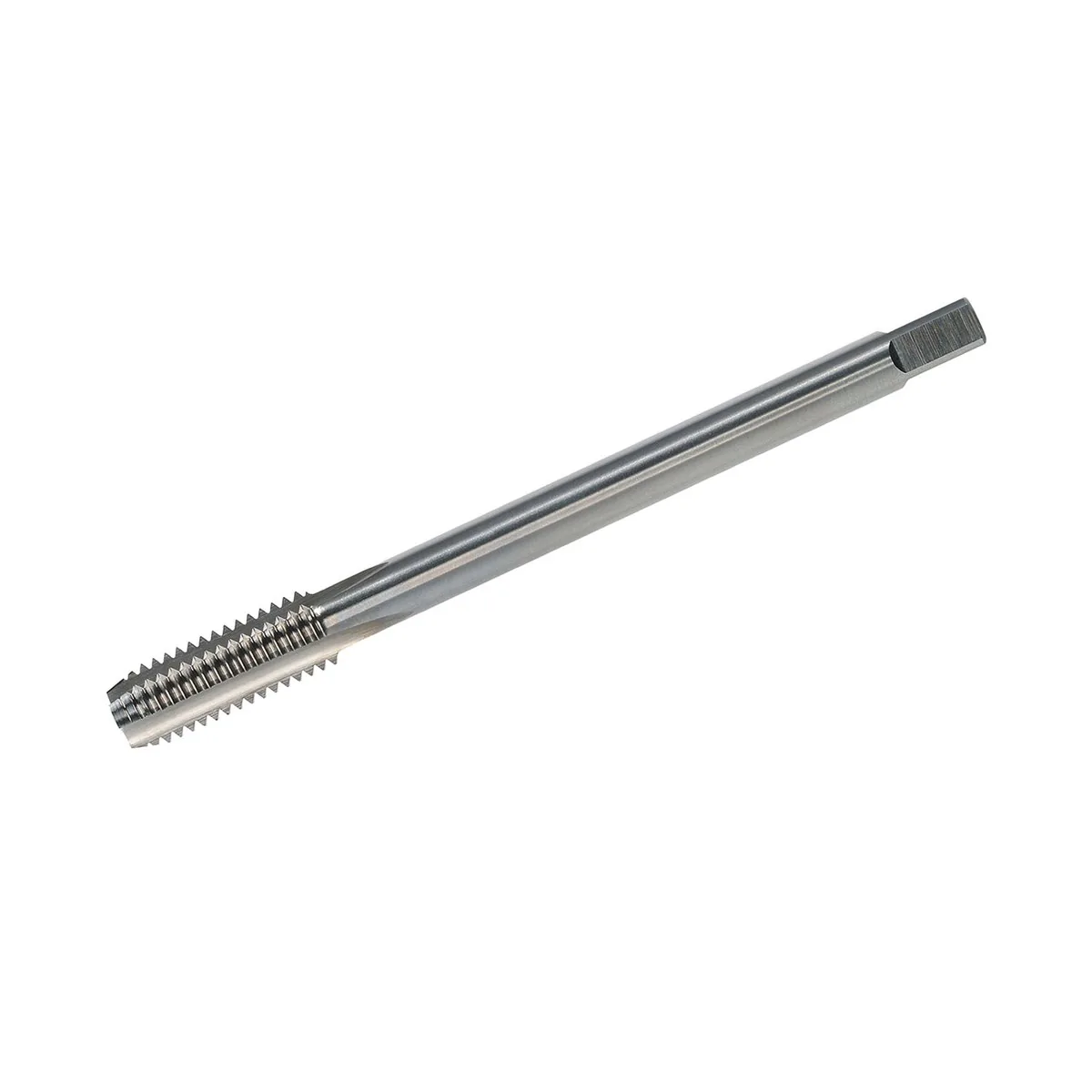

Machine Tap DIN 374 Form C HSSE - Vg 8 x 32 by VÖLKEL, item no. 79433, suitable for cutting internal threads.

SKU: 79433

3.626.000 đ

Price includes VAT

Description

Machine Tap DIN 374 Form C HSSE - Vg 8 x 32

Use this machine tap for internal thread production in workshop processes where repeatability and clean lead-in are required. The thread designation is Vg 8 x 32.

Use the tool material and the specified standard as your baseline, then align the holder to the hole axis to reduce flank damage. The execution follows DIN 374.

Application

Cut internal threads in pre-drilled holes using a controlled machine process.
Use a machine tap holder, collet system, or tapping attachment suited to the tap shank and drive.
Process: manual driving or assisted driving depending on your holder and machine setup.
Use: thread cutting, re tapping, and thread cleaning depending on condition.

Note Use cutting fluid suited to the workpiece material and keep the tool clean and protected after use.

Benefits

Enables controlled chip transport when cutting fluid and reversal are managed
Fits typical tap holding systems appropriate to the tool type
Makes selection easier by referencing standard, form, and thread designation
Provides a defined chamfer form for consistent thread start
Supports stable cutting edges for frequent use in service operations

Drawbacks

Limited suitability for very hard materials unless a dedicated execution is specified
Not suitable for uncontrolled hand tapping without a guided holder

Step by step

Confirm the thread designation and ensure the workpiece hole is prepared and free of burrs.
Secure the workpiece so the hole axis is stable during the tapping cycle.
Mount the tap in a suitable machine tap holder and check that the tool runs true.
Apply cutting fluid suited to the workpiece material.
Align the tool to the hole axis before you start the tapping cycle.
Run the tapping cycle with controlled feed and observe chip evacuation.
Reverse out under control when the required thread depth is reached.
Clean the thread and the tool, then protect the cutting edges for storage.

Scope of supply

Scope of supply is not specified in the provided product data for this item.

Technical features

Tool type: Machine tap
Standard: DIN 374
Chamfer form: Form C
Tool material: HSSE
Thread system: Vg

Frequently asked questions (FAQ)

When should you use a machine tap instead of a hand tap Use a machine tap when you can guide the tool with a machine spindle and a suitable tap holder, and when you want controlled feed that matches the thread pitch. What holder type do you need for this tap Use a machine tap holder, collet system, or tapping chuck that supports the tap shank and keeps alignment to the hole axis stable. What preparation is required before you tap the thread Prepare the core hole to the correct size for the thread designation, remove burrs, and add a small lead-in chamfer so the tap can start without side load. How do you control chips and cutting fluid during tapping Use cutting fluid suited to the workpiece material and clear chips regularly, especially in deeper holes or tougher materials, to prevent chip packing and tool overload. Where can you find additional technical information for this execution Use the following PDF for reference on machine tapping basics: Technical information machine taps as PDF How do you reduce risk of tap breakage Keep alignment stable, avoid side load at entry, and stop if torque rises sharply so you can inspect hole preparation, lubrication, and chip evacuation. Where can you find more product and application information in the VÖLKEL catalog Use this catalog for additional details and related items: VD 23 catalog as PDF How do you inspect the thread after tapping Check that the thread is clean, that the start is not damaged, and that the functional fit matches the mating component used in your assembly.

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	Valve thread
Standard	DIN 374
Form	Form C
Material	HSSE
Tolerance	medium
Size	Vg 8 x 32
Overall length (L1)	80 mm
Thread length (L2)	16 mm
Core hole diameter (D1)	6.9 mm
Shank diameter (D2)	8.0 mm
Drive connector	6.2 mm
EAN	4022835794332
Item number	79433
Type of flute	straight fluted
Application	for through and blind holes
Thread standard	DIN 7756
