Machine Tap DIN 374 Form C HSSE - BSC 9/16 x 20

Name: Machine Tap DIN 374 Form C HSSE - BSC 9/16 x 20
Brand: VOLKEL
SKU: 79423
Price: 3919000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

Machine Tap DIN 374 Form C HSSE - BSC 9/16 x 20 by VÖLKEL, item no. 79423, suitable for cutting internal threads.

SKU: 79423

3.919.000 đ

Price includes VAT

Description

Machine Tap DIN 374 Form C HSSE - BSC 9/16 x 20

Use this machine tap for internal thread production in workshop processes where repeatability and clean lead-in are required. The thread designation is BSC 9/16 x 20.

Check whether the execution is right hand or left hand, then plan the tapping cycle and reversal strategy to avoid chip packing and tool overload. The execution follows DIN 374. Form C defines the chamfer and lead-in behavior.

Application

Cut internal threads in pre-drilled holes using a controlled machine process.
Use a machine tap holder, collet system, or tapping attachment suited to the tap shank and drive.
Process: manual driving or assisted driving depending on your holder and machine setup.
Use: thread cutting, re tapping, and thread cleaning depending on condition.

Note Use cutting fluid suited to the workpiece material and keep the tool clean and protected after use.

Benefits

Enables controlled chip transport when cutting fluid and reversal are managed
Fits typical tap holding systems appropriate to the tool type
Makes selection easier by referencing standard, form, and thread designation
Reduces risk of cross-threading when the tool is started square
Helps you maintain process control across single parts and small batches

Drawbacks

Limited suitability for very hard materials unless a dedicated execution is specified
Not suitable for uncontrolled hand tapping without a guided holder

Step by step

Confirm the thread designation and ensure the workpiece hole is prepared and free of burrs.
Secure the workpiece so the hole axis is stable during the tapping cycle.
Mount the tap in a suitable machine tap holder and check that the tool runs true.
Apply cutting fluid suited to the workpiece material.
Align the tool to the hole axis before you start the tapping cycle.
Run the tapping cycle with controlled feed and observe chip evacuation.
Reverse out under control when the required thread depth is reached.
Clean the thread and the tool, then protect the cutting edges for storage.

Scope of supply

Scope of supply is not specified in the provided product data for this item.

Technical features

Tool type: Machine tap
Standard: DIN 374

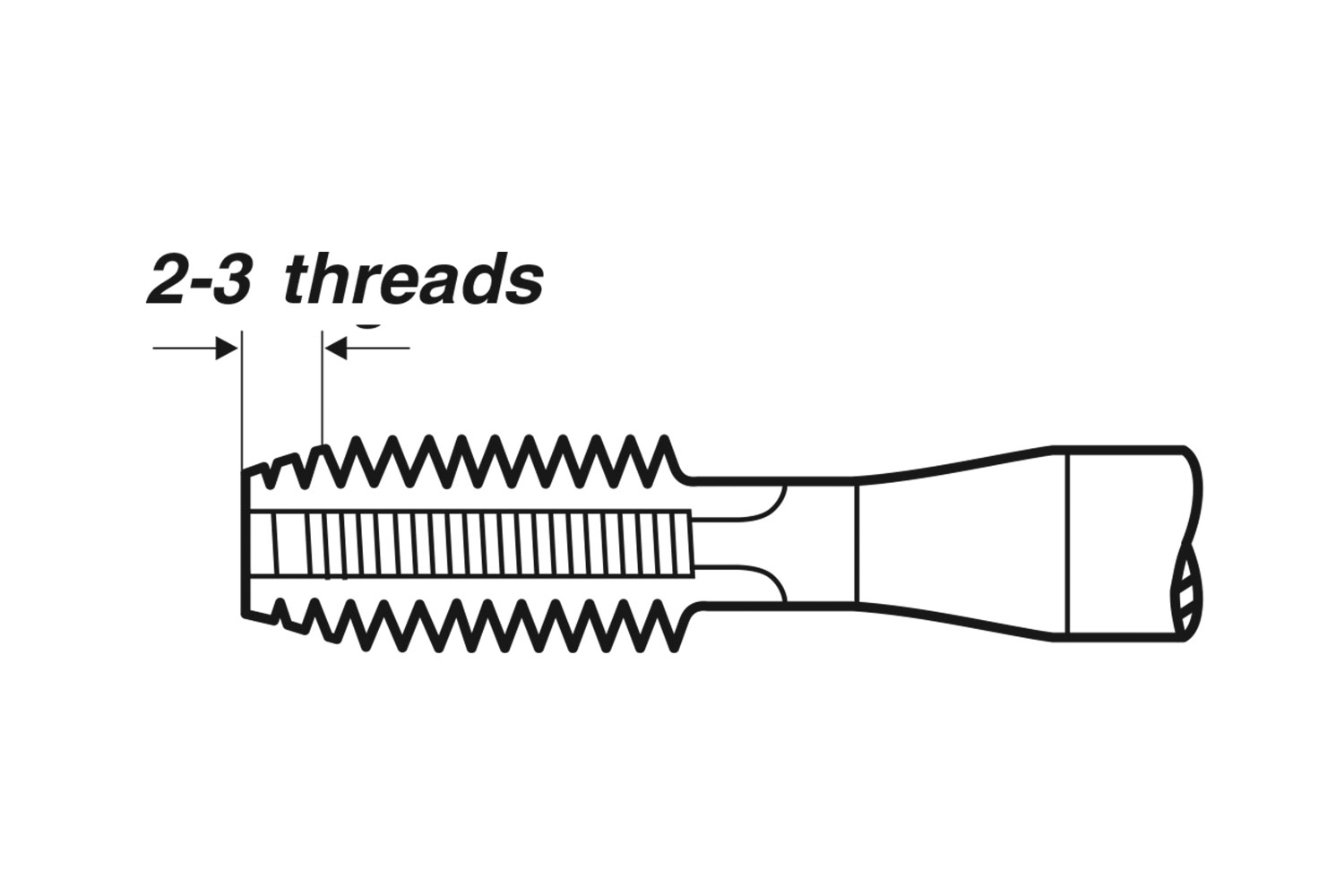

Chamfer form: Form C
Tool material: HSSE
Thread system: BSC

Frequently asked questions (FAQ)

When should you use a machine tap instead of a hand tap Use a machine tap when you can guide the tool with a machine spindle and a suitable tap holder, and when you want controlled feed that matches the thread pitch. What holder type do you need for this tap Use a machine tap holder, collet system, or tapping chuck that supports the tap shank and keeps alignment to the hole axis stable. What preparation is required before you tap the thread Prepare the core hole to the correct size for the thread designation, remove burrs, and add a small lead-in chamfer so the tap can start without side load. How do you control chips and cutting fluid during tapping Use cutting fluid suited to the workpiece material and clear chips regularly, especially in deeper holes or tougher materials, to prevent chip packing and tool overload. Where can you find additional technical information for this execution Use the following PDF for reference on machine tapping basics: Technical information machine taps as PDF How do you reduce risk of tap breakage Keep alignment stable, avoid side load at entry, and stop if torque rises sharply so you can inspect hole preparation, lubrication, and chip evacuation. Where can you find more product and application information in the VÖLKEL catalog Use this catalog for additional details and related items: VD 23 catalog as PDF How do you inspect the thread after tapping Check that the thread is clean, that the start is not damaged, and that the functional fit matches the mating component used in your assembly.

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	British Cycle Thread
Standard	DIN 374
Form	Form C
Material	HSSE
Tolerance	medium
Size	BSC 9/16 x 20
Overall length (L1)	100 mm
Thread length (L2)	22 mm
Core hole diameter (D1)	13.1 mm
Shank diameter (D2)	11.0 mm
Drive connector	9.0 mm
EAN	4022835794233
Item number	79423
Type of flute	straight fluted
Application	for through and blind holes
Thread standard	BS 814
