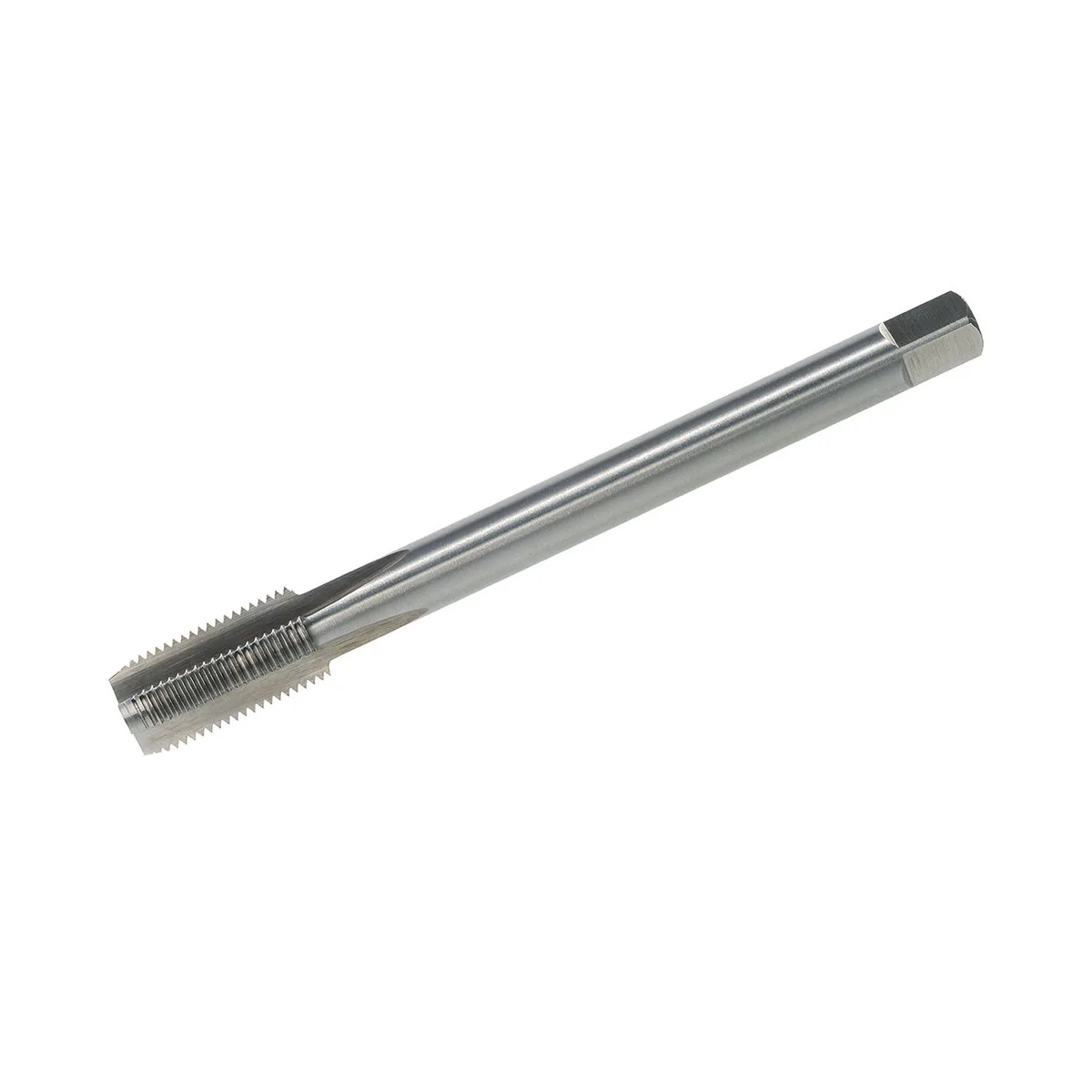

Machine Tap DIN 374 Form C HSSE - Rc (BSPT) 1/8 x 28

Name: Machine Tap DIN 374 Form C HSSE - Rc (BSPT) 1/8 x 28
Brand: VOLKEL
SKU: 73404
Price: 923000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

Machine Tap DIN 374 Form C HSSE - Rc (BSPT) 1/8 x 28 by VÖLKEL, item no. 73404, suitable for cutting internal threads.

SKU: 73404

923.000 đ

Price includes VAT

Description

Machine Tap DIN 374 Form C HSSE – Rc (BSPT) 1/8 × 28

This high-performance machine tap from VÖLKEL, manufactured according to DIN 374 Form C, is designed for cutting tapered pipe threads Rc (BSPT). With a short lead (Form C) and precise geometry, it is ideal for producing accurate and leak-proof threads in through and blind holes. Made from HSSE, it ensures long service life, excellent wear resistance, and smooth cutting results in steels up to 900 N/mm².

Application

For general use
For non abrasive materials up to 900 N/mm²
For unalloyed and low alloyed steels
For through and blind holes
Tapered thread design for leak-tight joints

1× Machine Tap HSSE – Rc (BSPT) 1/8 × 28 – DIN 374, Form C

Matching holders and lubricants are available separately.

Technical Data

Thread type	Tapered pipe thread Rc (BSPT), 55°, taper 1:16
Standard	DIN 374
Form	Form C
Material	HSSE
Nominal size	Rc 1/8 × 28
Overall length (L1)	90 mm
Thread length (L2)	20 mm
Shank diameter (D2)	7 mm
Drive square	5.5 mm
EAN	4022835734048
Article number	73404

Step-by-Step Instructions

Drill the core hole as specified for BSPT and slightly deburr the edge.
Securely clamp the tap and ensure correct alignment.
Apply cutting oil generously and reapply as needed.
Cut the tapered thread steadily and evenly.
Clean the thread and check with a BSPT gauge or fitting.

FAQ

What’s the difference between Rc and R?
Rc refers to internal tapered threads, while R refers to external BSPT threads.

How does the seal work?
The 1:16 taper creates a self-sealing fit without needing additional sealant, though thread tape can be added.

Can it be used for stainless steel?
Only conditionally – for INOX, a TiN or TiCN-coated version is recommended.

What does HSSE stand for?
High Speed Steel with cobalt for improved heat resistance and durability.

Can it be used manually?
Yes, but a machine setup provides more consistent precision.

Need more details? Contact us anytime via our contact form.

.accordion-container {margin-top:20px;border:1px solid #e0e0e0;border-radius:5px;overflow:hidden;} .accordion-item {border-bottom:1px solid #eee;} .accordion-item:last-child {border-bottom:none;} .accordion-header {padding:15px 20px;background:#f8f8f8;cursor:pointer;display:flex;align-items:center;justify-content:space-between;font-weight:600;color:#333;} .accordion-header h3 {margin:0;font-size:1.1em;} .accordion-header::after {content:'\25BC';font-size:0.8em;transition:transform 0.2s ease;margin-left:10px;} details[open] > summary.accordion-header::after {transform:rotate(-180deg);} .accordion-header:hover {background:#f0f0f0;} .accordion-content {padding:15px 20px;background:#fff;color:#555;line-height:1.6;} .specs-table {width:100%;border-collapse:collapse;margin-top:10px;} .specs-table td {padding:8px 10px;border-bottom:1px solid #ddd;} .specs-table td:first-child {font-weight:600;width:200px;}

Specifications

Type of thread	tapered pipe thread, taper 1:16, con. 55°
Standard	DIN 374
Form	Form C
Material	HSSE
Tolerance	medium
Size	Rc (BSPT) 1/8 x 28
Overall length (L1)	90 mm
Thread length (L2)	20 mm
Core hole diameter (D1)	8.2 mm
Shank diameter (D2)	7.0 mm
Drive connector	5.5 mm
EAN	4022835734048
Item number	73404
Type of flute	straight fluted
Application	for through and blind holes
Thread standard	ISO 7-1
