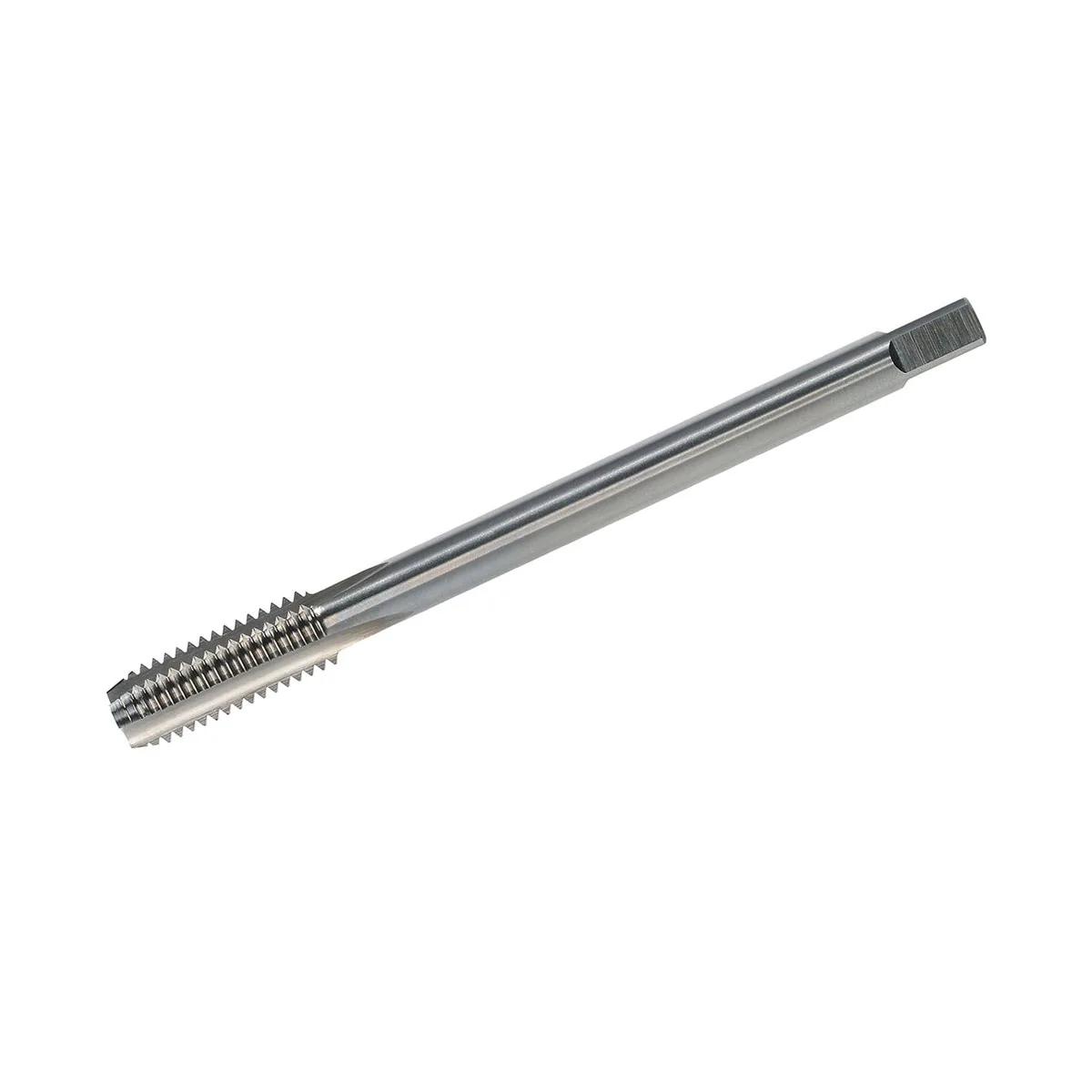

Machine Tap DIN 374 Form C HSSE - M 27 x 1.5

Name: Machine Tap DIN 374 Form C HSSE - M 27 x 1.5
Brand: VOLKEL
SKU: 39456
Price: 3956000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

Machine Tap DIN 374 Form C HSSE - M 27 x 1.5 by VÖLKEL, item no. 39456, suitable for cutting internal threads.

SKU: 39456

3.956.000 đ

Price includes VAT

Description

Machine Tap DIN 374 Form C HSSE - M 27 x 1.5

Machine Tap DIN 374 Form C HSSE - M 27 x 1.5 is intended for practical thread production where you need repeatable results in a workshop or on site.

Selection is driven by thread standard, material group, and the flute geometry shown in the product name, especially when you work in blind holes.

Application

Cut internal threads in predrilled holes in mechanical engineering, maintenance, and metal fabrication.
Use for ISO metric threads as designated in the product name.
Use for blind holes or through holes based on lead form and flute geometry.
Use a machine tap holder or tapping chuck that clamps the shank securely and supports straight entry.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: thread cutting, re tapping, and thread cleaning depending on condition

Note Verify the exact designation, standard, and tolerance in the product name before you start.

Benefits

Simple inspection using a suitable screw or gauge after cleaning the thread.
Efficient chip transport supported by flute design when correct cutting fluid is used.
Clear assignment to ISO metric threads through the designation in the product name.
Suitable for repeatable workflows in maintenance and serial production setups.
Consistent internal thread geometry when the tool is guided square to the surface.

Drawbacks

Not suitable for hard to machine materials without defined cutting data and stable machine rigidity.
Not intended for high output production where dedicated high performance tooling is required.

Step by step

Confirm the thread designation in the product name matches the drawing and the mating screw.
Prepare a suitable predrilled hole and deburr the entry for clean lead in.
Clamp the tap in a stable machine tap holder or tapping chuck.
Align the spindle square to the surface so the tap starts without side load.
Apply suitable cutting fluid and start tapping with steady feed.
Monitor chip evacuation and reverse out to clear chips if resistance increases.
Back out completely and flush the thread to remove chips and fluid residues.
Inspect the result with a suitable screw or gauge before assembly.

Scope of supply

The provided product data does not include an itemized scope of supply for Machine Tap DIN 374 Form C HSSE - M 27 x 1.5. If your process requires accessories such as holders or cutting fluid, select them separately based on your setup.

Technical features

Product type: machine tap
Thread designation: M 27 x 1.5
Thread system: ISO metric
Standard: DIN 374
Tool material: HSSE
Tolerance class: ISO 2 (6H)

Frequently asked questions (FAQ)

How do you select the correct variant for your drawing Match the thread designation in the product name to the drawing and the mating fastener. Confirm thread series, pitch, and class of fit before you start, especially for inch based threads. Is this tap suitable for blind holes or through holes The suitability depends on flute geometry and lead form noted in the product name. Spiral flute execution is typically chosen for blind holes because chips are transported out of the hole. Where can you find technical background information for this tap type Use this PDF for technical notes, application limits, and terminology. Technical information machine taps as PDF Which tolerance class do you typically achieve The typical tolerance class for this execution is ISO 2 (6H) when the process is set up correctly and the hole preparation matches the thread system. Do you need cutting fluid Yes, use suitable cutting fluid for the material to reduce friction and control chip formation. Keep lubrication consistent from start to finish and clean the tool after use. Which holder should you use Use a holder that clamps the shank securely and supports straight entry. In manual work this is typically a tap wrench, and in machines a tapping chuck or a suitable collet holder. Where can you find the VÖLKEL catalog for additional variants and technical context Use the catalog for the full program and selection guidance. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	metric-fine ISO-thread
Standard	DIN 374
Form	Form C
Material	HSSE
Tolerance	ISO2 (6H)
Size	M 27 x 1.5
Overall length (L1)	140 mm
Thread length (L2)	28 mm
Core hole diameter (D1)	25.5 mm
Shank diameter (D2)	20.0 mm
Drive connector	16.0 mm
EAN	4022835394563
Item number	39456
Type of flute	straight fluted
Application	for through and blind holes
Thread standard	DIN 13
