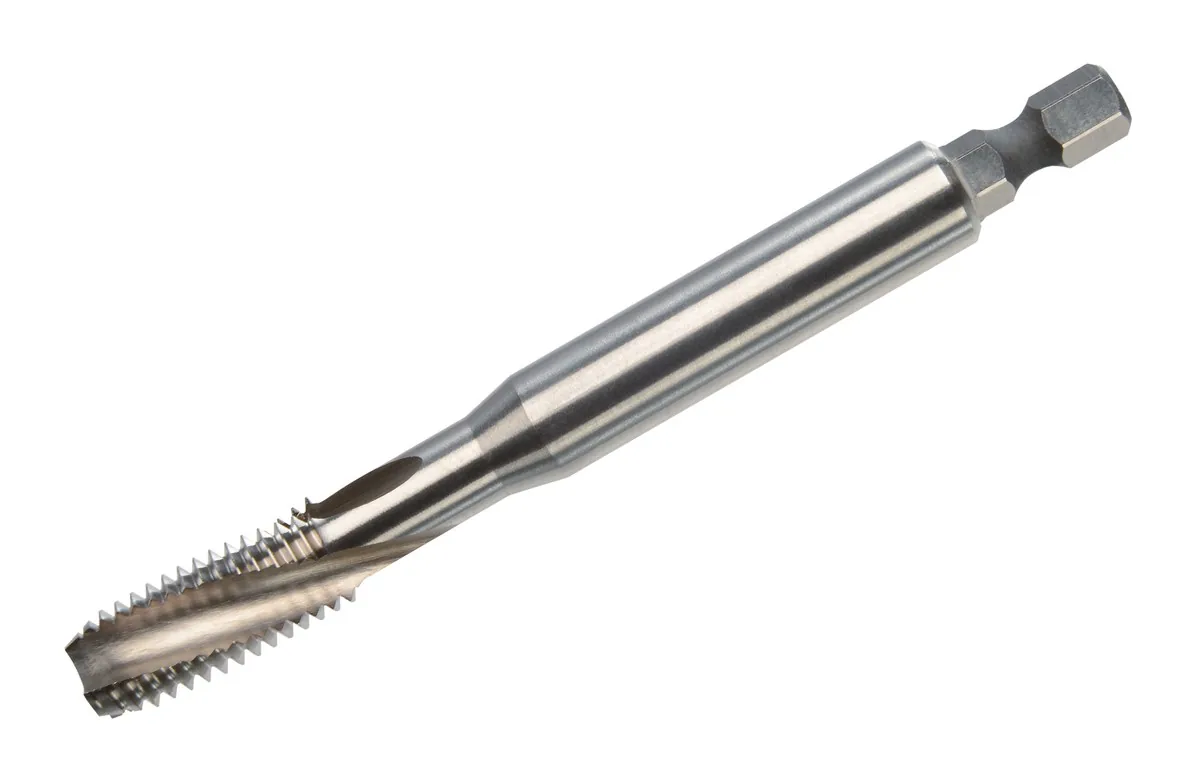

Machine Tap HexDrive DIN 371 Form C 15° RSP HSSE - M 10 x 1.5
This tool is used to cut an internal thread in a drilled hole when you need repeatable form and fit. A machine tap is used when you need repeatable threads in series production.
Tool alignment at the start influences thread straightness, torque, and final fit. M indicates an ISO metric thread, where you match nominal size and pitch to the mating thread. HSSE indicates cobalt alloyed high speed steel, commonly selected for tougher materials and stable cutting performance.
- Cut internal threads in drilled holes for fasteners, fittings, and mechanical assemblies.
- Use in mechanical engineering, metal fabrication, and maintenance work where controlled threading is required.
- Start the tap square to the hole to reduce risk of cross starting and uneven flank load.
- Process: manual driving or assisted driving depending on your holder and machine setup
- Use: thread cutting, re tapping, and thread cleaning depending on condition
Note For consistent results, deburr the entry and keep the cutting area clean during use.
- Controlled internal thread cutting with direct process feedback
- Suitable for repair work, prototyping, and general workshop machining
- Supports repeatable thread fit when the pre hole and alignment are correct
- Applicable across maintenance and production environments
Drawbacks
- Not suitable for brittle or abrasive materials without adapted cutting strategy and tool choice.
- Manual or guided threading can be slow for high throughput applications.
- Prepare the hole with a correct core diameter and a clean entry chamfer.
- Secure the workpiece and align the tool square to the hole axis.
- Apply suitable cutting lubricant for the material and process.
- Start the tool with controlled torque until it is guided by the thread form.
- Advance with steady turns or a guided feed while keeping alignment constant.
- Withdraw the tool at intervals and clear chips from the flutes.
- Continue until the required thread depth is reached, then remove the tool fully.
- Clean the thread and check fit with a matching screw or gauge.
- 1 piece Machine Tap HexDrive DIN 371 Form C 15° RSP HSSE - M 10 x 1.5
- Tool type: Machine tap
- Reference standard: DIN 371
- Thread system: ISO metric
- Material or coating: HSSE
- How do you confirm that the thread system matches the mating part?
- Match the designation on the tool to the drawing and the mating fastener or gauge. For inch and pipe threads, confirm thread family and fit class before you start machining.
- What does the designation M 10 x 1.5 mean on this tool?
- It defines the thread family and size that the tool is designed to produce or inspect. Use it only on matching parts and avoid mixing similar inch series.
- Where can you find additional technical information for this tool type?
- Use this document for further selection and application notes. Technical information machine taps as PDF
- How do the material and coating designations affect selection?
- These designations describe tool material and surface treatment. Use them to match wear resistance and toughness needs to your material and process, without changing thread geometry.
- What are common causes of poor thread quality?
- Misalignment at the start, an incorrect pre hole, or insufficient lubrication can increase torque and damage flanks. Clean chips from the tool and verify setup rigidity.
- Where can you find catalog information for this product family?
- Use the product catalog for overview tables and selection context. VD 23 catalog as PDF
