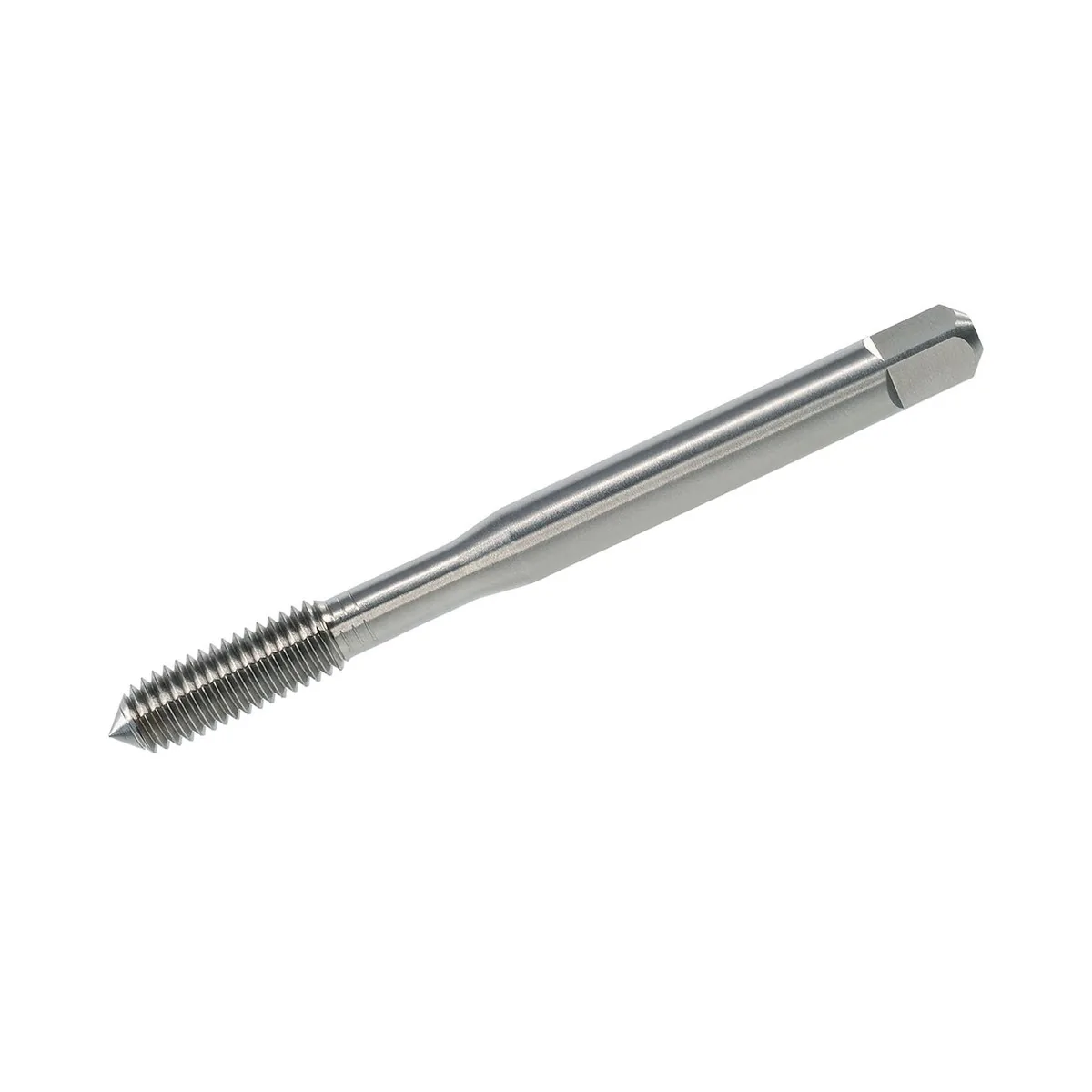

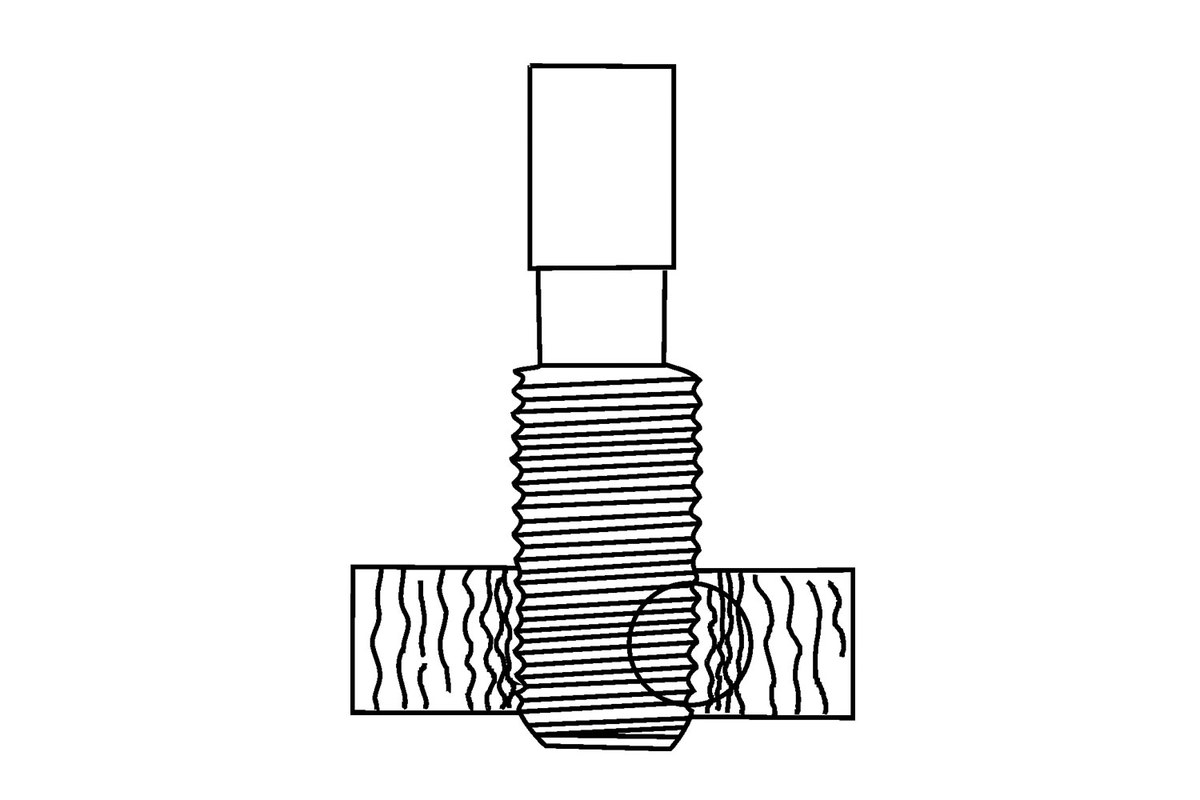

The VÖLKEL fluteless machine tap is a precision tool designed for chipless production of internal threads. Unlike cutting taps, it forms the thread profile by cold deformation of the material, creating smooth, burr-free, and durable threads with excellent dimensional accuracy.
The absence of an oil groove increases the core strength and fracture resistance of the tap. This design allows higher cutting speeds and longer tool life. The ISO 3X (6GX) tolerance class provides a slight oversize during forming, compensating for the material’s elastic recovery to achieve a perfect fit once the thread is complete.
Made from premium HSSE (High-Speed Steel with Cobalt), this tool is ideal for non-ferrous metals with good ductility such as aluminium, brass, copper, bronze, and zinc alloys, including coated materials. The Form C geometry allows use in both through and blind holes, ensuring flexibility and precision in machine applications.
Watch how a fluteless forming tap works: Video: Thread forming in action
| Thread type | Metric ISO thread DIN 13 |
| Standard | DIN 371 |
| Form | Form C (without oil groove) |
| Material | HSSE |
| Tolerance | ISO 3X / 6GX |
| Application | Chipless thread forming |

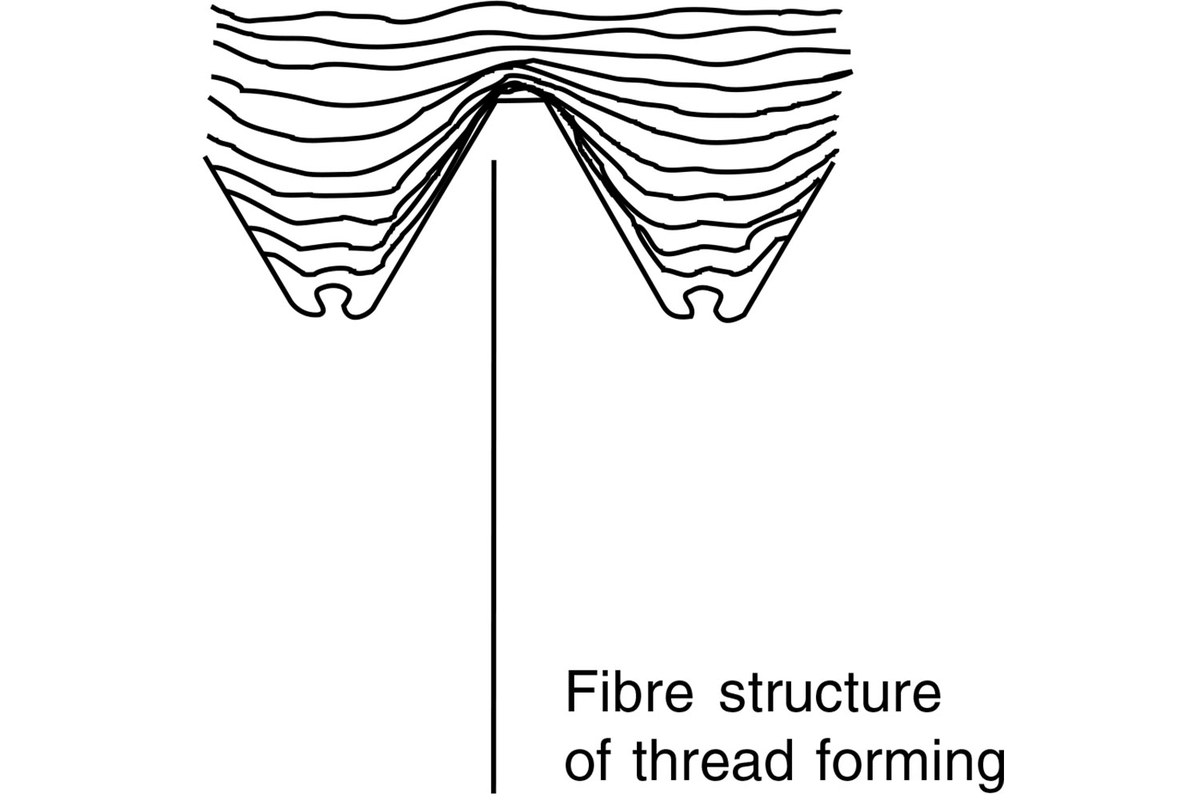

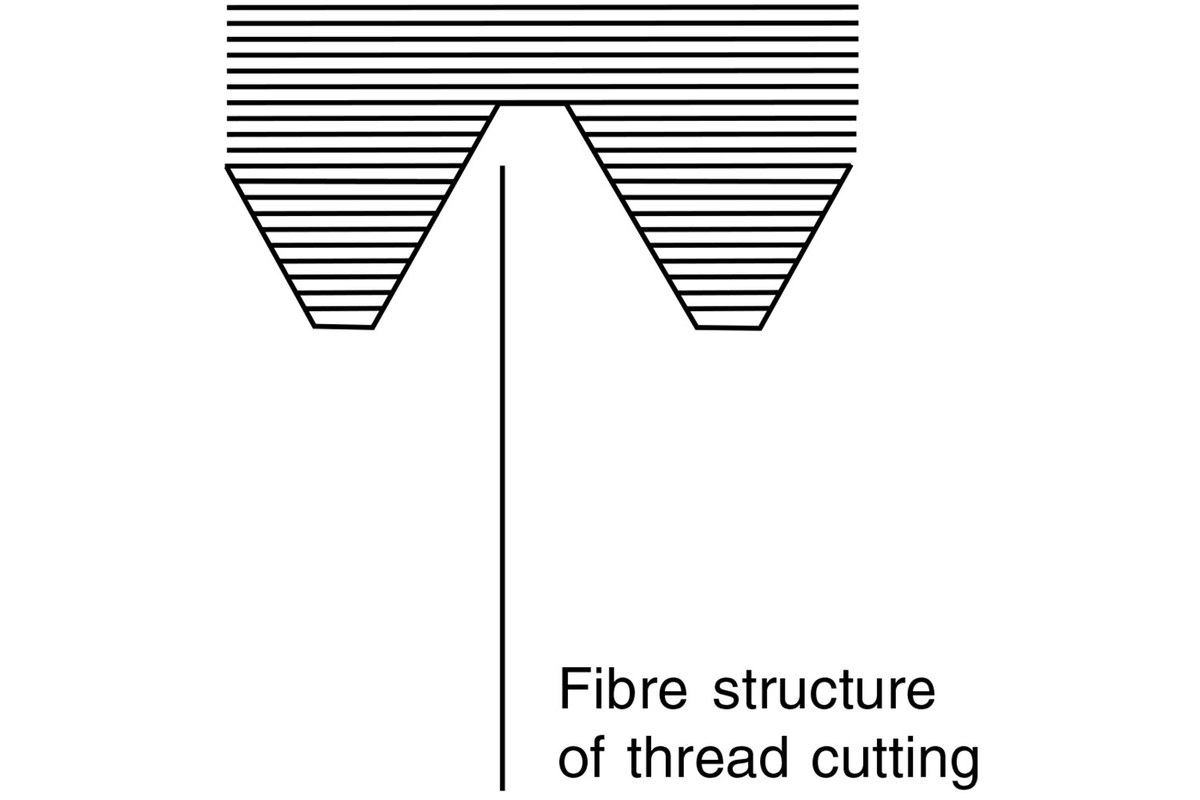

What is the difference between thread forming and cutting?
Cutting removes material to create a thread, while forming displaces material to shape it. Thread forming creates stronger, smoother threads and eliminates chip removal problems.
Why is the tap without oil groove stronger?
Without an oil groove, the tool retains more material in the shank, improving stability and reducing fracture risk under torque stress.
What does ISO3X (6GX) mean?
It indicates a slight oversize of the formed thread, which compensates for elastic recovery of the material. The result is a perfectly dimensioned finished thread.
Which materials are suitable?
Ideal for ductile non-ferrous metals such as aluminium, brass, copper, bronze and zinc alloys, and materials with surface coatings.
Can I use it for blind holes?
Yes, the Form C geometry is designed for both through and blind holes, provided proper lubrication is used.
Learn more about thread forming tools and get expert advice at our contact page.
.accordion-container {margin-top:20px;border:1px solid #e0e0e0;border-radius:5px;overflow:hidden;} .accordion-item {border-bottom:1px solid #eee;} .accordion-item:last-child {border-bottom:none;} .accordion-header {padding:15px 20px;background:#f8f8f8;cursor:pointer;display:flex;align-items:center;justify-content:space-between;font-weight:600;color:#333;} .accordion-header h3 {margin:0;font-size:1.1em;} .accordion-header::after {content:'\25BC';font-size:0.8em;transition:transform 0.2s ease;margin-left:10px;} /* ✅ correct arrow */ details[open] > summary.accordion-header::after {transform:rotate(-180deg);} .accordion-header:hover {background:#f0f0f0;} .accordion-content {padding:15px 20px;background:#fff;color:#555;line-height:1.6;} .specs-table {width:100%;border-collapse:collapse;margin-top:10px;} .specs-table td {padding:8px 10px;border-bottom:1px solid #ddd;} .specs-table td:first-child {font-weight:600;width:200px;}
| Type of thread | metric ISO-thread |
|---|---|
| Standard | DIN 371 |
| Form | Form C |
| Material | HSSE |
| Tolerance | ISO3X (6GX) |
| Size | M 6 x 1.0 |
| Overall length (L1) | 80 mm |
| Thread length (L2) | 19 mm |
| Core hole diameter (D1) | 5.55 mm |
| Shank diameter (D2) | 6.0 mm |
| Drive connector | 4.9 mm |
| Item number | 35514-6G |
| Application | for through and blind holes |
| Thread standard | DIN 13 |
