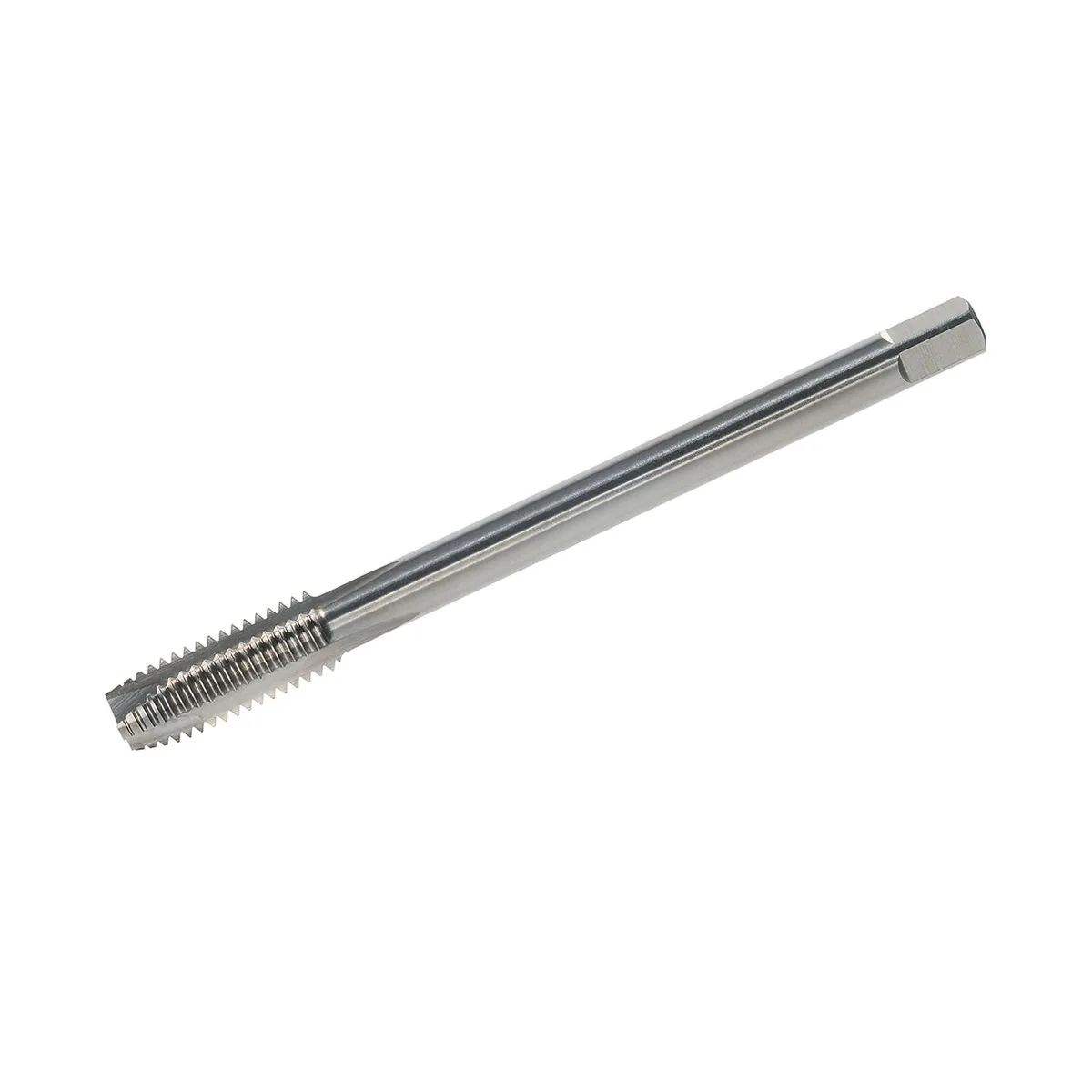

Machine Tap DIN 376 Form B HSSE left hand thread - M 22 x 2.5 LH

Name: Machine Tap DIN 376 Form B HSSE left hand thread - M 22 x 2.5 LH
Brand: VOLKEL
SKU: 34570
Price: 4178000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

Machine Tap DIN 376 Form B HSSE left hand thread - M 22 x 2.5 LH by VÖLKEL, item no. 34570, suitable for cutting internal threads.

SKU: 34570

4.178.000 đ

Price includes VAT

Description

Machine Tap DIN 376 Form B HSSE left hand thread - M 22 x 2.5 LH

Use this machine tap for internal thread production in workshop processes where repeatability and clean lead-in are required.

If you tap in series, keep cutting fluid consistent and monitor chip evacuation so the thread form stays within tolerance. The execution follows DIN 376. Form B defines the chamfer and lead-in behavior.

Application

Cut internal threads in pre-drilled holes using a controlled machine process.
Use a machine tap holder, collet system, or tapping attachment suited to the tap shank and drive.
Use the correct rotation direction for left hand threads and verify the setup before tapping.
Process: manual driving or assisted driving depending on your holder and machine setup.
Use: thread cutting, re tapping, and thread cleaning depending on condition.

Note Use cutting fluid suited to the workpiece material and keep the tool clean and protected after use.

Benefits

Enables controlled chip transport when cutting fluid and reversal are managed
Fits typical tap holding systems appropriate to the tool type
Makes selection easier by referencing standard, form, and thread designation
Reduces risk of cross-threading when the tool is started square
Helps you maintain process control across single parts and small batches

Drawbacks

Limited suitability for very hard materials unless a dedicated execution is specified
Not suitable for uncontrolled hand tapping without a guided holder

Step by step

Confirm the thread designation and ensure the workpiece hole is prepared and free of burrs.
Secure the workpiece so the hole axis is stable during the tapping cycle.
Mount the tap in a suitable machine tap holder and check that the tool runs true.
Apply cutting fluid suited to the workpiece material.
Align the tool to the hole axis before you start the tapping cycle.
Verify rotation direction for left hand threads before you engage the tap.
Run the tapping cycle with controlled feed and observe chip evacuation.
Reverse out under control when the required thread depth is reached.
Clean the thread and the tool, then protect the cutting edges for storage.

Scope of supply

Scope of supply is not specified in the provided product data for this item.

Technical features

Tool type: Machine tap
Standard: DIN 376
Chamfer form: Form B
Tool material: HSSE
Thread direction: Left hand
Thread system: ISO metric
Tolerance class: 6H

Frequently asked questions (FAQ)

When should you use a machine tap instead of a hand tap Use a machine tap when you can guide the tool with a machine spindle and a suitable tap holder, and when you want controlled feed that matches the thread pitch. What holder type do you need for this tap Use a machine tap holder, collet system, or tapping chuck that supports the tap shank and keeps alignment to the hole axis stable. What preparation is required before you tap the thread Prepare the core hole to the correct size for the thread designation, remove burrs, and add a small lead-in chamfer so the tap can start without side load. How do you control chips and cutting fluid during tapping Use cutting fluid suited to the workpiece material and clear chips regularly, especially in deeper holes or tougher materials, to prevent chip packing and tool overload. Where can you find additional technical information for this execution Use the following PDF for reference on machine tapping basics: Technical information machine taps as PDF How do you reduce risk of tap breakage Keep alignment stable, avoid side load at entry, and stop if torque rises sharply so you can inspect hole preparation, lubrication, and chip evacuation. Where can you find more product and application information in the VÖLKEL catalog Use this catalog for additional details and related items: VD 23 catalog as PDF How do you inspect the thread after tapping Check that the thread is clean, that the start is not damaged, and that the functional fit matches the mating component used in your assembly.

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	metric ISO-thread
Standard	DIN 376
Form	Form B
Material	HSSE
Tolerance	ISO2 (6H)
Size	M 22 x 2.5 LH
Overall length (L1)	140 mm
Thread length (L2)	34 mm
Core hole diameter (D1)	19.5 mm
Shank diameter (D2)	18.0 mm
Drive connector	14.5 mm
EAN	4022835345701
Item number	34570
Type of flute	straight fluted
Application	for through holes
Thread standard	DIN 13
