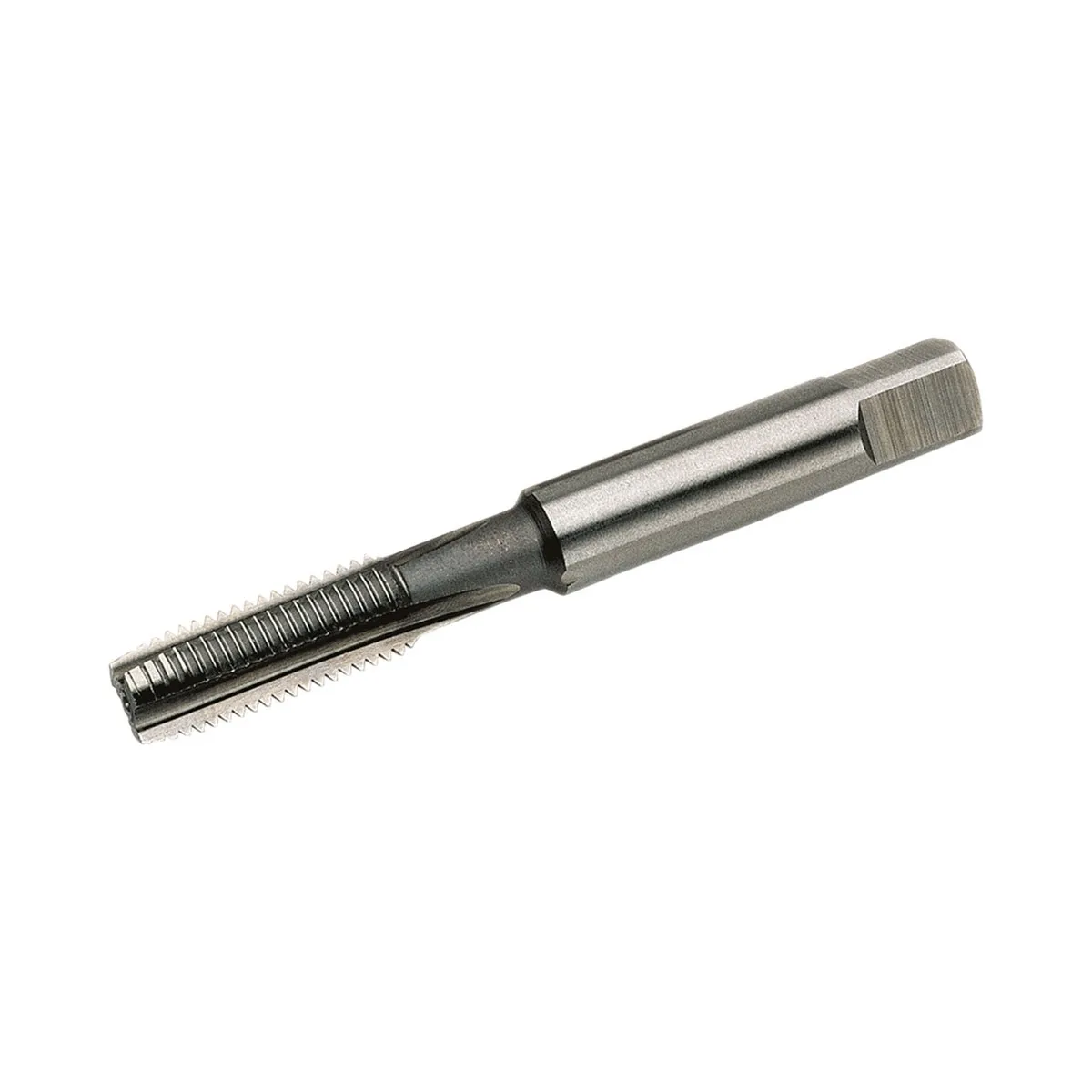

STI Short Machine Tap ISO 529 Form D HSS-G - M 4 x 0.7

Name: STI Short Machine Tap ISO 529 Form D HSS-G - M 4 x 0.7
Brand: VOLKEL
SKU: 03007
Price: 208000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

STI Short Machine Tap ISO 529 Form D HSS-G - M 4 x 0.7 by VÖLKEL, item no. 03007, suitable for cutting internal threads.

SKU: 03007

208.000 đ

Stock status: Hết hàng

Price includes VAT

Description

STI Short Machine Tap ISO 529 Form D HSS-G - M 4 x 0.7

Use this machine tap when you need consistent internal thread production for M 4 x 0.7. Select by tap type, standard, and material information shown in the product name.

Thread quality depends on alignment, lubrication, and stable process parameters. Keep the tool and work area clean and avoid forcing the tap.

Application

Produce internal or external threads as specified by the tool type in the product name.
Use in machining, maintenance, and fabrication workflows where controlled thread production is required.
Select by thread designation as stated in the product name: M 4 x 0.7.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: thread cutting, re tapping, and thread cleaning depending on condition
Use lubrication suited to the work material and keep the working area clean for stable results.
Inspect the produced thread with an appropriate method when the application is safety relevant.

Note Keep the tool or gauge clean and stored protected from impact and corrosion.

Benefits

Supports repeatable thread production in machining processes
Suitable for series work with controlled alignment and lubrication
Helps maintain thread quality when process parameters are stable
Practical for production and maintenance machining

Drawbacks

Requires stable setup and suitable chip evacuation for the tap design
Not intended for aggressive high speed use without validated cutting data

Step by step

Prepare the workpiece correctly, including core hole or lead in preparation as required.
Apply lubrication suitable for the work material and process.
Mount the tool in a suitable holder or wrench and ensure straight alignment.
Start the thread carefully and maintain stable guidance during engagement.
Remove chips and debris as needed so cutting edges remain free.
Stop if resistance increases unexpectedly and check alignment and lubrication.
After threading, clean the thread and protect the tool for storage.

Scope of supply

No scope of supply details are included in the available product data for this item.

Technical features

Product class: Threading tools
Tool type: Machine tap
Designation: M 4 x 0.7
Standard: ISO 529
Execution: Form D
Material: HSS
Surface finish: HSS-G

Frequently asked questions (FAQ)

How do you choose the correct tool variant?
Match the thread system, designation, and execution stated in the product name to your drawing requirement and work material. Select the correct tool type for manual or machine use.

Which holder or wrench do you typically need?
Hand taps typically use a tap wrench. Dies typically use a die holder. Machine taps use a suitable machine holder with controlled alignment. Confirm details by the execution stated in the product name.

How do you reduce the risk of tool breakage?
Use correct preparation, stable alignment, suitable lubrication, and controlled torque. Stop if resistance rises unexpectedly and remove chips and debris as required.

How do you maintain thread quality in practice?
Keep preparation consistent, align the tool straight, use lubrication suited to the material, and verify threads with an inspection method appropriate for the application.

Where can you find technical information for short machine taps?
Use this PDF for selection and process notes: Technical information short machine taps as PDF

What limitations should you consider?
Threading results depend on material condition, preparation, lubrication, and setup stability. Validate the process for demanding applications and high performance requirements.

Where can you find additional information in the VÖLKEL threading tools catalog?
Use the catalog for overview information and selection guidance: VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	metric ISO-thread
Standard	ISO 529
Form	Form D
Material	HSS-G
Tolerance	ISO1 (4H)
Size	M 4 x 0.7
Overall length (L1)	58 mm
Thread length (L2)	16 mm
Core hole diameter (D1)	4.2 mm
Shank diameter (D2)	5.0 mm
Diameter (B)	4.9 mm
Drive connector	4.0 mm
EAN	4022835030072
Item number	03007
Type of flute	straight fluted
Application	for through and blind holes
Thread standard	DIN 13
