HexTap - Double ended tap + round dies (set of 22 pcs.) M 3 – M 20

• for general-purpose use
• easily machinable materials up to 800 N/mm²
• unalloyed and low-alloy steels
• for through and blind holes
• for manual use
• HSS round dies according to DIN 223 (DIN EN 22568)

Advantages:

• pilot tip for precise alignment
• roughing and finishing in one tool
• ideal for hard-to-reach areas
• for cutting new threads
• for rethreading and repairing damaged threads

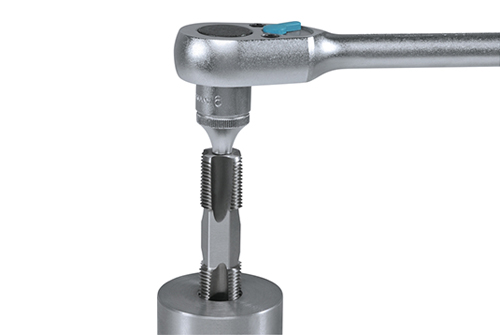

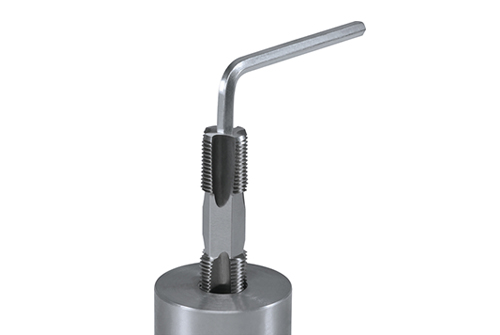

• internal hex for ratchet or angle driver

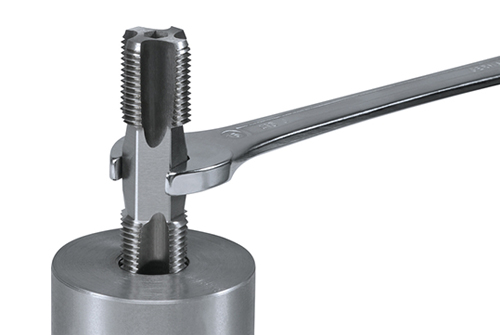

• external hex for open-end wrench
• supplied in a high-quality wooden case

1. Identify the thread:
   Determine thread size and pitch and select the appropriate HexTap tap or matching round die from the set.
2. Prepare the work area:
   Clean the bore or bolt thoroughly to ensure a straight and clean start.
3. Position the tool:
   Align the tool straight. The pilot tip helps ensure accurate positioning.
4. Cut or rethread:
   Turn evenly using a ratchet, angle driver or open-end wrench and work in a controlled manner.
5. Remove the tool:
   Unscrew the tool completely and clean the thread.
6. Check the result:
   Test the thread with a suitable screw or nut for accuracy and smooth operation.

• Thread range: M 3 – M 20
• Tool types: HexTap S & HexTap DS
• Round dies: HSS, DIN 223 (DIN EN 22568)
• Material: HSS
• Application: manual use
• Item number: 48621
• EAN: 4022835486213

• 1× Thread-cutting bit 1/4" HexTap S M 3 (67026)
• 1× Thread-cutting bit 1/4" HexTap S M 4 (67030)
• 1× Thread-cutting bit 1/4" HexTap S M 5 (67034)
• 1× Thread-cutting bit 1/4" HexTap S M 6 (67038)
• 1× Thread-cutting bit 1/4" HexTap S M 8 (67042)
• 1× Thread-cutting bit 1/4" HexTap S M 10 (67046)
• 1× Threading tool Multi-Drive HexTap DS M 12 (67050)
• 1× Threading tool Multi-Drive HexTap DS M 14 (67051)
• 1× Threading tool Multi-Drive HexTap DS M 16 (67052)
• 1× Threading tool Multi-Drive HexTap DS M 18 (67053)
• 1× Threading tool Multi-Drive HexTap DS M 20 (67054)
• 1× HSS round die M 3 (27426)
• 1× HSS round die M 4 (27430)
• 1× HSS round die M 5 (27434)
• 1× HSS round die M 6 (27438)
• 1× HSS round die M 8 (27442)
• 1× HSS round die M 10 (27446)
• 1× HSS round die M 12 (27450)
• 1× HSS round die M 14 (27454)
• 1× HSS round die M 16 (27458)
• 1× HSS round die M 18 (27462)
• 1× HSS round die M 20 (27466)

All HexTap S and HexTap DS threading tools are also available individually.

What applications is the HexTap set suitable for?

The set is designed for general use and is suitable for cutting new threads as well as rethreading and repairing damaged threads.

Which materials can be machined?

Suitable for easily machinable materials up to 800 N/mm², especially unalloyed and low-alloy steels.

Can the set be used for blind holes?

Yes, the taps can be used in both through and blind holes.

Do I need special holders?

No. The internal hex allows use with a ratchet or angle driver, and the external hex can be used with an open-end wrench.

Are the round dies standardized?

Yes, the round dies comply with DIN 223 (DIN EN 22568).

Can individual tools be reordered?

Yes, all HexTap S and HexTap DS threading tools are also available individually.
